LH80VH-QDLMT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

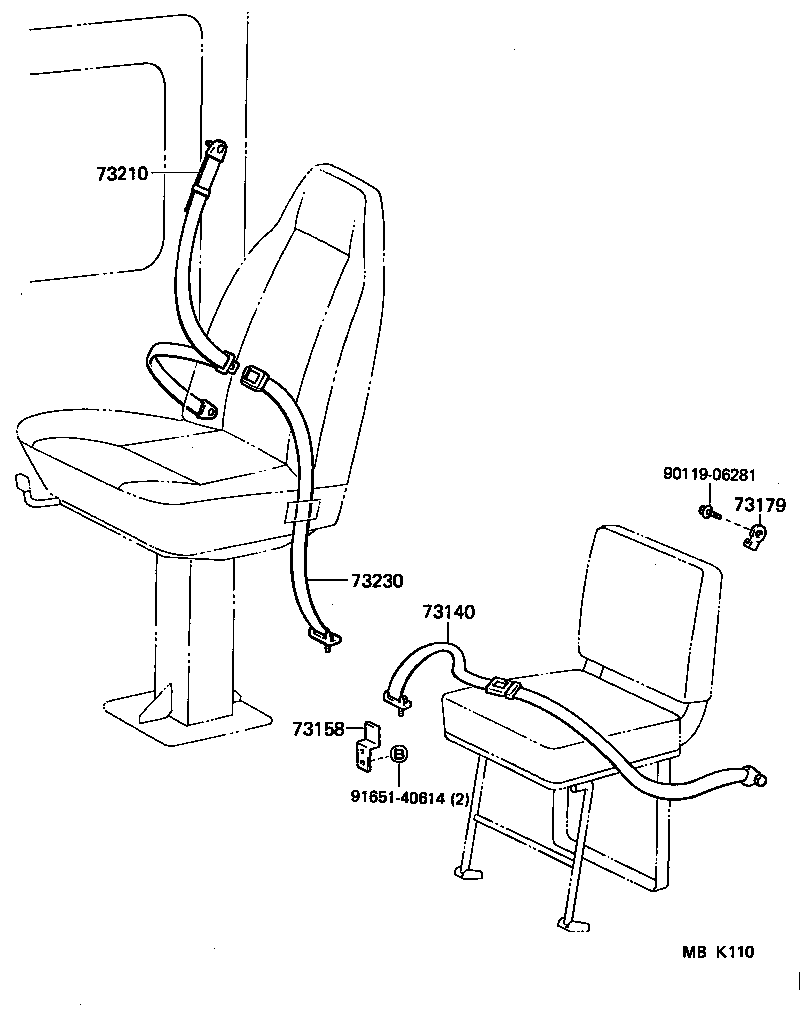

diagram 73140 73158 73179 73210 73230 9011906281 9165140614
Part # Description Qty Price
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
73140-90D01

LH80

 1
73140-90D0206

LH8#

BROWN,TRIM4#

 1
73140-90D0206

LH8#

BROWN,BROWN,TRIM4#

 1
73158 - BRACKET, SEAT BELT GUIDE SET
73158-90D00

LH8#

 1
73179 - HANGER, FRONT SEAT LAP BELT, LH
73181-90D00

LH8#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90D0106

LH8#

BROWN,TRIM4#

 1
73210-90D00

LH80

 1
73210-90D0106

LH8#

BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90D02

LH80

 1
73230-26070E0

LH8#

BROWN,TRIM4#

 1
73230-90D0306

LH8#

BROWN,TRIM4#

 1
73230-90D0306

LH8#

BROWN,BROWN,TRIM4#

 1
Common parts
90119-06281
91651-40614

(8708- )

Click highlighted areas on diagram

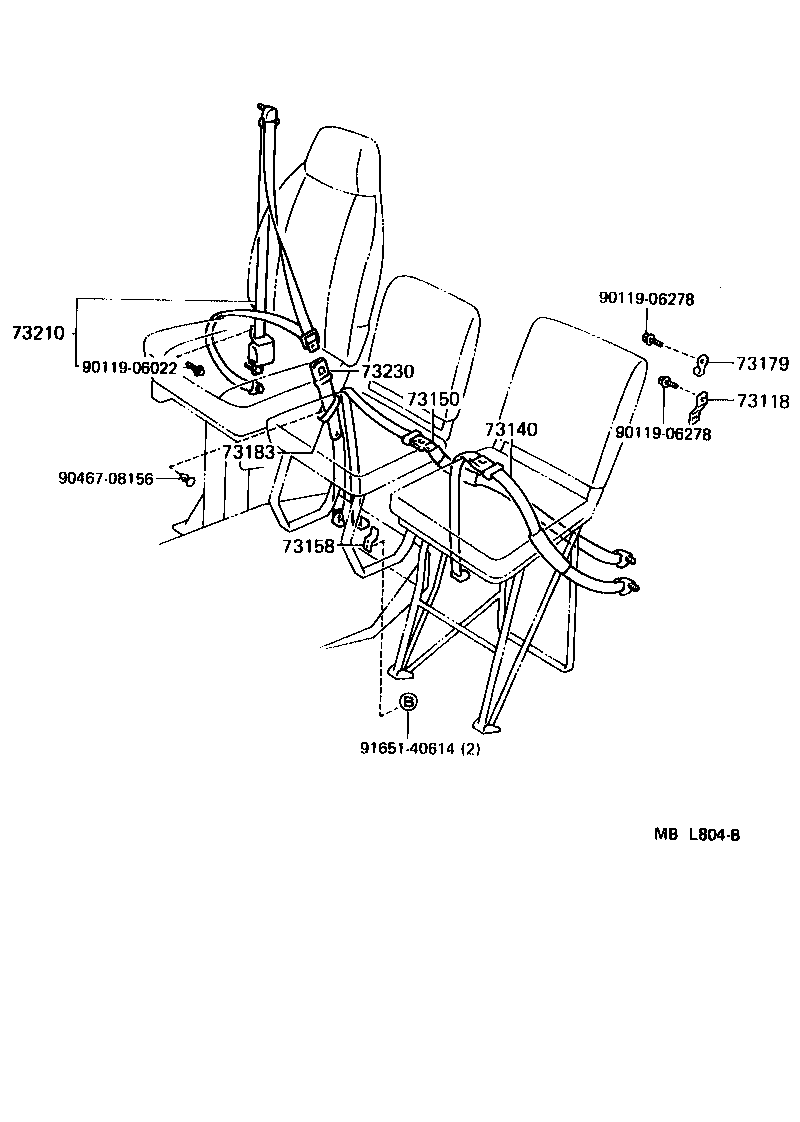

diagram 73118 73140 73150 73158 73179 73183 73210 73230 9011906022 9011906278 9011906278 9046708156 9165140614
Part # Description Qty Price
73118 - PLATE, BELT SUPPORT
73118-90D00

LH80

 1
73140 - BELT ASSY, FRONT SEAT LAP TYPE, LH
73140-90D01

LH80

 1
73140-90D0206

LH8#

BROWN,TRIM4#

 1
73140-90D0206

LH8#

BROWN,BROWN,TRIM4#

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73150-90D0006

LH80

BROWN,TRIM4#

 1
73150-90D0006

LH80

BROWN,BROWN,TRIM4#

 1
73158 - BRACKET, SEAT BELT GUIDE SET
73158-90D00

LH8#

 1
73179 - HANGER, FRONT SEAT LAP BELT, LH
73181-90D00

LH8#

 1
73183 - GUIDE, FRONT SEAT LAP BELT, INNER
73183-90D00

LH80..D

 1
73183-90D00

LH80

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90D0106

LH8#

BROWN,TRIM4#

 1
73210-90D00

LH80

 1
73210-90D0106

LH8#

BROWN,BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90D02

LH80

 1
73230-26070E0

LH8#

BROWN,TRIM4#

 1
73230-90D0306

LH8#

BROWN,TRIM4#

 1
73230-90D0306

LH8#

BROWN,BROWN,TRIM4#

 1
Common parts
90119-06022
90119-06278
90467-08156
91651-40614
