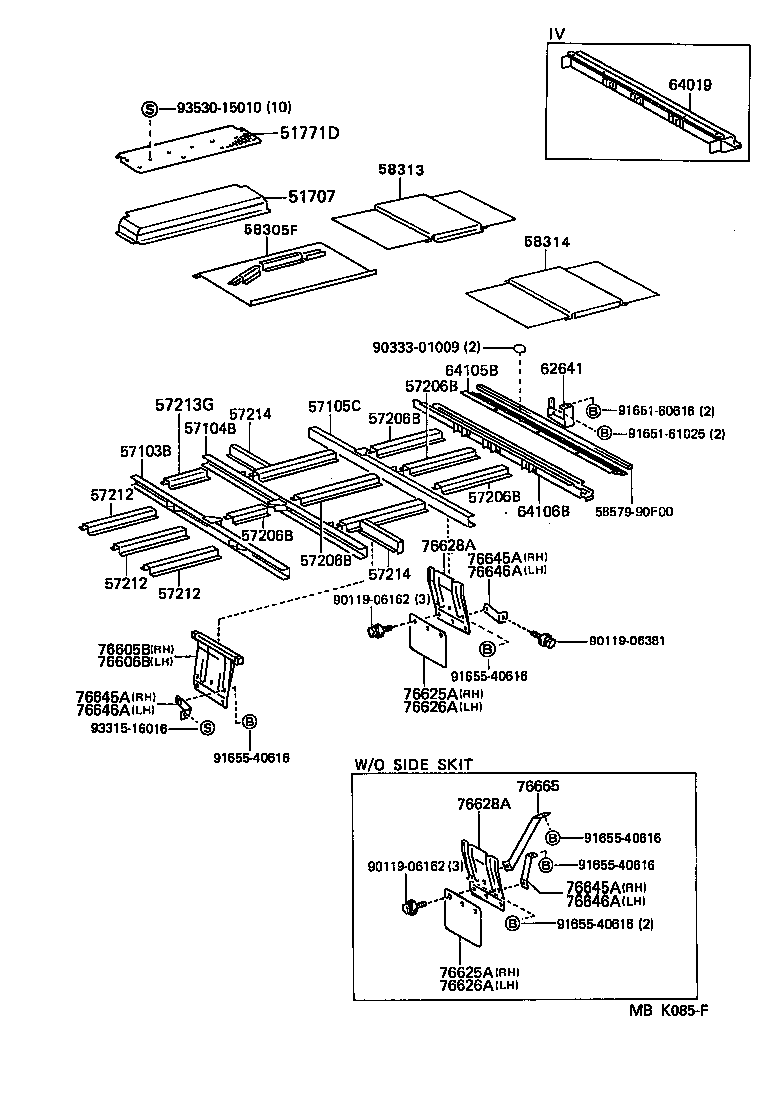

LH80VH-QDLMT (1985)
Toyota Hiace Quick Delivery
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57103B - CROSSMEMBER SUB-ASSY, FLOOR, NO.3 | ||||
| 57103-90D06 |
LH8# |
1 | ||
| 57104B - CROSSMEMBER SUB-ASSY, FLOOR, NO.4 | ||||
| 57104-90D04 |
LH8#..3D;LH80..IV |
1 | ||
| 57105C - CROSSMEMBER SUB-ASSY, FLOOR, NO.5 | ||||
| 57105-90D03 |
LH80..IV;LH80..3D |
1 | ||
| 57206B - STRENGTH SUB-ASSY, ANCHOR | ||||
| 57206-90D04 |
LH80..3D FR |
1 | ||
| 57215-90D04 |
LH8# ﾘﾔ |
1 | ||
| 57206-90D05 |
LH80..3D RR,SIDE -LH |
1 | ||
| 57215-90D04 |
LH8# RR,SIDE -RH |
2 | ||
| 57206-90D06 |
LH8#..CBU CTR |
1 | ||
| 57206B - STRENGTH SUB-ASSY, ANCHOR | ||||
| 57206-90D04 |
LH80..3D FR |
1 | ||
| 57215-90D04 |
LH8# ﾘﾔ |
1 | ||
| 57206-90D05 |
LH80..3D RR,SIDE -LH |
1 | ||
| 57215-90D04 |
LH8# RR,SIDE -RH |
2 | ||
| 57206-90D06 |
LH8#..CBU CTR |
1 | ||
| 57206B - STRENGTH SUB-ASSY, ANCHOR | ||||
| 57206-90D04 |
LH80..3D FR |
1 | ||
| 57215-90D04 |
LH8# ﾘﾔ |
1 | ||
| 57206-90D05 |
LH80..3D RR,SIDE -LH |
1 | ||
| 57215-90D04 |
LH8# RR,SIDE -RH |
2 | ||
| 57206-90D06 |
LH8#..CBU CTR |
1 | ||
| 57206B - STRENGTH SUB-ASSY, ANCHOR | ||||
| 57206-90D04 |
LH80..3D FR |
1 | ||
| 57215-90D04 |
LH8# ﾘﾔ |
1 | ||
| 57206-90D05 |
LH80..3D RR,SIDE -LH |
1 | ||
| 57215-90D04 |
LH8# RR,SIDE -RH |
2 | ||
| 57206-90D06 |
LH8#..CBU CTR |
1 | ||
| 57206B - STRENGTH SUB-ASSY, ANCHOR | ||||
| 57206-90D04 |
LH80..3D FR |
1 | ||
| 57215-90D04 |
LH8# ﾘﾔ |
1 | ||
| 57206-90D05 |
LH80..3D RR,SIDE -LH |
1 | ||
| 57215-90D04 |
LH8# RR,SIDE -RH |
2 | ||
| 57206-90D06 |
LH8#..CBU CTR |
1 | ||
| 57212 - STRENGTH, ANCHOR, NO.2 | ||||
| 57201-26010 |
LH80..3D NO.1 |
3 | ||
| 57212-90D02 |
LH8# |
3 | ||
| 57212-90D02 |
LH80..3D NO.2 |
3 | ||
| 57212 - STRENGTH, ANCHOR, NO.2 | ||||
| 57201-26010 |
LH80..3D NO.1 |
3 | ||
| 57212-90D02 |
LH8# |
3 | ||
| 57212-90D02 |
LH80..3D NO.2 |
3 | ||
| 57212 - STRENGTH, ANCHOR, NO.2 | ||||
| 57201-26010 |
LH80..3D NO.1 |
3 | ||
| 57212-90D02 |
LH8# |
3 | ||
| 57212-90D02 |
LH80..3D NO.2 |
3 | ||
| 57214 - STRENGTH, ANCHOR, NO.4 | ||||
| 57214-90D02 |
LH8#..CBU |
3 | ||
| 57214 - STRENGTH, ANCHOR, NO.4 | ||||
| 57214-90D02 |
LH8#..CBU |
3 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-90D02 |
LH8# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58313-90D02 |
LH8#..3D;LH80..IV |
1 | ||
| 62641 - STEP, REAR | ||||
| 52351-90D05 |
LH80..1T |
1 | ||
| 64105B - RAIL SUB-ASSY, LOWER BACK, OUTER | ||||
| 64105-90D06 |
LH8#..3D |
1 | ||
| 64105-90D10 |
LH8#..3D |
1 | ||
| 64105-26010 |
LH8#..3D |
1 | ||
| 64105-90D06 |
LH8#..3D |
1 | ||
| 64106B - RAIL SUB-ASSY, LOWER BACK, INNER | ||||
| 64106-90D11 |
LH8#..CBU |
1 | ||
| 64106-90D09 |
LH8#..CBU |
1 | ||
| 64106-90D06 |
LH8#..CBU |
1 | ||
| 76605B - MUDGUARD SUB-ASSY, REAR BODY, FRONT RH | ||||
| 76605-90D04 |
LH8# |
1 | ||
| 76606B - MUDGUARD SUB-ASSY, REAR BODY, FRONT LH | ||||
| 76606-90D02 |
LH8# |
1 | ||
| 76628A - MUDGUARD, REAR BODY, REAR | ||||
| 76628-90D02 |
LH8# |
2 | ||
| 76628-90D04 |
LH80 |
2 | ||
| 76628-90D02 |
LH80 |
2 | ||
| 76628A - MUDGUARD, REAR BODY, REAR | ||||
| 76628-90D02 |
LH8# |
2 | ||
| 76628-90D04 |
LH80 |
2 | ||
| 76628-90D02 |
LH80 |
2 | ||
| 76645A - BRACKET, REAR BODY MUDGUARD NO.1, RH | ||||
| 76647-90D05 |
LH8#..D |
1 | ||
| 76645-90D01 |
LH80..D..CBU ｱﾘ(ｻｲﾄﾞ ｽｶ-ﾄ) |
2 | ||
| 76645-90D01 |
LH80 W/SIDE SKIRT |
2 | ||
| 76645A - BRACKET, REAR BODY MUDGUARD NO.1, RH | ||||
| 76647-90D05 |
LH8#..D |
1 | ||
| 76645-90D01 |
LH80..D..CBU ｱﾘ(ｻｲﾄﾞ ｽｶ-ﾄ) |
2 | ||
| 76645-90D01 |
LH80 W/SIDE SKIRT |
2 | ||
| 76645A - BRACKET, REAR BODY MUDGUARD NO.1, RH | ||||
| 76647-90D05 |
LH8#..D |
1 | ||
| 76645-90D01 |
LH80..D..CBU ｱﾘ(ｻｲﾄﾞ ｽｶ-ﾄ) |
2 | ||
| 76645-90D01 |
LH80 W/SIDE SKIRT |
2 | ||
| 76646A - BRACKET, REAR BODY MUDGUARD NO.1, LH | ||||
| 76646-90D01 |
LH80 W/SIDE SKIRT |
2 | ||
| 76646-90D01 |
LH80..D..CBU ｱﾘ(ｻｲﾄﾞ ｽｶ-ﾄ) |
2 | ||
| 76648-90D00 |
LH8#..D |
1 | ||
| 76646A - BRACKET, REAR BODY MUDGUARD NO.1, LH | ||||
| 76646-90D01 |
LH80 W/SIDE SKIRT |
2 | ||
| 76646-90D01 |
LH80..D..CBU ｱﾘ(ｻｲﾄﾞ ｽｶ-ﾄ) |
2 | ||
| 76648-90D00 |
LH8#..D |
1 | ||
| 76646A - BRACKET, REAR BODY MUDGUARD NO.1, LH | ||||
| 76646-90D01 |
LH80 W/SIDE SKIRT |
2 | ||
| 76646-90D01 |
LH80..D..CBU ｱﾘ(ｻｲﾄﾞ ｽｶ-ﾄ) |
2 | ||
| 76648-90D00 |
LH8#..D |
1 | ||
| 76665 - BRACE, REAR MUDGUARD | ||||
| 76665-90D00 |
LH8#..D |
2 | ||
| Common parts | ||||
| 58579-90F00 | ||||
| 90119-06162 | ||||
| 90119-06381 | ||||
| 90333-01009 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91655-40616 | ||||
| 93315-16016 | ||||
| 93530-15010 | ||||
