LH80VH-QDLMT (1985)

Toyota Hiace Quick Delivery

Production Aug 1985 - May 1995
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )2L..LH80 ; (8910- )2L..LH85

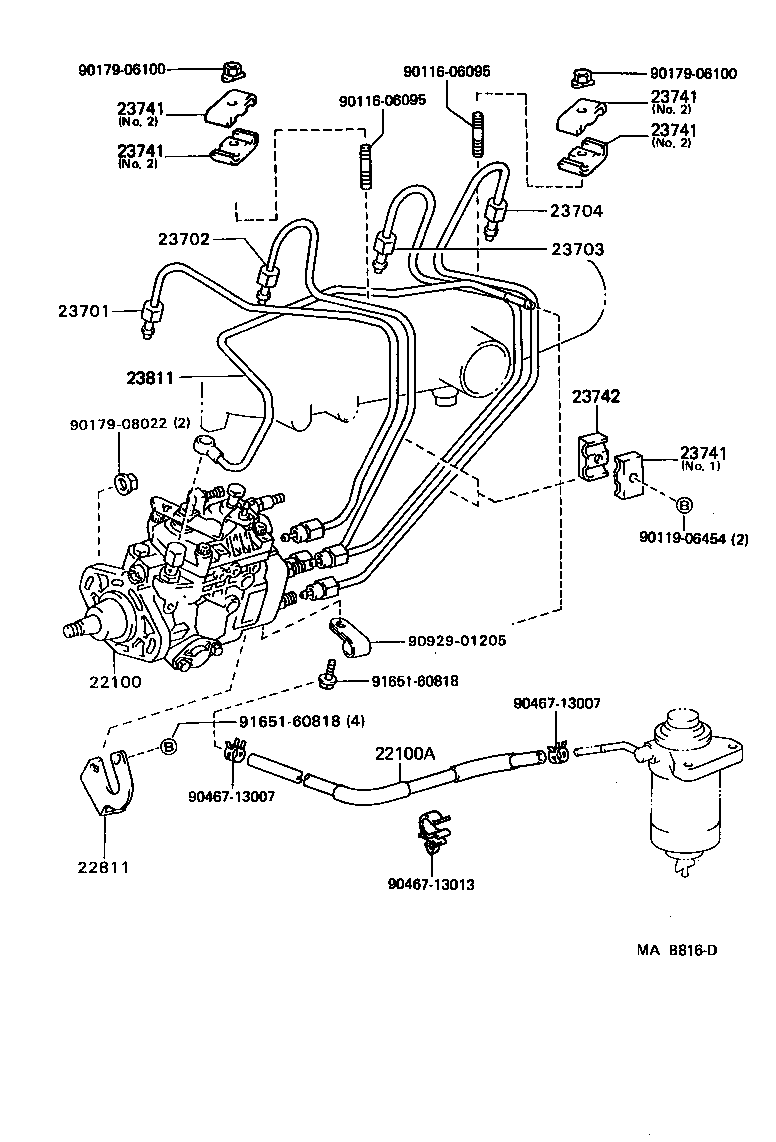

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741 23741 23742 23811 9011606095 9011606095 9011906454 9017906100 9017906100 9017908022 9046713007 9046713007 9046713013 9092901205 9165160818 9165160818
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54730

2L..LH80..5H

 1
22100-54311

2L..LH8#..5H

 1
22100-54310

2L..LH80..5H

 1
22100-54730

2L..LH8#..5H

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14060

2L..LH8#

長さ=550

 1
90447-14060

2L..LH80

長さ=550

 1
90447-14042

2L..LH8#

長さ=370

 1
90447-14042

2L..LH8#

長さ=370

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54040

2L..LH8#

 1
22811-54041

2L..LH8#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54110

2L..LH80

 1
23701-54140

2L..LH8#

 1
23701-54082

2L..LH8#

 1
23701-54140

2L..LH80

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54081

2L..LH8#

 1
23702-54140

2L..LH80

 1
23702-54140

2L..LH8#

 1
23702-54110

2L..LH80

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54090

2L..LH80

 1
23703-54100

2L..LH8#

 1
23703-54050

2L..LH8#

 1
23703-54091

2L..LH80

 1
23703-54100

2L..LH80

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

2L..LH80

 1
23704-54050

2L..LH8#

 1
23704-54100

2L..LH8#

 1
23704-54090

2L..LH80

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

2L..LH8#

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54140

2L..LH8#

 1
23811-54160

2L..LH80

 1
23811-54120

2L..LH80..5H

 1
23811-54160

2L..LH8#

 1
Common parts
90116-06095
90119-06454
90179-06100
90179-08022
90467-13007
90467-13013
90929-01205
91651-60818

(8508-8808) ; (8808-8910)2L..LH85

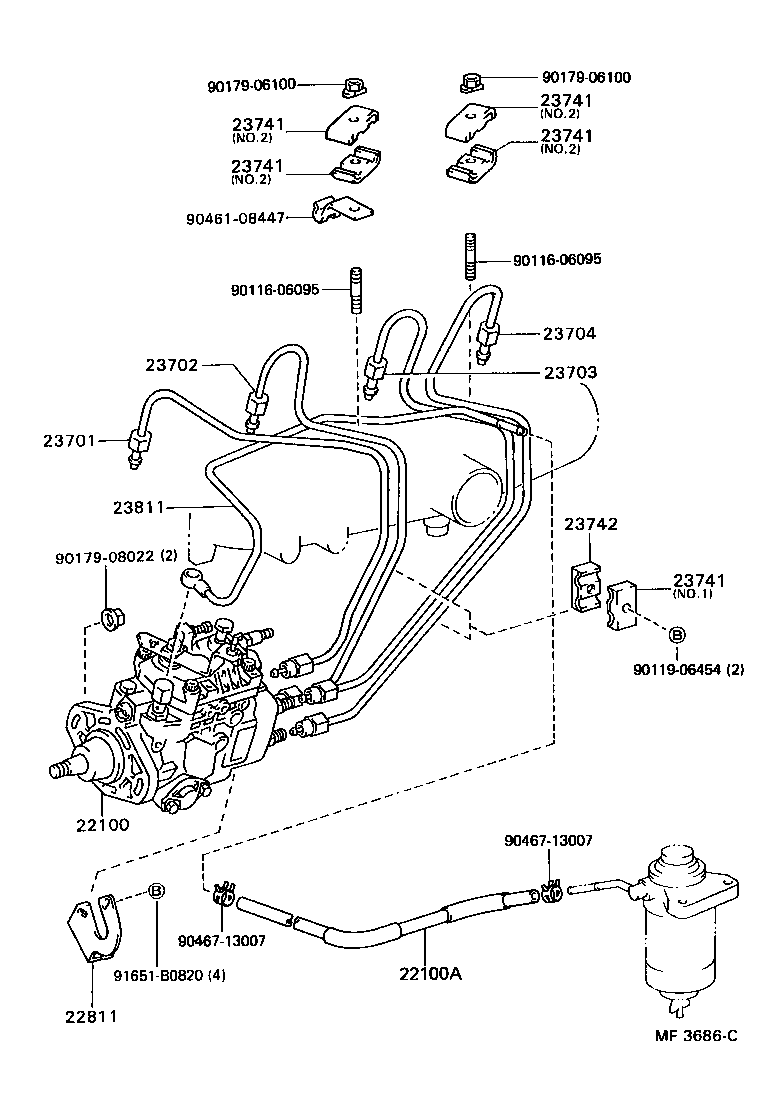

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741 23741 23742 23811 9011606095 9011606095 9011906454 9017906100 9017906100 9017908022 9046108447 9046713007 9046713007 91651B0820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54730

2L..LH80..5H

 1
22100-54311

2L..LH8#..5H

 1
22100-54310

2L..LH80..5H

 1
22100-54730

2L..LH8#..5H

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14060

2L..LH8#

長さ=550

 1
90447-14060

2L..LH80

長さ=550

 1
90447-14042

2L..LH8#

長さ=370

 1
90447-14042

2L..LH8#

長さ=370

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54040

2L..LH8#

 1
22811-54041

2L..LH8#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54110

2L..LH80

 1
23701-54140

2L..LH8#

 1
23701-54082

2L..LH8#

 1
23701-54140

2L..LH80

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54081

2L..LH8#

 1
23702-54140

2L..LH80

 1
23702-54140

2L..LH8#

 1
23702-54110

2L..LH80

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54090

2L..LH80

 1
23703-54100

2L..LH8#

 1
23703-54050

2L..LH8#

 1
23703-54091

2L..LH80

 1
23703-54100

2L..LH80

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

2L..LH80

 1
23704-54050

2L..LH8#

 1
23704-54100

2L..LH8#

 1
23704-54090

2L..LH80

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

2L..LH8#

N0.1

 2
23741-56010

2L..LH8#

NO.2

 4
23741-54010

2L..LH80

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-54010

2L..LH8#

NO.1

 2
23741-56010

2L..LH8#

NO.2

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

2L..LH8#

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54140

2L..LH8#

 1
23811-54160

2L..LH80

 1
23811-54120

2L..LH80..5H

 1
23811-54160

2L..LH8#

 1
Common parts
90116-06095
90119-06454
90179-06100
90179-08022
90461-08447
90467-13007
91651-B0820
