LH24HV-QDLTF (1984)
Toyota Hiace Quick Delivery
Production
Jan 1984
-
Jul 1985
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

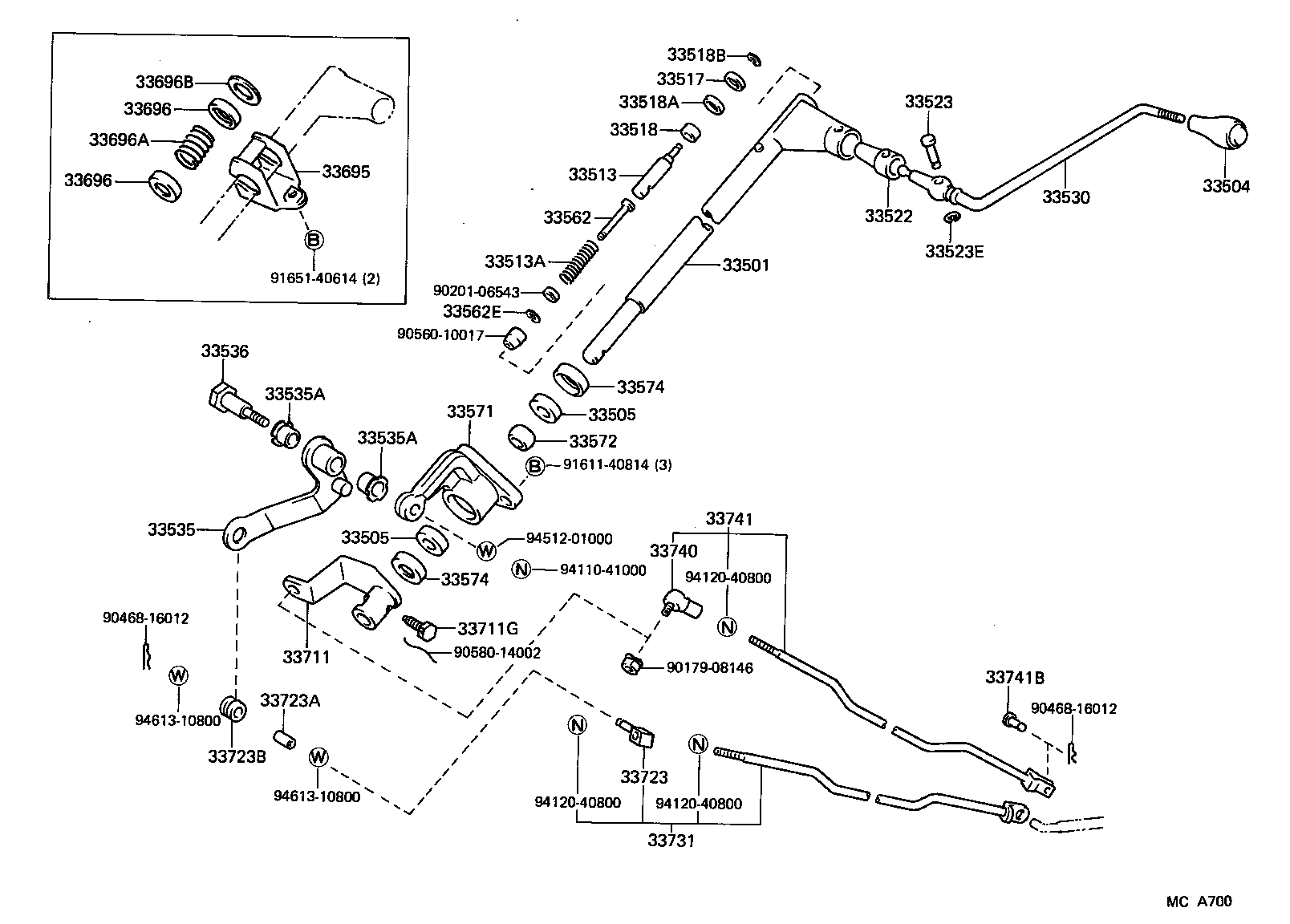

ILLUST NO. 1 OF 2(8401- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-26110 |
LH24 |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
LH24 |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
LH24 |
2 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 90303-17005 |
LH24 |
2 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-36020 |
LH24 |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14395 |
LH24 |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
LH24 |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-36010 |
LH24 |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
LH24 |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LH24 |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-35010 |
LH24 |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07001 |
LH24 |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
LH24 |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-26030 |
LH24 |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-26020 |
LH24 |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LH24 |
2 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LH24 |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-25010 |
LH24 |
1 | ||
| 33562 - STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT | ||||
| 33562-36010 |
LH24 |
1 | ||
| 33562E - RING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER) | ||||
| 96160-00300 |
LH24 |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-26012 |
LH24 |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-36010 |
LH24 |
1 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH24 |
2 | ||
| 33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 33574-25010 |
LH24 |
2 | ||
| 33695 - COVER, SELECTING SPRING (FOR COLUMN SHIFT) | ||||
| 33695-26010 |
LH24 |
1 | ||
| 33696 - SEAT, SELECT SPRING | ||||
| 33696-26010 |
LH24 |
2 | ||
| 33696 - SEAT, SELECT SPRING | ||||
| 33696-26010 |
LH24 |
2 | ||
| 33696A - SPRING, COMPRESSION | ||||
| 90501-26013 |
LH24 |
1 | ||
| 33696B - PLATE, SELECT RETURN | ||||
| 33255-26010 |
LH24 |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-26050 |
LH24 |
1 | ||
| 33711G - BOLT, CONTROL SHAFT LEVER LOCK | ||||
| 33218-35010 |
LH24 |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-10020 |
LH24 |
1 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LH24 |
1 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LH24 |
1 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33720-26020 |
LH24 |
1 | ||
| 33720-26021 |
LH24 |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
LH24 |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-26070 |
LH24 |
1 | ||
| 33710-26071 |
LH24 |
1 | ||
| 33741B - PIN, W/HOLE (FOR COLUMN SHIFTING ROD) | ||||
| 90240-08094 |
LH24 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-06543 | ||||
| 90468-16012 | ||||
| 90560-10017 | ||||
| 90580-14002 | ||||
| 91611-40814 | ||||
| 91651-40614 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||

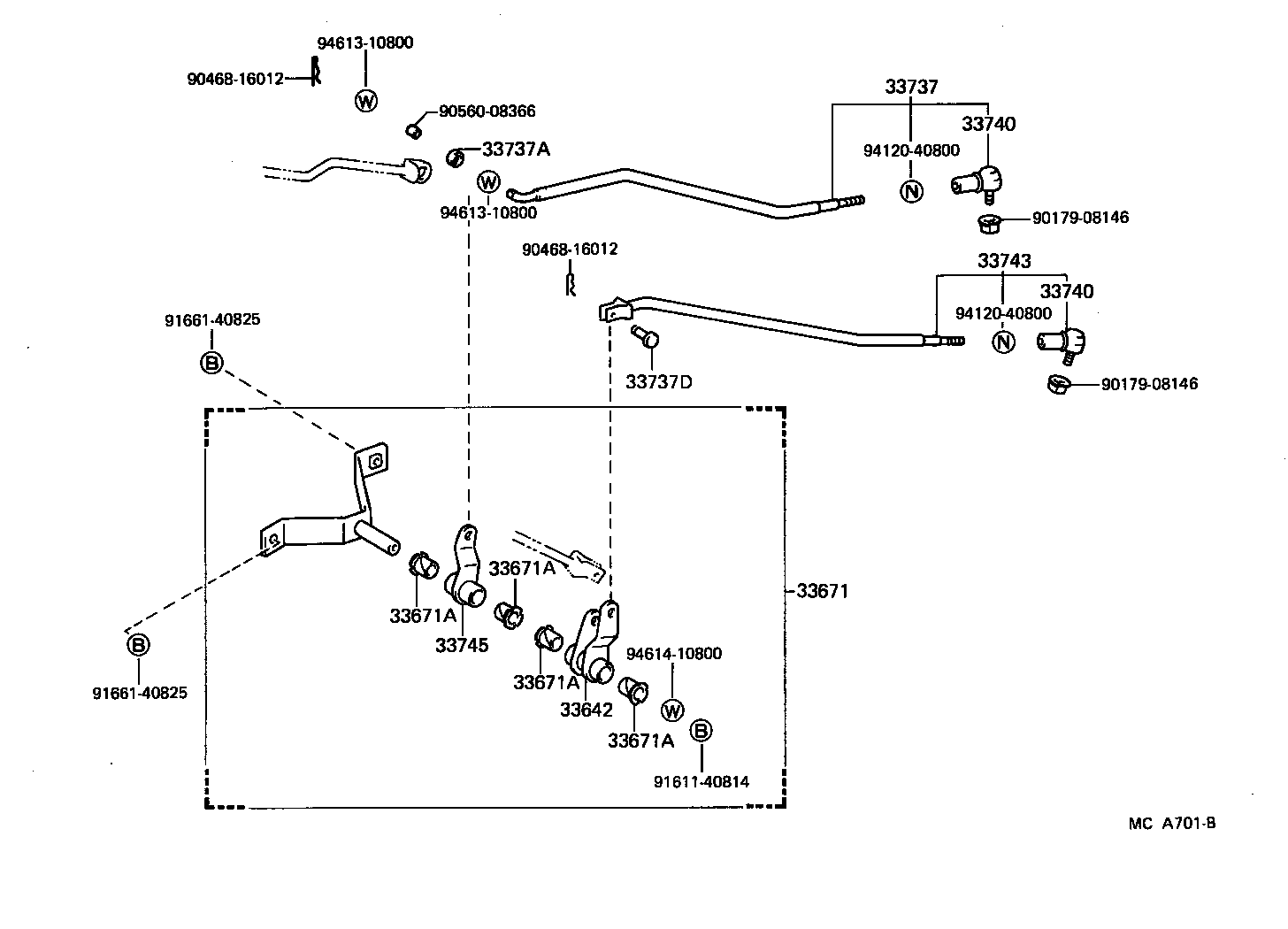

ILLUST NO. 2 OF 2(8401- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33642 - LEVER, GEAR SELECTING, NO.2 | ||||
| 33643-26070 |
LH24 |
1 | ||
| 33643-26071 |
LH24 |
1 | ||
| 33671 - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33670-26281 |
LH24 |
1 | ||
| 33670-26280 |
LH24 |
1 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH24 |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH24 |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH24 |
4 | ||
| 33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT) | ||||
| 90386-13007 |
LH24 |
4 | ||
| 33737 - ROD, GEAR SELECTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33850-26010 |
LH24 |
1 | ||
| 33850-26050 |
LH24 |
1 | ||
| 33737A - BUSH (FOR GEAR SELECTING ROD NO.3) | ||||
| 90385-10063 |
LH24 |
1 | ||
| 33737D - PIN, W/HOSE (FOR GEAR SELECTING ROD NO.3) | ||||
| 90240-08094 |
LH24 |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
LH24 |
1 | ||
| 33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT) | ||||
| 33740-35011 |
LH24 |
1 | ||
| 33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT) | ||||
| 33840-26100 |
LH24 |
1 | ||
| 33840-26050 |
LH24 |
1 | ||
| 33745 - LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT) | ||||
| 33749-26071 |
LH24 |
1 | ||
| 33749-26070 |
LH24 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90468-16012 | ||||
| 90560-08366 | ||||
| 91611-40814 | ||||
| 91661-40825 | ||||
| 94120-40800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
