LH24HV-QDLT (1982)
Toyota Hiace Quick Delivery
Production
May 1982
-
Jul 1985
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

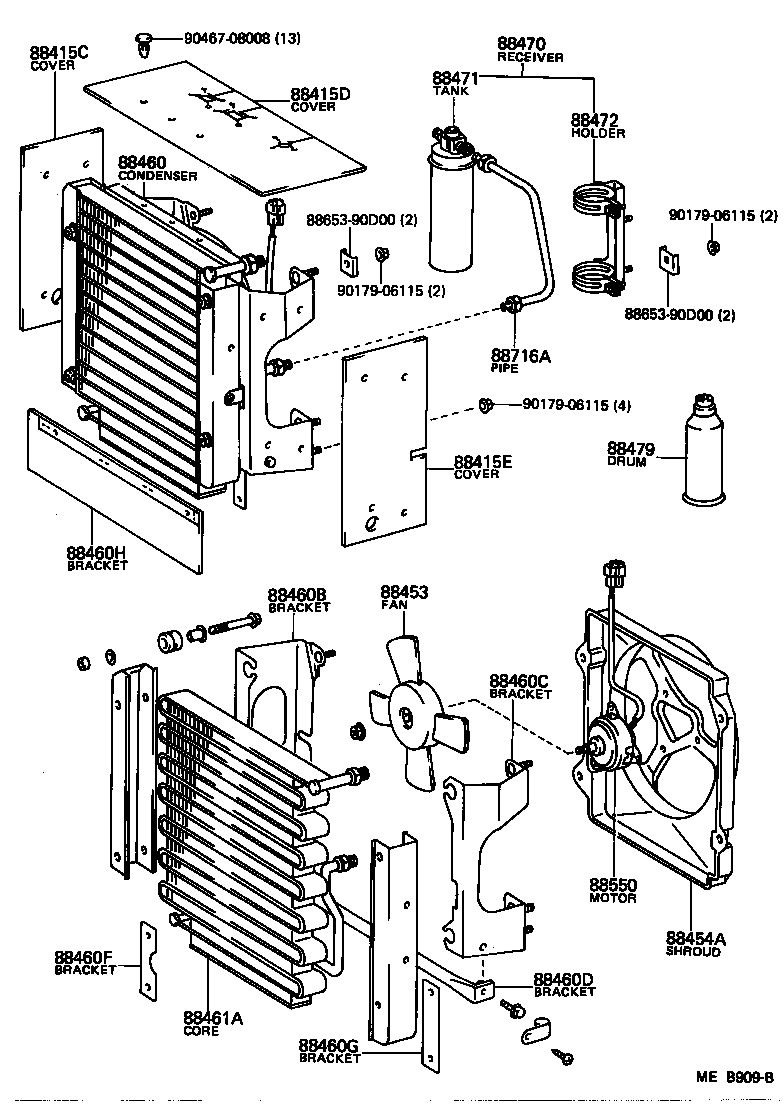

ILLUST NO. 1 OF 2(8205-8401)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88415C - COVER, DUST, NO.1 | ||||
| 88363-90D00 |
LH24 |
1 | ||
| 88415D - COVER, DUST, NO.2 | ||||
| 88363-90D01 |
LH24 |
1 | ||
| 88415E - COVER, DUST, NO.3 | ||||
| 88363-90D02 |
LH24 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
LH24 |
1 | ||
| 88453-95A01 |
LH24 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16020 |
LH24 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-90D00 |
LH24 |
1 | ||
| 88460-90D01 |
LH24 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-90D03 |
LH24 |
1 | ||
| 88409-90D05 |
LH24 |
1 | ||
| 88409-90D00 |
LH24 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88409-90D01 |
LH24 |
1 | ||
| 88409-90D04 |
LH24 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88409-90D02 |
LH24 |
1 | ||
| 88463-90D00 |
LH24 |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88438-90D00 |
LH24 |
1 | ||
| 88463-90D01 |
LH24 |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88438-90D01 |
LH24 |
1 | ||
| 88688-95A14 |
LH24 |
1 | ||
| 88463-90D02 |
LH24 |
1 | ||
| 88460H - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88362-90D01 |
LH24 |
1 | ||
| 88362-90D00 |
LH24 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-16020 |
LH24 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-90D00 |
LH24 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88470-14010 |
LH24 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-90D00 |
LH24 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LH24 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95A02 |
LH24 |
1 | ||
| 88550-16020 |
LH24 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-90D10 |
LH24 |
1 | ||
| 88716-90D05 |
LH24 |
1 | ||
| Common parts | ||||
| 88653-90D00 | ||||
| 90179-06115 | ||||
| 90467-08008 | ||||

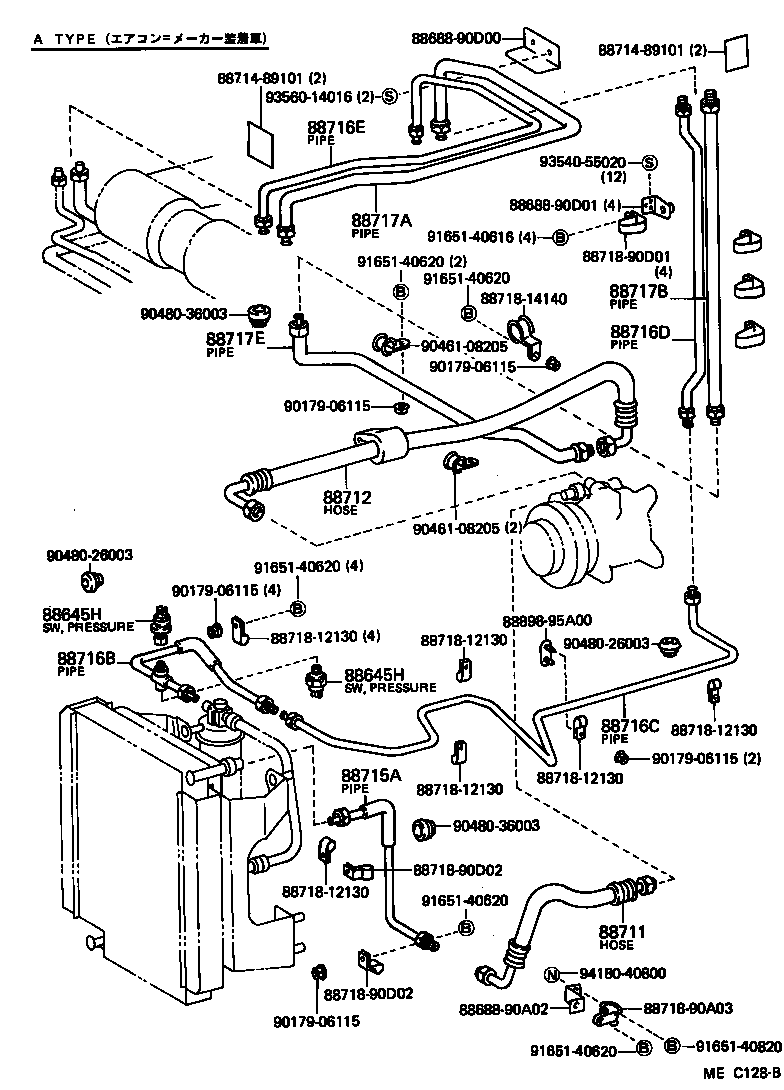

ILLUST NO. 2 OF 2(8205- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95A00 |
LH24 HIGH |
1 | ||
| 88645-90D00 |
LH24 HIGH |
1 | ||
| 88645-12020 |
LH24 LOW |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95A00 |
LH24 HIGH |
1 | ||
| 88645-90D00 |
LH24 HIGH |
1 | ||
| 88645-12020 |
LH24 LOW |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95706 |
LH24 |
1 | ||
| 88711-90D01 |
LH24 |
1 | ||
| 88711-90D02 |
LH24 B TYPE |
1 | ||
| 88711-90D01 |
LH24 A TYPE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-90D00 |
LH24 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-90D01 |
LH24 B TYPE |
1 | ||
| 88715-90D00 |
LH24 A TYPE |
1 | ||
| 88715-90D02 |
LH24 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-90D06 |
LH24 |
1 | ||
| 88716-90D03 |
LH24 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-90D07 |
LH24 |
1 | ||
| 88716-90D04 |
LH24 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-90D02 |
LH24 A TYPE |
1 | ||
| 88716-90D09 |
LH24 B TYPE |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-90D00 |
LH24 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-90D01 |
LH24 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-90D02 |
LH24 A TYPE |
1 | ||
| 88717-90D04 |
LH24 B TYPE |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-90D03 |
LH24 |
1 | ||
| Common parts | ||||
| 88688-90A02 | ||||
| 88688-90D00 | ||||
| 88688-90D01 | ||||
| 88714-89101 | ||||
| 88718-12130 | ||||
| 88718-14140 | ||||
| 88718-90A03 | ||||
| 88718-90D01 | ||||
| 88718-90D02 | ||||
| 88898-95A00 | ||||
| 90179-06115 | ||||
| 90461-08205 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91651-40820 | ||||
| 93540-55020 | ||||
| 93560-14016 | ||||
| 94180-40800 | ||||

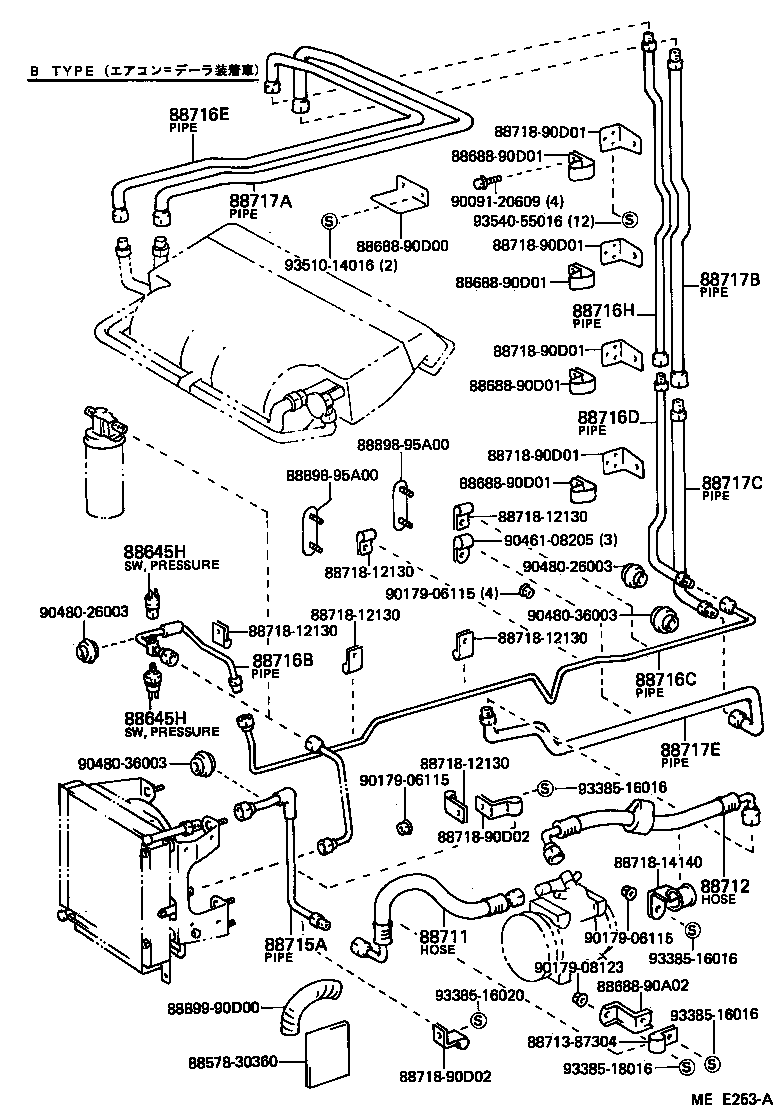

ILLUST NO. 2 OF 2(8306- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95A00 |
LH24 HIGH |
1 | ||
| 88645-90D00 |
LH24 HIGH |
1 | ||
| 88645-12020 |
LH24 LOW |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-95A00 |
LH24 HIGH |
1 | ||
| 88645-90D00 |
LH24 HIGH |
1 | ||
| 88645-12020 |
LH24 LOW |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95706 |
LH24 |
1 | ||
| 88711-90D01 |
LH24 |
1 | ||
| 88711-90D02 |
LH24 B TYPE |
1 | ||
| 88711-90D01 |
LH24 A TYPE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-90D00 |
LH24 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-90D01 |
LH24 B TYPE |
1 | ||
| 88715-90D00 |
LH24 A TYPE |
1 | ||
| 88715-90D02 |
LH24 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-90D06 |
LH24 |
1 | ||
| 88716-90D03 |
LH24 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-90D07 |
LH24 |
1 | ||
| 88716-90D04 |
LH24 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-90D02 |
LH24 A TYPE |
1 | ||
| 88716-90D09 |
LH24 B TYPE |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-90D00 |
LH24 |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-90D08 |
LH24 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-90D01 |
LH24 |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-90D02 |
LH24 A TYPE |
1 | ||
| 88717-90D04 |
LH24 B TYPE |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-90D05 |
LH24 |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-90D03 |
LH24 |
1 | ||
| Common parts | ||||
| 88578-30360 | ||||
| 88688-90A02 | ||||
| 88688-90D00 | ||||
| 88688-90D01 | ||||
| 88713-87304 | ||||
| 88718-12130 | ||||
| 88718-14140 | ||||
| 88718-90D01 | ||||
| 88718-90D02 | ||||
| 88898-95A00 | ||||
| 88899-90D00 | ||||
| 90091-20609 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90461-08205 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93510-14016 | ||||
| 93540-55016 | ||||

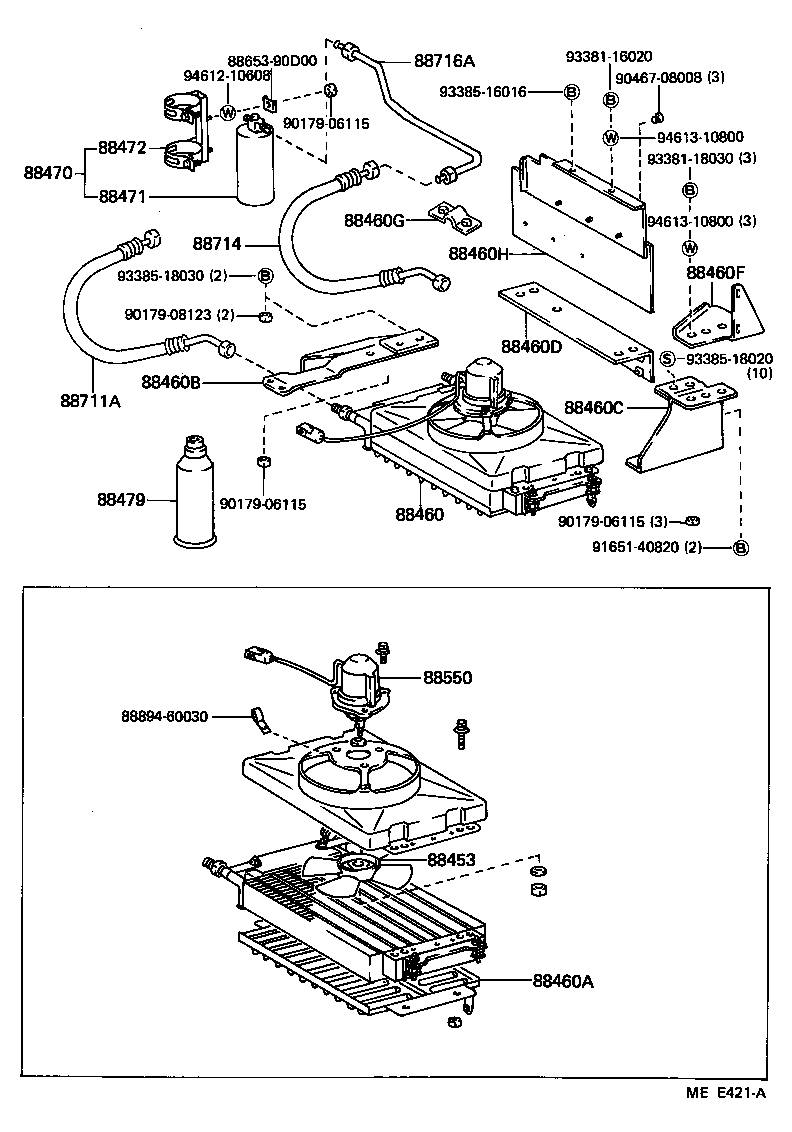

ILLUST NO. 1 OF 2(8401- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-16010 |
LH24 |
1 | ||
| 88453-95A01 |
LH24 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-90D00 |
LH24 |
1 | ||
| 88460-90D01 |
LH24 |
1 | ||
| 88460A - COVER, COOLER CONDENSER | ||||
| 88890-95A00 |
LH24 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-90D03 |
LH24 |
1 | ||
| 88409-90D05 |
LH24 |
1 | ||
| 88409-90D00 |
LH24 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88409-90D01 |
LH24 |
1 | ||
| 88409-90D04 |
LH24 |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88409-90D02 |
LH24 |
1 | ||
| 88463-90D00 |
LH24 |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88438-90D00 |
LH24 |
1 | ||
| 88463-90D01 |
LH24 |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88438-90D01 |
LH24 |
1 | ||
| 88688-95A14 |
LH24 |
1 | ||
| 88463-90D02 |
LH24 |
1 | ||
| 88460H - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88362-90D01 |
LH24 |
1 | ||
| 88362-90D00 |
LH24 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-90D00 |
LH24 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88470-14010 |
LH24 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88473-90D00 |
LH24 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LH24 400G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-95A02 |
LH24 |
1 | ||
| 88550-16020 |
LH24 |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-90D03 |
LH24 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95J01 |
LH24 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-90D10 |
LH24 |
1 | ||
| 88716-90D05 |
LH24 |
1 | ||
| Common parts | ||||
| 88653-90D00 | ||||
| 88894-60030 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 90467-08008 | ||||
| 91651-40820 | ||||
| 93381-16020 | ||||
| 93381-18030 | ||||
| 93385-16016 | ||||
| 93385-18020 | ||||
| 93385-18030 | ||||
| 94612-10608 | ||||
| 94613-10800 | ||||
