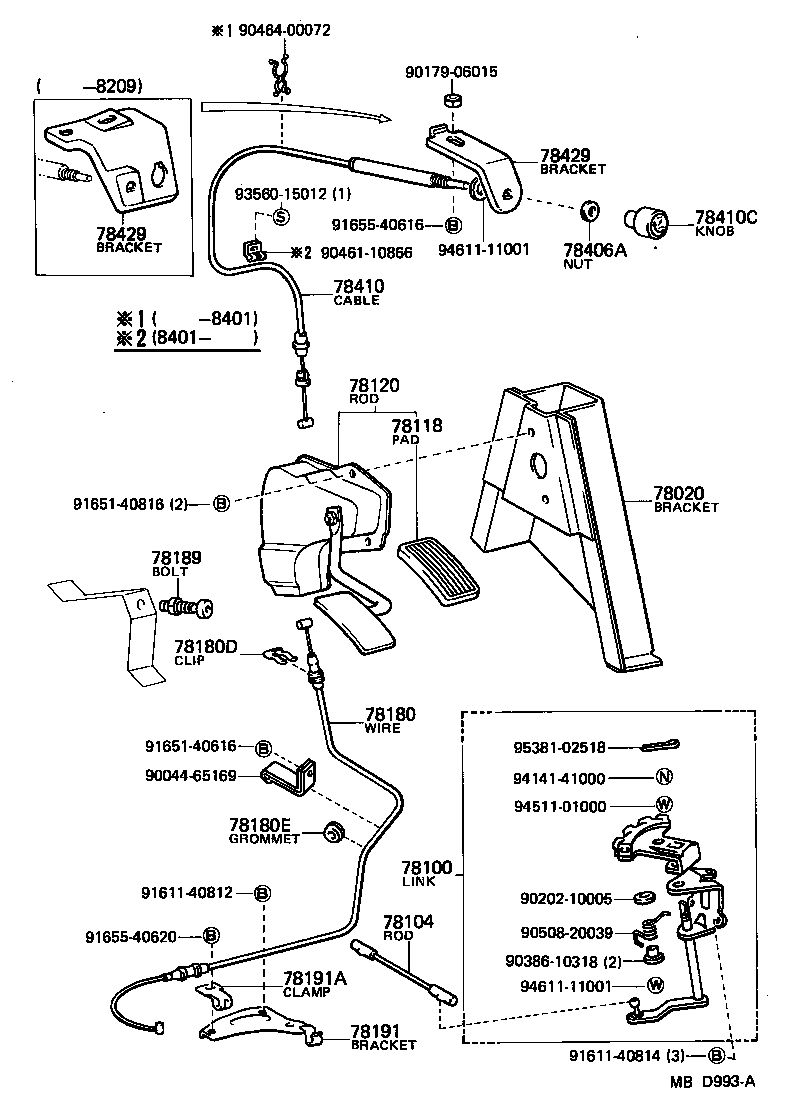

Toyota Hiace quick delivery LH24 ACCELERATOR LINK

Part #	Description	Period	Qty
78020 - BRACKET ASSY, ACCELERATOR CONTROL
78011-90D00	LH24	05/1982 - 09/1982	1
78114-90D01	LH24	09/1982 - 01/1984	1
78114-90D02	LH24	01/1984 - 07/1985	1
78100 - LINK ASSY, ACCELERATOR
78100-95A02	LH24	05/1982 - 07/1985	1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120	LH24	05/1982 - 07/1985	1
78118 - PAD, ACCELERATOR PEDAL
78119-95A01	LH24	05/1982 - 07/1985	1
78120 - ROD, ACCELERATOR LINK
78120-90D00	LH24	01/1984 - 07/1985	1
78180 - WIRE ASSY, ACCELERATOR
78150-90D00	LH24	05/1982 - 07/1985	1
78180D - CLIP (FOR ACCELERATOR WIRE)
90468-06044	LH24	05/1982 - 07/1985	1
78180E - GROMMET (FOR ACCELERATOR WIRE)
90480-20030	LH24	05/1982 - 07/1985	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00	LH24	05/1982 - 07/1985	1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78109-95A02	LH24	05/1982 - 07/1985	1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
90461-10434	LH24	05/1982 - 07/1985	1
78406A - NUT, HOLDER (FOR THROTTLE BUTTON)
78413-95A00	LH24	05/1982 - 07/1985	1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90D01	LH24	01/1984 - 07/1985	1
78401-95A00	LH24	05/1982 - 01/1984	1
78410C - KNOB, THROTTLE CABLE
78402-95400	LH24	05/1982 - 07/1985	1
78429 - BRACKET, THROTTLE ROD
55354-95A01	LH24	05/1982 - 09/1982	1
78442-90302	LH24	09/1982 - 07/1985	1
78429 - BRACKET, THROTTLE ROD
55354-95A01	LH24	05/1982 - 09/1982	1
78442-90302	LH24	09/1982 - 07/1985	1
Common parts
90044-65169
90179-06015
90202-10005
90386-10318
90461-10866
90464-00072
90508-20039
91611-40812
91611-40814
91651-40616
91651-40816
91655-40616
91655-40620
93560-15012
94141-41000
94511-01000
94611-11001
95381-02518

LH24HV-QDLT (1982)

(8205- )
