LH24HV-QDLT (1982)
Toyota Hiace Quick Delivery
Production
May 1982
-
Jul 1985
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )

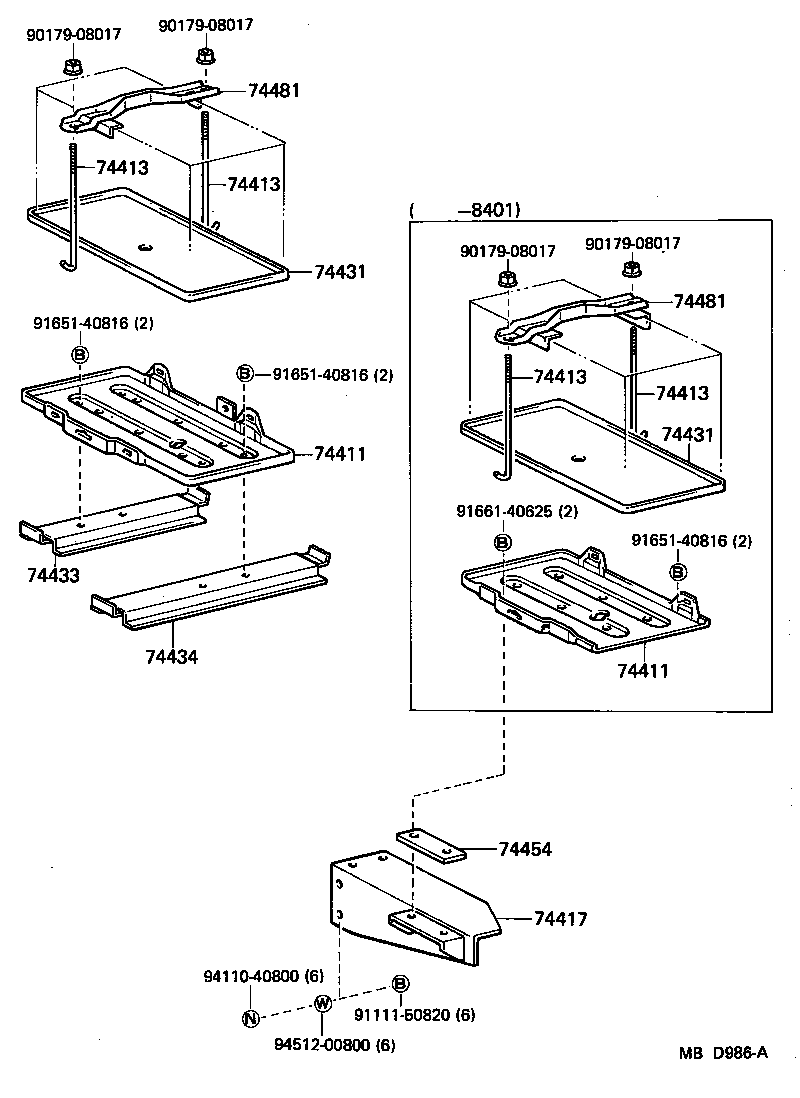

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411 - CARRIER, BATTERY | ||||
| 74431-90A00 |
LH24 |
1 | ||
| 74431-90D00 |
LH24 COLD SPEC |
1 | ||
| 74431-90D03 |
LH24 COLD SPEC |
1 | ||
| 74431-90D02 |
LH24 |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74431-90A00 |
LH24 |
1 | ||
| 74431-90D00 |
LH24 COLD SPEC |
1 | ||
| 74431-90D03 |
LH24 COLD SPEC |
1 | ||
| 74431-90D02 |
LH24 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-90A00 |
LH24 |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-90A00 |
LH24 |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-90A00 |
LH24 |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-90A00 |
LH24 |
2 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-26040 |
LH24 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-30010 |
LH24 COLD SPEC |
1 | ||
| 74431-14040 |
LH24 |
1 | ||
| 74431 - TRAY, BATTERY | ||||
| 74431-30010 |
LH24 COLD SPEC |
1 | ||
| 74431-14040 |
LH24 |
1 | ||
| 74433 - SUPPORT, BATTERY TRAY, RH | ||||
| 74433-90D00 |
LH24 |
1 | ||
| 74434 - SUPPORT, BATTERY TRAY, LH | ||||
| 74434-90D00 |
LH24 |
1 | ||
| 74454 - SHIM (FOR BATTERY CARRIER SUPPORT) | ||||
| 53154-60010 |
LH24 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90A00 |
LH24 |
1 | ||
| 74404-90D00 |
LH24 |
1 | ||
| 74404-90D01 |
LH24 COLD SPEC |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-90A00 |
LH24 |
1 | ||
| 74404-90D00 |
LH24 |
1 | ||
| 74404-90D01 |
LH24 COLD SPEC |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 91111-50820 | ||||
| 91651-40816 | ||||
| 91661-40625 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
