LH24HV-QDLT (1982)
Toyota Hiace Quick Delivery
Production
May 1982
-
Jul 1985
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )

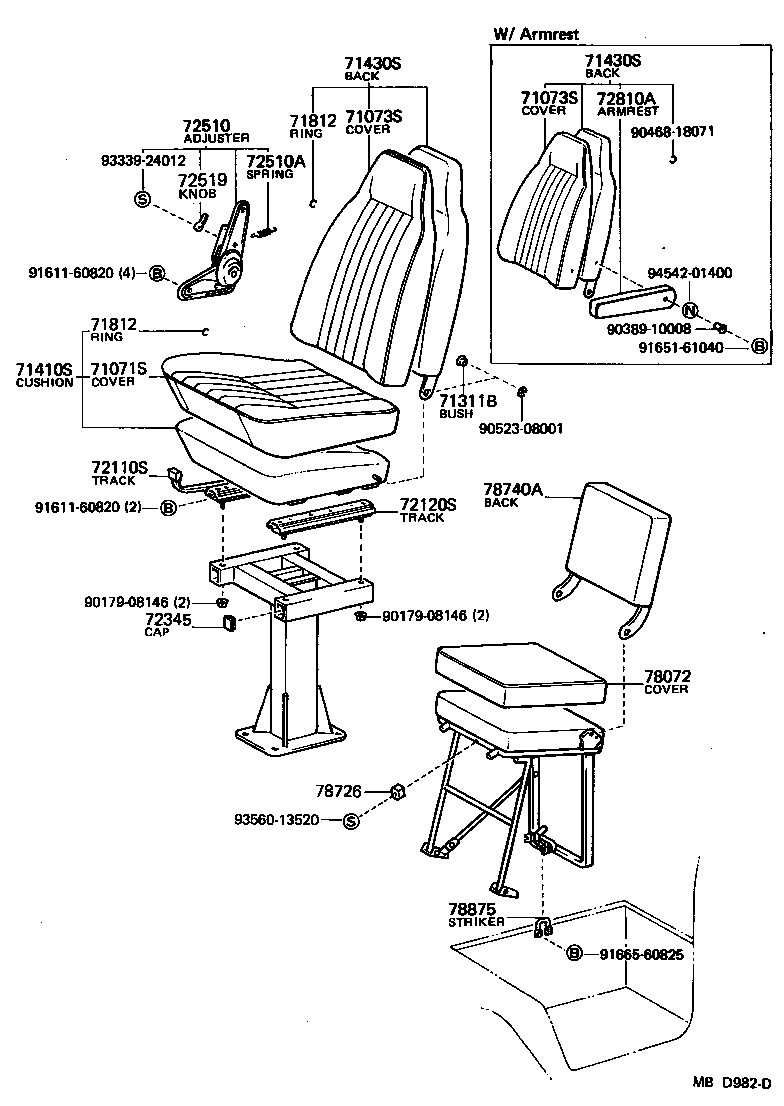

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90D01 |
LH24 |
1 | ||
| 71071-90D00 |
LH24 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90D05 |
LH24 |
1 | ||
| 71073-90D01 |
LH24 |
1 | ||
| 71073-90D07 |
LH24 W/ARMREST |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90D05 |
LH24 |
1 | ||
| 71073-90D01 |
LH24 |
1 | ||
| 71073-90D07 |
LH24 W/ARMREST |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12005 |
LH24 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90D01 |
LH24 |
1 | ||
| 71410-90D00 |
LH24 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90D01 |
LH24 |
1 | ||
| 71430-90D07 |
LH24 W/ARMREST |
1 | ||
| 71430-90D05 |
LH24 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90D01 |
LH24 |
1 | ||
| 71430-90D07 |
LH24 W/ARMREST |
1 | ||
| 71430-90D05 |
LH24 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH24 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH24 |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-29065 |
LH24 |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90740 |
LH24 |
1 | ||
| 72345 - CAP, SEAT STAND FRAME | ||||
| 72345-90D00 |
LH24 |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72530-90500 |
LH24 |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-12287 |
LH24 |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72519-12030 |
LH24 |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72830-90D01 |
LH24 |
1 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78071-90D01 |
LH24 |
1 | ||
| 78071-90D00 |
LH24 |
1 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90B00 |
LH24 |
1 | ||
| 78740A - BACK ASSY, SUB SEAT, RH | ||||
| 78740-90D01 |
LH24 |
1 | ||
| 78740-90D00 |
LH24 |
1 | ||
| 78875 - STRIKER, SUB SEAT LOCK | ||||
| 78875-90D00 |
LH24 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90389-10008 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91611-60820 | ||||
| 91651-61040 | ||||
| 91665-60825 | ||||
| 93339-24012 | ||||
| 93560-13520 | ||||
| 94542-01400 | ||||
