LH24HV-QDLT (1982)
Toyota Hiace Quick Delivery
Production
May 1982
-
Jul 1985
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )

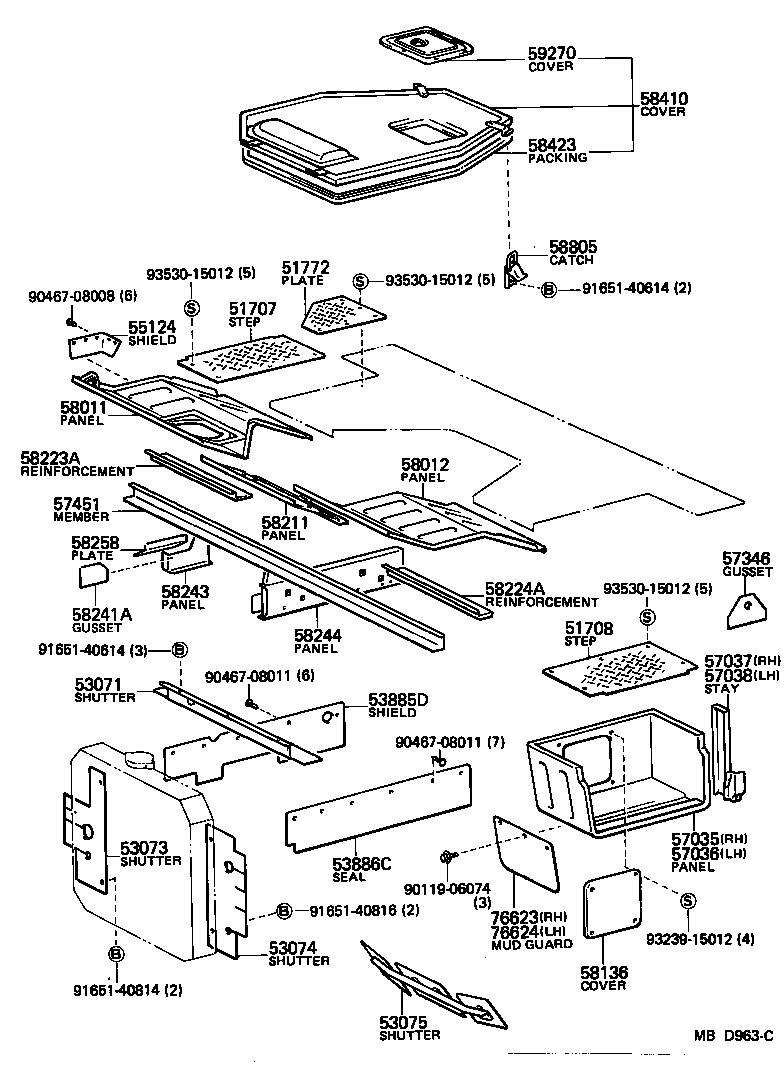

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51707 - STEP SUB-ASSY, RH | ||||
| 67913-90D01 |
LH24 |
1 | ||
| 67913-90D02 |
LH24 |
1 | ||
| 67913-90D00 |
LH24 |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 67913-90D00 |
LH24 |
1 | ||
| 67914-90D01 |
LH24 |
1 | ||
| 67913-90D01 |
LH24 |
1 | ||
| 51772 - PLATE, STEP | ||||
| 57359-90D00 |
LH24 |
1 | ||
| 53071 - SHUTTER SUB-ASSY, HOT AIR, UPPER | ||||
| 53071-90D02 |
LH24 |
1 | ||
| 53071-90D01 |
LH24 |
1 | ||
| 53071-90D00 |
LH24 |
1 | ||
| 53073 - SHUTTER SUB-ASSY, HOT AIR SIDE, RH | ||||
| 53073-90D00 |
LH24 |
1 | ||
| 53074 - SHUTTER SUB-ASSY, HOT AIR SIDE, LH | ||||
| 53074-90D00 |
LH24 |
1 | ||
| 53075 - SHUTTER SUB-ASSY, HOT AIR, LOWER | ||||
| 53075-95A00 |
LH24 |
1 | ||
| 53885D - SHIELD, SIDE FLOOR APRON, REAR | ||||
| 53885-90D00 |
LH24 L=739 |
1 | ||
| 53885-90D02 |
LH24 L=753 |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-90D00 |
LH24 |
1 | ||
| 53886-90D01 |
LH24 |
1 | ||
| 53886-90D02 |
LH24 |
1 | ||
| 55124 - SHIELD, STEERING SUPPORT | ||||
| 55124-90D00 |
LH24 |
1 | ||
| 57035 - PANEL SUB-ASSY, FRONT STEP, RH | ||||
| 57035-90D03 |
LH24 W/COOLER |
1 | ||
| 57035-90D00 |
LH24 |
1 | ||
| 57035-90D01 |
LH24 W/COOLER |
1 | ||
| 57035-90D02 |
LH24 |
1 | ||
| 57036 - PANEL SUB-ASSY, FRONT STEP, LH | ||||
| 57036-90D01 |
LH24 W/SUB SEAT |
1 | ||
| 57036-90D00 |
LH24 |
1 | ||
| 57037 - STAY SUB-ASSY, FRONT STEP, RH | ||||
| 57037-90D00 |
LH24 |
1 | ||
| 57379-90D00 |
LH24 |
1 | ||
| 57038 - STAY SUB-ASSY, FRONT STEP, LH | ||||
| 57038-90D00 |
LH24 |
1 | ||
| 57389-90D00 |
LH24 |
1 | ||
| 57346 - GUSSET, FRONT STEP, REAR RH | ||||
| 61582-90D00 |
LH24 |
2 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-90D01 |
LH24 |
1 | ||
| 57408-90D02 |
LH24 |
1 | ||
| 58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH | ||||
| 58011-90D01 |
LH24 |
1 | ||
| 58011-90D02 |
LH24 |
1 | ||
| 58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58012-90D02 |
LH24 |
1 | ||
| 58012-90D00 |
LH24 W/ASSISTANT SEAT |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 61679-90701 |
LH24 |
1 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58008-90D01 |
LH24 |
1 | ||
| 58008-90D02 |
LH24 W/RADIATOR SHUTTER |
1 | ||
| 58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH | ||||
| 58027-90D00 |
LH24 |
1 | ||
| 58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH | ||||
| 58028-90D00 |
LH24 |
1 | ||
| 58241A - GUSSET, FLOOR PANEL, FRONT RH | ||||
| 53787-90D00 |
LH24 |
1 | ||
| 58243 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58132-90D00 |
LH24 |
1 | ||
| 58244 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58096-90D00 |
LH24 |
1 | ||
| 58096-90D01 |
LH24 |
1 | ||
| 58258 - PLATE, WATER GUARD, NO.1 | ||||
| 58258-90D00 |
LH24 |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58720-90D02 |
LH24 |
1 | ||
| 58720-90D04 |
LH24 |
1 | ||
| 58720-90D00 |
LH24 |
1 | ||
| 58423 - PACKING, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58733-90D00 |
LH24 |
1 | ||
| 58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 58804-90740 |
LH24 |
2 | ||
| 59270 - COVER ASSY, INSPECTION HOLE | ||||
| 59270-90D01 |
LH24 |
1 | ||
| 76623 - MUDGUARD, FRONT BODY, REAR RH | ||||
| 76621-90D00 |
LH24 |
1 | ||
| 76624 - MUDGUARD, FRONT BODY, REAR LH | ||||
| 76621-90D00 |
LH24 |
1 | ||
| Common parts | ||||
| 90119-06074 | ||||
| 90467-08008 | ||||
| 90467-08011 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93239-15012 | ||||
| 93530-15012 | ||||
