LH24HV-QDLT (1982)

Toyota Hiace Quick Delivery

Production May 1982 - Jul 1985

Engine L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8205- )

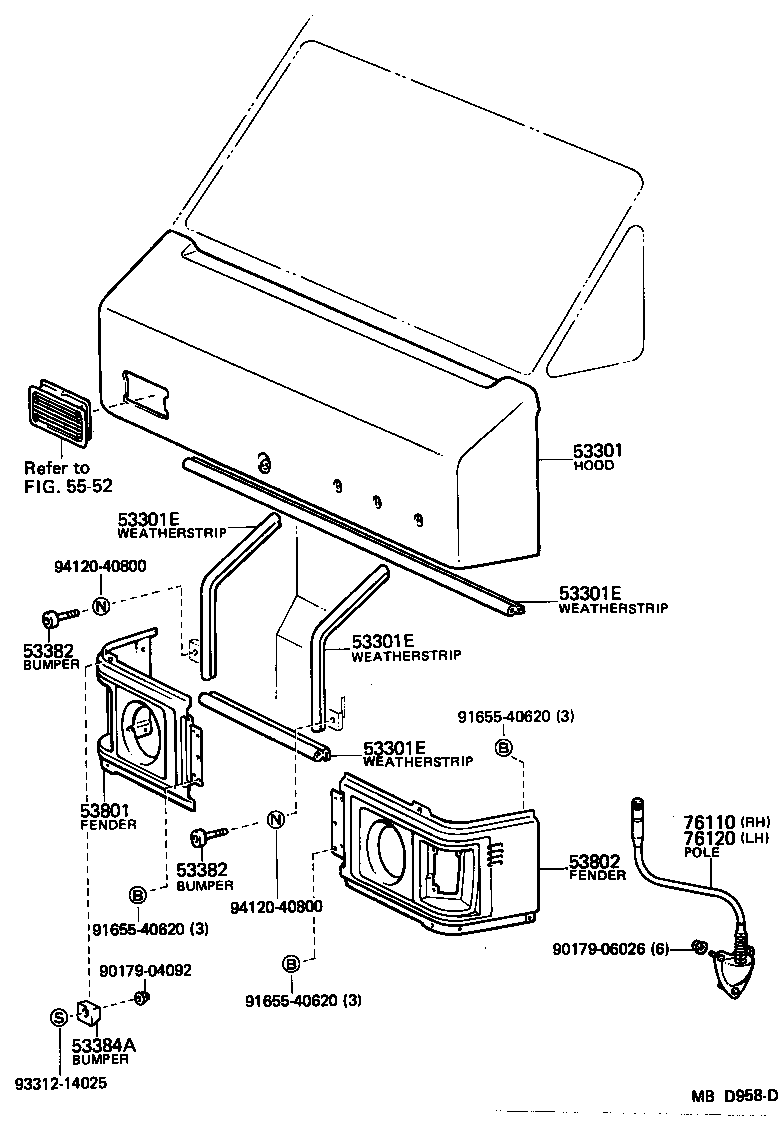

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
53301 - HOOD SUB-ASSY
53301-90D02	LH24 W/FENDER POLE	02/1985 - 07/1985	1
53301-90D01	LH24	06/1983 - 07/1985	1
53301-90D00	LH24	05/1982 - 06/1983	1
53301E - WEATHERSTRIP, HOOD INNER
64463-90D00	LH24 UPR	05/1982 - 01/1984	1
64461-90D00	LH24 LWR & SIDE	05/1982 - 01/1984	3
53301E - WEATHERSTRIP, HOOD INNER
64463-90D00	LH24 UPR	05/1982 - 01/1984	1
64461-90D00	LH24 LWR & SIDE	05/1982 - 01/1984	3
53301E - WEATHERSTRIP, HOOD INNER
64463-90D00	LH24 UPR	05/1982 - 01/1984	1
64461-90D00	LH24 LWR & SIDE	05/1982 - 01/1984	3
53301E - WEATHERSTRIP, HOOD INNER
64463-90D00	LH24 UPR	05/1982 - 01/1984	1
64461-90D00	LH24 LWR & SIDE	05/1982 - 01/1984	3
53382 - BUMPER, HOOD, FRONT
53382-20011	LH24	05/1982 - 07/1985	2
53382 - BUMPER, HOOD, FRONT
53382-20011	LH24	05/1982 - 07/1985	2
53384A - BUMPER, FENDER TO HOOD
53384-90D00	LH24	09/1982 - 07/1985	2
53801 - FENDER SUB-ASSY, FRONT RH
53801-90D00	LH24	05/1982 - 06/1983	1
53801-90D01	LH24	06/1983 - 07/1985	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-90D00	LH24	05/1982 - 07/1985	1
76110 - POLE ASSY, FENDER, RH
76110-90D00	LH24	02/1985 - 07/1985	1
76120 - POLE ASSY, FENDER, LH
76120-90D00	LH24	02/1985 - 07/1985	1
Common parts
90179-04092
90179-06026
91655-40620
93312-14025
94120-40800
Linked diagrams
5552
