LH24HV-QDLT (1982)
Toyota Hiace Quick Delivery
Production
May 1982
-
Jul 1985
Engine
L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

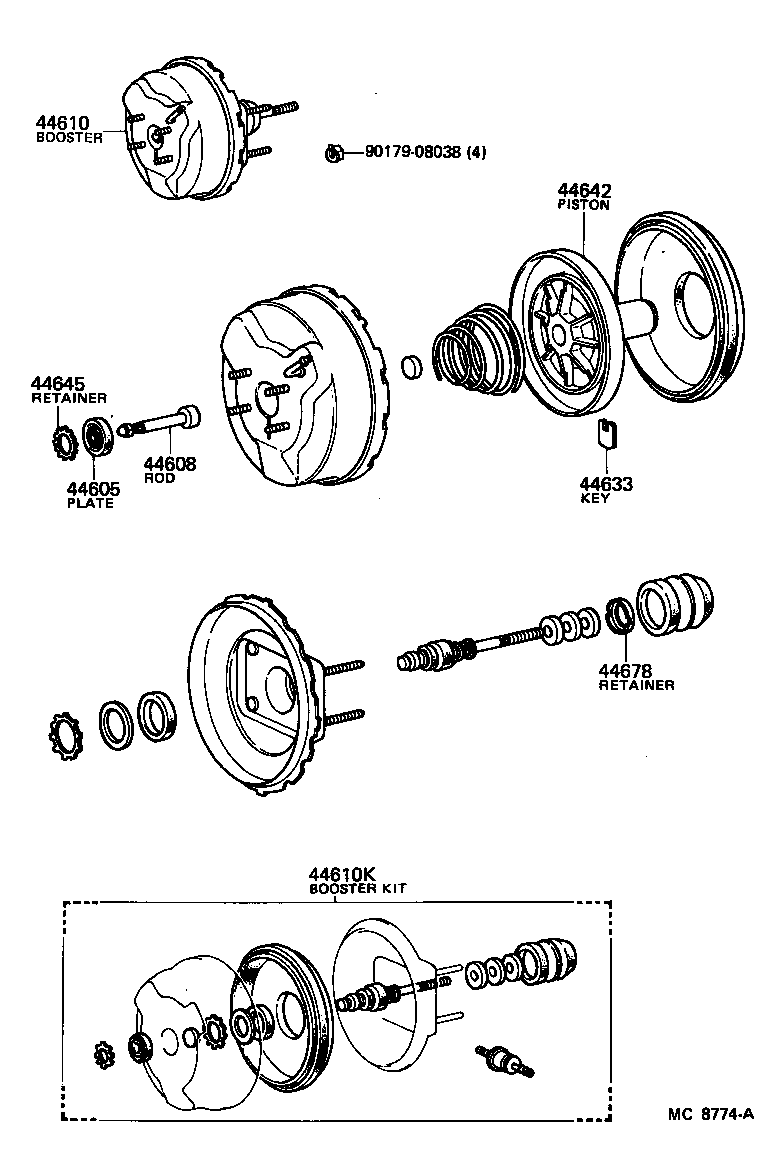

ILLUST NO. 1 OF 2(8205-8211)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
LH24 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
LH24 |
1 | ||
| 44608-22090 |
LH24 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26180 |
LH24 |
1 | ||
| 44610-26181 |
LH24 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-26090 |
LH24 |
1 | ||
| 04443-26091 |
LH24 |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
LH24 |
1 | ||
| 44633-22020 |
LH24 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44637-32040 |
LH24 |
1 | ||
| 44642-26181 |
LH24 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
LH24 |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
LH24 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

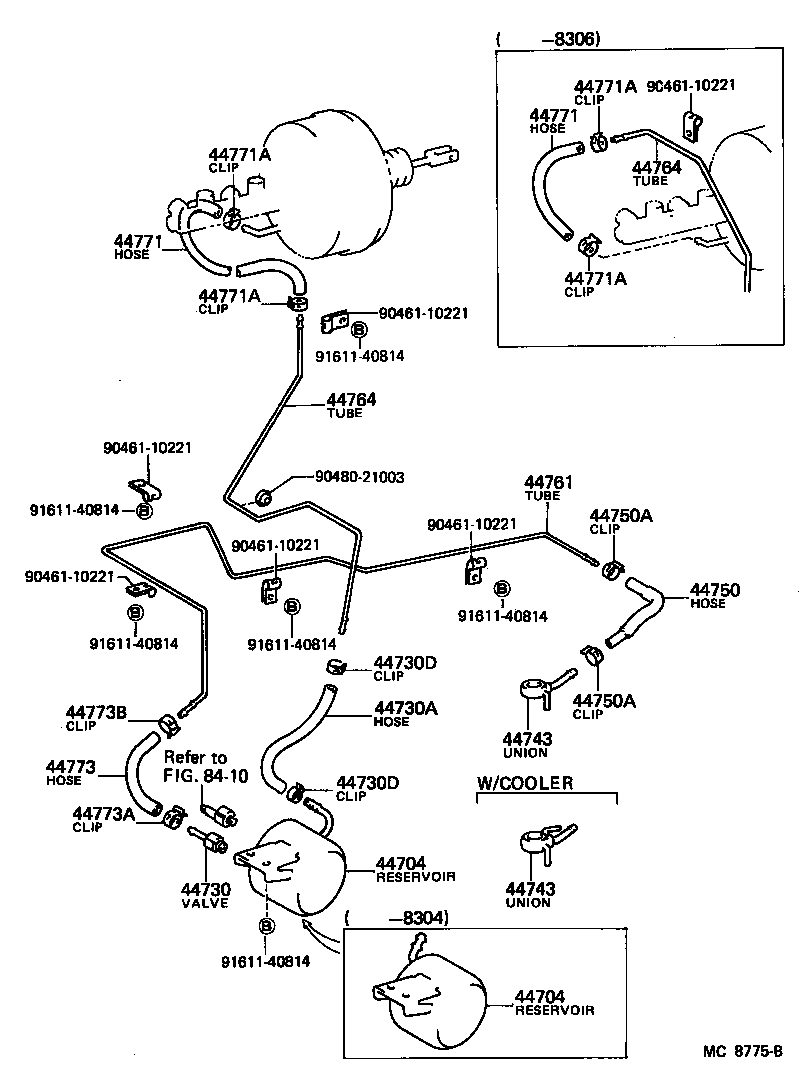

ILLUST NO. 2 OF 2(8205- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-26060 |
LH24 |
1 | ||
| 44704-26010 |
LH24 |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-26060 |
LH24 |
1 | ||
| 44704-26010 |
LH24 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
LH24 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-17893 |
LH24 |
1 | ||
| 95441-09170 |
LH24 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09017 |
LH24 W/COOLER |
1 | ||
| 90405-09011 |
LH24 |
1 | ||
| 90405-09068 |
LH24 |
1 | ||
| 90405-09067 |
LH24 W/COOLER |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09017 |
LH24 W/COOLER |
1 | ||
| 90405-09011 |
LH24 |
1 | ||
| 90405-09068 |
LH24 |
1 | ||
| 90405-09067 |
LH24 W/COOLER |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-26030 |
LH24 |
1 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-26100 |
LH24 |
1 | ||
| 44761-26101 |
LH24 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-26041 |
LH24 |
1 | ||
| 44764-26043 |
LH24 |
1 | ||
| 44764-26040 |
LH24 |
1 | ||
| 44764-26042 |
LH24 |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-26041 |
LH24 |
1 | ||
| 44764-26043 |
LH24 |
1 | ||
| 44764-26040 |
LH24 |
1 | ||
| 44764-26042 |
LH24 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 90445-17893 |
LH24 |
1 | ||
| 95441-09170 |
LH24 |
1 | ||
| 44776-26010 |
LH24 |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 90445-17893 |
LH24 |
1 | ||
| 95441-09170 |
LH24 |
1 | ||
| 44776-26010 |
LH24 |
1 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE) | ||||
| 90467-16141 |
LH24 |
2 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 90445-17908 |
LH24 |
1 | ||
| 44772-26050 |
LH24 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH24 |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
LH24 |
1 | ||
| Common parts | ||||
| 90461-10221 | ||||
| 90480-21003 | ||||
| 91611-40814 | ||||
| Linked diagrams | ||||
| 8410 | ||||

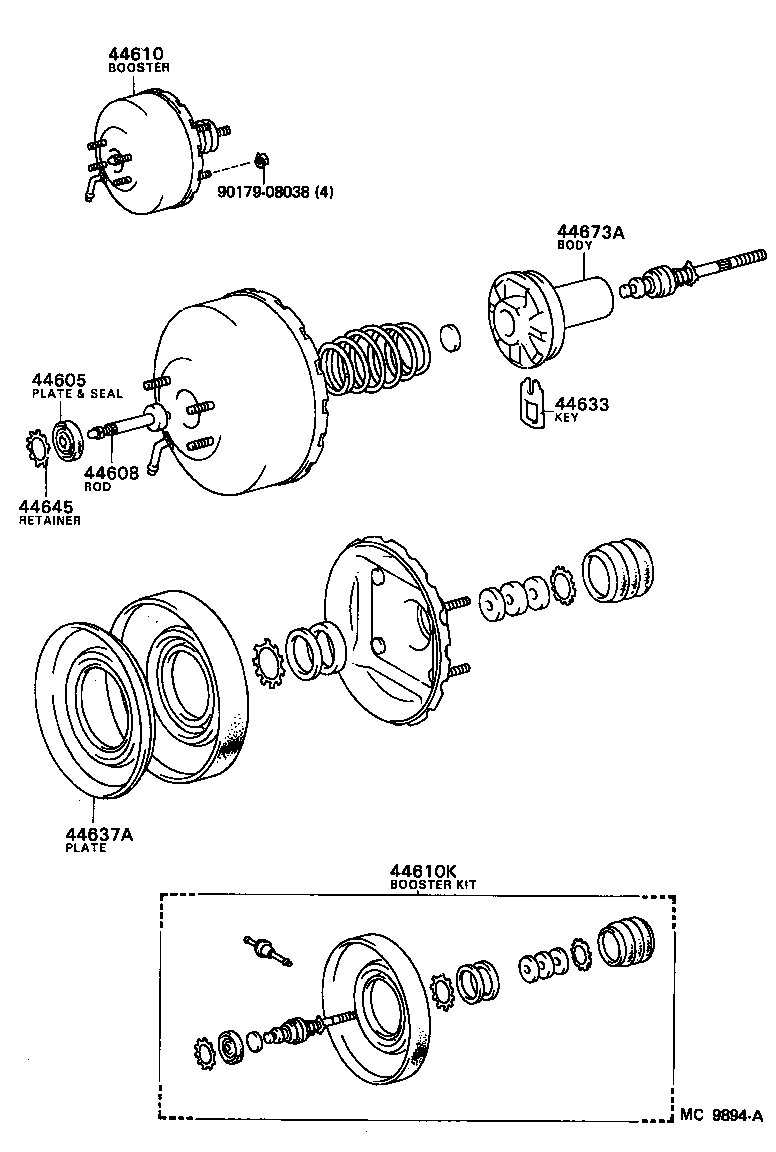

ILLUST NO. 1 OF 2(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
LH24 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-32020 |
LH24 |
1 | ||
| 44608-22090 |
LH24 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-26180 |
LH24 |
1 | ||
| 44610-26181 |
LH24 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-26090 |
LH24 |
1 | ||
| 04443-26091 |
LH24 |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-28130 |
LH24 |
1 | ||
| 44633-22020 |
LH24 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-32040 |
LH24 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
LH24 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-16060 |
LH24 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
