LH24HV-QDLT (1982)

Toyota Hiace Quick Delivery

Production May 1982 - Jul 1985
Engine L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

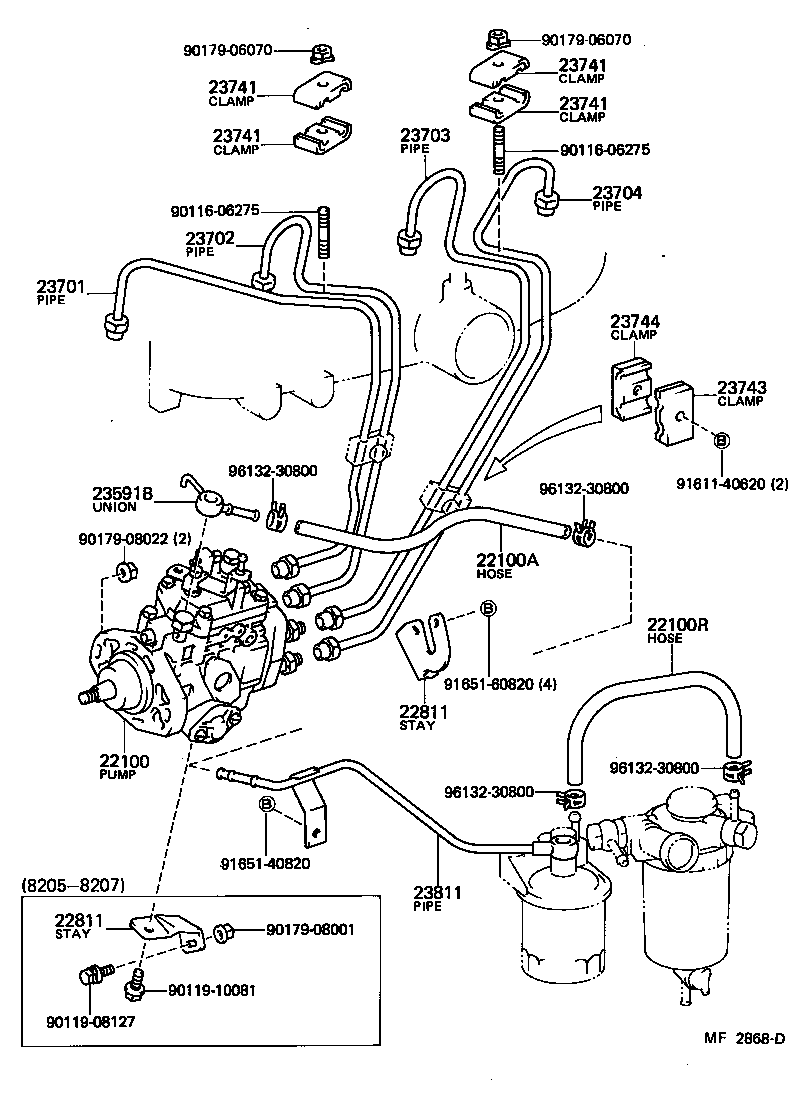

Click highlighted areas on diagram

diagram 22100 22100A 22100R 22811 22811 23591B 23701 23702 23703 23704 23741 23741 23741 23741 23743 23744 23811 9011606275 9011606275 9011908127 9011910081 9017906070 9017906070 9017908001 9017908022 9161140620 9165140820 9165160820 9613230800 9613230800 9613230800 9613230800
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-54132

L..LH24

 1
22100-54131

L..LH24

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-08030

L..LH24

*H,L=260,内径=7.6

 1
95332-08030

L..LH24

*H,L=240,内径=7.6

 1
22100R - HOSE, FUEL(FOR SEDIMENTER TO FILTER)
95332-08030

L..LH24

*H,L=260

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54030

L..LH24

 1
22811-54040

L..LH24

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54030

L..LH24

 1
22811-54040

L..LH24

 1
23591B - UNION(FOR INJECTION PUNP INLET)
23591-54010

L..LH24

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54082

L..LH24

 1
23701-54051

L..LH24

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54050

L..LH24

 1
23702-54081

L..LH24

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54050

L..LH24

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54050

L..LH24

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-56010

L..LH24

 4
23743 - CLAMP, INJECTION PIPE, NO.3
23741-54010

L..LH24

 2
23744 - CLAMP, INJECTION PIPE, NO.4
23742-54010

L..LH24

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54080

L..LH24

 1
Common parts
90116-06275
90119-08127
90119-10081
90179-06070
90179-08001
90179-08022
91611-40620
91651-40820
91651-60820
96132-30800
