LH24HV-QDLT (1982)
Toyota Hiace Quick Delivery

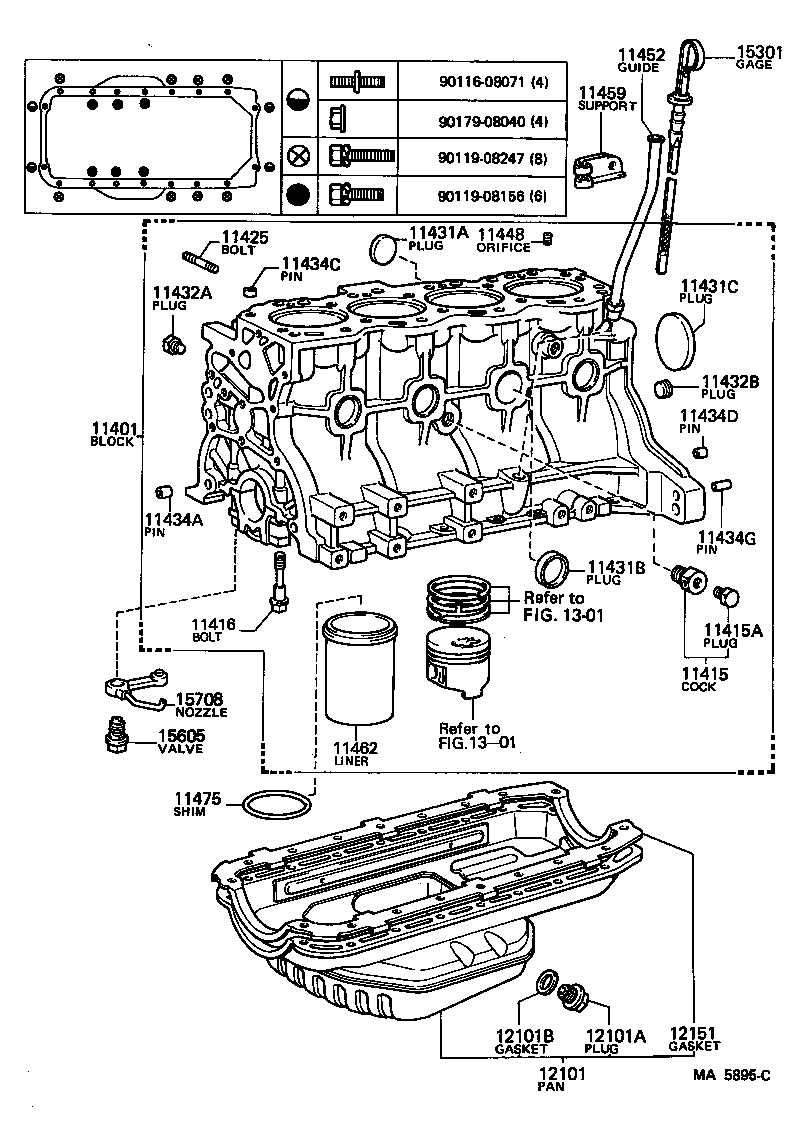

(8205-8304)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59107 |
L..LH24 |
1 | ||
| 11401-59185 |
L..LH24 |
1 | ||
| 11401-59236 |
L..LH24 |
1 | ||
| 11401-59235 |
L..LH24 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
L..LH24 |
1 | ||
| 96431-03833 |
L..LH24 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
L..LH24 L=24 |
1 | ||
| 96431-23814 |
L..LH24 L=28 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
L..LH24 *12-1.25PX80-24 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
L..LH24 L=36,S=11&14 |
3 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
L..LH24 OD=25 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
L..LH24 OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
L..LH24 OD=50 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
L..LH24 |
1 | ||
| 90345-51006 |
L..LH24 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53002 |
L..LH24 |
1 | ||
| 90344-53011 |
L..LH24 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
L..LH24 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
L..LH24 長さ=7,外径=14.5,L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
L..LH24 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
L..LH24 L=22,OD=10 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
L..LH24 |
1 | ||
| 11448-54010 |
L..LH24 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54030 |
L..LH24 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90461-10415 |
L..LH24 |
1 | ||
| 90461-10658 |
L..LH24 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-54010 |
L..LH24 |
4 | ||
| 11475 - SHIM, CYLINDER LINER | ||||
| 11476-54010 |
L..LH24 T=0.10 |
1 | ||
| 11475-54010 |
L..LH24 T=0.05 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54031 |
L..LH24 |
1 | ||
| 12101-59115 |
L..LH24 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
L..LH24 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L..LH24 |
1 | ||
| 90430-18013 |
L..LH24 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-54020 |
L..LH24 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54030 |
L..LH24 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
L..LH24 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54010 |
L..LH24 |
4 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08156 | ||||
| 90119-08247 | ||||
| 90179-08040 | ||||
| Linked diagrams | ||||
| 1301 | ||||

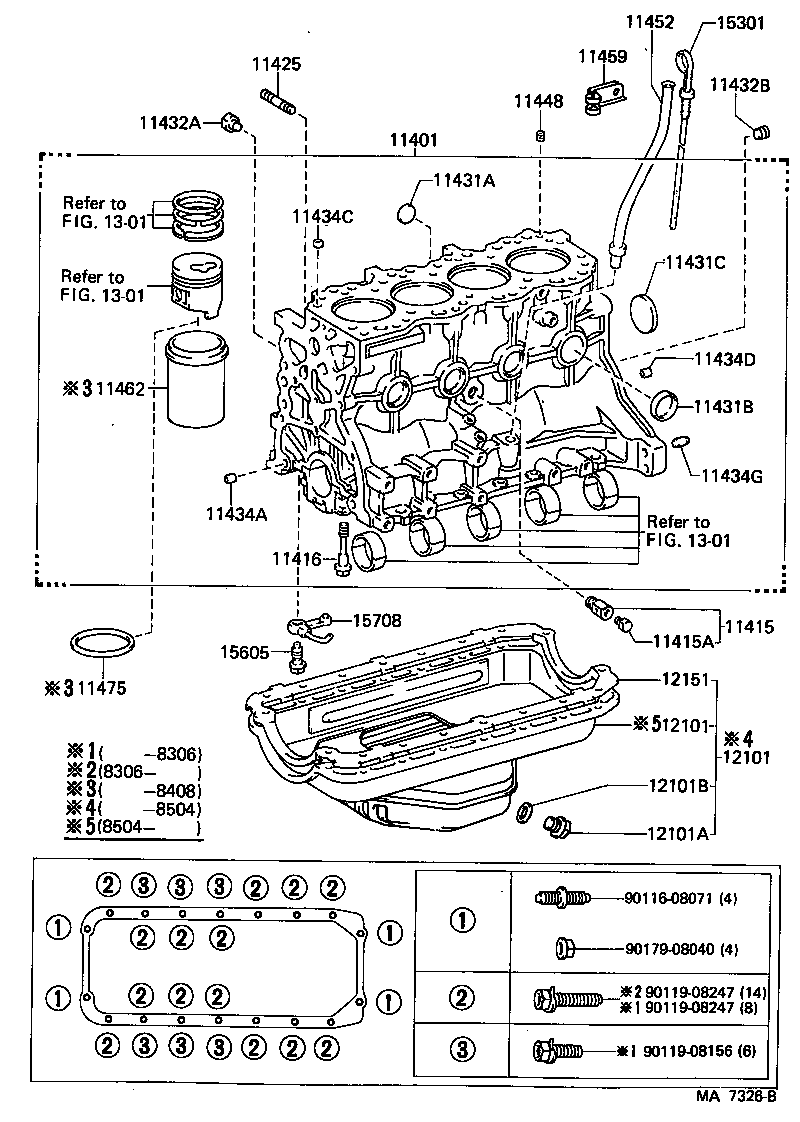

(8304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59107 |
L..LH24 |
1 | ||
| 11401-59185 |
L..LH24 |
1 | ||
| 11401-59236 |
L..LH24 |
1 | ||
| 11401-59235 |
L..LH24 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
L..LH24 |
1 | ||
| 96431-03833 |
L..LH24 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
L..LH24 L=24 |
1 | ||
| 96431-23814 |
L..LH24 L=28 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
L..LH24 *12-1.25PX80-24 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
L..LH24 L=36,S=11&14 |
3 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
L..LH24 OD=25 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
L..LH24 OD=35 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
L..LH24 OD=50 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
L..LH24 |
1 | ||
| 90345-51006 |
L..LH24 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53002 |
L..LH24 |
1 | ||
| 90344-53011 |
L..LH24 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
L..LH24 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
L..LH24 長さ=7,外径=14.5,L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
L..LH24 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
L..LH24 L=22,OD=10 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
L..LH24 |
1 | ||
| 11448-54010 |
L..LH24 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54030 |
L..LH24 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90461-10415 |
L..LH24 |
1 | ||
| 90461-10658 |
L..LH24 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-54010 |
L..LH24 |
4 | ||
| 11475 - SHIM, CYLINDER LINER | ||||
| 11476-54010 |
L..LH24 T=0.10 |
1 | ||
| 11475-54010 |
L..LH24 T=0.05 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54031 |
L..LH24 |
1 | ||
| 12101-59115 |
L..LH24 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54031 |
L..LH24 |
1 | ||
| 12101-59115 |
L..LH24 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
L..LH24 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L..LH24 |
1 | ||
| 90430-18013 |
L..LH24 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-54020 |
L..LH24 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54030 |
L..LH24 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
L..LH24 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54010 |
L..LH24 |
4 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08156 | ||||
| 90119-08247 | ||||
| 90179-08040 | ||||
| Linked diagrams | ||||
| 1301 | ||||
