TRH229W-LDPNK5 (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - May 2012
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )2TRFE..TRH22#

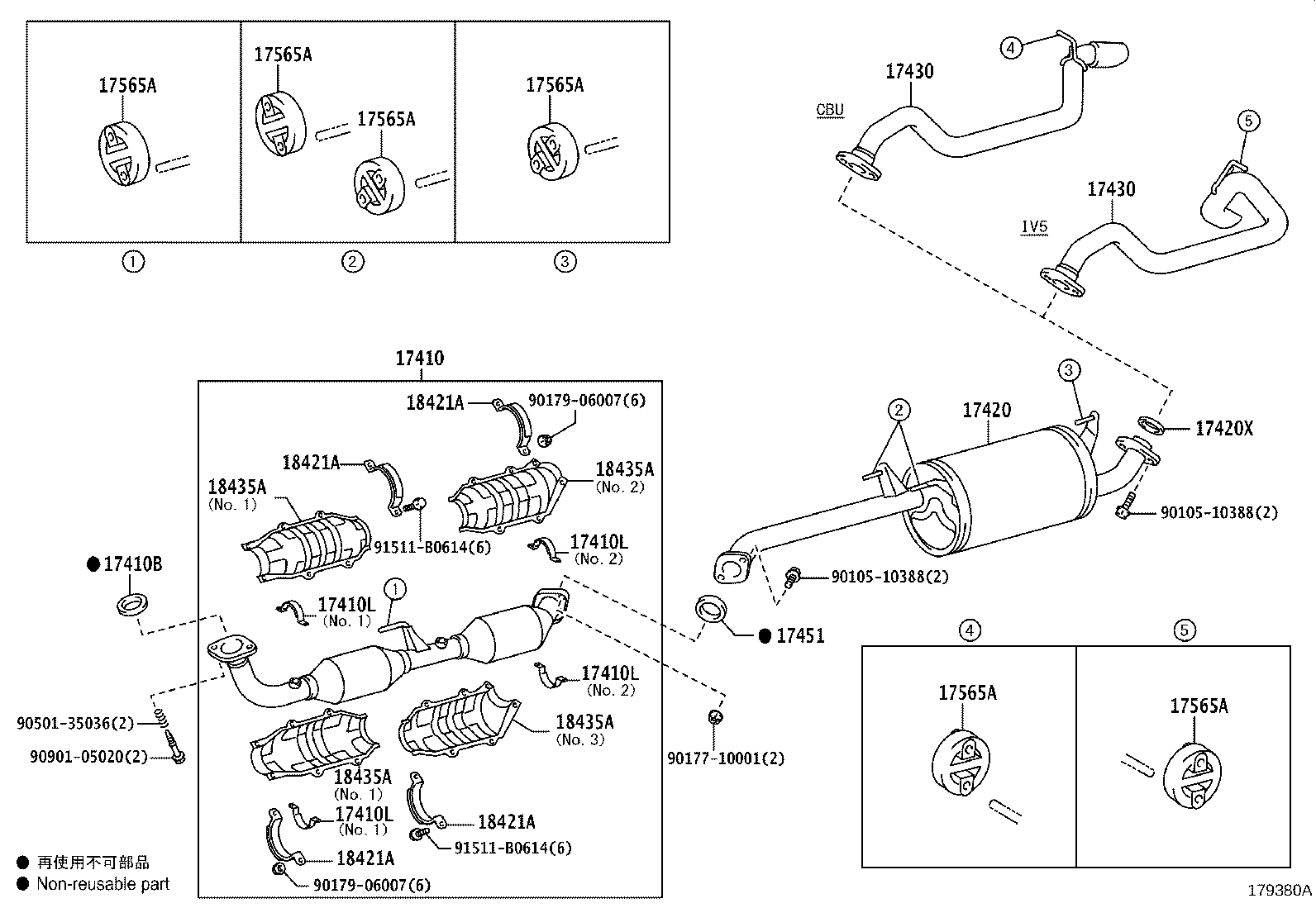

Click highlighted areas on diagram

diagram 17410 17410B 17410L 17410L 17410L 17410L 17420 17420X 17430 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 18421A 18421A 18421A 18421A 18435A 18435A 18435A 18435A 9010510388 9010510388 9017710001 9017906007 9017906007 9050135036 9090105020 91511B0614 91511B0614
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-75480

2TRFE..TRH219,226,228,229

 1
17410-75480

2TRFE..TRH228;2TRFE..TRH219,226,229..DX,GC

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

1TRFE,2TRFE..TRH200,21#,22#

 1
17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT)
17541-75030

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 2
17541-75040

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 2
17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT)
17541-75030

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 2
17541-75040

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 2
17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT)
17541-75030

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 2
17541-75040

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 2
17410L - STAY, EXHAUST PIPE PROTECTOR (FOR FRONT)
17541-75030

1TRFE,2TRFE..TRH200,21#,22#

NO.1

 2
17541-75040

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75810

1KDFTV,2KDFTV,2TRFE..KDH222,223,227,TRH223,224,228,229..IV5

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75810

1KDFTV,2KDFTV,2TRFE..KDH222,223,227,TRH223,224,228,229..IV5

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

2TRFE..TRH21#,22#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010

2KDFTV,1TRFE,2TRFE..KDH200,205,220,222,225,227,TRH200,21#,22#

 5
18421A - STAY, CONVERTER PROTECTOR, LH
18421-75020

1TRFE,2TRFE..TRH200,21#,22#

 4
18421A - STAY, CONVERTER PROTECTOR, LH
18421-75020

1TRFE,2TRFE..TRH200,21#,22#

 4
18421A - STAY, CONVERTER PROTECTOR, LH
18421-75020

1TRFE,2TRFE..TRH200,21#,22#

 4
18421A - STAY, CONVERTER PROTECTOR, LH
18421-75020

1TRFE,2TRFE..TRH200,21#,22#

 4
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-75060

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
18435-75050

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.1

 2
18445-75030

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.3

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-75060

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
18435-75050

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.1

 2
18445-75030

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.3

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-75060

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
18435-75050

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.1

 2
18445-75030

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.3

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-75060

1TRFE,2TRFE..TRH200,21#,22#

NO.2

 1
18435-75050

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.1

 2
18445-75030

1TRFE,2TRFE..TRH200,216,219,226,228,229

NO.3

 1
Common parts
90105-10388
90177-10001
90179-06007
90501-35036
90901-05020
91511-B0614
