TRH228B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2005)GDH20#,211,22#

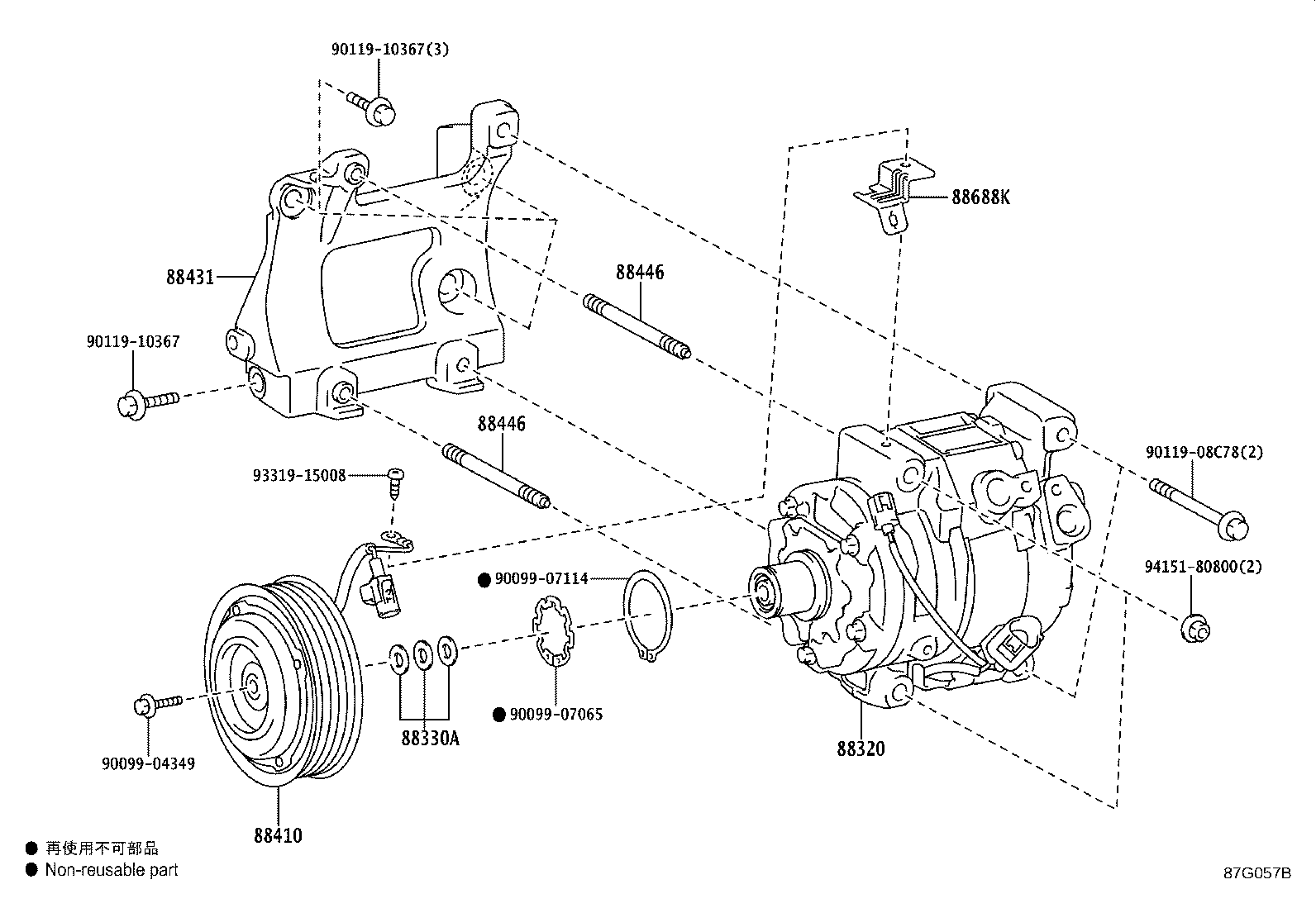

Click highlighted areas on diagram

diagram 88320 88330A 88410 88431 88446 88446 88688K 9009904349 9009907065 9009907114 9011908C78 9011910367 9011910367 9331915008 9415180800
Part # Description Qty Price
88410 - CLUTCH ASSY, MAGNET
88410-28200

KDH20#,211,22#

 1
88410-26240

GDH20#,211,22#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35250

KDH20#,211,22#

 1
88431-26440

TRH200,21#,22#..4FC,6FC

 1
Common parts
90099-04349
90099-07065
90099-07114
90119-08C78
90119-10367
93319-15008
94151-80800
