TRH228B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1712)TRH224..4FC ; (1312-1712)KDH223,TRH214,219,223,228,229..4FC..CBU ; (1501

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

diagram 8712 8712126130 8712126140 8712426481 8712426481 87248F 87249F 9009900275 9009900275 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26800

KDH223,TRH214,219,223,224,228,229

 1
87248-26C20

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26810

KDH223,TRH214,219,223,224,228,229

 1
87248-26C80

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

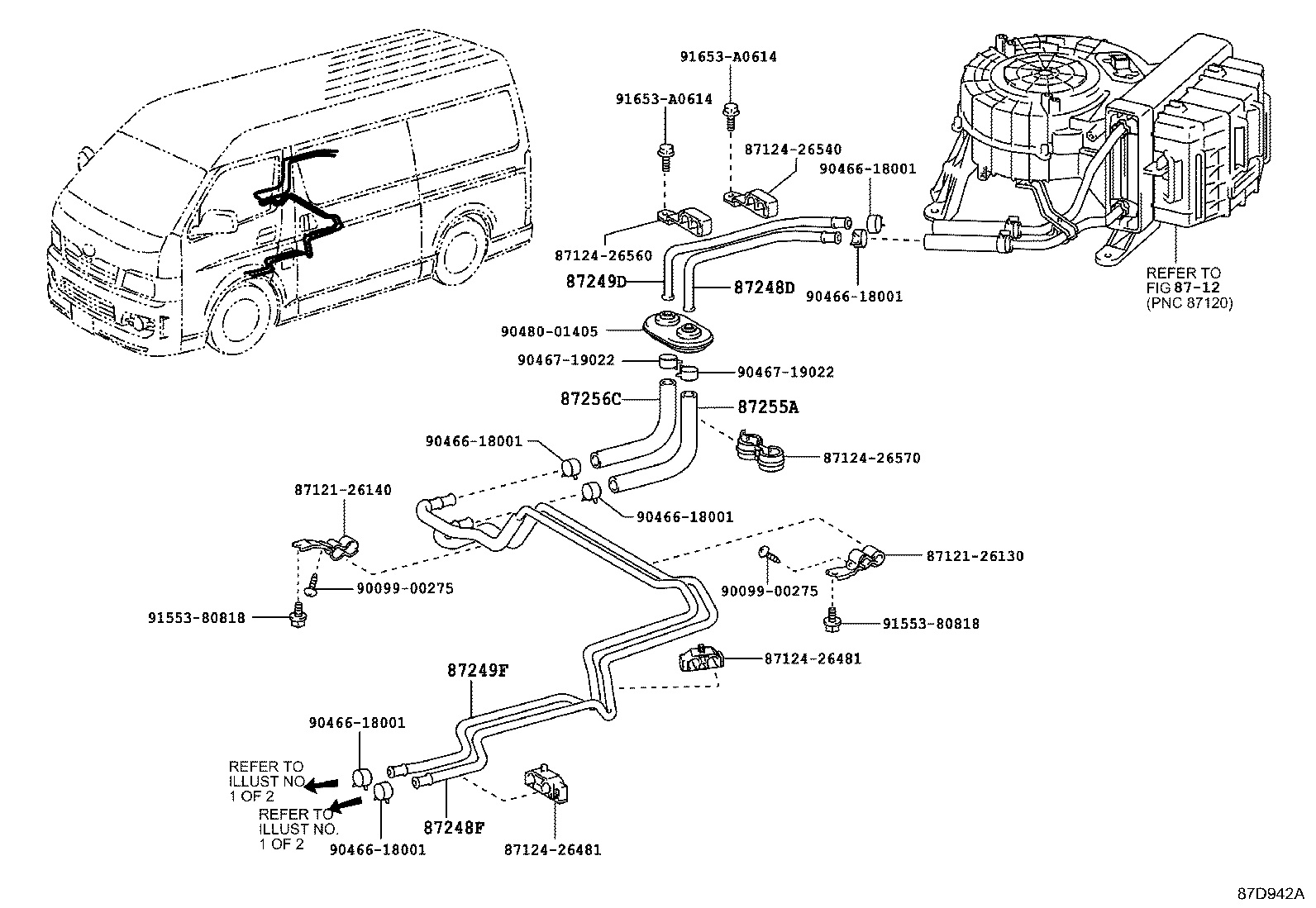

(1312-1712)KDH223,TRH223,228..4FC..IV5 ; (1501-1712)TRH223,228..IV5

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

diagram 8712 8712126130 8712126140 8712426481 8712426481 8712426540 8712426560 8712426570 87248D 87248F 87249D 87249F 87255A 87256C 9009900275 9009900275 9046618001 9046618001 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9048001405 9155380818 9155380818 91653A0614 91653A0614
Part # Description Qty Price
87248D - PIPE, HEATER WATER INLET, D
87248-26700

KDH223,TRH223,228..IV5

 1
87248F - PIPE, HEATER WATER INLET, F
87248-26800

KDH223,TRH214,219,223,224,228,229

 1
87248-26C20

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-26710

KDH223,TRH223,228..IV5

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26810

KDH223,TRH214,219,223,224,228,229

 1
87248-26C80

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20300

KDH223,TRH223,228..IV5

*H,L=290

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20300

KDH223,TRH223,228..IV5

*H,L=240

 1
Common parts
87121-26130
87121-26140
87124-26481
87124-26540
87124-26560
87124-26570
90099-00275
90466-18001
90467-19022
90480-01405
91553-80818
91653-A0614
Linked diagrams
8712

(1312-1712)KDH211,221,TRH211,216,221,226..4FC ;(1501-1712)TRH211,216,221,226 ; (15

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

diagram 8712 8712126130 8712126140 8712426481 8712426481 8712426510 87248F 87249F 9009900275 9009900275 9046400558 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818 9155380818
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26800

KDH223,TRH214,219,223,224,228,229

 1
87248-26C20

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26810

KDH223,TRH214,219,223,224,228,229

 1
87248-26C80

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
Common parts
87121-26130
87121-26140
87124-26481
87124-26510
90099-00275
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

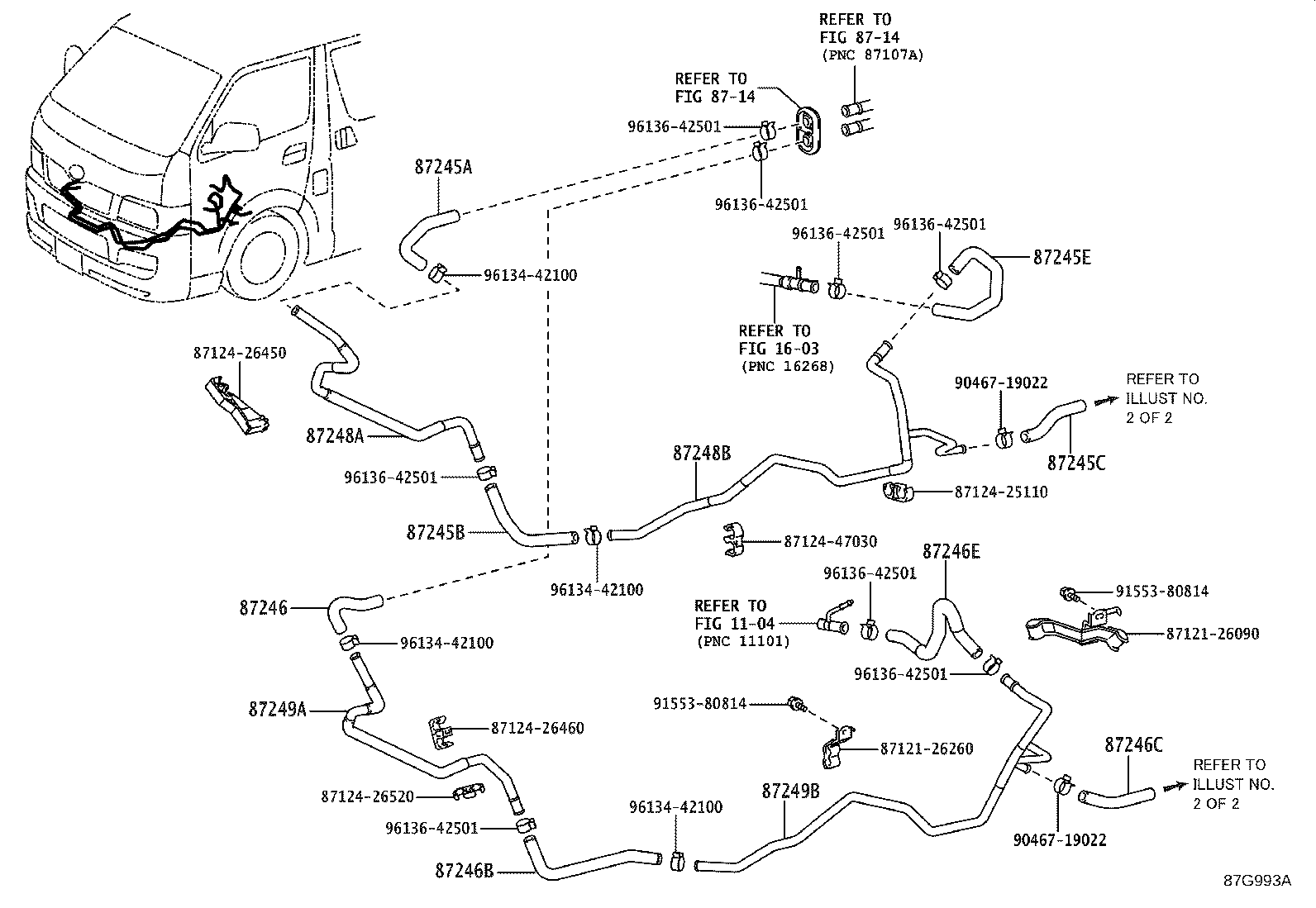

(1312-1712)TRH21#,22#..4FC ; (1501-1712)TRH21#,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245C 87245E 87246 87246B 87246C 87246E 87248A 87248B 87249A 87249B 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH20#,211,22#

 1
87245-26B80

TRH21#,22#

 1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH20#,211,22#

 1
87245-26B60

TRH200,21#,22#..4FC,6FC

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B90

TRH21#,22#

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH200,21#,22#..4FC,6FC

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26500

TRH21#,223,224,228,229

 1
87248-26C90

TRH21#,223,224,228,229

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26510

TRH21#,223,224,228,229

 1
87248-26D00

TRH21#,223,224,228,229

 1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714

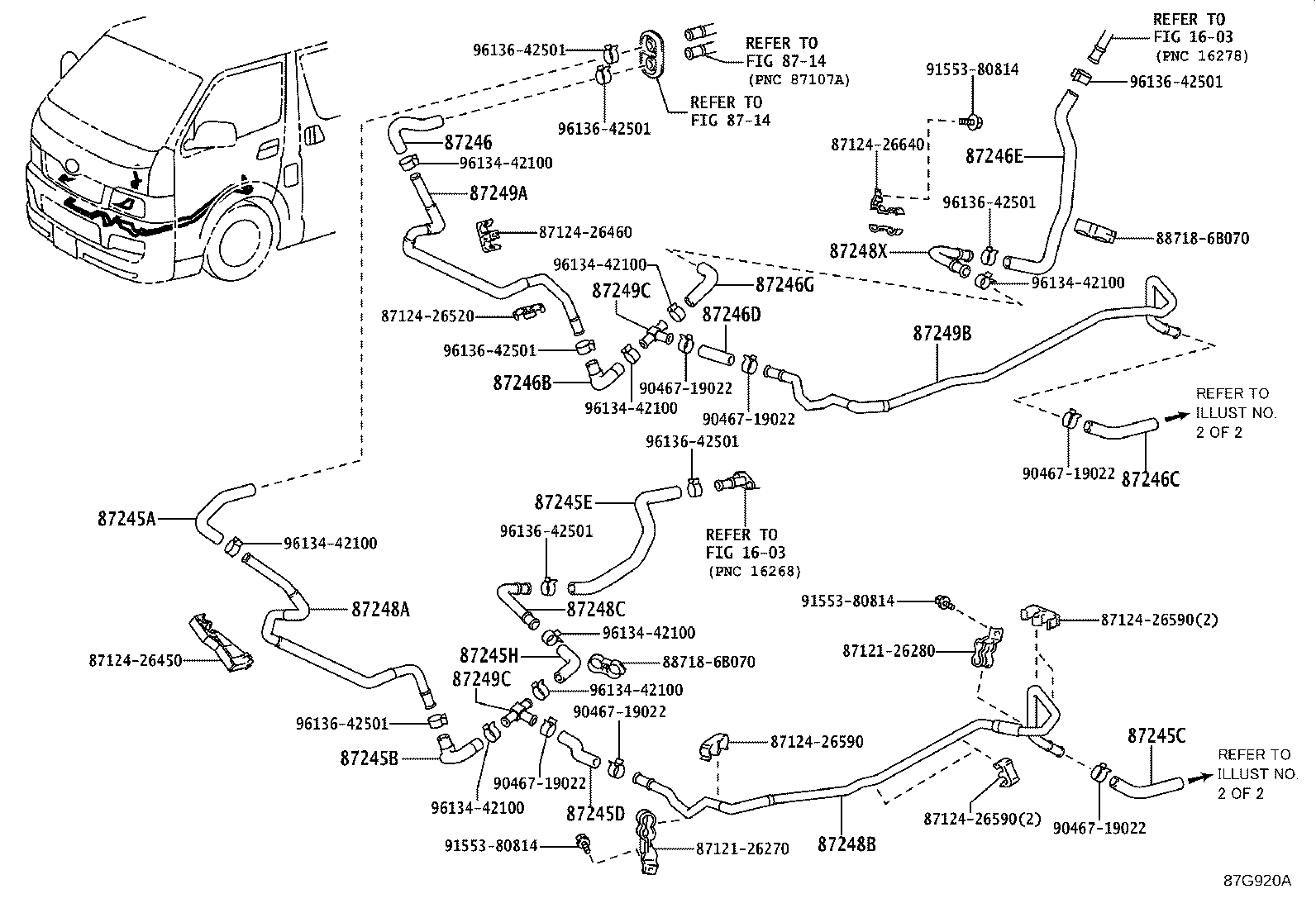

(1712- )GDH211,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

diagram 1603 1603 8712126270 8712126280 8712426450 8712426460 8712426520 8712426590 8712426590 8712426590 8712426640 8714 8714 87245A 87245B 87245C 87245D 87245E 87245H 87246 87246B 87246C 87246D 87246E 87246G 87248A 87248B 87248C 87248X 87249A 87249B 87249C 87249C 887186B070 887186B070 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155380814 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH20#,211,22#

 1
87245-26B80

TRH21#,22#

 1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH20#,211,22#

 1
87245-26B60

TRH200,21#,22#..4FC,6FC

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B90

TRH21#,22#

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH200,21#,22#..4FC,6FC

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26500

TRH21#,223,224,228,229

 1
87248-26C90

TRH21#,223,224,228,229

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26510

TRH21#,223,224,228,229

 1
87248-26D00

TRH21#,223,224,228,229

 1
Common parts
87121-26270
87121-26280
87124-26450
87124-26460
87124-26520
87124-26590
87124-26640
88718-6B070
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1603
8714

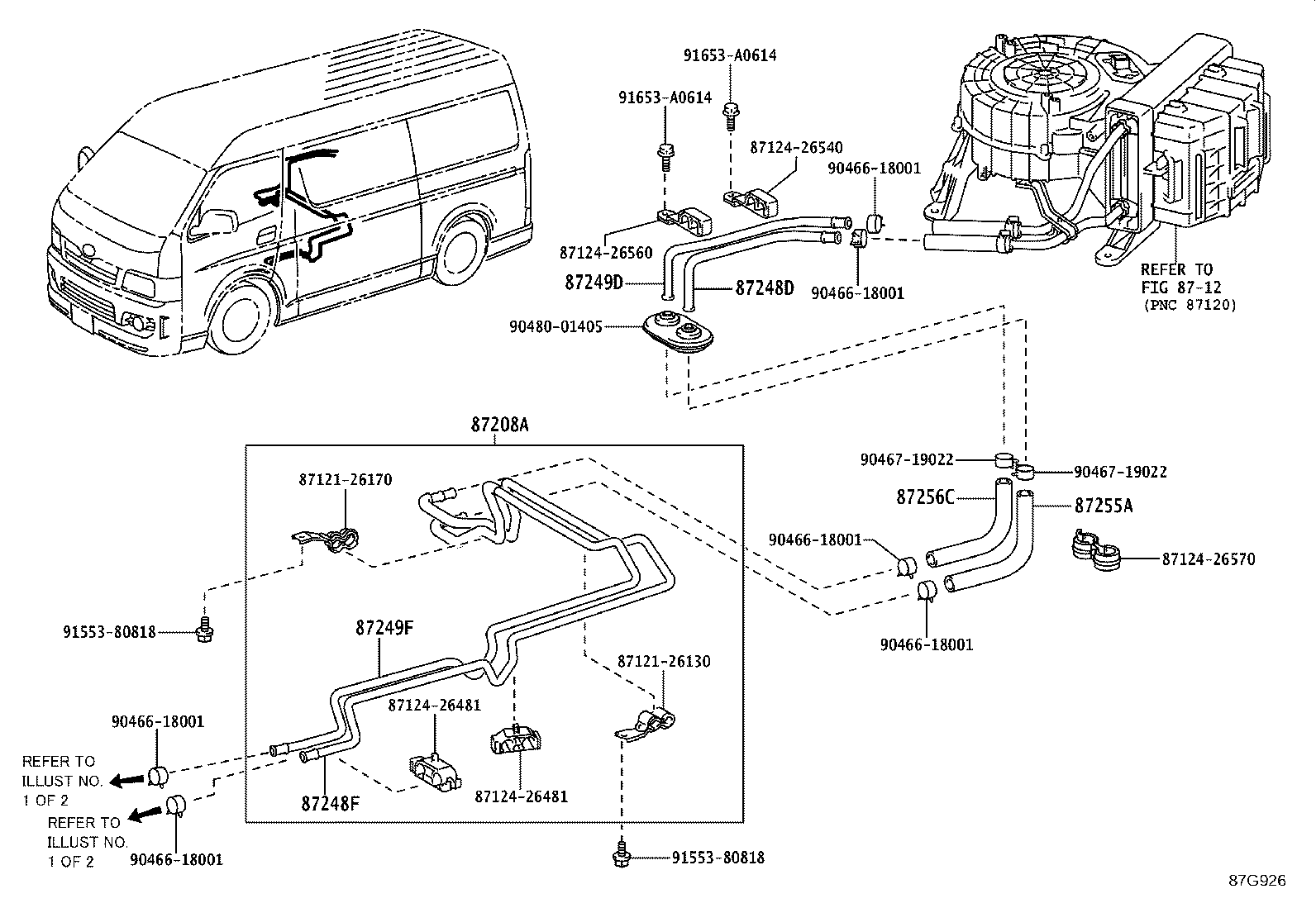

(1712- )GDH223,TRH223,228..IV5

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

diagram 8712 8712126130 8712126170 8712426481 8712426481 8712426540 8712426560 8712426570 87208A 87248D 87248F 87249D 87249F 87255A 87256C 9046618001 9046618001 9046618001 9046618001 9046618001 9046618001 9046719022 9046719022 9048001405 9155380818 9155380818 91653A0614 91653A0614
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-26B90

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
87248D - PIPE, HEATER WATER INLET, D
87248-26700

KDH223,TRH223,228..IV5

 1
87248F - PIPE, HEATER WATER INLET, F
87248-26800

KDH223,TRH214,219,223,224,228,229

 1
87248-26C20

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-26710

KDH223,TRH223,228..IV5

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26810

KDH223,TRH214,219,223,224,228,229

 1
87248-26C80

TRH223,228;GDH223,TRH214,219,224,229..4D..CBU

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20300

KDH223,TRH223,228..IV5

*H,L=290

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-20300

KDH223,TRH223,228..IV5

*H,L=240

 1
Common parts
87121-26130
87121-26170
87124-26481
87124-26540
87124-26560
87124-26570
90466-18001
90467-19022
90480-01405
91553-80818
91653-A0614
Linked diagrams
8712

(1712- )TRH21#,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

diagram 1104 1603 8712126090 8712126260 8712425110 8712426450 8712426460 8712426520 8712447030 8714 8714 87245A 87245B 87245C 87245E 87246 87246B 87246C 87246E 87248A 87248B 87249A 87249B 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-26B20

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26C00

KDH20#,211,22#

 1
87245-26B80

TRH21#,22#

 1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26C10

KDH20#,211,22#

 1
87245-26B60

TRH200,21#,22#..4FC,6FC

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26B30

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B90

TRH21#,22#

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH200,21#,22#..4FC,6FC

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26440

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26500

TRH21#,223,224,228,229

 1
87248-26C90

TRH21#,223,224,228,229

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26450

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26510

TRH21#,223,224,228,229

 1
87248-26D00

TRH21#,223,224,228,229

 1
Common parts
87121-26090
87121-26260
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714
