TRH228B-LETNK5 (2015)
Toyota Hiace/Regiusace
(1312-2005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

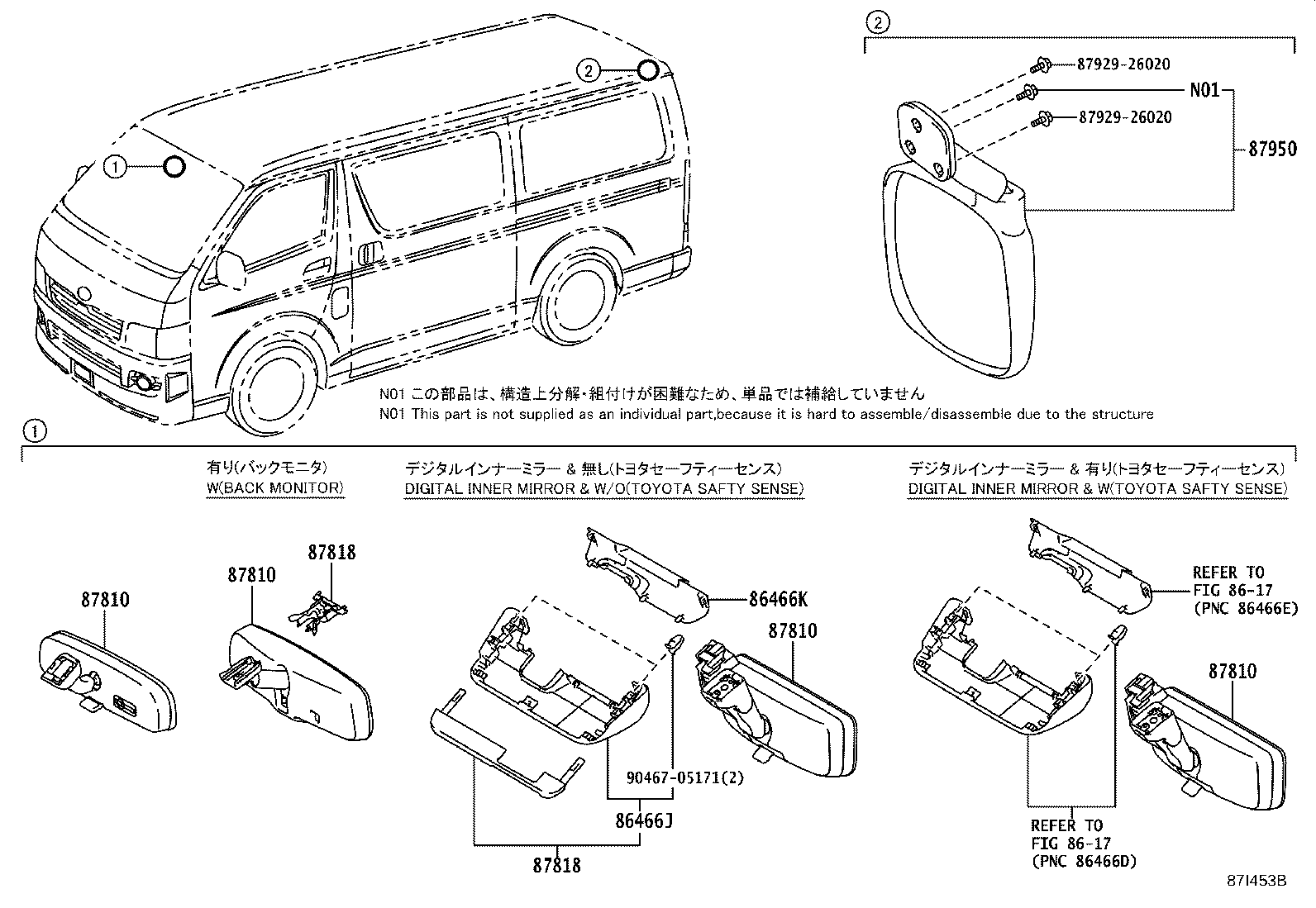

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW50 |
TRH214,219..4D;GDH20#,211,22#,TRH200,211,216,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-0WN40 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26140 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-28140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 87810-0WW50 |
TRH214,219..4D;GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH211,216,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-52041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87810-0WW50 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-26140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW50 |
TRH214,219..4D;GDH20#,211,22#,TRH200,211,216,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-0WN40 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26140 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-28140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 87810-0WW50 |
TRH214,219..4D;GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH211,216,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-52041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87810-0WW50 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-26140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW50 |
TRH214,219..4D;GDH20#,211,22#,TRH200,211,216,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-0WN40 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26140 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-28140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 87810-0WW50 |
TRH214,219..4D;GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH211,216,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-52041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87810-0WW50 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-26140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818 - COVER, INNER RR VIEW MIRROR | ||||
| 87818-26010 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26030 |
GDH201,TRH200..V2..03S;GDH223,TRH221,223,226,228..IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87818-26030 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818 - COVER, INNER RR VIEW MIRROR | ||||
| 87818-26010 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26030 |
GDH201,TRH200..V2..03S;GDH223,TRH221,223,226,228..IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87818-26030 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-26050 |
TRH221,226..4FC..IV7;TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S)..DX;GDH20#,211,221,226,KDH20#,211,22#,TRH211,216,22#..(02S,05S,06S,09S,10S)..(CBU,IV5,IV6) |
1 | ||
| 87950-26050 |
GDH206,TRH200,223,228..IV5;GDH20#,211,221,226,TRH200,21#,221,224,226,229..(02S,05S,06S,09S,10S)..6FC..(DX,GC,SGL)..(CBU,IV6) ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 87950-26050 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S)..DX;GDH20#,211,221,226,KDH20#,211,22#,TRH211,216,22#..(02S,05S,06S,09S,10S)..(CBU,IV5,IV6) ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| Common parts | ||||
| 87929-26020 | ||||
(1312-2005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

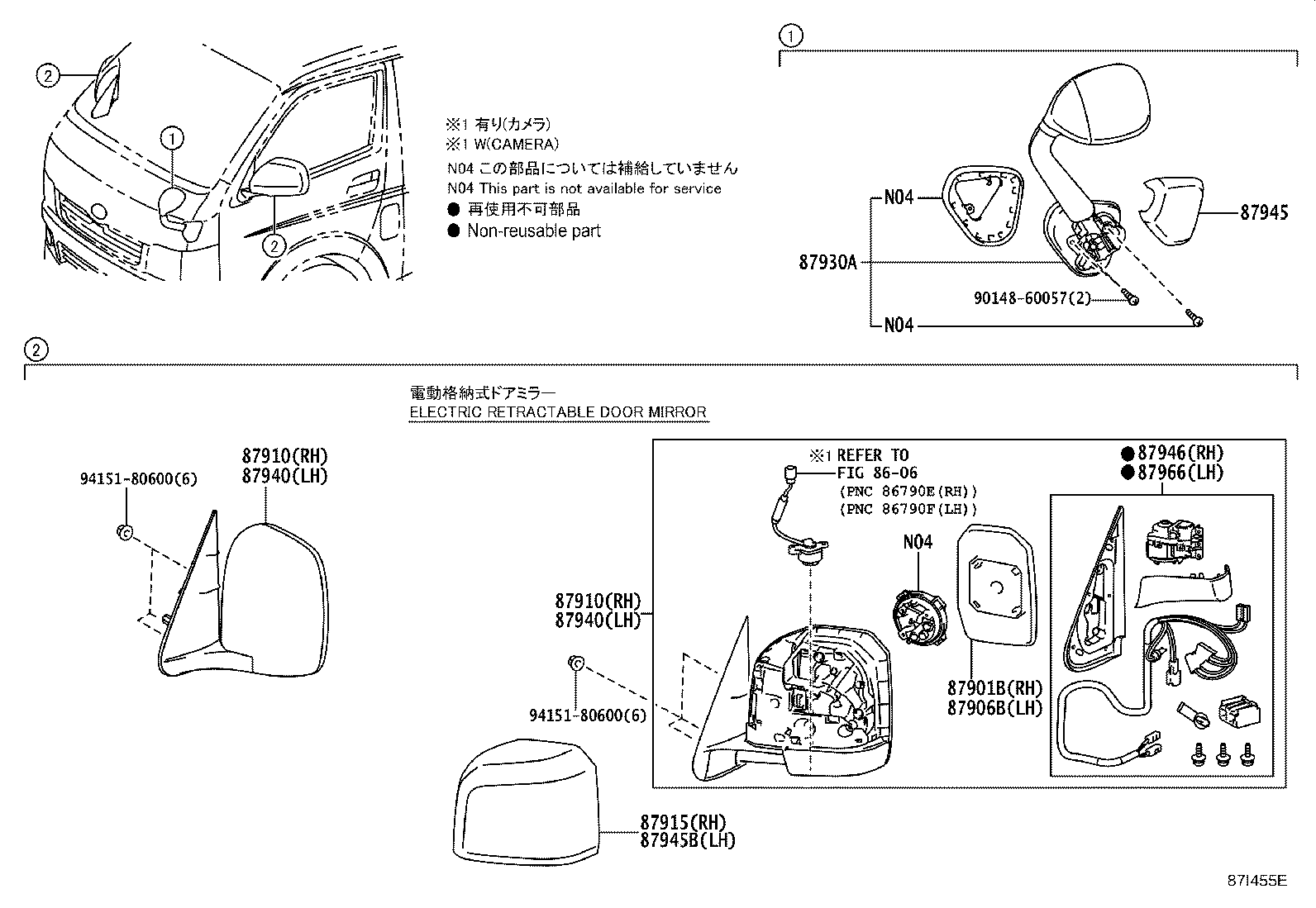

| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-6A200 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87931-6A310 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87931-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87931-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87931-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87931-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87905A - ARM SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 87905-26020 |
KDH201..SRF..DX;KDH201..V2..HRF;KDH206,22#..DX,GL;KDH201..V1..HRF..4FC |
1 | ||
| 87905-26020 |
TRH214,219..6FC..DX;GDH20#,22#,TRH200,221,223,226,228..(5F,6FC)..(DX,GL)..(CBU,IV5) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87961-26540 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87961-26750 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87961-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87961-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87961-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87961-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87961-26540 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87961-26750 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87961-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87961-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87961-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87961-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-26060 |
KDH201..SRF..DX;KDH201..V2..HRF;KDH206,22#..DX,GL;KDH201..V1..HRF..4FC |
1 | ||
| 87907-26060 |
TRH214,219..6FC..DX;GDH20#,22#,TRH200,221,223,226,228..(5F,6FC)..(DX,GL)..(CBU,IV5) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26620 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87910-26550 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87910-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87910-26600 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87910-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87910-26A70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87910-26A80 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87910-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26620 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87910-26550 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87910-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87910-26600 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87910-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87910-26A70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87910-26A80 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87910-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87930A - MIRROR ASSY, OUTER UNDER VIEW | ||||
| 87930-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87930-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87930-26020 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87940-26730 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87940-26750 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87940-26700 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87940-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87940-26B50 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87940-26B60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87940-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87940-26730 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87940-26750 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87940-26700 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87940-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87940-26B50 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87940-26B60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87940-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87945-26010 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87945-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87945-26020 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87945-26010 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87945-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87945-26020 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-26431 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87946-26431 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87946-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87946-26A70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87946-26A80 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87946-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-26541 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87966-26541 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87966-26B60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87966-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87966-26B50 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87966-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| Common parts | ||||
| 87944-26010 | ||||
| 90148-60057 | ||||
| 94151-80600 | ||||
(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86466J - COVER, FORWARD RECOGNITION, NO.1 | ||||
| 86466-26041 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 86466-26041 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 86466K - COVER, FORWARD RECOGNITION, NO.2 | ||||
| 86466-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 86466-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW50 |
TRH214,219..4D;GDH20#,211,22#,TRH200,211,216,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-0WN40 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26140 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-28140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 87810-0WW50 |
TRH214,219..4D;GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH211,216,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-52041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87810-0WW50 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-26140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW50 |
TRH214,219..4D;GDH20#,211,22#,TRH200,211,216,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-0WN40 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26140 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-28140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 87810-0WW50 |
TRH214,219..4D;GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH211,216,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-52041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87810-0WW50 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-26140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW50 |
TRH214,219..4D;GDH20#,211,22#,TRH200,211,216,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-0WN40 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26140 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-28140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 87810-0WW50 |
TRH214,219..4D;GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH211,216,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-52041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87810-0WW50 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-26140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW50 |
TRH214,219..4D;GDH20#,211,22#,TRH200,211,216,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-0WN40 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26140 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-28140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 87810-0WW50 |
TRH214,219..4D;GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH211,216,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-52041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 87810-0WW50 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87810-26130 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87810-26140 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6 ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818 - COVER, INNER RR VIEW MIRROR | ||||
| 87818-26010 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26030 |
GDH201,TRH200..V2..03S;GDH223,TRH221,223,226,228..IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87818-26030 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818 - COVER, INNER RR VIEW MIRROR | ||||
| 87818-26010 |
KDH20#,211,22#,TRH200,21#,22#..CBU,IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26030 |
GDH201,TRH200..V2..03S;GDH223,TRH221,223,226,228..IV5,IV6 ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ |
1 | ||
| 87818-26030 |
GDH223,TRH214,219,223,224,228,229..4D 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−自動防眩&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87818-26050 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し&ｲﾝﾅﾐﾗｰ−ﾃﾞｼﾞﾀﾙｲﾝﾅﾐﾗｰ&有り(ﾊﾞｯｸﾓﾆﾀ)&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-26050 |
TRH221,226..4FC..IV7;TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S)..DX;GDH20#,211,221,226,KDH20#,211,22#,TRH211,216,22#..(02S,05S,06S,09S,10S)..(CBU,IV5,IV6) |
1 | ||
| 87950-26050 |
GDH206,TRH200,223,228..IV5;GDH20#,211,221,226,TRH200,21#,221,224,226,229..(02S,05S,06S,09S,10S)..6FC..(DX,GC,SGL)..(CBU,IV6) ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 87950-26050 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,TRH200,214,219..(HRF,SMRF)..(03S,10S)..DX;GDH20#,211,221,226,KDH20#,211,22#,TRH211,216,22#..(02S,05S,06S,09S,10S)..(CBU,IV5,IV6) ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| Common parts | ||||
| 87929-26020 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 8617 | ||||
(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-6A200 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87931-6A310 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87931-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87931-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87931-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87931-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87961-26540 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87961-26750 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87961-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87961-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87961-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87961-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26620 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87910-26550 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87910-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87910-26600 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87910-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87910-26A70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87910-26A80 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87910-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26620 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87910-26550 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87910-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87910-26600 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87910-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87910-26A70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87910-26A80 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87910-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-26010 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87915-26010 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87915-26010 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87915-26010 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87930A - MIRROR ASSY, OUTER UNDER VIEW | ||||
| 87930-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87930-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87930-26020 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87940-26730 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87940-26750 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87940-26700 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87940-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87940-26B50 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87940-26B60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87940-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26650 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87940-26730 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87940-26750 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,224,226,228..(02S,03S,05S,06S,09S,14S)..(DX,GC,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87940-26700 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87940-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87940-26B50 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87940-26B60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87940-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87945-26010 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) |
1 | ||
| 87945-26020 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87945-26020 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要 |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-26030 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87945-26030 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87945-26030 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87945-26030 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) 塗装不要,ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-26431 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87946-26431 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87946-26A60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87946-26A70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87946-26A80 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87946-26A90 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-26541 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 87966-26541 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 87966-26B60 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 87966-26B40 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 87966-26B50 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 87966-26B70 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| Common parts | ||||
| 90148-60057 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
