TRH228B-LETNK5 (2015)
Toyota Hiace/Regiusace

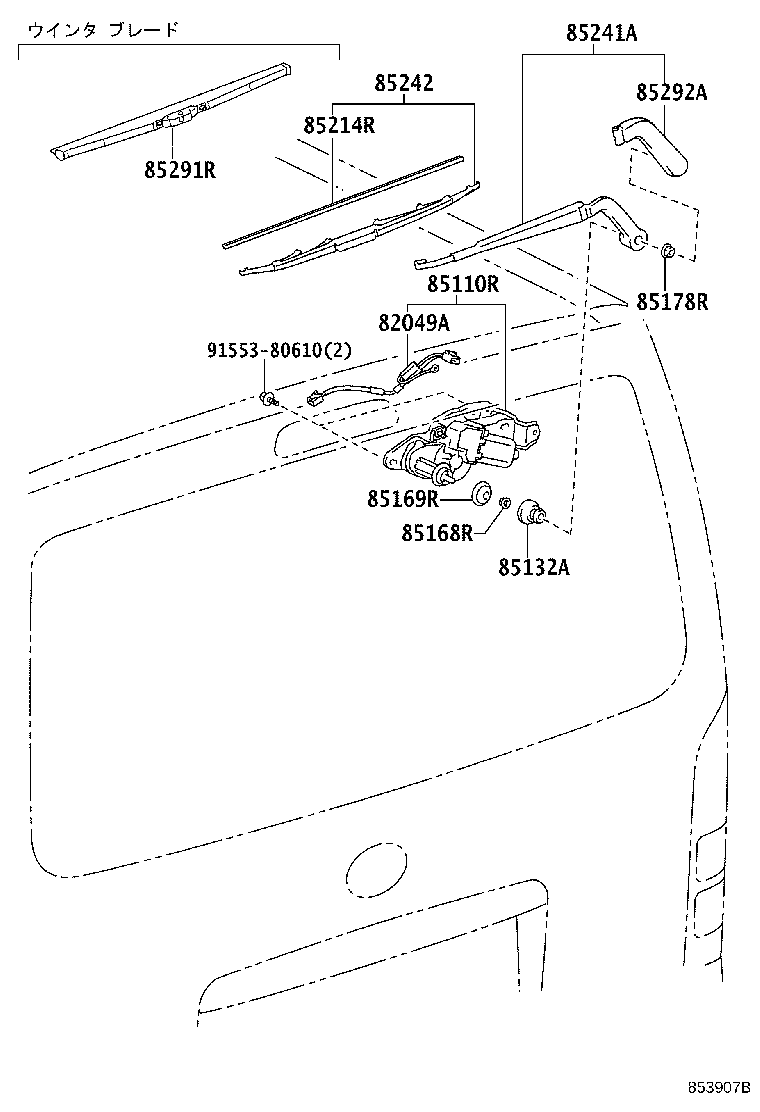

(1712-2005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82049A - WIRE SUB-ASSY, REAR WIPER | ||||
| 82049-26010 |
GDH20#,TRH200..IV5;GDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S PNC 85110R=TYPE A |
1 | ||
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85080-26060 |
GDH20#,TRH200..IV5;GDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 85130-26121 |
KDH20#,TRH200..IV5;KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85130-26150 |
GDH206,TRH200,223,228..HRF..(02S,03S,14S);GDH20#,211,22#,TRH200,21#,221,224,226,229..(02S,05S,06S,09S,10S,14S)..6FC..(CBU,IV6,IV7) |
1 | ||
| 85132A - COVER, REAR WIPER SHAFT | ||||
| 85132-53010 |
GDH20#,TRH200,224..HRF..(03S,10S)..6FC;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..(02S,05S,06S,09S,10S,14S)..(5F,6FC) |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85113-26050 |
GDH20#,TRH200,224..HRF..(03S,10S)..6FC;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..(02S,05S,06S,09S,10S,14S)..(5F,6FC) |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85134-53010 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85143-42040 |
GDH206,TRH200,223,228..HRF..(02S,03S,14S);GDH20#,211,22#,TRH200,21#,221,224,226,229..(02S,05S,06S,09S,10S,14S)..6FC..(CBU,IV6,IV7) |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90178-T0012 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) (L) |
1 | ||
| 90179-06125 |
KDH20#,TRH200..IV5;KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S (J) |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-12301 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-26061 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-26041 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 85291R - BLADE,REAR WIPER, WINTER | ||||
| 85291-44080 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-44020 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| Common parts | ||||
| 91553-80610 | ||||

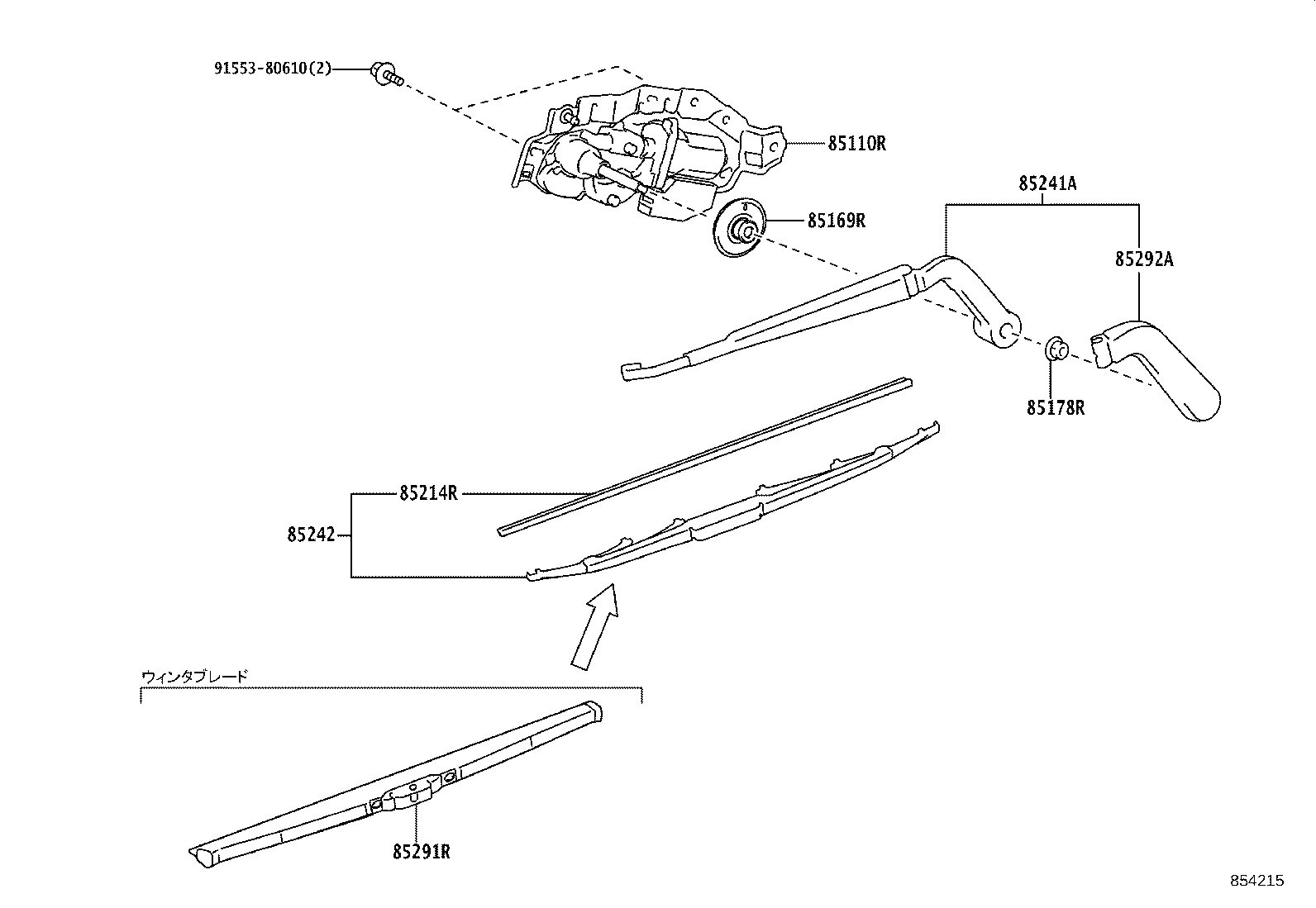

(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85080-26060 |
GDH20#,TRH200..IV5;GDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 85130-26121 |
KDH20#,TRH200..IV5;KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85130-26150 |
GDH206,TRH200,223,228..HRF..(02S,03S,14S);GDH20#,211,22#,TRH200,21#,221,224,226,229..(02S,05S,06S,09S,10S,14S)..6FC..(CBU,IV6,IV7) |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85134-53010 |
GDH20#,KDH20#,TRH200..IV5;GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S |
1 | ||
| 85143-42040 |
GDH206,TRH200,223,228..HRF..(02S,03S,14S);GDH20#,211,22#,TRH200,21#,221,224,226,229..(02S,05S,06S,09S,10S,14S)..6FC..(CBU,IV6,IV7) |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90178-T0012 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) (L) |
1 | ||
| 90179-06125 |
KDH20#,TRH200..IV5;KDH20#,211,22#,TRH200,21#,22#..02S,05S,06S,09S,10S,14S (J) |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-12301 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-26061 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-26041 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 85291R - BLADE,REAR WIPER, WINTER | ||||
| 85291-44080 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-44020 |
TRH200..(05S,06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,22#,KDH20#,211,221,TRH21#,221,226,229..(02S,05S,06S,09S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| Common parts | ||||
| 91553-80610 | ||||
