TRH228B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2005- )

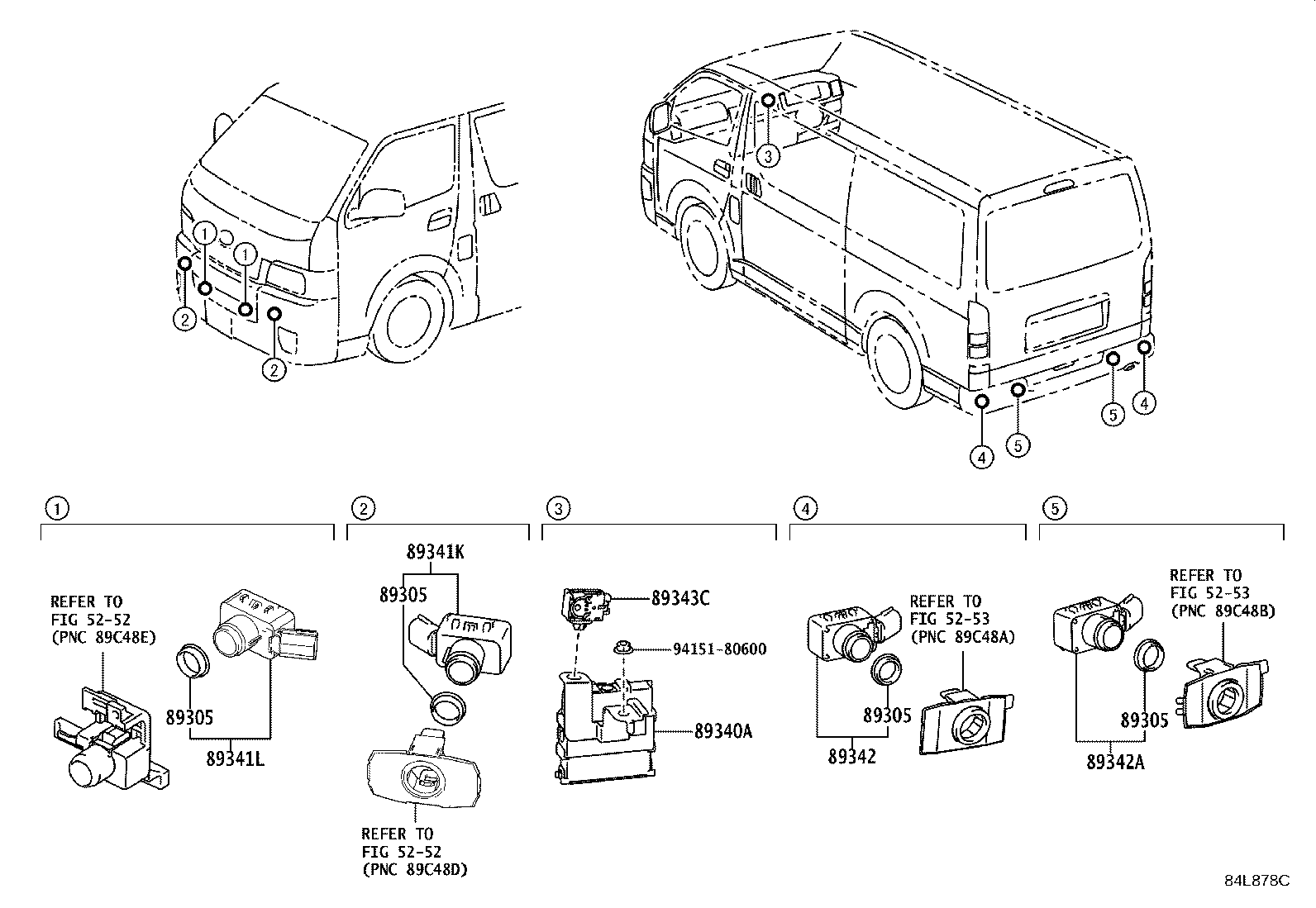

Click highlighted areas on diagram

diagram 5252 5252 5253 5253 89305 89305 89305 89305 89340A 89341K 89341L 89342 89342A 89343C 9415180600
Part # Description Qty Price
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-26280

GDH221,226,TRH221,223,226,228..(02S,05S,06S)..(CBU,IV5)

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)

 1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-33220A8

GDH206,TRH200..IV5;GDH20#,211,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL)

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ),WHITE,058

 2
89341-33220P8

GDH206,TRH200..IV5;GDH20#,211,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL)

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ),SILVER M.M.,1E7

 2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-33220C4

GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ),MAT BLACK

 2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-33220A8

GDH206,TRH200..IV5;GDH20#,211,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL)

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ),WHITE,058

 2
89341-33220P8

GDH206,TRH200..IV5;GDH20#,211,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL)

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ),SILVER M.M.,1E7

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-33220A8

GDH206,TRH200..IV5;GDH20#,211,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL)

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ),WHITE,058

 2
89341-33220P8

GDH206,TRH200..IV5;GDH20#,211,TRH200,21#,223,224,228,229..(02S,05S,10S)..(GC,GL,SGL)

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ),SILVER M.M.,1E7

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)

 1
Common parts
94151-80600
Linked diagrams
5252
5253
