TRH228B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )GDH20#,211,22#

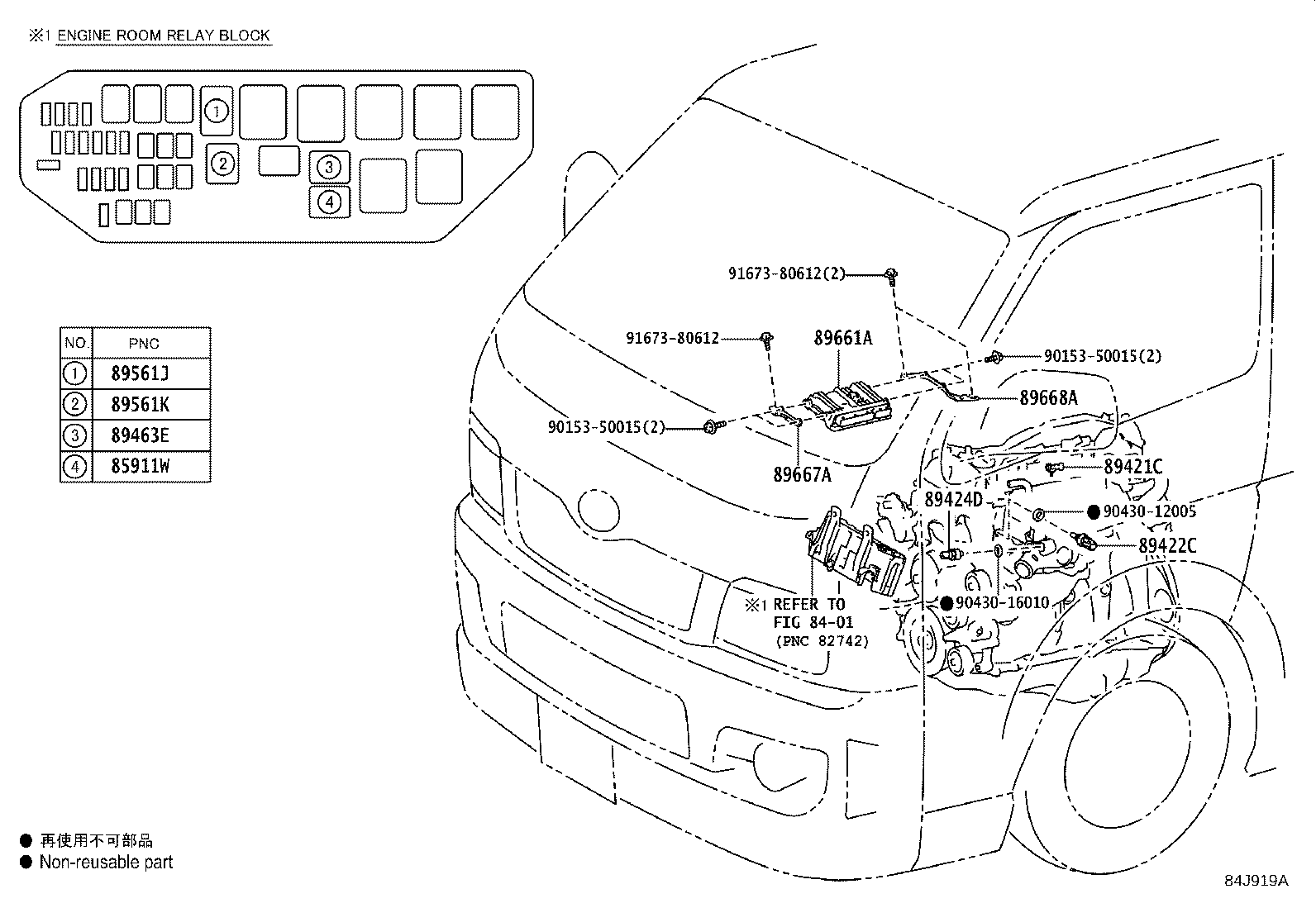

Click highlighted areas on diagram

diagram 8401 85911W 89421C 89422C 89424D 89463E 89561J 89561K 89661A 89667A 89668A 9015350015 9015350015 9043012005 9043016010 9167380612 9167380612
Part # Description Qty Price
89661A - COMPUTER, ENGINE CONTROL
89661-26N50

GDH20#,211,22#..COM,V1

DENSO

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26170

KDH20#,211,22#

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26150

KDH20#,211,22#

 1
Common parts
90153-50015
90430-12005
90430-16010
91673-80612
Linked diagrams
8401
