TRH228B-LETNK5 (2015)
Toyota Hiace/Regiusace
ILLUST NO. 5 OF 7(1312-1712)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-26031 |
TRH223,228;TRH214,219,224,229..GC,GL |
1 | ||
| 84170-26033 |
TRH214,219..GL;GDH223,TRH229..CBU;KDH223,TRH223,224,228 |
1 | ||
| 84170-26032 |
TRH214,219..GL;KDH223,TRH223,224,228,229 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-26021 |
KDH20#,211,22# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26130 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-01099 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-26100 |
KDH223,TRH223,224,228..IV5;KDH20#,223,TRH200,214,219,223,228..(HRF,SMRF)..(03S,10S,14S)..DX |
1 | ||
| 84730-26101 |
KDH223,TRH223,224,228..IV5;GDH206,223,KDH20#,223,TRH200,214,219,223,228..(HRF,SMRF)..(03S,10S,14S)..DX |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48071 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28080B0 |
TRH223,228..6FC..GL;GDH20#,211,223,TRH200,211,216,224,229..6FC..(GC,GL,SGL)..CBU ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-28070B1 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 88610P - SWITCH ASSY, CONTROL | ||||
| C8420-26010 |
TRH200,223,224,228..IV5 |
1 | ||
| C8420-28010 |
GDH206,TRH200,223,228..IV5 |
1 | ||
| C8420-26011 |
KDH20#,223,TRH200,223,224,228..IV5 |
1 | ||
| C8410A - SWITCH ASSY, POWER LIFT CONTROL | ||||
| C8410-26100 |
GDH206,TRH200,223,228..IV5 |
1 | ||
| C8410-26070 |
TRH200,223,224,228..IV5 |
1 | ||
| C8410-26071 |
KDH20#,223,TRH200,223,224,228..IV5 |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 2 OF 7(1312-1712)KDH211,221,TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC |
1 | ||
| 89257B - COMPUTER, COOLING FAN, NO.2 | ||||
| 89257-26020 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90430-12010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 4 OF 7(1312-1711)KDH20#,211,22# ; (1312-1712)TRH200,21#,22#
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1TRFE..TRH200..6FC;1GDFTV,1KDFTV,2TRFE..GDH206,KDH20#,223,TRH223,224,228;1GDFTV,1KDFTV,2TRFE..GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02027 |
1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,228..6FC;1GDFTV,2TRFE..GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08295 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08295 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26261 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26600 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26511 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26601 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26162 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26160 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730-26091 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730-26161 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
KDH223,TRH214,219,223,224,228,229 寒冷地仕様 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02027 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04004 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GDH223..GL..CBU;GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
TRH223,228..IV5;TRH200,214,219,221,223,226,228..6FC..DX..(CBU,IV5) 寒冷地仕様,(J) |
1 | ||
| 90987-04010 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
KDH20#,211,22# |
2 | ||
| 90987-02025 |
TRH219..4D;TRH200,211,214,216,22#..4FC,6FC 寒冷地仕様 |
3 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GDH201..DX..CBU;TRH223,228..IV5;GDH206,22#,TRH200,214,219,221,223,226,228..6FC..DX..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

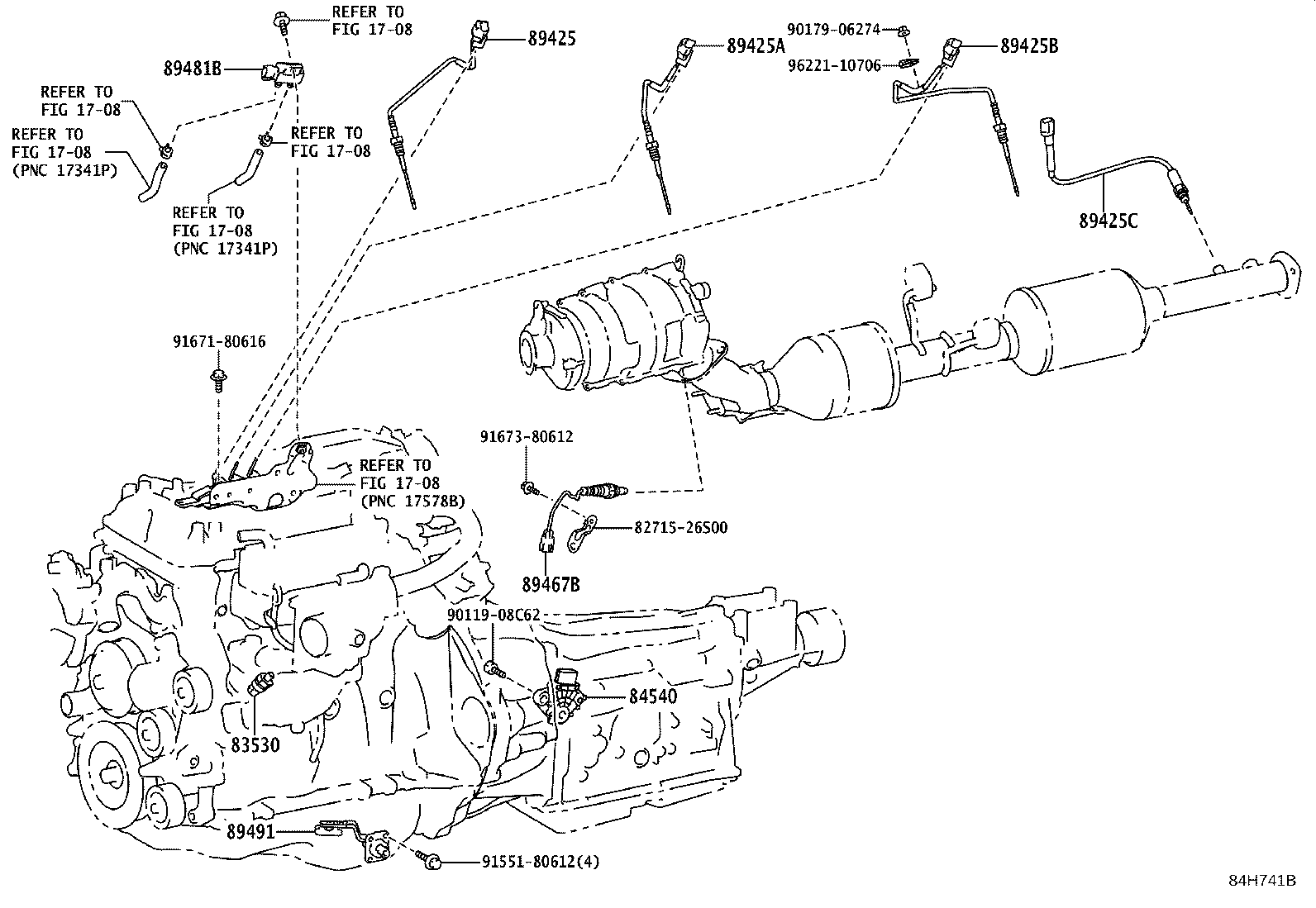

ILLUST NO. 1 OF 7(1712- )GDH20#,211,22#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
TRH200,21#,22#..4FC,6FC YAZAKI |
1 | ||
| 83530-28020 |
TRH200,21#,22#..4FC,6FC DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-26172 |
KDH20#,211,22# |
1 | ||
| 89425-26173 |
KDH20#,211,22# |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-26182 |
KDH20#,211,22# |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-26200 |
KDH20#,211,22# |
1 | ||
| 89425-26201 |
KDH20#,211,22# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-26080 |
TRH200,21#,22#..6FC |
1 | ||
| 89467-26030 |
KDH20#,211,22# |
1 | ||
| 89467-26060 |
TRH200,21#,22# |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-12050 |
KDH20#,211,22# |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26180 |
KDH20#,211,22# |
1 | ||
| 89491-25030 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| Common parts | ||||
| 82715-26S00 | ||||
| 90119-08C62 | ||||
| 90179-06274 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 91673-80612 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||

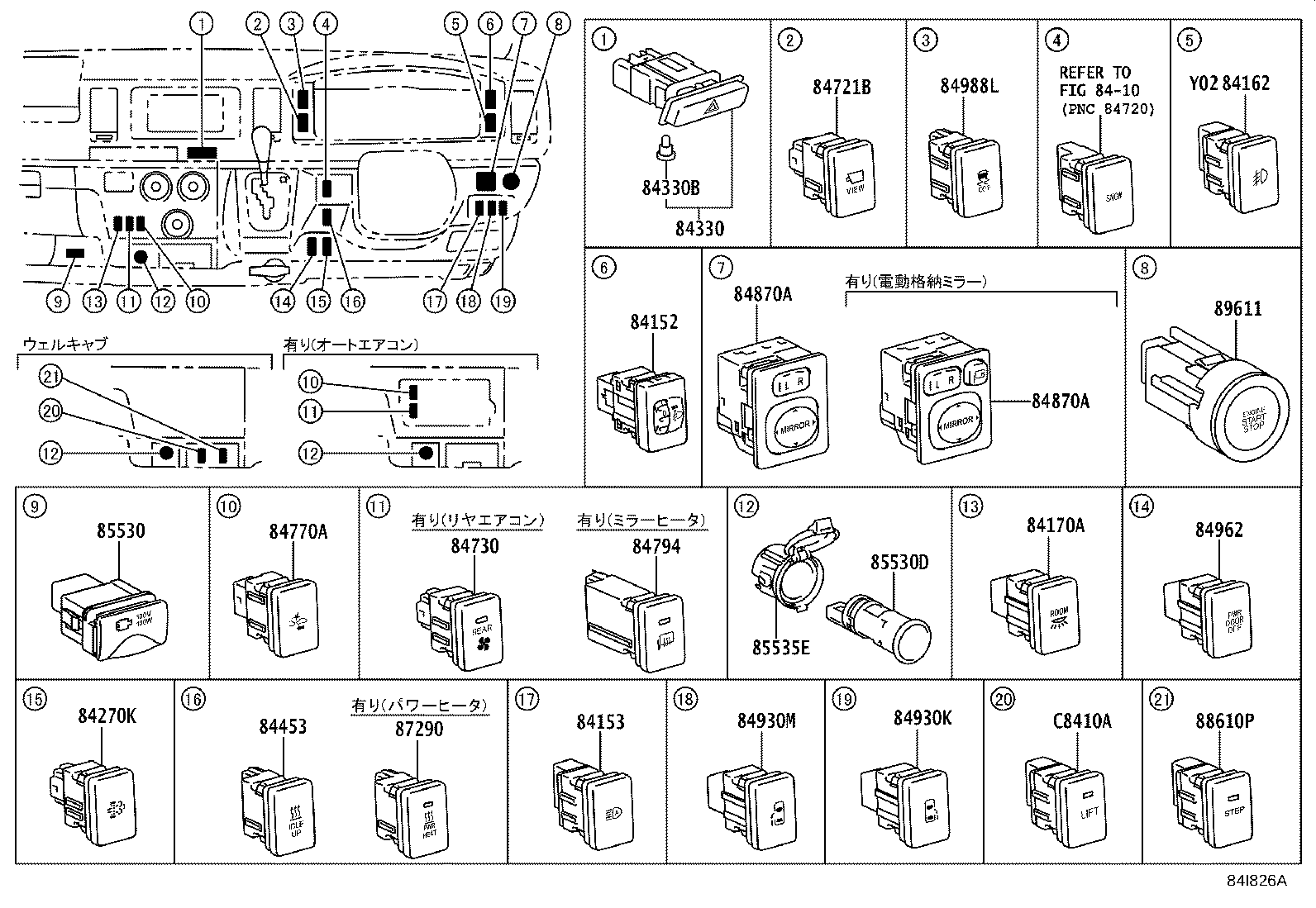

ILLUST NO. 5 OF 7(1712- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-26020 |
TRH214,219..5D;GDH223,TRH223,228..IV5 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 84153-26020 |
TRH214,219..5D;GDH201,TRH200,223,228..(COM,V2)..(02S,03S) |
1 | ||
| 84170A - SWITCH ASSY, ROOM LAMP NO.1 | ||||
| 84170-26031 |
TRH223,228;TRH214,219,224,229..GC,GL |
1 | ||
| 84170-26033 |
TRH214,219..GL;GDH223,TRH229..CBU;KDH223,TRH223,224,228 |
1 | ||
| 84170-26032 |
TRH214,219..GL;KDH223,TRH223,224,228,229 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-26021 |
KDH20#,211,22# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26130 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 90010-01099 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 14V 0.84W |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-26030 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-26100 |
KDH223,TRH223,224,228..IV5;KDH20#,223,TRH200,214,219,223,228..(HRF,SMRF)..(03S,10S,14S)..DX |
1 | ||
| 84730-26101 |
KDH223,TRH223,224,228..IV5;GDH206,223,KDH20#,223,TRH200,214,219,223,228..(HRF,SMRF)..(03S,10S,14S)..DX |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84770-26020 |
TRH214,219..5D;GDH201,TRH200,223,228..(COM,V2)..(02S,03S) |
1 | ||
| 84770-26020 |
TRH214,219..5D;GDH223,TRH223,228..IV5 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273 |
1 | ||
| 84870-28040 |
TRH214,219..DX;GDH20#,22#,KDH20#,22#,TRH200,221,223,226,228..(DX,GL)..(CBU,IV5) ｱｳﾀﾐﾗｰ−*273,有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ﾋｰﾀ) |
1 | ||
| 84870-28040 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-48071 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-28080B0 |
TRH223,228..6FC..GL;GDH20#,211,223,TRH200,211,216,224,229..6FC..(GC,GL,SGL)..CBU ｲﾝﾊﾞｰﾀ−有り(100V),DK.GRAY |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-28070B1 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 88610P - SWITCH ASSY, CONTROL | ||||
| C8420-26010 |
TRH200,223,224,228..IV5 |
1 | ||
| C8420-28010 |
GDH206,TRH200,223,228..IV5 |
1 | ||
| C8420-26011 |
KDH20#,223,TRH200,223,224,228..IV5 |
1 | ||
| C8410A - SWITCH ASSY, POWER LIFT CONTROL | ||||
| C8410-26100 |
GDH206,TRH200,223,228..IV5 |
1 | ||
| C8410-26070 |
TRH200,223,224,228..IV5 |
1 | ||
| C8410-26071 |
KDH20#,223,TRH200,223,224,228..IV5 |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||

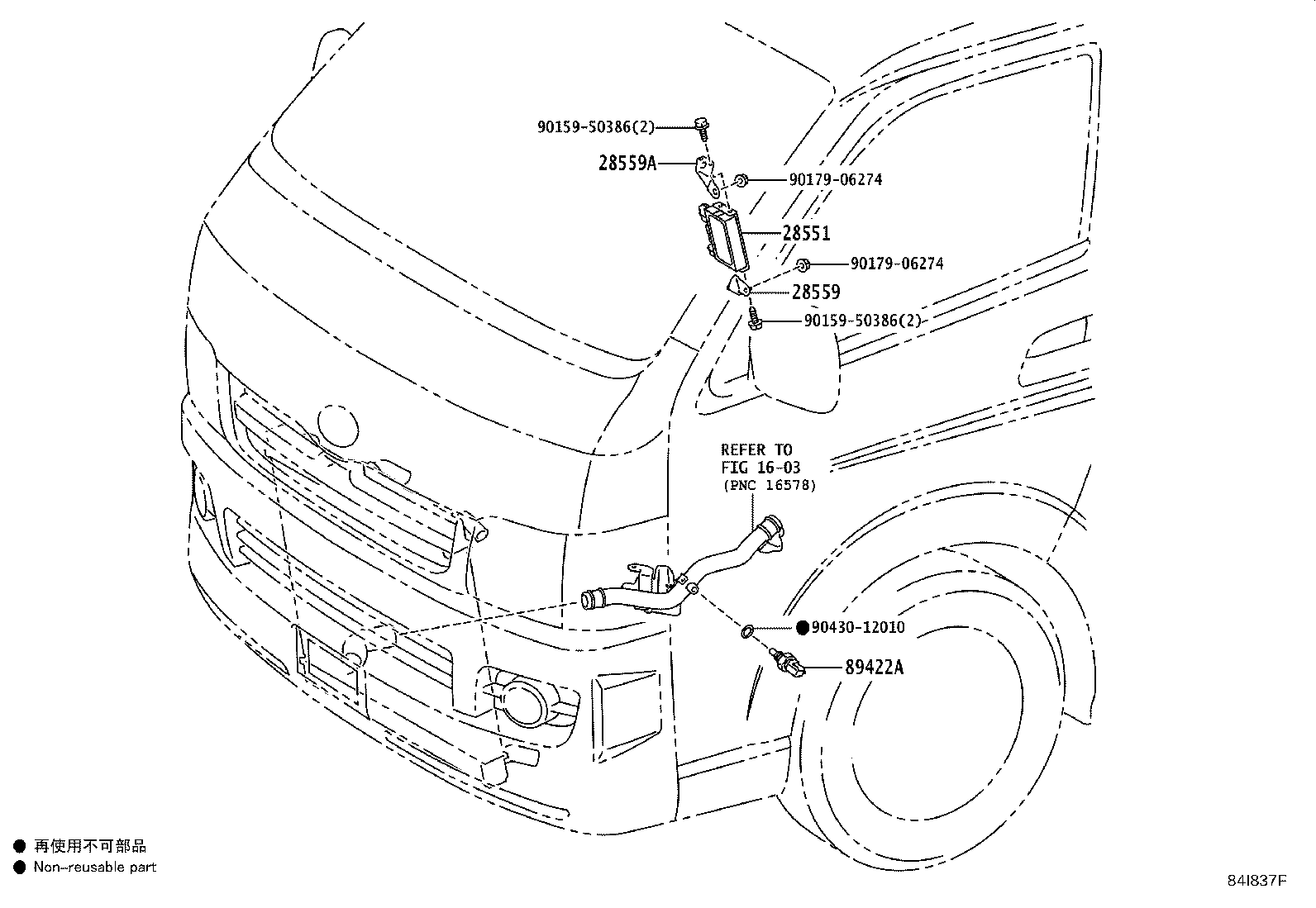

ILLUST NO. 2 OF 7(1712- )GDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 90430-12010 | ||||
| Linked diagrams | ||||
| 1603 | ||||

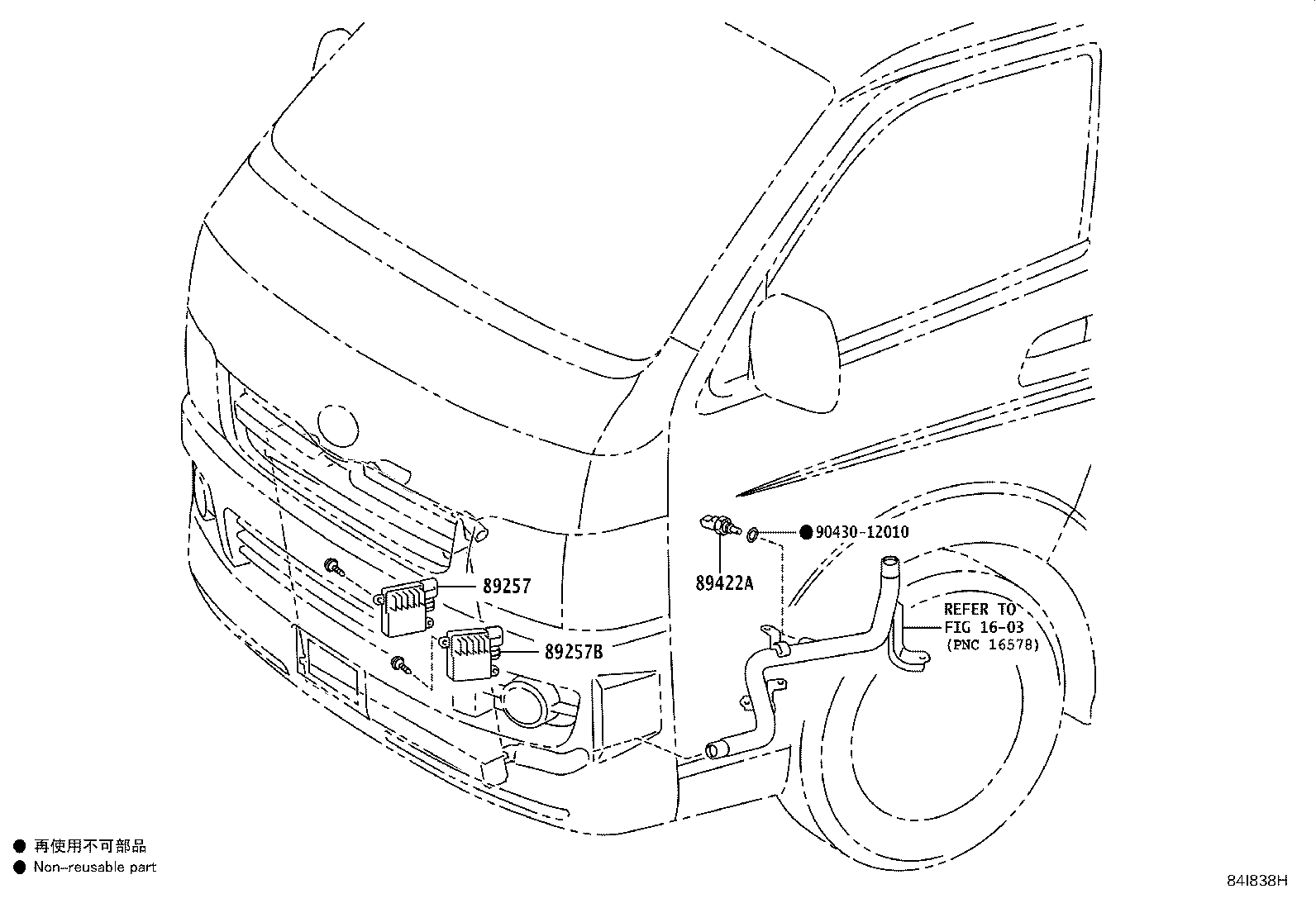

ILLUST NO. 2 OF 7(1712- )TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-26020 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC |
1 | ||
| 89257B - COMPUTER, COOLING FAN, NO.2 | ||||
| 89257-26020 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90430-12010 | ||||
| Linked diagrams | ||||
| 1603 | ||||

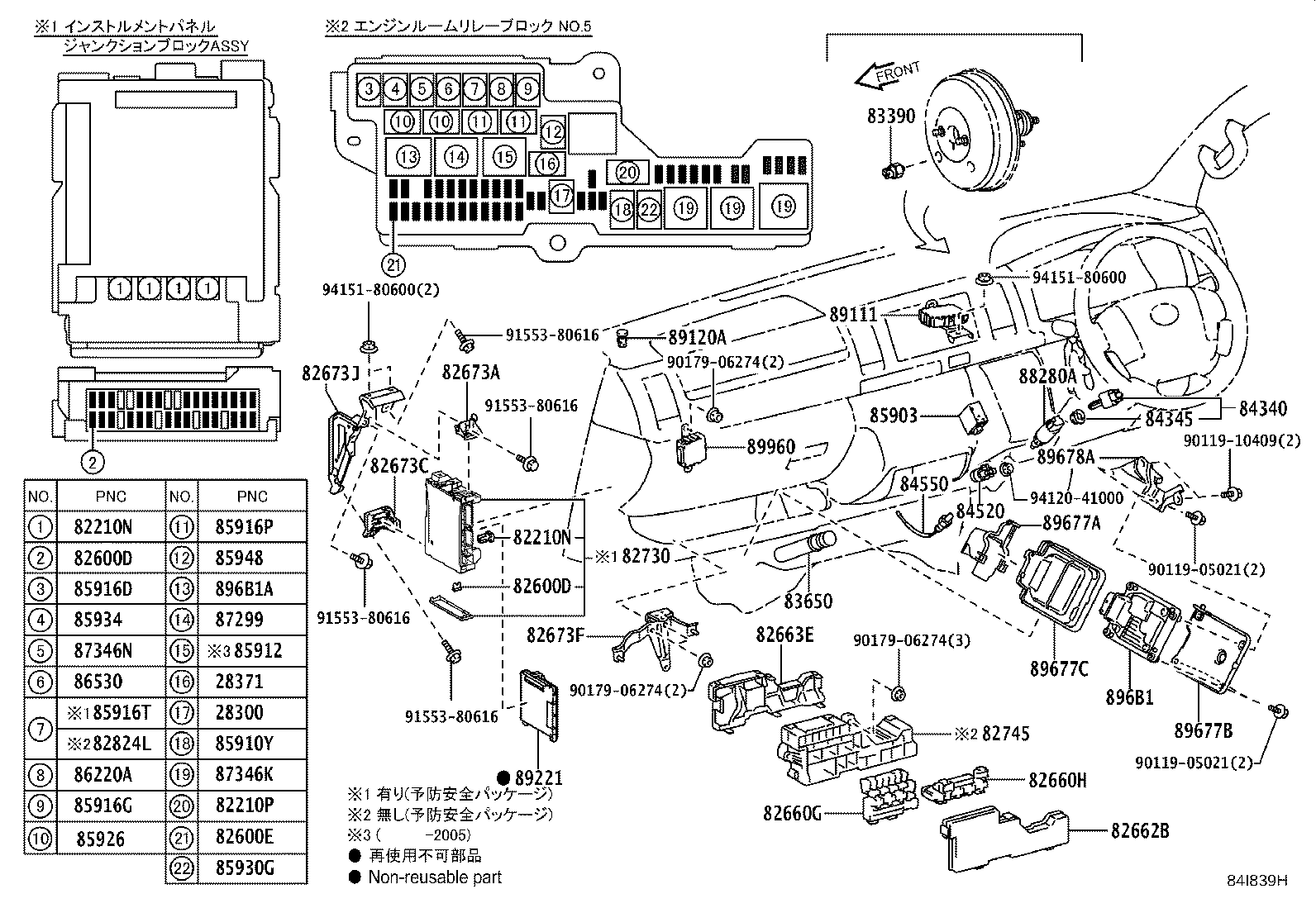

ILLUST NO. 4 OF 7(1712- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1TRFE..TRH200..6FC;1GDFTV,1KDFTV,2TRFE..GDH206,KDH20#,223,TRH223,224,228;1GDFTV,1KDFTV,2TRFE..GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
1KDFTV,1TRFE,2TRFE..KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02027 |
1GDFTV,1TRFE,2TRFE..GDH206,TRH200,223,228..6FC;1GDFTV,2TRFE..GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08295 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 90982-08295 |
KDH20#,211,22#,TRH200,21#,22# 30A,ﾒｽ端子,桃,ﾏｰｸ 58V |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08301 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08303 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08301 |
GDH201,211,22#,TRH21#,224,229..CBU;GDH206,TRH200,221,223,226,228..6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08302 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08304 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08305 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08308 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08299 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 40A−40A−40A,ﾒｽ端子,緑 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-26430 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-26440 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26600 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26511 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26601 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-26220 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26050 |
KDH20#,211,22# |
1 | ||
| 82673-26160 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82673-26060 |
TRH200,21#,22# |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-26170 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-26230 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82673J - BRACKET, JUNCTION BLOCK | ||||
| 82673-26210 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26160 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730-26091 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82730-26161 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82745 - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82741-26090 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-26240 |
TRH214,219..5D;GDH223,TRH223,228..IV5 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 82824-26240 |
TRH214,219..5D;GDH223,TRH223,228..IV5 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49045 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-20030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52010 |
GDH201..DX..CBU;TRH223,224,228..IV5;KDH20#,211,223,TRH211,216,229..4FC;TRH200,214,219,223,224,228..4FC..(GC,GL,SGL)..CBU;GDH206,22#,KDH221,TRH200,214,219,221,223,226,228..(4FC,6FC)..DX |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02028 |
GDH206,221,226,TRH200,223,228..HRF..(02S,03S,14S);GDH20#,211,223,TRH200,21#,221,224,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
TRH200..(06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..IV5;GDH20#,22#,KDH20#,22#,TRH214,219,221,223,226,228..(05S,06S,09S,10S,14S)..DX |
1 | ||
| 85916G - RELAY, SECURITY MAIN | ||||
| 90987-02027 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 90987-02027 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 85916T - RELAY, SPOT LAMP | ||||
| 90987-04004 |
TRH214,219..5D;GDH223,TRH223,228..IV5 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 90987-04004 |
TRH214,219..5D;GDH201,TRH200,223,228..(COM,V2)..(02S,03S) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04004 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
GDH201..DX..CBU;TRH223,228..IV5;GDH206,22#,TRH200,214,219,221,223,226,228..6FC..DX..(CBU,IV5) |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-02027 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
GDH223..GL..CBU;GDH20#,211,TRH200,211,216,223,224,228,229..GC,GL,SGL ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GDH223..GL..CBU;GDH221,226,TRH221,226..02S;GDH20#,211,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-04010 |
TRH223,228..IV5;TRH200,214,219,221,223,226,228..6FC..DX..(CBU,IV5) 寒冷地仕様,(J) |
1 | ||
| 90987-04010 |
KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5);KDH223,TRH200,223,224,228..(02S,03S,06S,09S)..(4FC,6FC) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
KDH20#,211,22# |
2 | ||
| 90987-02025 |
TRH219..4D;TRH200,211,214,216,22#..4FC,6FC 寒冷地仕様 |
3 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-26031 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 89100-26030 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GDH201..DX..CBU;TRH223,228..IV5;GDH206,22#,TRH200,214,219,221,223,226,228..6FC..DX..(CBU,IV5) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-26K40 |
TRH223,228;GDH20#,211,223,TRH200,21#,224,229..05S,10S,14S |
1 | ||
| 89220-26030 |
GDH20#,211,223,TRH200,21#,223,224,228,229..02S,05S,10S,14S |
1 | ||
| 896B1A - RELAY, DCU MAIN | ||||
| 90987-02025 |
GDH20#,211,22# |
1 | ||
| Common parts | ||||
| 90119-05021 | ||||
| 90119-10409 | ||||
| 90179-06274 | ||||
| 91553-80616 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||

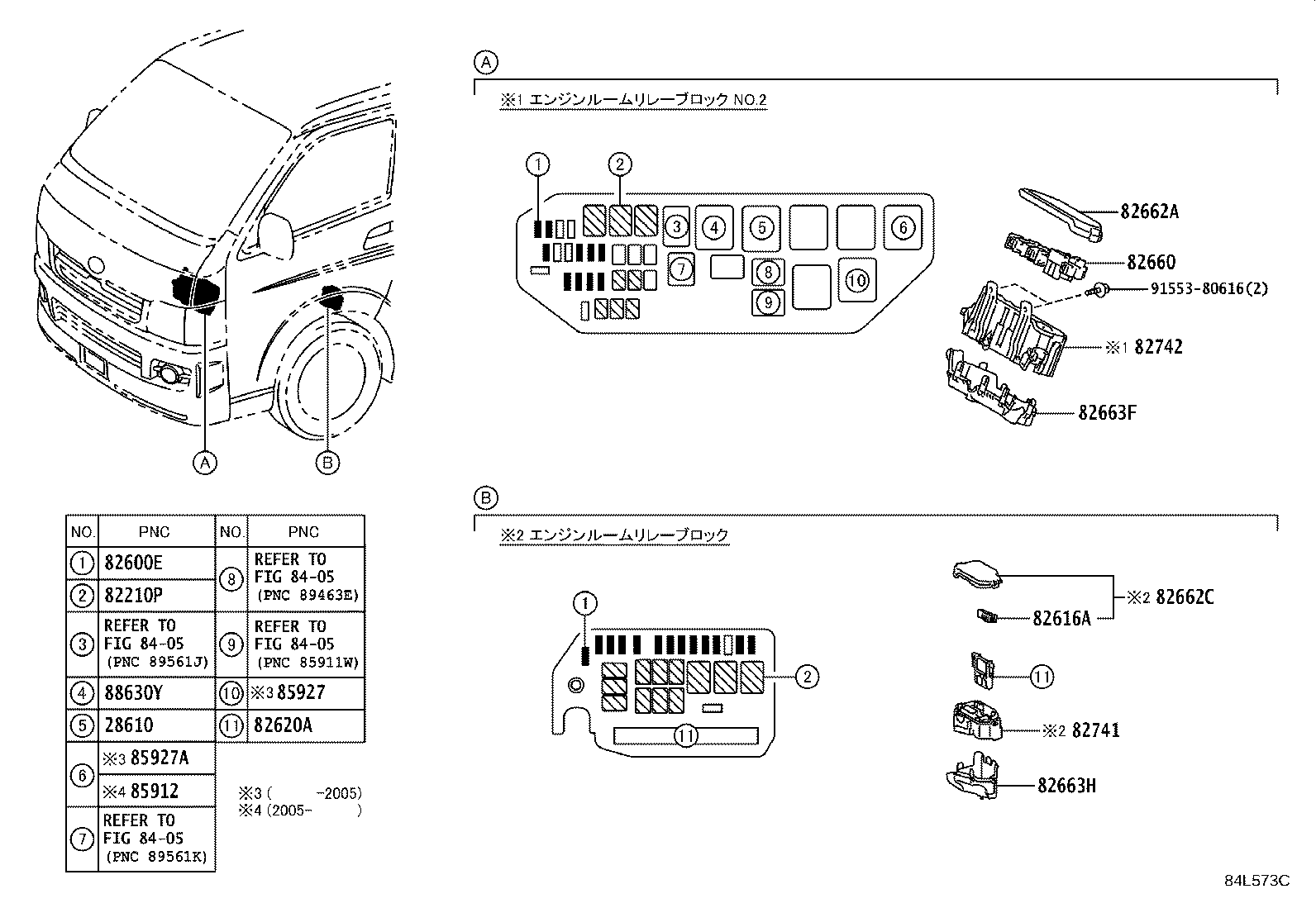

ILLUST NO. 3 OF 7(1312-1712)KDH211,221,TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08301 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08303 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08301 |
GDH201,211,22#,TRH21#,224,229..CBU;GDH206,TRH200,221,223,226,228..6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08302 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08304 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08305 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08308 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08299 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 40A−40A−40A,ﾒｽ端子,緑 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616A - PULLER, FUSE, NO.2 | ||||
| 82616-58010 |
TRH224..CBU;TRH200,21#,221,223,226,228,229 |
1 | ||
| 82616-58010 |
GDH201,211,22#,TRH21#,224,229..CBU;GDH206,TRH200,221,223,226,228..6FC |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26510 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82620-26540 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-26110 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26300 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26350 |
TRH200,21#,22# |
1 | ||
| 82660-26340 |
KDH20#,211,22# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26273 |
KDH20#,211,22# |
1 | ||
| 82662-26501 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26293 |
TRH200,21#,22# |
1 | ||
| 82662-26502 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26313 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26581 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26582 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-26320 |
TRH21#,22#;TRH200..4FC;TRH200..6FC..SGL;TRH200..6FC..IV5;TRH200..V2..03S..6FC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26081 |
KDH20#,211,22# NO.1 |
1 | ||
| 82663-26141 |
TRH200,21#,22# NO.1 |
1 | ||
| 82663-26131 |
TRH200,21#,22# NO.2 |
1 | ||
| 82663-26141 |
TRH200,21#,22# NO.2 |
1 | ||
| 82663-26131 |
TRH200,21#,22#..5F,6FC NO.2 |
1 | ||
| 82663-26101 |
KDH20#,211,22# NO.2 |
1 | ||
| 82663-26141 |
TRH200,21#,22#..5F,6FC NO.1 |
1 | ||
| 82663-26131 |
TRH200,21#,22# NO.1 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26081 |
KDH20#,211,22# NO.1 |
1 | ||
| 82663-26141 |
TRH200,21#,22# NO.1 |
1 | ||
| 82663-26131 |
TRH200,21#,22# NO.2 |
1 | ||
| 82663-26141 |
TRH200,21#,22# NO.2 |
1 | ||
| 82663-26131 |
TRH200,21#,22#..5F,6FC NO.2 |
1 | ||
| 82663-26101 |
KDH20#,211,22# NO.2 |
1 | ||
| 82663-26141 |
TRH200,21#,22#..5F,6FC NO.1 |
1 | ||
| 82663-26131 |
TRH200,21#,22# NO.1 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-26150 |
TRH200,21#,22# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26050 |
KDH20#,211,22# |
1 | ||
| 82673-26160 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82673-26060 |
TRH200,21#,22# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26011 |
KDH20#,211,22# |
1 | ||
| 82741-26031 |
TRH200,21#,22# |
1 | ||
| 82741-26080 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82741-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82744 - BLOCK, ENGINE ROOM RELAY, NO.4 | ||||
| 82741-26040 |
TRH200,21#,22# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
TRH200..(06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..IV5;GDH20#,22#,KDH20#,22#,TRH214,219,221,223,226,228..(05S,06S,09S,10S,14S)..DX |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2002 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (L) |
1 | ||
| 90987-02025 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (J) |
1 | ||
| 90987-02025 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (J) |
1 | ||
| 90987-T2002 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2002 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (L) |
1 | ||
| 90987-02025 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (J) |
1 | ||
| 90987-02025 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (J) |
1 | ||
| 90987-T2002 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (L) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
KDH20#,211,22# |
2 | ||
| 90987-02025 |
TRH219..4D;TRH200,211,214,216,22#..4FC,6FC 寒冷地仕様 |
3 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (J) |
1 | ||
| 90987-T2003 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (L) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 91551-80608 | ||||
| 91553-80616 | ||||

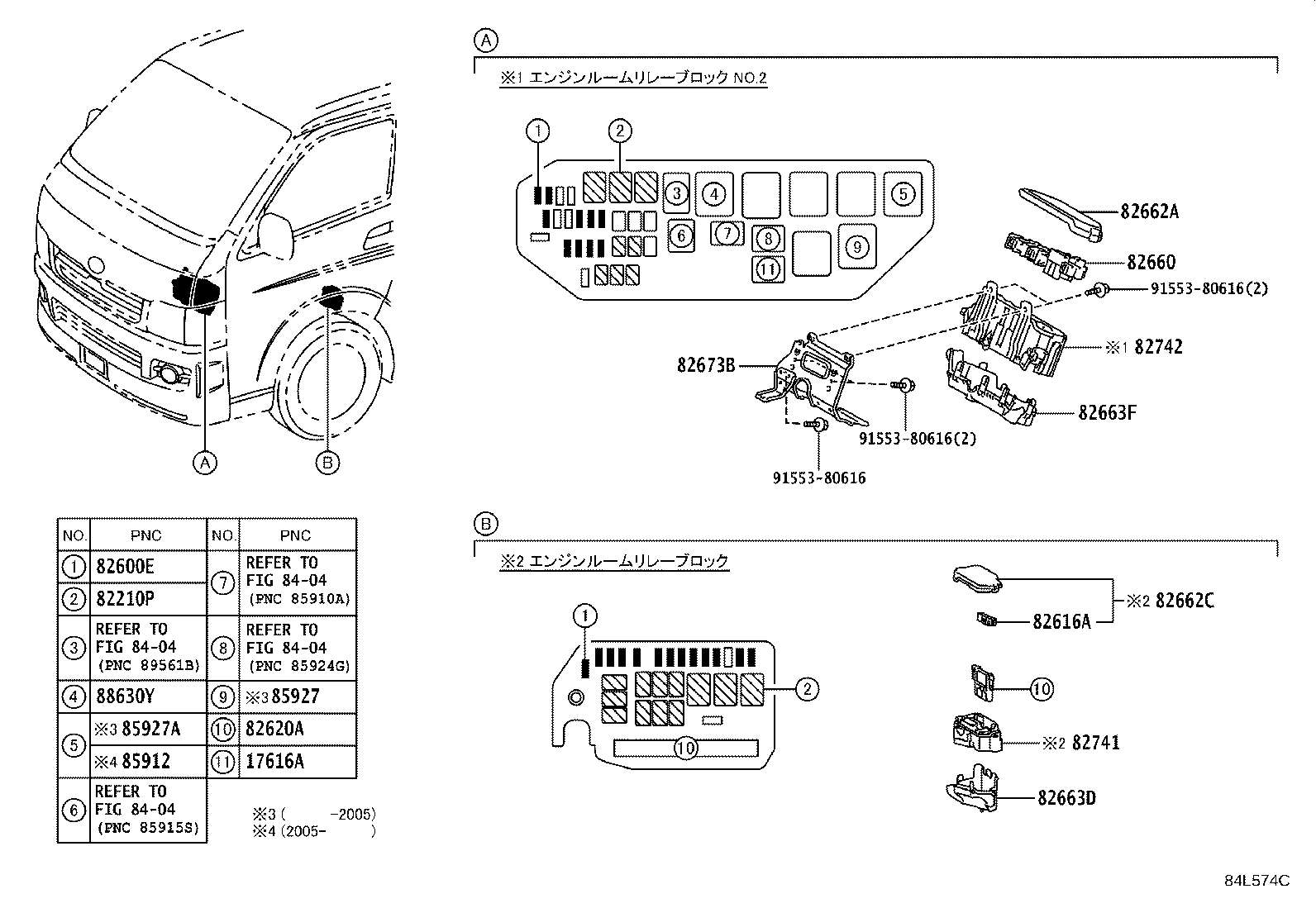

ILLUST NO. 3 OF 7(1712- )GDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08301 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08303 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08301 |
GDH201,211,22#,TRH21#,224,229..CBU;GDH206,TRH200,221,223,226,228..6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08302 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08304 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08305 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08308 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08299 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 40A−40A−40A,ﾒｽ端子,緑 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616A - PULLER, FUSE, NO.2 | ||||
| 82616-58010 |
TRH224..CBU;TRH200,21#,221,223,226,228,229 |
1 | ||
| 82616-58010 |
GDH201,211,22#,TRH21#,224,229..CBU;GDH206,TRH200,221,223,226,228..6FC |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26510 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82620-26540 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26360 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26273 |
KDH20#,211,22# |
1 | ||
| 82662-26501 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26293 |
TRH200,21#,22# |
1 | ||
| 82662-26502 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26313 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26581 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26582 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82663F - COVER, RELAY BLOCK, LOWER, NO.8 | ||||
| 82663-26120 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26011 |
KDH20#,211,22# |
1 | ||
| 82741-26031 |
TRH200,21#,22# |
1 | ||
| 82741-26080 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-26070 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
TRH200..(06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..IV5;GDH20#,22#,KDH20#,22#,TRH214,219,221,223,226,228..(05S,06S,09S,10S,14S)..DX |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2002 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (L) |
1 | ||
| 90987-02025 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (J) |
1 | ||
| 90987-02025 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (J) |
1 | ||
| 90987-T2002 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2002 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (L) |
1 | ||
| 90987-02025 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (J) |
1 | ||
| 90987-02025 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (J) |
1 | ||
| 90987-T2002 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (L) |
1 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (J) |
1 | ||
| 90987-T2003 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (L) |
1 | ||
| Common parts | ||||
| 91553-80616 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 3 OF 7(1712- )TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17616A - RELAY, AIR PUMP | ||||
| 90987-02027 |
1TRFE,2TRFE..TRH200,21#,22#..6FC |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08301 |
TRH224..6FC..CBU;TRH200,21#,221,223,226,228,229..5F,6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08294 |
KDH20#,211,22#,TRH200,21#,22# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08303 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08301 |
GDH201,211,22#,TRH21#,224,229..CBU;GDH206,TRH200,221,223,226,228..6FC 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08302 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08304 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08305 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08308 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 40A−30A−30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08299 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 40A−40A−40A,ﾒｽ端子,緑 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09022 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616A - PULLER, FUSE, NO.2 | ||||
| 82616-58010 |
TRH224..CBU;TRH200,21#,221,223,226,228,229 |
1 | ||
| 82616-58010 |
GDH201,211,22#,TRH21#,224,229..CBU;GDH206,TRH200,221,223,226,228..6FC |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26510 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82620-26540 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-26360 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26273 |
KDH20#,211,22# |
1 | ||
| 82662-26501 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26293 |
TRH200,21#,22# |
1 | ||
| 82662-26502 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26313 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26581 |
GDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82662-26582 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82663D - COVER, RELAY BLOCK, LOWER, NO.5 | ||||
| 82663-26230 |
TRH200,21#,22#..6FC |
1 | ||
| 82663F - COVER, RELAY BLOCK, LOWER, NO.8 | ||||
| 82663-26120 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-26220 |
TRH200,21#,22#..6FC |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-26011 |
KDH20#,211,22# |
1 | ||
| 82741-26031 |
TRH200,21#,22# |
1 | ||
| 82741-26080 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-26070 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
TRH200..(06S,09S)..(4FC,6FC);GDH206,KDH20#,223,TRH200,223,224,228..IV5;GDH20#,22#,KDH20#,22#,TRH214,219,221,223,226,228..(05S,06S,09S,10S,14S)..DX |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2002 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (L) |
1 | ||
| 90987-02025 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (J) |
1 | ||
| 90987-02025 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (J) |
1 | ||
| 90987-T2002 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (L) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-T2002 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (L) |
1 | ||
| 90987-02025 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (J) |
1 | ||
| 90987-02025 |
KDH201..SRF;KDH206,211,22#;KDH201..V2..HRF;KDH201..V1..HRF..4FC (J) |
1 | ||
| 90987-T2002 |
TRH224..6FC..CBU;GDH20#,211,22#,TRH200,21#,221,223,226,228,229..5F,6FC (L) |
1 | ||
| 88630Y - RELAY, REAR COOLER | ||||
| 90987-04010 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (J) |
1 | ||
| 90987-T2003 |
GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6) (L) |
1 | ||
| Common parts | ||||
| 91553-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
