TRH228B-LETNK5 (2015)
Toyota Hiace/Regiusace

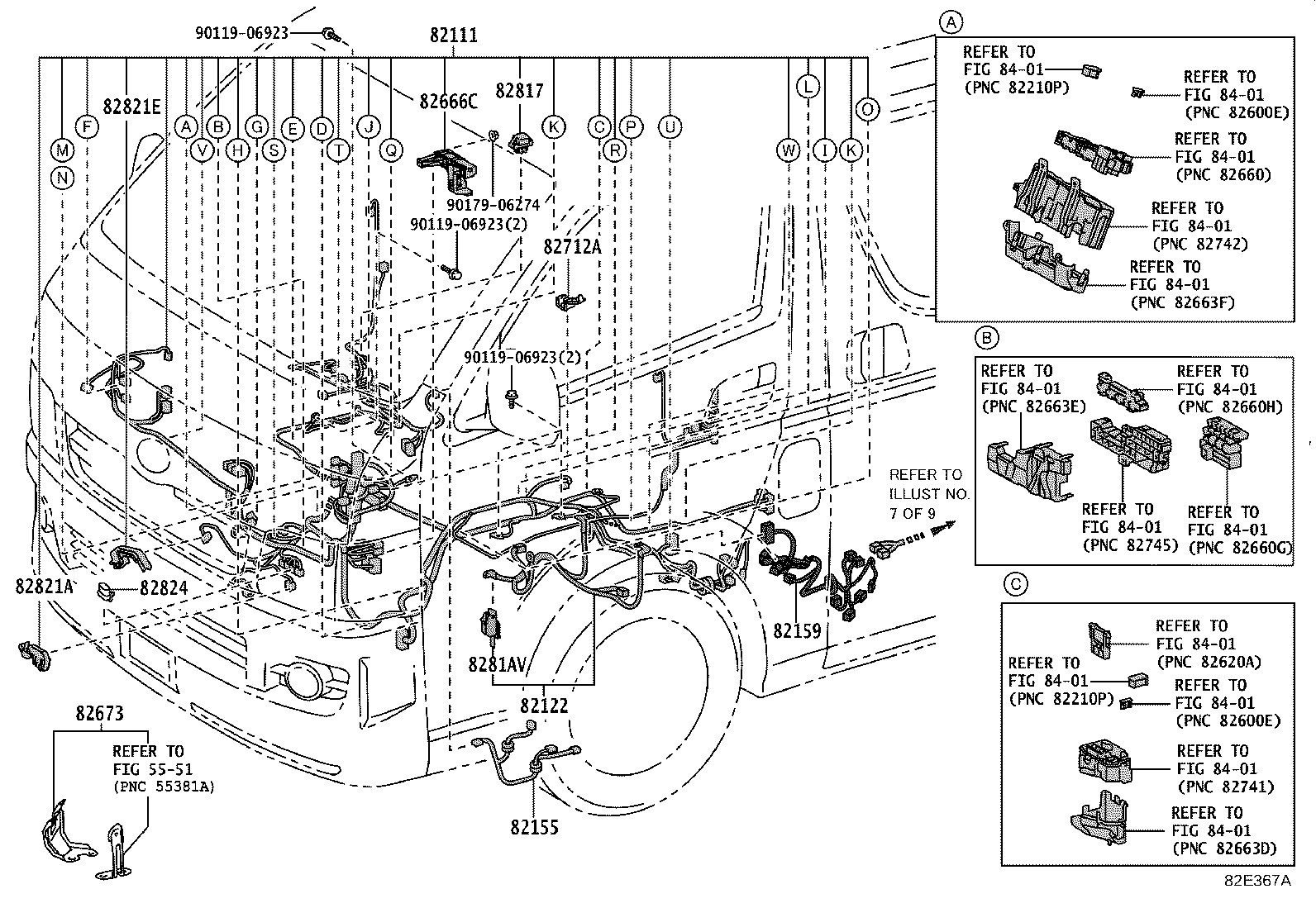

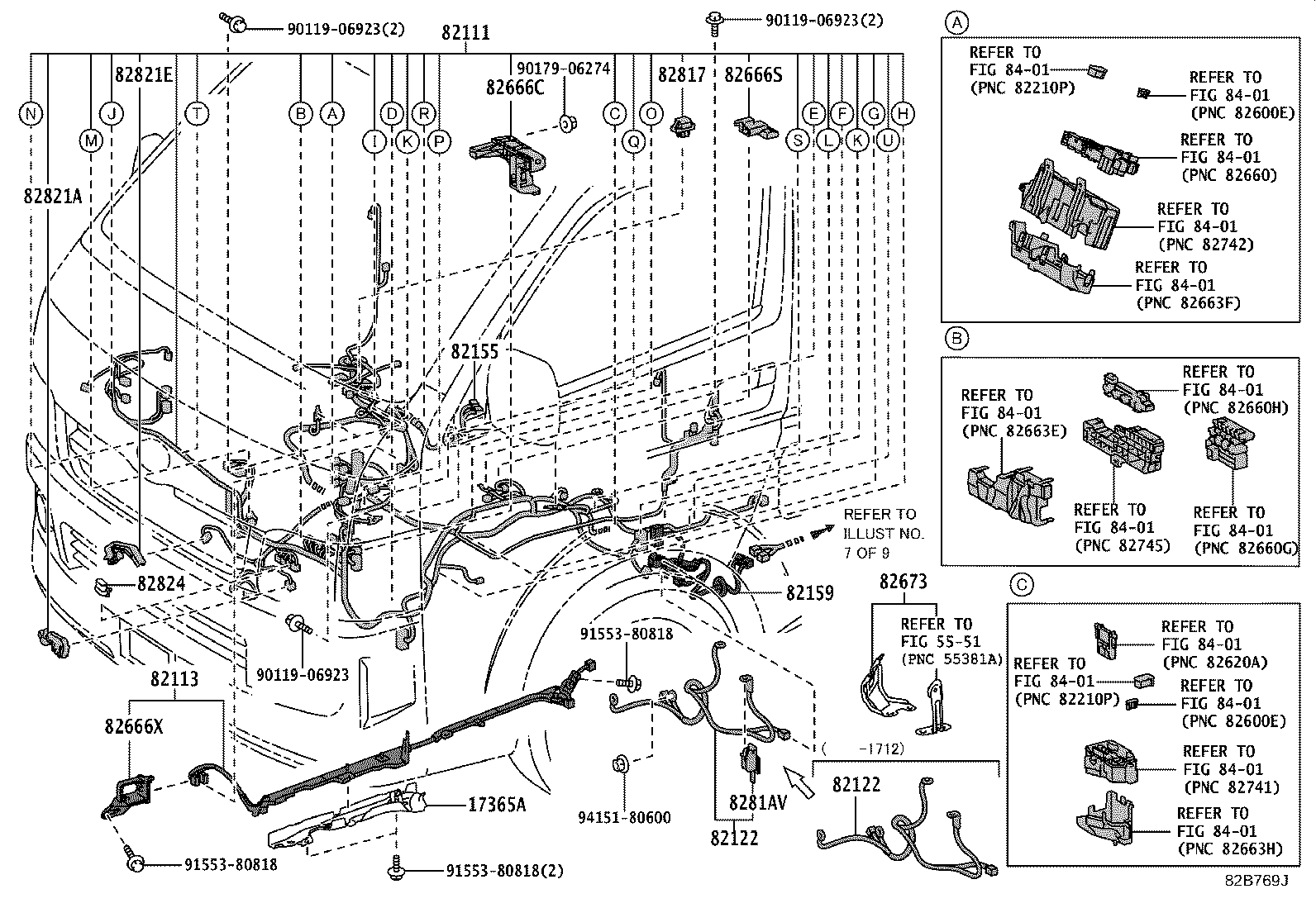

ILLUST NO. 1 OF 9(1312-1712)TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2FD10 |
TRH224..CBU;TRH21#,221,223,226,228,229..02S,05S,10S,14S |
1 | ||
| 82111-2FD20 |
TRH221,224,226..(02S,10S)..(CBU,IV7);TRH214,219,223,228,229..(02S,10S)..(GC,GL) *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82111-2FR50 |
KDH211,22# |
1 | ||
| 82111-2FJ80 |
TRH21#,22# |
1 | ||
| 82111-2FS40 |
TRH214,219,223,224,228,229 |
1 | ||
| 82111-2NJ60 |
TRH214,219..4D;TRH211,216,22#..CBU,IV5 |
1 | ||
| 82111-2NK00 |
GDH211,22# |
1 | ||
| 82111-2FP30 |
TRH211,216,22#;TRH214,219..4D ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82111-2NJ61 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26770 |
KDH211,22# |
1 | ||
| 82122-26A40 |
TRH21#,22# |
1 | ||
| 82122-26670 |
KDH211,22# 寒冷地仕様 |
1 | ||
| 82122-26840 |
TRH21#,22# |
1 | ||
| 82159 - WIRE, PILLAR, NO.2 | ||||
| 82159-26111 |
TRH200,223,228..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82159-26090 |
TRH200..IV5;TRH200,224..(V2,WG)..4D..CBU;TRH200,21#,221,223,226,228,229..02S,05S,10S,14S |
1 | ||
| 82159-26110 |
TRH214,219,224..(GC,GL)..CBU;TRH200,221,223,226,228,229..HRF..(02S,03S,10S)..(CBU,IV5,IV7) *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82159-26092 |
TRH200,223,228..IV5 |
1 | ||
| 82159-26091 |
TRH200,223,228..IV5 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26220 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26461 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-26100 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-37010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82821-26380 |
TRH224..CBU;TRH21#,221,223,226,228,229 |
1 | ||
| 82821-26380 |
KDH211,22# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26530 |
KDH211,22#;KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;TRH200,21#,22#..5F,6FC |
1 | ||
| 82815-26530 |
KDH20#,223,TRH200,21#,22# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26Q20 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-26270 |
KDH20#,211,22# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26230 |
TRH223,228..IV5;TRH214,219,223,228..DX |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91551-80608 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||

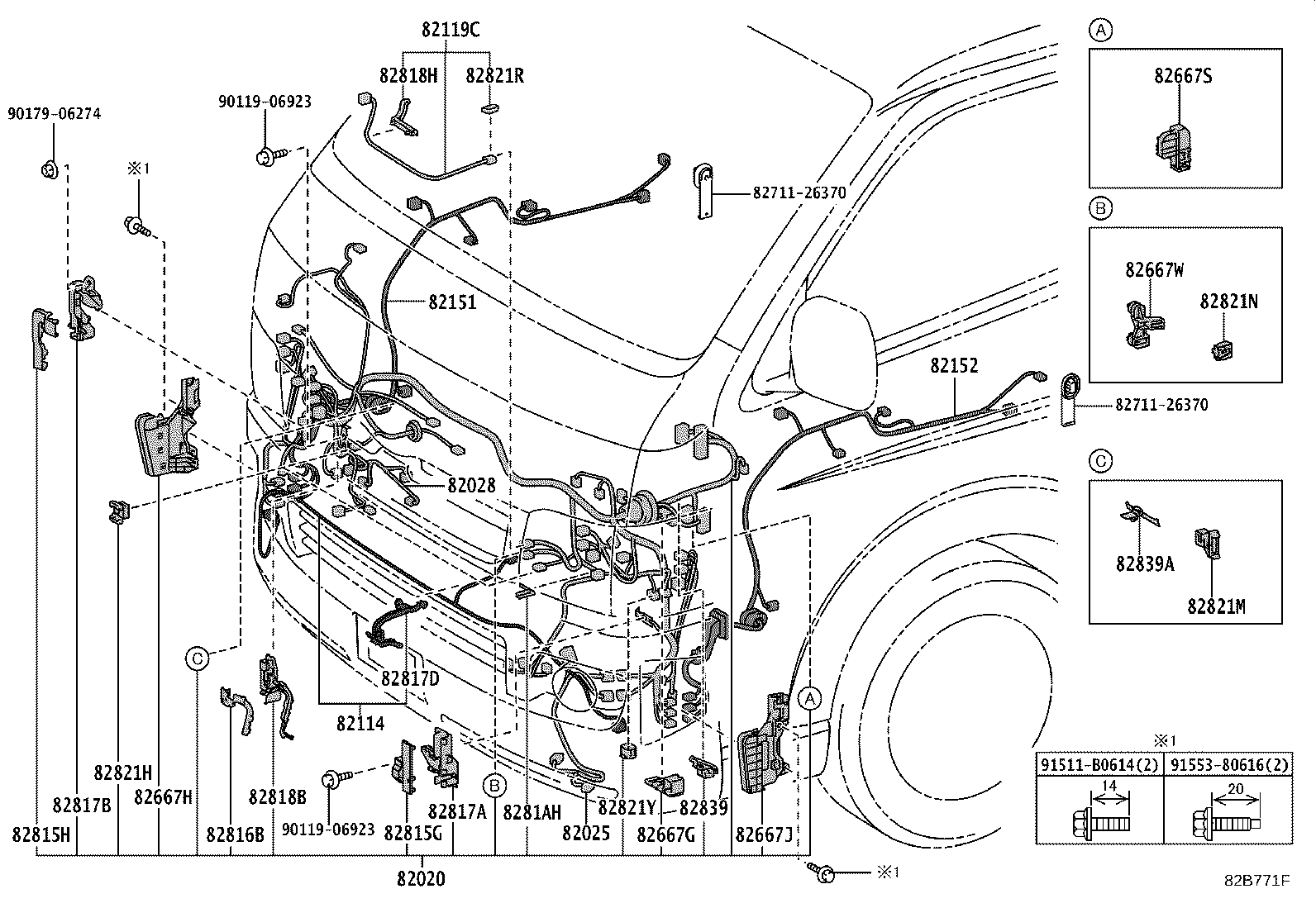

ILLUST NO. 5 OF 9(1312-2005)TRH219..4D ; (1312-2005)KDH20#,211,22#,TRH200,211,214,216,22#
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26645 |
KDH211,22# |
1 | ||
| 82020-26E30 |
TRH21#,22# |
1 | ||
| 82020-26646 |
KDH211,22# |
1 | ||
| 82020-26E31 |
TRH21#,22# |
1 | ||
| 82020-26L10 |
GDH211,22# |
1 | ||
| 82020-26K70 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26K71 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219..DX 寒冷地仕様&ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219,221,226..DX..CBU ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-26040 |
KDH20#,211,22# |
1 | ||
| 82028-26050 |
TRH200,21#,22#..6FC |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26230 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82114-26280 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82114-26290 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-26090 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26542 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82151-26541 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152-26502 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82152-26790 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26300 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26C60 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82666-26312 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26322 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82667S - HOLDER, CONNECTOR, NO.30 | ||||
| 82666-26A00 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667W - HOLDER, CONNECTOR, NO.34 | ||||
| 82666-26890 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26A90 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26620 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26611 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26A80 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26360 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817-26N20 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B21 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26N10 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817-26J20 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 8281AH - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12860 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33780 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 82821-26440 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-35040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82839 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26V70 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82839A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26V80 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||

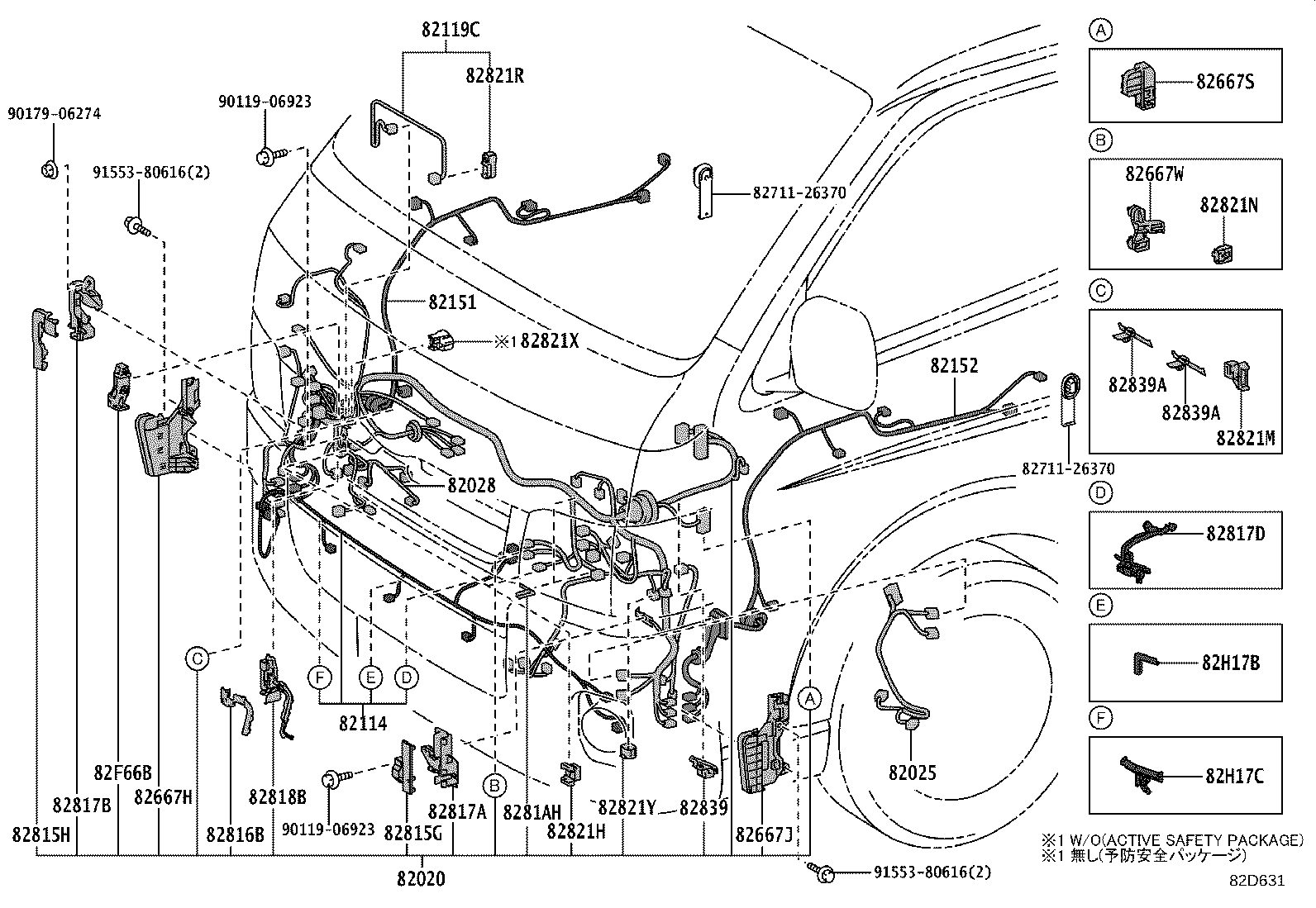

ILLUST NO. 5 OF 9(1312-2005)TRH21#,22#
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26645 |
KDH211,22# |
1 | ||
| 82020-26E30 |
TRH21#,22# |
1 | ||
| 82020-26646 |
KDH211,22# |
1 | ||
| 82020-26E31 |
TRH21#,22# |
1 | ||
| 82020-26L10 |
GDH211,22# |
1 | ||
| 82020-26K70 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26K71 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219..DX 寒冷地仕様&ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219,221,226..DX..CBU ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-26040 |
KDH20#,211,22# |
1 | ||
| 82028-26050 |
TRH200,21#,22#..6FC |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26230 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82114-26280 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82114-26290 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-26090 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26542 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82151-26541 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152-26502 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82152-26790 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26300 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26C60 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82666-26312 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26322 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82667S - HOLDER, CONNECTOR, NO.30 | ||||
| 82666-26A00 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667W - HOLDER, CONNECTOR, NO.34 | ||||
| 82666-26890 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26A90 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26620 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26611 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26A80 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26360 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817-26N20 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B21 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26N10 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817-26J20 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 8281AH - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12860 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33780 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 82821-26440 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-35040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82839 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26V70 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82839A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26V80 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
ILLUST NO. 1 OF 9(1712- )GDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2FD10 |
TRH224..CBU;TRH21#,221,223,226,228,229..02S,05S,10S,14S |
1 | ||
| 82111-2FD20 |
TRH221,224,226..(02S,10S)..(CBU,IV7);TRH214,219,223,228,229..(02S,10S)..(GC,GL) *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82111-2FR50 |
KDH211,22# |
1 | ||
| 82111-2FJ80 |
TRH21#,22# |
1 | ||
| 82111-2FS40 |
TRH214,219,223,224,228,229 |
1 | ||
| 82111-2NJ60 |
TRH214,219..4D;TRH211,216,22#..CBU,IV5 |
1 | ||
| 82111-2NK00 |
GDH211,22# |
1 | ||
| 82111-2FP30 |
TRH211,216,22#;TRH214,219..4D ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82111-2NJ61 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-26092 |
KDH211,22# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26770 |
KDH211,22# |
1 | ||
| 82122-26A40 |
TRH21#,22# |
1 | ||
| 82122-26670 |
KDH211,22# 寒冷地仕様 |
1 | ||
| 82122-26840 |
TRH21#,22# |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26770 |
KDH211,22# |
1 | ||
| 82122-26A40 |
TRH21#,22# |
1 | ||
| 82122-26670 |
KDH211,22# 寒冷地仕様 |
1 | ||
| 82122-26840 |
TRH21#,22# |
1 | ||
| 82159 - WIRE, PILLAR, NO.2 | ||||
| 82159-26092 |
TRH200,223,228..IV5 |
1 | ||
| 82159-26111 |
TRH200,223,228..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82159-26090 |
TRH200..IV5;TRH200,224..(V2,WG)..4D..CBU;TRH200,21#,221,223,226,228,229..02S,05S,10S,14S |
1 | ||
| 82159-26110 |
TRH214,219,224..(GC,GL)..CBU;TRH200,221,223,226,228,229..HRF..(02S,03S,10S)..(CBU,IV5,IV7) *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82159-26091 |
TRH200,223,228..IV5 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26461 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-26100 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26Q20 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 8281AV - PROTECTOR, WIRING HARNESS, NO.21 | ||||
| 82817-26N00 |
TRH221,226;GDH223,TRH200..(03S,05S,06S,09S,14S)..6FC;GDH206,211,221,226,TRH21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S) |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-26270 |
KDH20#,211,22# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26230 |
TRH223,228..IV5;TRH214,219,223,228..DX |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91553-80818 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||

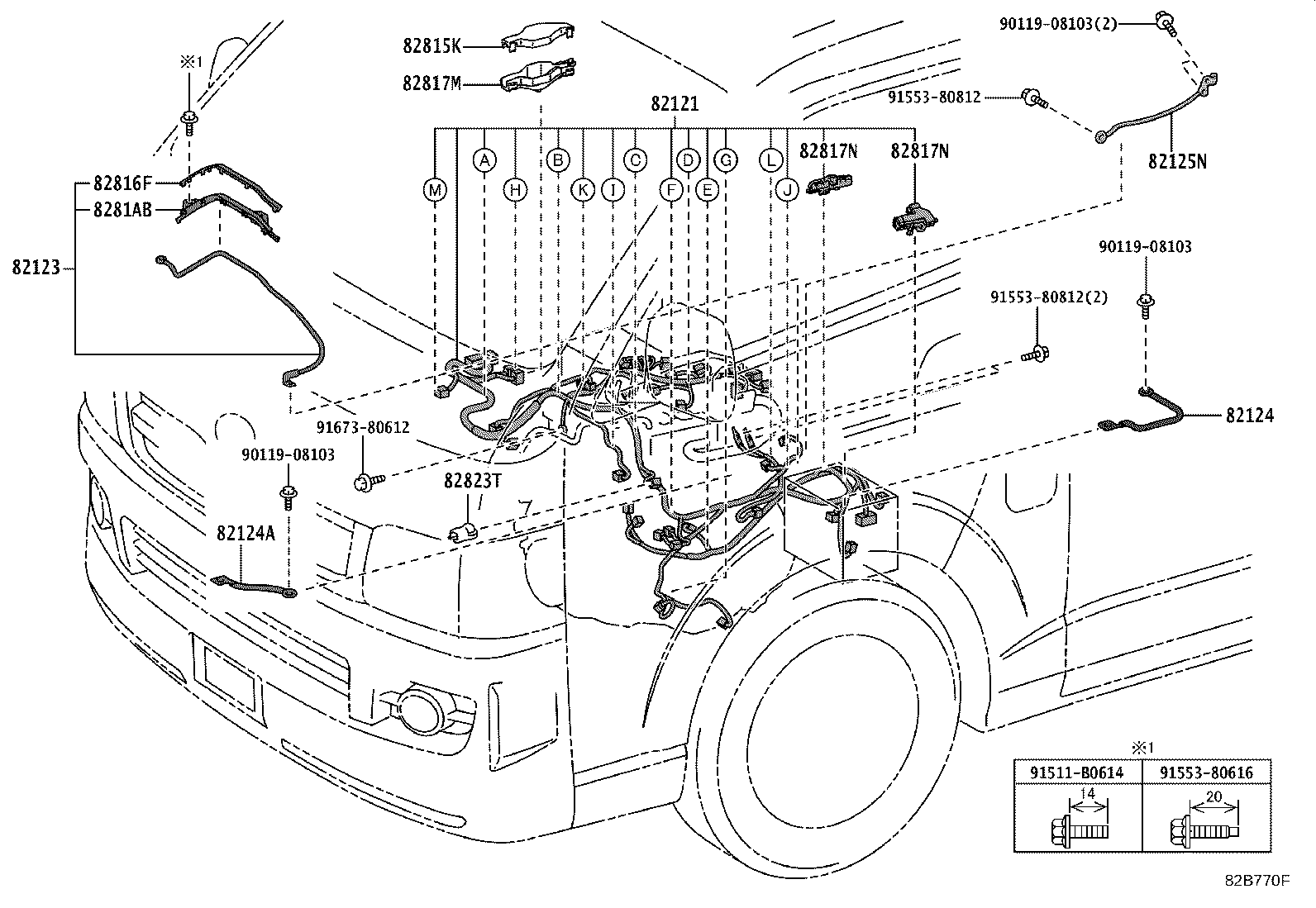

ILLUST NO. 2 OF 9(1712- )GDH20#,211,22#
ｴﾝｼﾞﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26V80 |
TRH216,219,226,228,229 |
1 | ||
| 82121-26K00 |
TRH216,219,226,228,229 |
1 | ||
| 82121-26B43 |
KDH211,22# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26151 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82124-26152 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-26451 |
KDH20#,211,22# |
1 | ||
| 82815-26B60 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26P50 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817-26B61 |
KDH20#,211,22# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-26P30 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-26P30 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 8281AB - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B40 |
KDH211,22#;KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;TRH200,21#,22#..5F,6FC |
1 | ||
| 82817-26B40 |
KDH20#,223,TRH200,21#,22# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
| 91553-80812 | ||||
| 91673-80612 | ||||
ILLUST NO. 5 OF 9(1712-2005)GDH20#,211,22#
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26645 |
KDH211,22# |
1 | ||
| 82020-26E30 |
TRH21#,22# |
1 | ||
| 82020-26646 |
KDH211,22# |
1 | ||
| 82020-26E31 |
TRH21#,22# |
1 | ||
| 82020-26L10 |
GDH211,22# |
1 | ||
| 82020-26K70 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26K71 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219..DX 寒冷地仕様&ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219,221,226..DX..CBU ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-26040 |
KDH20#,211,22# |
1 | ||
| 82028-26050 |
TRH200,21#,22#..6FC |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26230 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82114-26280 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82114-26290 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-26090 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26542 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82151-26541 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152-26502 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82152-26790 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-26300 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26C60 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82666-26312 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26322 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82667S - HOLDER, CONNECTOR, NO.30 | ||||
| 82666-26A00 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667W - HOLDER, CONNECTOR, NO.34 | ||||
| 82666-26890 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26A90 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26620 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26611 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26A80 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26360 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817-26N20 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B21 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26N10 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817-26J20 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 8281AH - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12860 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33780 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 82821-26440 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-35040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82839 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26V70 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82839A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26V80 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||

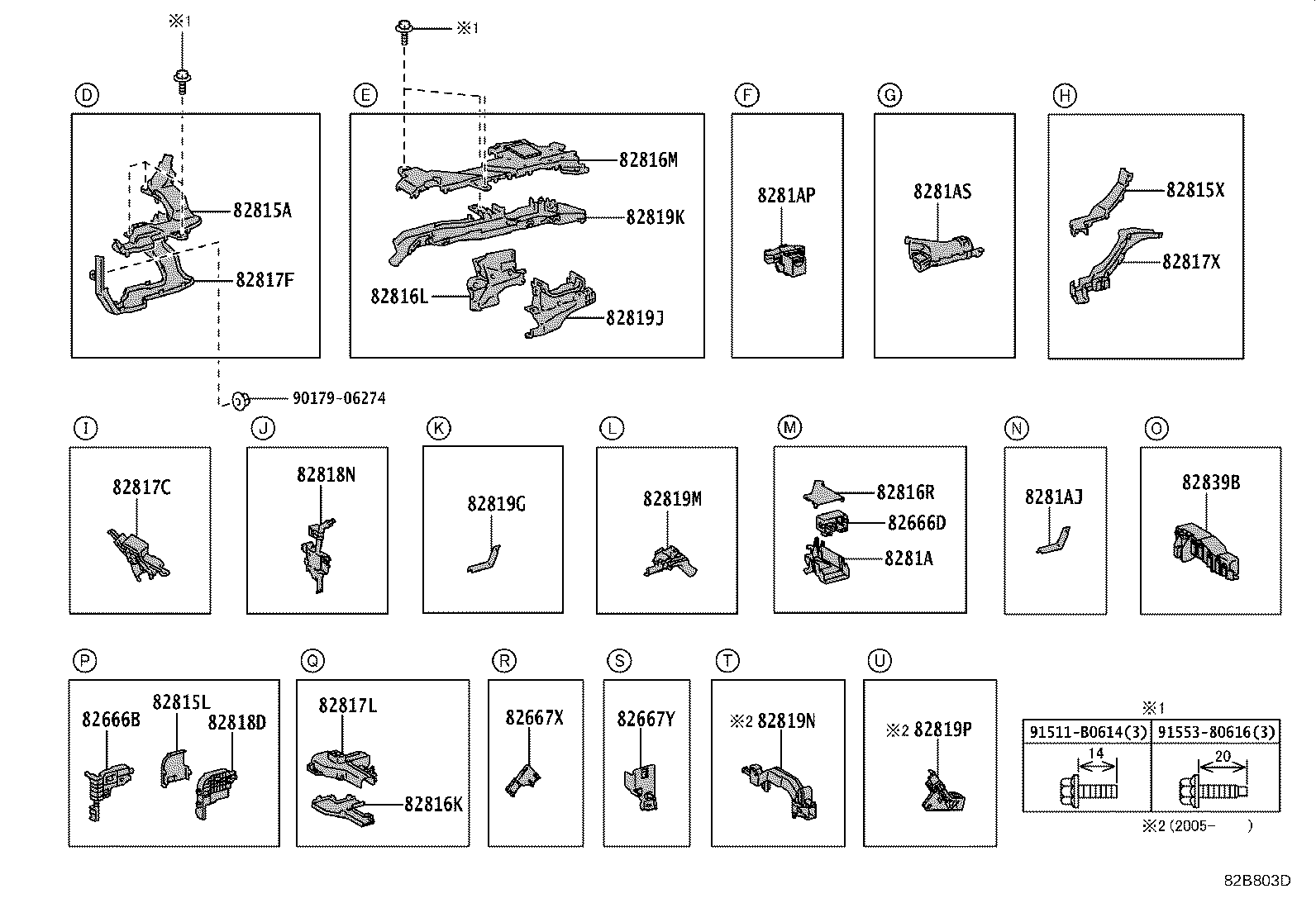

ILLUST NO. 1 OF 9(1712- )GDH20#,211,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-26432 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26420 |
KDH211,22#;KDH20#..SGL;KDH20#..IV5;TRH200..5F,6FC;KDH201..V2..03S |
1 | ||
| 82666-26420 |
TRH200..4FC;KDH201..V1..HRF..5F;GDH206,TRH223,224,228;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82666-26420 |
TRH200..6FC;KDH20#,211,22# |
1 | ||
| 82667X - HOLDER, CONNECTOR, NO.35 | ||||
| 82666-26540 |
TRH21#,22#;TRH200..V1..SP..6FC;TRH200..SG..6FC..DX..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82667Y - HOLDER, CONNECTOR, NO.36 | ||||
| 82666-26550 |
TRH21#,22#;TRH200..V1..SP..6FC;TRH200..SG..6FC..DX..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26511 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-26D30 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-26870 |
TRH200..6FC;TRH214,219..4D;KDH20#,223,TRH211,216,22# |
1 | ||
| 82815-26870 |
KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;KDH211,22#,TRH200,21#,22# |
1 | ||
| 82816K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-26D20 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82816L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-26B70 |
TRH214,219,223,224,228,229..4D |
1 | ||
| 82816M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-26B80 |
TRH214,219,223,224,228,229..4D |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26L40 |
KDH211,22#;KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;TRH200,21#,22#..5F,6FC |
1 | ||
| 82817-26L40 |
TRH200..6FC;TRH214,219..4D;KDH20#,223,TRH211,216,22# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26C41 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-26V30 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-26L90 |
TRH200..6FC;TRH214,219..4D;KDH20#,223,TRH211,216,22# |
1 | ||
| 82817-26L90 |
KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;KDH211,22#,TRH200,21#,22# |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26V40 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26J41 |
TRH200,21#,22# |
1 | ||
| 82817-26J41 |
TRH214,219..4D;TRH200,211,216,22# |
1 | ||
| 82817-26J41 |
KDH211,22#;KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;TRH200,21#,22#..6FC |
1 | ||
| 82817-26J41 |
GDH20#,211,22#;TRH214,219..5D;KDH201..V1..HRF..5F |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-95J00 |
KDH211,22#;KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;TRH200,21#,22#..5F,6FC |
2 | ||
| 82817-95J00 |
TRH200..6FC;TRH214,219..4D;KDH20#,211,22#,TRH211,216,22# |
2 | ||
| 82819J - PROTECTOR, WIRING HARNESS, NO.25 | ||||
| 82817-26P90 |
TRH214,219,223,224,228,229..4D |
1 | ||
| 82819K - PROTECTOR, WIRING HARNESS, NO.26 | ||||
| 82817-26Q00 |
TRH214,219,223,224,228,229..4D |
1 | ||
| 82819N - PROTECTOR, WIRING HARNESS, NO.29 | ||||
| 82817-26Q50 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82819P - PROTECTOR, WIRING HARNESS, NO.30 | ||||
| 82817-26R50 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 8281AJ - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12860 |
KDH20#,223,TRH200,21#,22# |
1 | ||
| 82817-12860 |
KDH211,22#;KDH20#..SGL;KDH20#..IV5;KDH201..V2..03S;TRH200,21#,22#..5F,6FC |
1 | ||
| 8281AP - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-26C00 |
KDH20#,211,22# |
1 | ||
| 8281AS - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-26Q10 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||

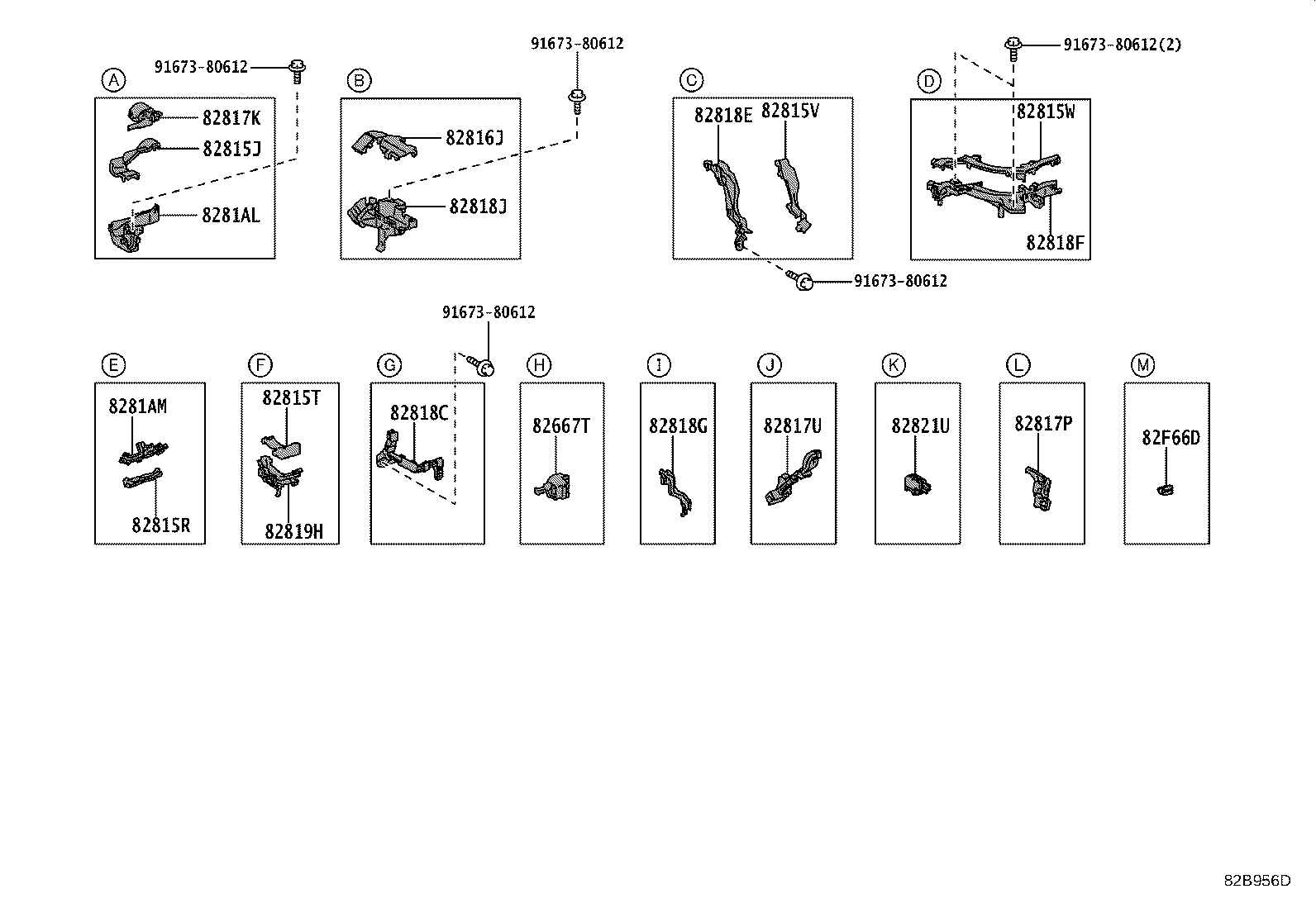

ILLUST NO. 2 OF 9(1712- )GDH20#,211,22#
ｴﾝｼﾞﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82667T - HOLDER, CONNECTOR, NO.31 | ||||
| 82666-26580 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26720 |
TRH21#,22# |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26700 |
TRH200,21#,22#..6FC ﾀｲﾌﾟ B |
1 | ||
| 82815-26461 |
KDH20#,211,22# |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26471 |
KDH20#,211,22# |
1 | ||
| 82815-26490 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26D30 |
TRH21#,22#;KDH20#,211,22#,TRH200..4FC,5F |
1 | ||
| 82817-26N30 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-26K00 |
KDH20#,211,22# |
1 | ||
| 82817-26M00 |
TRH200,21#,22#..6FC |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-26L10 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26B70 |
KDH20#,211,22# |
1 | ||
| 82817-26L50 |
TRH200,21#,22#..6FC ﾀｲﾌﾟ B |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26C20 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 82817-26B81 |
KDH20#,211,22# |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-26J90 |
KDH20#,211,22# |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26L20 |
KDH20#,211,22# |
1 | ||
| 8281AL - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26L70 |
TRH21#,22# |
1 | ||
| 82F66D - HOLDER, CONNECTOR, NO.41 | ||||
| 82666-22080 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 91673-80612 | ||||
ILLUST NO. 5 OF 9(2005- )GDH211,22#,TRH21#,22#
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26645 |
KDH211,22# |
1 | ||
| 82020-26E30 |
TRH21#,22# |
1 | ||
| 82020-26646 |
KDH211,22# |
1 | ||
| 82020-26E31 |
TRH21#,22# |
1 | ||
| 82020-26L10 |
GDH211,22# |
1 | ||
| 82020-26K70 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26K71 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219..DX 寒冷地仕様&ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82020-26M50 |
TRH223,228;TRH214,219,221,226..DX..CBU ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-26040 |
KDH20#,211,22# |
1 | ||
| 82028-26050 |
TRH200,21#,22#..6FC |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26230 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82114-26280 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82114-26290 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-26090 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26542 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82151-26541 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82151-26840 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ,ﾋｰﾀ) |
1 | ||
| 82152-26502 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82152-26780 |
TRH223,228;GDH201,TRH214,219..DX..CBU;GDH206,22#,TRH200,221,226..(03S,05S,06S,09S,14S)..6FC..(DX,GL) ｱｳﾀﾐﾗｰ−*273(大型),有り(ｶﾒﾗ) |
1 | ||
| 82152-26790 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-26C60 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82666-26312 |
GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-26322 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82667S - HOLDER, CONNECTOR, NO.30 | ||||
| 82666-26A00 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82667W - HOLDER, CONNECTOR, NO.34 | ||||
| 82666-26890 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26A90 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26620 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26611 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26A80 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82815-26360 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817-26N20 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B21 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-26R30 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26N10 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,228;GDH201,211,22#,KDH211,221,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82817-26J20 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 8281AH - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12860 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33780 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-76030 |
GDH223,TRH214,219,223,224,228,229 予防安全ﾊﾟｯｹｰｼﾞ−無し |
1 | ||
| 82821-26440 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU |
1 | ||
| 82821Y - COVER, CONNECTOR | ||||
| 82821-35040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82839 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26V70 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82839A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26V80 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 82839A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26V80 |
TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 82F66B - HOLDER, CONNECTOR, NO.39 | ||||
| 82666-26C80 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 82H17B - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12860 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-12860 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82817-12860 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82H17C - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26R40 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 82817-26R40 |
TRH223,228;TRH214,219..DX;GDH22#,TRH221,224,226,229..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄｸﾘｱﾗﾝｽｿﾅｰ)&ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91553-80616 | ||||
ILLUST NO. 1 OF 2(1712- )TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2FD10 |
TRH224..CBU;TRH21#,221,223,226,228,229..02S,05S,10S,14S |
1 | ||
| 82111-2FD20 |
TRH221,224,226..(02S,10S)..(CBU,IV7);TRH214,219,223,228,229..(02S,10S)..(GC,GL) *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82111-2FR50 |
KDH211,22# |
1 | ||
| 82111-2FJ80 |
TRH21#,22# |
1 | ||
| 82111-2FS40 |
TRH214,219,223,224,228,229 |
1 | ||
| 82111-2NJ60 |
TRH214,219..4D;TRH211,216,22#..CBU,IV5 |
1 | ||
| 82111-2NK00 |
GDH211,22# |
1 | ||
| 82111-2FP30 |
TRH211,216,22#;TRH214,219..4D ﾊﾞｯｸﾓﾆﾀ−ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ |
1 | ||
| 82111-2NJ61 |
TRH211,216,22#;TRH214,219..4D |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26770 |
KDH211,22# |
1 | ||
| 82122-26A40 |
TRH21#,22# |
1 | ||
| 82122-26670 |
KDH211,22# 寒冷地仕様 |
1 | ||
| 82122-26840 |
TRH21#,22# |
1 | ||
| 82159 - WIRE, PILLAR, NO.2 | ||||
| 82159-26092 |
TRH200,223,228..IV5 |
1 | ||
| 82159-26111 |
TRH200,223,228..IV5 *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82159-26090 |
TRH200..IV5;TRH200,224..(V2,WG)..4D..CBU;TRH200,21#,221,223,226,228,229..02S,05S,10S,14S |
1 | ||
| 82159-26110 |
TRH214,219,224..(GC,GL)..CBU;TRH200,221,223,226,228,229..HRF..(02S,03S,10S)..(CBU,IV5,IV7) *POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 82159-26091 |
TRH200,223,228..IV5 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26461 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-26100 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-37010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82821-26380 |
TRH224..CBU;TRH21#,221,223,226,228,229 |
1 | ||
| 82821-26380 |
KDH211,22# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-26Q20 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 8281AV - PROTECTOR, WIRING HARNESS, NO.21 | ||||
| 82817-26N00 |
TRH221,226;GDH223,TRH200..(03S,05S,06S,09S,14S)..6FC;GDH206,211,221,226,TRH21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S) |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-26270 |
KDH20#,211,22# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-26230 |
TRH223,228..IV5;TRH214,219,223,228..DX |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
