TRH228B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312-2005)GDH211,22#,KDH211,22#,TRH21#,22#

Click highlighted areas on diagram

diagram 53112A 53112F 53114B 8101 8101 9015950311 9015950311 9046709185 9046709185
Part # Description Qty Price
53112A - GRILLE, RADIATOR, LOWER
53111-26550

TRH214,219..DX;GDH22#,KDH22#,TRH221,223,224,226,228..(02S,05S,06S,14S)..(CBU,IV5)

 1
53111-26830

TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU

 1
53112F - GRILLE, RADIATOR, INSIDE
53112-26100

TRH214,219..5D;TRH221,226..02S;TRH223,224,228..4FC..CBU;KDH223,TRH21#,221,226,229..4FC..(CBU,IV5);GDH223,KDH211,221,TRH223,224,228..02S,05S,06S

 1
53112-26160

TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7

 1
53114B - GRILLE, RADIATOR, UPPER
53111-26540

TRH214,219..4FC..DX;TRH223,228..4FC..CBU;KDH223,TRH221,226..4FC..(CBU,IV5);GDH223,KDH221,TRH223,224,228..02S,06S

 1
53111-26820

TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU

 1
Common parts
90159-50311
90467-09185
Linked diagrams
8101

(2005- )GDH211,22#,TRH21#,22#

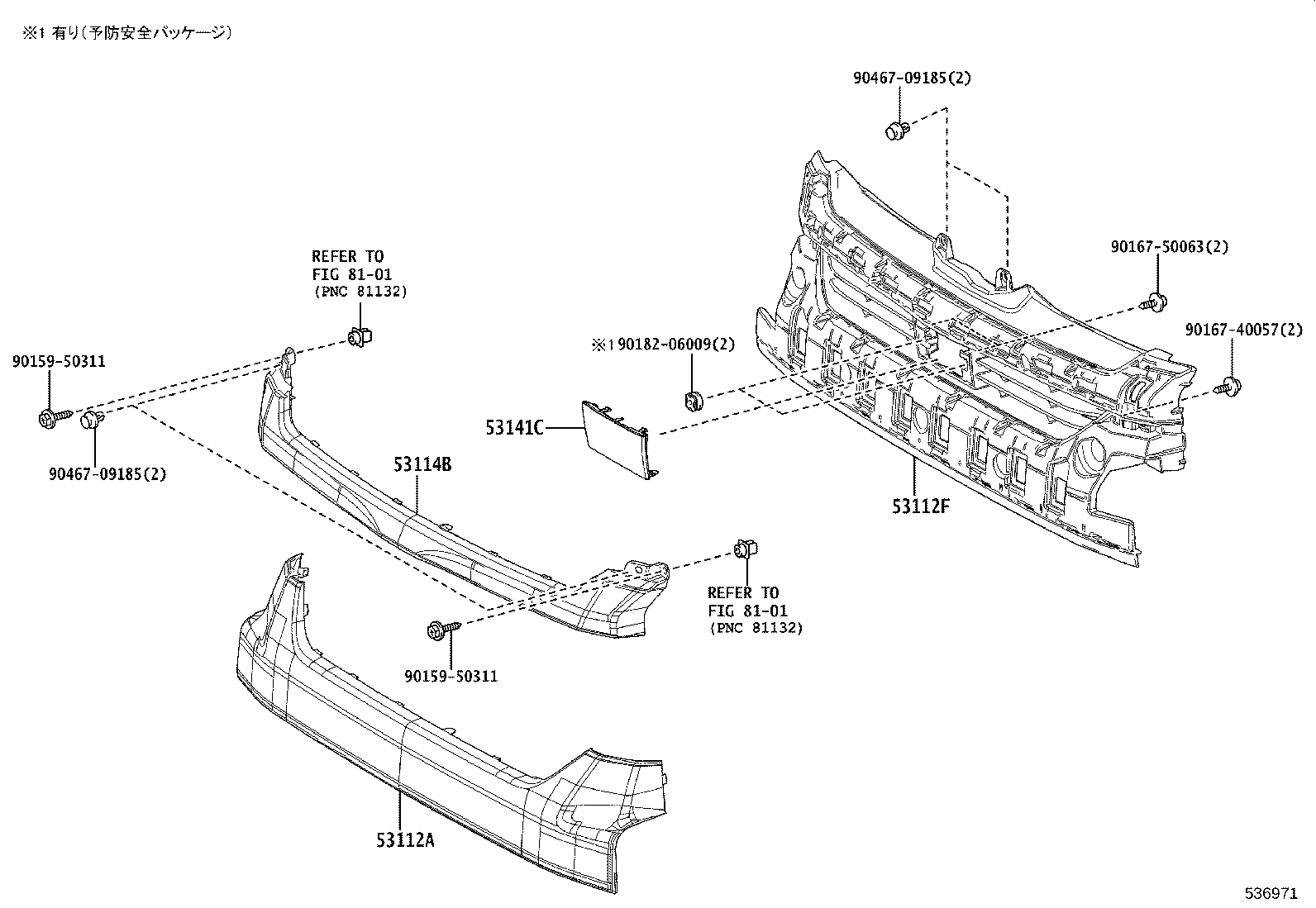

Click highlighted areas on diagram

diagram 53112A 53112F 53114B 53141C 8101 8101 9015950311 9015950311 9016740057 9016750063 9018206009 9046709185 9046709185
Part # Description Qty Price
53112A - GRILLE, RADIATOR, LOWER
53111-26550

TRH214,219..DX;GDH22#,KDH22#,TRH221,223,224,226,228..(02S,05S,06S,14S)..(CBU,IV5)

 1
53111-26830

TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU

 1
53112F - GRILLE, RADIATOR, INSIDE
53112-26100

TRH214,219..5D;TRH221,226..02S;TRH223,224,228..4FC..CBU;KDH223,TRH21#,221,226,229..4FC..(CBU,IV5);GDH223,KDH211,221,TRH223,224,228..02S,05S,06S

 1
53112-26160

TRH223,228;GDH211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7

 1
53114B - GRILLE, RADIATOR, UPPER
53111-26540

TRH214,219..4FC..DX;TRH223,228..4FC..CBU;KDH223,TRH221,226..4FC..(CBU,IV5);GDH223,KDH221,TRH223,224,228..02S,06S

 1
53111-26820

TRH223,228;TRH214,219..DX;GDH22#,TRH221,226..CBU

 1
53141C - GARNISH, RADIATOR GRILLE
53141-26110

GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU

 1
53142-26030

GDH223,TRH214,219,223,224,228,229

予防安全ﾊﾟｯｹｰｼﾞ−無し

 1
Common parts
90159-50311
90167-40057
90167-50063
90182-06009
90467-09185
Linked diagrams
8101
