TRH228B-LETNK5 (2015)
Toyota Hiace/Regiusace

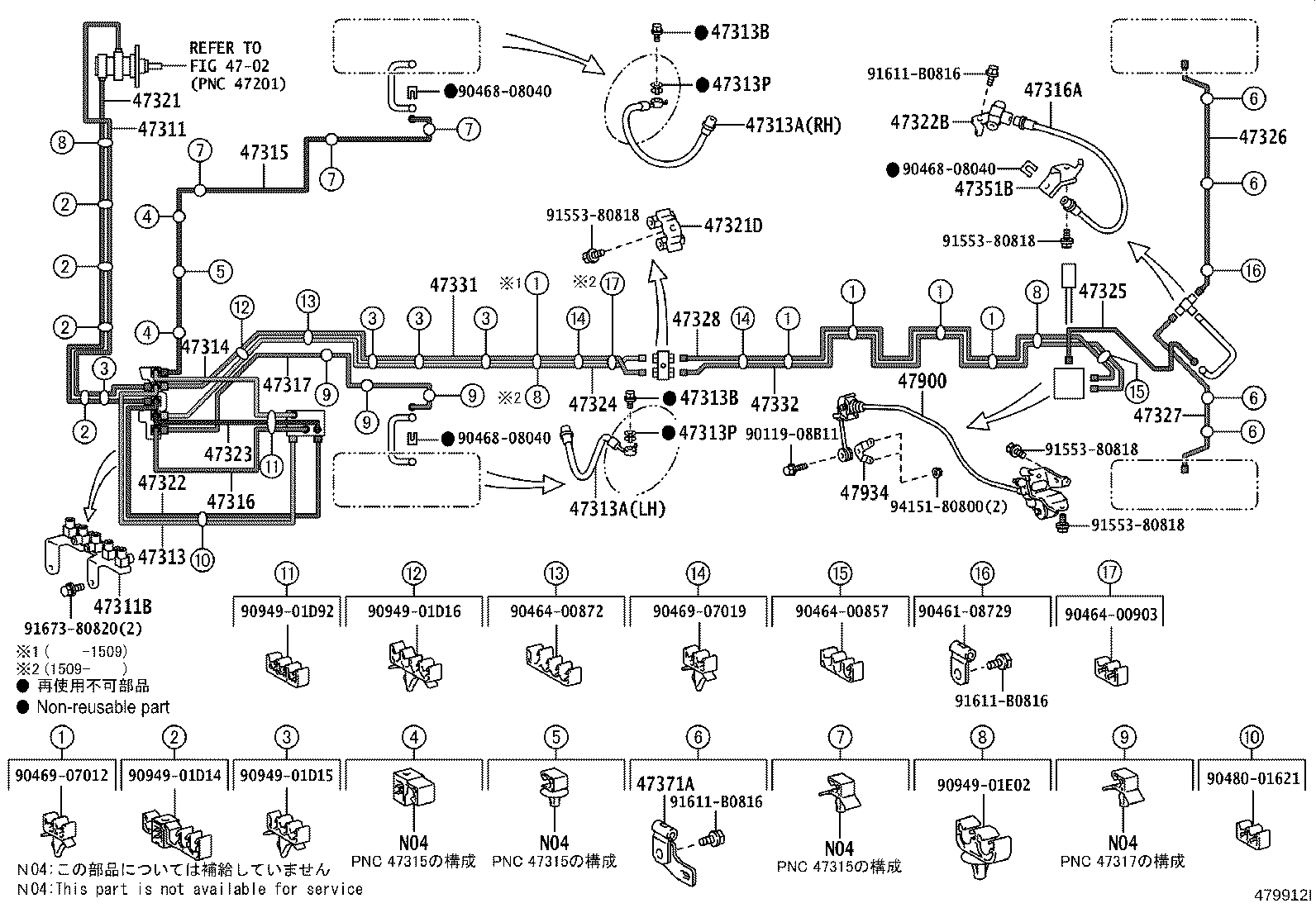

ILLUST NO. 1 OF 3(1501- )TRH226 ; (1501- )GDH226,TRH228,229..CBU,IV5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-26A70 |
KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47311-26A40 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47311-26B70 |
TRH221,223,226,228..CBU,IV5;GDH211,22#,TRH21#,224,229..CBU,IV6 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12067 |
KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 90412-12070 |
TRH200..SG..6FC;GDH201,TRH200..V1..SP..6FC;GDH201,223,TRH221,226..SG..CBU;GDH206,211,221,226,TRH21#,223,224,228,229 |
1 | ||
| 90413-10338 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47313-26400 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H56 |
GDH206,226,KDH206,TRH216,219,226,228,229 左側 |
1 | ||
| 90947-02H55 |
GDH206,226,KDH206,TRH216,219,226,228,229 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H56 |
GDH206,226,KDH206,TRH216,219,226,228,229 左側 |
1 | ||
| 90947-02H55 |
GDH206,226,KDH206,TRH216,219,226,228,229 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
GDH206,TRH200,223,228..6FC;GDH201,211,22#,TRH21#,221,224,226,229..CBU,IV6,IV7 |
2 | ||
| 47389-50020 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-26390 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47314-26410 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-26360 |
GDH226,TRH216,219,226,228,229 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-26490 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47316-26510 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02H57 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 90947-02H58 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-26370 |
GDH206,226,KDH206,TRH216,219,226,228,229 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-26790 |
KDH223,TRH214,219,223,228,229 |
1 | ||
| 47321-26820 |
KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47321-26890 |
TRH221,223,226,228..CBU,IV5;GDH211,22#,TRH21#,224,229..CBU,IV6 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10285 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-26430 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47322-26440 |
KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47322-26460 |
TRH200..SG..6FC;GDH201,TRH200..V1..SP..6FC;GDH201,223,TRH221,226..SG..CBU;GDH206,211,221,226,TRH21#,223,224,228,229 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10337 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-26420 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47323-26430 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-26570 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47324-26571 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-26430 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-26510 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47326-26540 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-26360 |
TRH224..CBU;KDH223,TRH214,219,223,228,229 |
1 | ||
| 47327-26390 |
KDH223,TRH223,228;GDH211,22#,TRH214,219,224,229..CBU,IV6 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-26180 |
TRH224..CBU;KDH223,TRH223,228,229 |
1 | ||
| 47328-26210 |
KDH223,TRH223,228;GDH22#,TRH224,229..CBU,IV6 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-26250 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 47331-26251 |
TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-26170 |
TRH224..CBU;KDH223,TRH223,228,229 |
1 | ||
| 47332-26200 |
KDH223,TRH223,228;GDH22#,TRH224,229..CBU,IV6 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-26220 |
GDH201..V1..SP;GDH201,223..SG..CBU;GDH206,211,221,226,KDH223,TRH214,219,223,224,228,229 |
1 | ||
| 47351-26210 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-26200 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-26550 |
KDH223;TRH224..6FC..CBU;TRH214,219,223,228,229..6FC |
1 | ||
| 47934 - BRACKET, LOAD SENSING | ||||
| 47934-26110 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 90119-08B11 | ||||
| 90461-08729 | ||||
| 90464-00857 | ||||
| 90464-00872 | ||||
| 90464-00903 | ||||
| 90468-08040 | ||||
| 90469-07012 | ||||
| 90469-07019 | ||||
| 90480-01621 | ||||
| 90949-01D14 | ||||
| 90949-01D15 | ||||
| 90949-01D16 | ||||
| 90949-01D92 | ||||
| 90949-01E02 | ||||
| 91553-80818 | ||||
| 91611-B0816 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4702 | ||||
