TRH228B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )GDH20#,211,22#

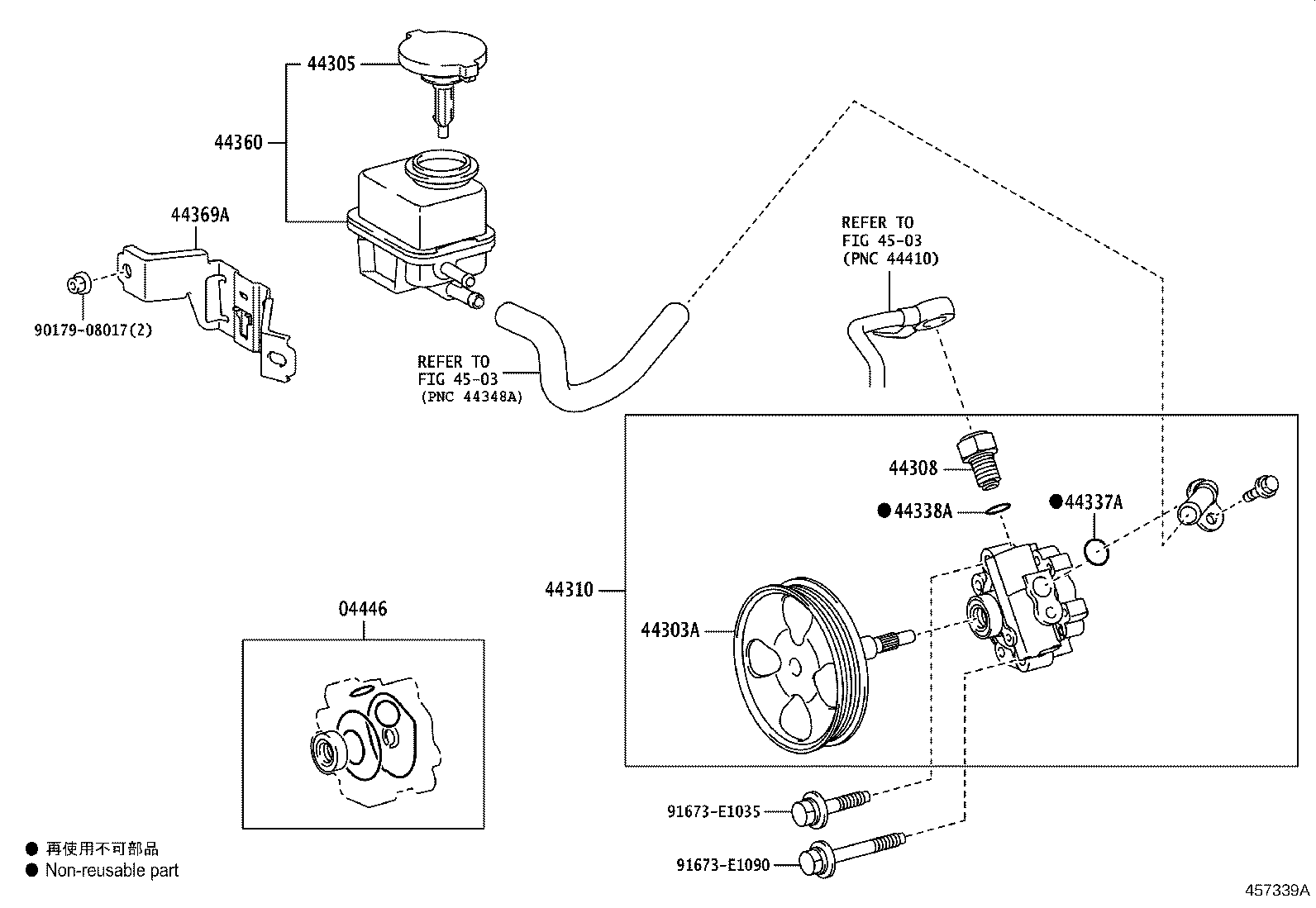

Click highlighted areas on diagram

diagram 04446 44303A 44305 44308 44310 44337A 44338A 44360 44369A 4503 4503 9017908017 91673E1035 91673E1090
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-35070

KDH20#,211,22#

 1
04446-32050

GDH206,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28051

KDH20#,211,22#

 1
44305-22061

TRH200,21#,22#..4FC,6FC

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-42010

TRH200,21#,22#..4FC,6FC

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-18009

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

外径=22,内径=18.6

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-26141

KDH211,22#;KDH201..V1..HRF..5F

 1
44306-25060

TRH200,21#,22#..4FC,6FC

 1
Common parts
90179-08017
91673-E1035
91673-E1090
Linked diagrams
4503
