TRH228B-LETNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - Sep 9999
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )GDH206,226,TRH216,219,226,228,229

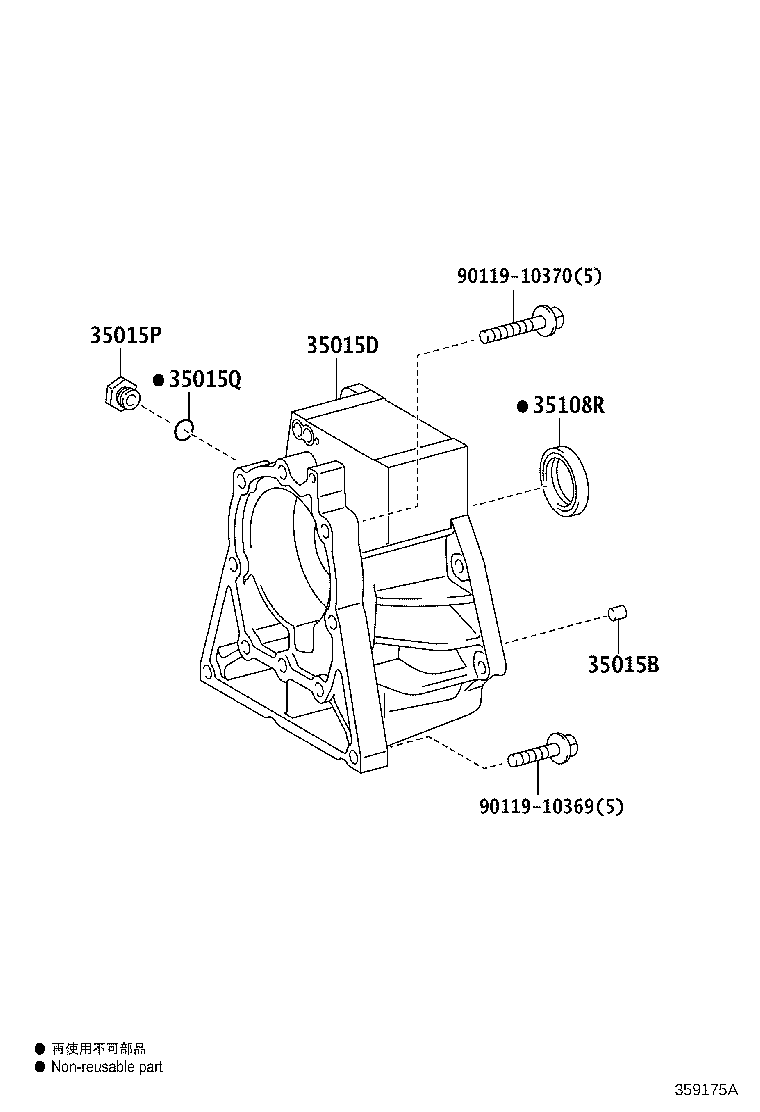

Click highlighted areas on diagram

AC60F

diagram 35015B 35015D 35015P 35015Q 35108R 9011910369 9011910370
Part # Description Qty Price
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90250-10214

GDH206,226,KDH206,TRH216,219,226,228,229..4FC,6FC

 2
35015D - ADAPTER SUB-ASSY, TRANSMISSION CASE
35015-26080

GDH206,226,TRH216,219,226,228,229

 1
35015P - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPT
90341-18059

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35015Q - RING, O(FOR TRANSMISSION CASE ADAPTER PLUG)
90301-15004

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90310-40003

GDH206,226,TRH216,219,226,228,229

 1
Common parts
90119-10369
90119-10370
