TRH226K-LRTDK6 (2015)
Toyota Hiace/Regiusace
(1312-1712)TRH224..4FC ; (1312-1712)KDH223,TRH214,219,223,228,229..4FC..CBU ; (1501
ﾘﾔ:ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C10 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A10 |
KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C11 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C10 |
TRH221,226;GDH221,226..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C10 |
GDH221,226..IV6 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26C50 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A20 |
KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C51 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C50 |
GDH221,226..IV6 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C50 |
TRH221,226;GDH221,226..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| Common parts | ||||
| 87121-26130 | ||||
| 87121-26140 | ||||
| 87124-26481 | ||||
| 90099-00275 | ||||
| 90466-18001 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8712 | ||||

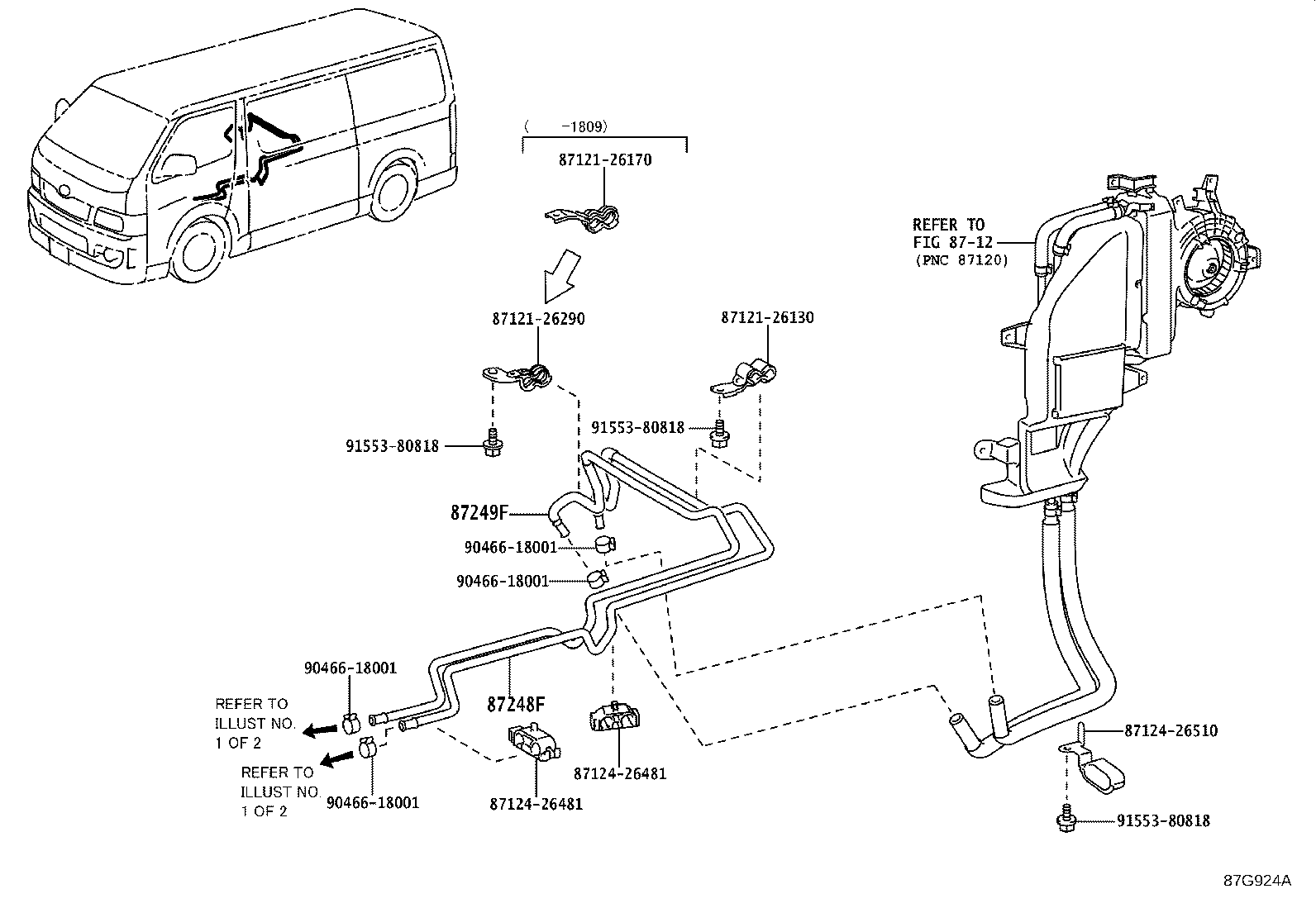

(1312-1712)KDH211,221,TRH211,216,221,226..4FC ;(1501-1712)TRH211,216,221,226 ; (15
ﾘﾔ:ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C10 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A10 |
KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C11 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C10 |
TRH221,226;GDH221,226..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C10 |
GDH221,226..IV6 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26C50 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A20 |
KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C51 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C50 |
GDH221,226..IV6 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C50 |
TRH221,226;GDH221,226..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| Common parts | ||||
| 87121-26130 | ||||
| 87121-26140 | ||||
| 87124-26481 | ||||
| 87124-26510 | ||||
| 90099-00275 | ||||
| 90464-00558 | ||||
| 90466-18001 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8712 | ||||

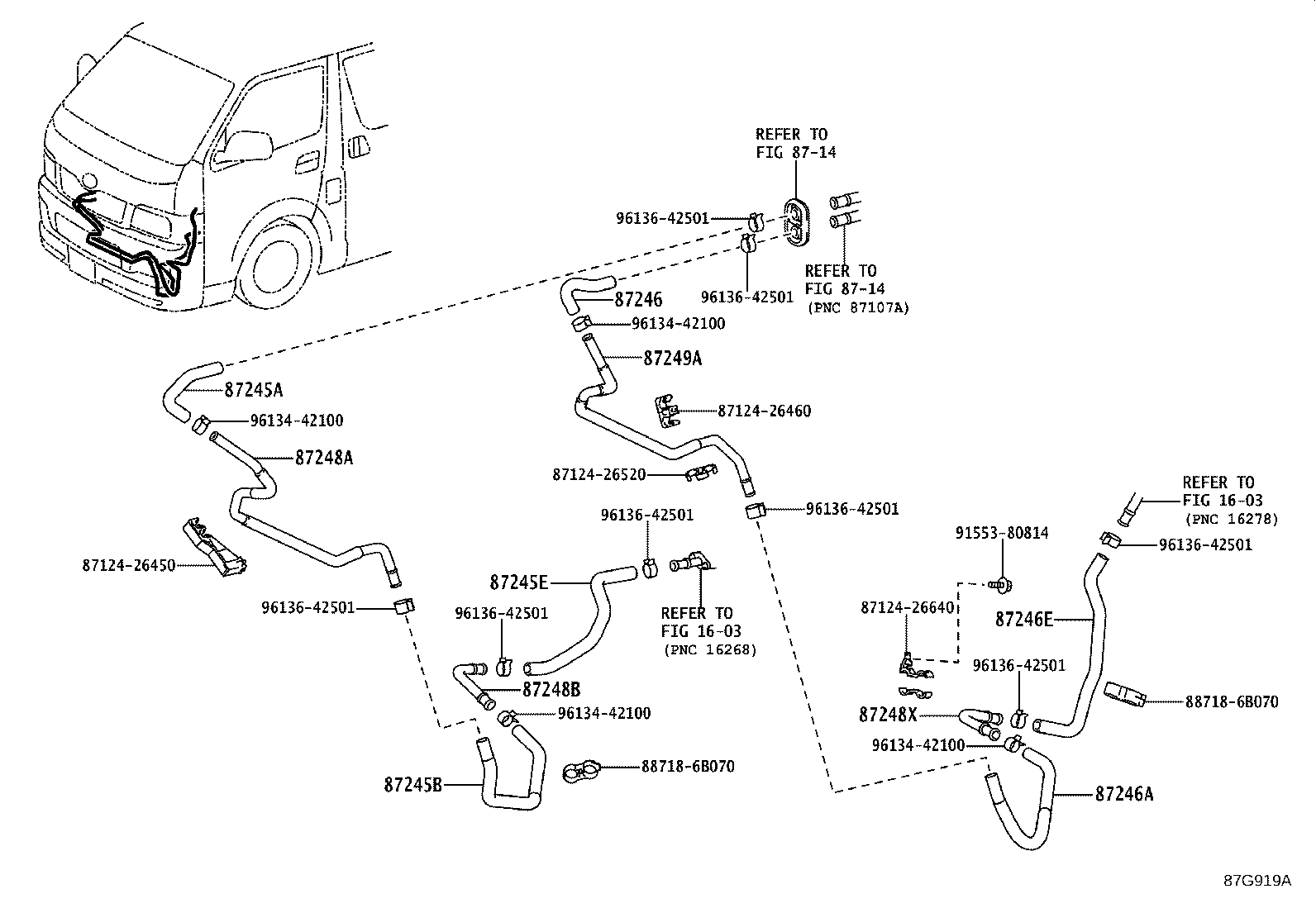

(1312-1612)TRH200..SG..4FC,5F ; (1312-1612)TRH200..V1..SP..4FC,5F ; (1501-1612)V1..
ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26B20 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH20#,211,22# |
1 | ||
| 87245-26B80 |
TRH21#,22# |
1 | ||
| 87245-26J20 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87245-26B80 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26J50 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87209-26180 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH20#,211,22# |
1 | ||
| 87245-26B60 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26K10 |
GDH206,226 |
1 | ||
| 87245-26B60 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87245-26K10 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26B30 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26B90 |
TRH21#,22# |
1 | ||
| 87245-26J60 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 99556-20220 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26K20 |
GDH206,226 |
1 | ||
| 87245-26K20 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26440 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26500 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26520 |
TRH221,226 |
1 | ||
| 87248-26D10 |
TRH221,226 |
1 | ||
| 87248-26C70 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A60 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87248-26C90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26450 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-26510 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C60 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26530 |
TRH221,226 |
1 | ||
| 87248-26D20 |
TRH221,226 |
1 | ||
| 87248-26D00 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| Common parts | ||||
| 87121-26080 | ||||
| 87121-26090 | ||||
| 87124-25110 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26520 | ||||
| 87124-47030 | ||||
| 90467-19022 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
(1312-1712)TRH21#,22#..4FC ; (1501-1712)TRH21#,22#
ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26B20 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH20#,211,22# |
1 | ||
| 87245-26B80 |
TRH21#,22# |
1 | ||
| 87245-26J20 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87245-26B80 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26J50 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87209-26180 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH20#,211,22# |
1 | ||
| 87245-26B60 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26K10 |
GDH206,226 |
1 | ||
| 87245-26B60 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87245-26K10 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26B30 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26B90 |
TRH21#,22# |
1 | ||
| 87245-26J60 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 99556-20220 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26K20 |
GDH206,226 |
1 | ||
| 87245-26K20 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26440 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26500 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26520 |
TRH221,226 |
1 | ||
| 87248-26D10 |
TRH221,226 |
1 | ||
| 87248-26C70 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A60 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87248-26C90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26450 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-26510 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C60 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26530 |
TRH221,226 |
1 | ||
| 87248-26D20 |
TRH221,226 |
1 | ||
| 87248-26D00 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| Common parts | ||||
| 87121-26080 | ||||
| 87121-26090 | ||||
| 87124-25110 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26520 | ||||
| 87124-47030 | ||||
| 90467-19022 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
(1712- )GDH221,226
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26B20 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH20#,211,22# |
1 | ||
| 87245-26B80 |
TRH21#,22# |
1 | ||
| 87245-26J20 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87245-26B80 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26J50 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH20#,211,22# |
1 | ||
| 87245-26B60 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26K10 |
GDH206,226 |
1 | ||
| 87245-26B60 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87245-26K10 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26B30 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-26J10 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26K20 |
GDH206,226 |
1 | ||
| 87245-26K20 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26440 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26500 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26520 |
TRH221,226 |
1 | ||
| 87248-26D10 |
TRH221,226 |
1 | ||
| 87248-26C70 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A60 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87248-26C90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-26A70 |
GDH206;GDH201,211,22#..CBU,IV6 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26450 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| Common parts | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26520 | ||||
| 87124-26640 | ||||
| 88718-6B070 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
(1712- )GDH211,22#
ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26B20 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH20#,211,22# |
1 | ||
| 87245-26B80 |
TRH21#,22# |
1 | ||
| 87245-26J20 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87245-26B80 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26J50 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87209-26180 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-26J90 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH20#,211,22# |
1 | ||
| 87245-26B60 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26K10 |
GDH206,226 |
1 | ||
| 87245-26B60 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87245-26K10 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-26J70 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26B30 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26B90 |
TRH21#,22# |
1 | ||
| 87245-26J60 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 99556-20220 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 99556-20200 |
GDH20#,221,226..(02S,05S,06S,09S)..DX *H,L=80,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26K20 |
GDH206,226 |
1 | ||
| 87245-26K20 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87246G - HOSE, HEATER WATER, OUTLET G | ||||
| 87245-26J80 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26440 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26500 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26520 |
TRH221,226 |
1 | ||
| 87248-26D10 |
TRH221,226 |
1 | ||
| 87248-26C70 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A60 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87248-26C90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-26A60 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-26A70 |
GDH206;GDH201,211,22#..CBU,IV6 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26450 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-26510 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C60 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26530 |
TRH221,226 |
1 | ||
| 87248-26D20 |
TRH221,226 |
1 | ||
| 87248-26D00 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
2 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
2 | ||
| Common parts | ||||
| 87121-26270 | ||||
| 87121-26280 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26520 | ||||
| 87124-26590 | ||||
| 87124-26640 | ||||
| 88718-6B070 | ||||
| 90467-19022 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
(1712- )TRH214,219..5D ; (1712- )GDH211,221,226,TRH211,216,221,224,226,229
ﾘﾔ:ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26C10 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A10 |
KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C11 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C10 |
TRH221,226;GDH221,226..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C10 |
GDH221,226..IV6 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26C50 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A20 |
KDH221,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C51 |
GDH221,226,TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C50 |
GDH221,226..IV6 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C50 |
TRH221,226;GDH221,226..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| Common parts | ||||
| 87121-26130 | ||||
| 87121-26170 | ||||
| 87121-26290 | ||||
| 87124-26481 | ||||
| 87124-26510 | ||||
| 90466-18001 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8712 | ||||
(1712- )TRH21#,22#
ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-26B20 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26C00 |
KDH20#,211,22# |
1 | ||
| 87245-26B80 |
TRH21#,22# |
1 | ||
| 87245-26J20 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87245-26B80 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26J50 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87209-26180 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26C10 |
KDH20#,211,22# |
1 | ||
| 87245-26B60 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26K10 |
GDH206,226 |
1 | ||
| 87245-26B60 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87245-26K10 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26B30 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26B90 |
TRH21#,22# |
1 | ||
| 87245-26J60 |
GDH20#,221,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 99556-20220 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) *H,L=220,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 99556-20300 |
GDH20#,221,226,KDH20#,221..(02S,05S,06S,09S)..DX *H,L=210,ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26K20 |
GDH206,226 |
1 | ||
| 87245-26K20 |
GDH206,226..(02S,05S,06S,09S)..DX ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200..V1..03S..4FC..CBU;TRH200,221,226..(02S,06S,09S)..(4FC,6FC) ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87245-26B70 |
TRH200,21#,22#..4FC,6FC |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26440 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-26500 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26520 |
TRH221,226 |
1 | ||
| 87248-26D10 |
TRH221,226 |
1 | ||
| 87248-26C70 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26A60 |
GDH20#,221,226..DX..(CBU,IV6) |
1 | ||
| 87248-26C90 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26450 |
KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-26510 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26C60 |
GDH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 87248-26530 |
TRH221,226 |
1 | ||
| 87248-26D20 |
TRH221,226 |
1 | ||
| 87248-26D00 |
TRH221,226 ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| Common parts | ||||
| 87121-26090 | ||||
| 87121-26260 | ||||
| 87124-25110 | ||||
| 87124-26450 | ||||
| 87124-26460 | ||||
| 87124-26520 | ||||
| 87124-47030 | ||||
| 90467-19022 | ||||
| 91553-80814 | ||||
| 96134-42100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
