TRH226K-LRPDK7 (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )TRH211,216..4FC ; (1404- )TRH214..4FC..GL ; (1501- )TRH211,216 ; (

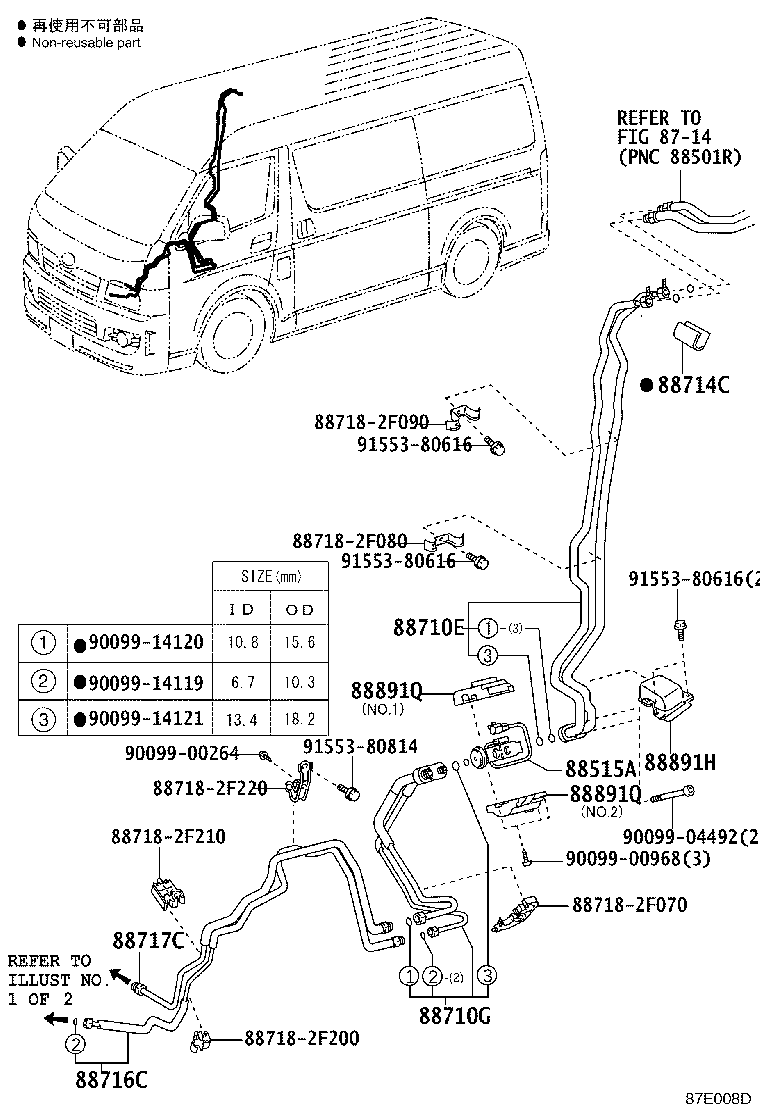

Click highlighted areas on diagram

ﾘﾔ

diagram 8714 88515A 88710E 88710G 88714C 88716C 88717C 887182F070 887182F080 887182F100 887182F200 887182F210 887182F220 88891H 88891Q 88891Q 9009900264 9009900968 9009904492 9009914119 9009914120 9009914121 9155380616 9155380616 9155380630 9155380814
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-26090

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2N320

TRH221,226..IV7

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-2F850

KDH211,223,TRH21#,22#..02S,05S,10S,14S

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-26050

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2N170

TRH200..IV5;TRH200,21#,22#..02S,05S,10S,14S

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88715-26451

TRH200..IV5;TRH200,21#,22#..02S,05S,10S,14S

 1
88891H - COVER, COOLER, NO.1
88891-26250

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88891Q - COVER, COOLER, NO.2
88891-26270

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.1

 1
88891-26280

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.2

 1
88891Q - COVER, COOLER, NO.2
88891-26270

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.1

 1
88891-26280

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.2

 1
Common parts
88718-2F070
88718-2F080
88718-2F100
88718-2F200
88718-2F210
88718-2F220
90099-00264
90099-00968
90099-04492
90099-14119
90099-14120
90099-14121
91553-80616
91553-80630
91553-80814
Linked diagrams
8714

(1312- )4FC..IV7 ; (1501- )IV7

Click highlighted areas on diagram

ﾘﾔ

diagram 8714 88515A 88710E 88710G 88714C 88716C 88717C 887182F070 887182F080 887182F090 887182F200 887182F210 887182F220 88891H 88891Q 88891Q 9009900264 9009900968 9009904492 9009914119 9009914120 9009914121 9155380616 9155380616 9155380616 9155380814
Part # Description Qty Price
88515A - VALVE, COOLER EXPANSION
88515-26090

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2N320

TRH221,226..IV7

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-2F850

KDH211,223,TRH21#,22#..02S,05S,10S,14S

 1
88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1
88714-26050

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2N170

TRH200..IV5;TRH200,21#,22#..02S,05S,10S,14S

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88715-26451

TRH200..IV5;TRH200,21#,22#..02S,05S,10S,14S

 1
88891H - COVER, COOLER, NO.1
88891-26250

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88891Q - COVER, COOLER, NO.2
88891-26270

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.1

 1
88891-26280

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.2

 1
88891Q - COVER, COOLER, NO.2
88891-26270

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.1

 1
88891-26280

GDH206,221,226,KDH20#,223,TRH200,223,224,228..HRF..(02S,03S,10S,14S);GDH20#,211,223,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

NO.2

 1
Common parts
88718-2F070
88718-2F080
88718-2F090
88718-2F200
88718-2F210
88718-2F220
90099-00264
90099-00968
90099-04492
90099-14119
90099-14120
90099-14121
91553-80616
91553-80814
Linked diagrams
8714

(1312- )KDH211,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ,ｶﾝﾚｲﾁｼﾖｳ

diagram 1703 1703 8714 8719 88374B 88374C 88375B 88375D 88450 88467B 88467B 88471 88473A 88474 886882F280 886882F290 886882F300 886882F310 886882F320 886882F340 886882F360 886882F410 88691W 88699A 88711 88712 88715A 88715B 88715G 88716A 88716B 88717A 887182F130 887182F130 887182F130 887182F180 887182F310 887182F320 887182F330 88719A 9009120512 9009120512 9009120512 9009120512 9009120609 9009120609 9009120619 9009900264 9009904460 9009914119 9009914120 9009914121 90105T0193 9017906115 9017906274 9017906274 9151560645 9155380616 9155380622 9155380622 9155380622 9155380622 9155380622 9155380625 9155380625 9155380814 9155380814 9155380814 9167380618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120

GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-26031

GDH20#,211,223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223..HRF..(02S,03S,14S)

寒冷地仕様

 1
88474 - DRYER, COOLER
88474-17010

GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#

 1
88699A - VALVE, AIR
88699-60010

GDH20#,211,223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223..HRF..(02S,03S,14S)

寒冷地仕様

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F171

KDH211,22#

 1
88711-2F142

TRH21#,22#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F191

KDH211,22#

 1
88712-2F161

TRH21#,22#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26400

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88715G - TUBE, DISCHARGE, G
88715-26460

GDH20#,211,223,KDH20#,211..05S,14S;GDH206,221,226,KDH20#,223..HRF..(02S,03S,14S)

寒冷地仕様

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F641

GDH221,226,KDH223,TRH223,224,228..02S,10S,14S;GDH211,223,KDH211,TRH21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2N160

KDH211,22#

寒冷地仕様

 1
88716-2N140

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88710-2F871

KDH211,22#

寒冷地仕様

 1
88717-2F670

GDH221,226,KDH223,TRH223,224,228..02S,10S,14S;GDH211,223,KDH211,TRH21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88688-2F340
88688-2F360
88688-2F410
88718-2F130
88718-2F180
88718-2F310
88718-2F320
88718-2F330
90091-20512
90091-20609
90091-20619
90099-00264
90099-04460
90099-14119
90099-14120
90099-14121
90105-T0193
90179-06115
90179-06274
91515-60645
91553-80616
91553-80622
91553-80625
91553-80814
91673-80618
Linked diagrams
1703
8714
8719

(1312- )KDH211,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ

diagram 1703 1703 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F280 886882F290 886882F300 886882F310 886882F320 88711 88712 88715A 88716A 88716B 88717A 887182F120 887182F120 887182F120 887182F140 887182F180 887182F250 887182F330 887182F350 88719A 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009900264 9009914119 9009914120 9009914121 9009914122 90105T0193 90105T0194 9155380616 9155380622 9155380622 9155380625 9155380625 9155380814 9167380618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120

GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#

 1
88474 - DRYER, COOLER
88474-17010

GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F171

KDH211,22#

 1
88711-2F142

TRH21#,22#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F191

KDH211,22#

 1
88712-2F161

TRH21#,22#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26400

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F641

GDH221,226,KDH223,TRH223,224,228..02S,10S,14S;GDH211,223,KDH211,TRH21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2N160

KDH211,22#

寒冷地仕様

 1
88716-2N140

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88710-2F871

KDH211,22#

寒冷地仕様

 1
88717-2F670

GDH221,226,KDH223,TRH223,224,228..02S,10S,14S;GDH211,223,KDH211,TRH21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88718-2F120
88718-2F140
88718-2F180
88718-2F250
88718-2F330
88718-2F350
90091-20512
90091-20609
90091-20619
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
90105-T0194
91553-80616
91553-80622
91553-80625
91553-80814
91673-80618
Linked diagrams
1703
8714
8719

(1312-2005)TRH21#,22#..4FC ; (1501-2005)TRH211,216,22# ; (1501-2005)TRH214,219..4D

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾃﾞｭｱﾙｴｱｺﾝ

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88474 886882F280 886882F290 886882F300 886882F310 886882F320 886882F391 88711 88712 88715A 88716A 88716B 88717A 8871827030 887182F110 887182F120 887182F120 887182F120 887182F140 887182F161 887182F170 887182F250 887182F330 887182F340 887182F350 88719A 9009120512 9009120512 9009120512 9009120512 9009120609 9009120619 9009120801 9009900259 9009914119 9009914120 9009914121 9009914122 90105T0193 9155380616 9155380622 9155380622 9155380625 9155380625 9155380810 9155380814 9167380618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-26120

GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#

 1
88474 - DRYER, COOLER
88474-17010

GDH20#,211,22#,KDH20#,211,22#,TRH200,21#,22#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2F171

KDH211,22#

 1
88711-2F142

TRH21#,22#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2F191

KDH211,22#

 1
88712-2F161

TRH21#,22#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-26400

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-2F641

GDH221,226,KDH223,TRH223,224,228..02S,10S,14S;GDH211,223,KDH211,TRH21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2N160

KDH211,22#

寒冷地仕様

 1
88716-2N140

KDH223,TRH223,224,228;GDH211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88710-2F871

KDH211,22#

寒冷地仕様

 1
88717-2F670

GDH221,226,KDH223,TRH223,224,228..02S,10S,14S;GDH211,223,KDH211,TRH21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
88688-2F280
88688-2F290
88688-2F300
88688-2F310
88688-2F320
88688-2F391
88718-27030
88718-2F110
88718-2F120
88718-2F140
88718-2F161
88718-2F170
88718-2F250
88718-2F330
88718-2F340
88718-2F350
90091-20512
90091-20609
90091-20619
90091-20801
90099-00259
90099-14119
90099-14120
90099-14121
90099-14122
90105-T0193
91553-80616
91553-80622
91553-80625
91553-80810
91553-80814
91673-80618
Linked diagrams
8714
8719
