TRH226K-LRPDK7 (2013)
Toyota Hiace/Regiusace
Production
Dec 2013
-
Jan 2015
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1312- )TRH226 ; (1312- )GDH206,226,KDH206,TRH216,219,228,229..CBU,IV5

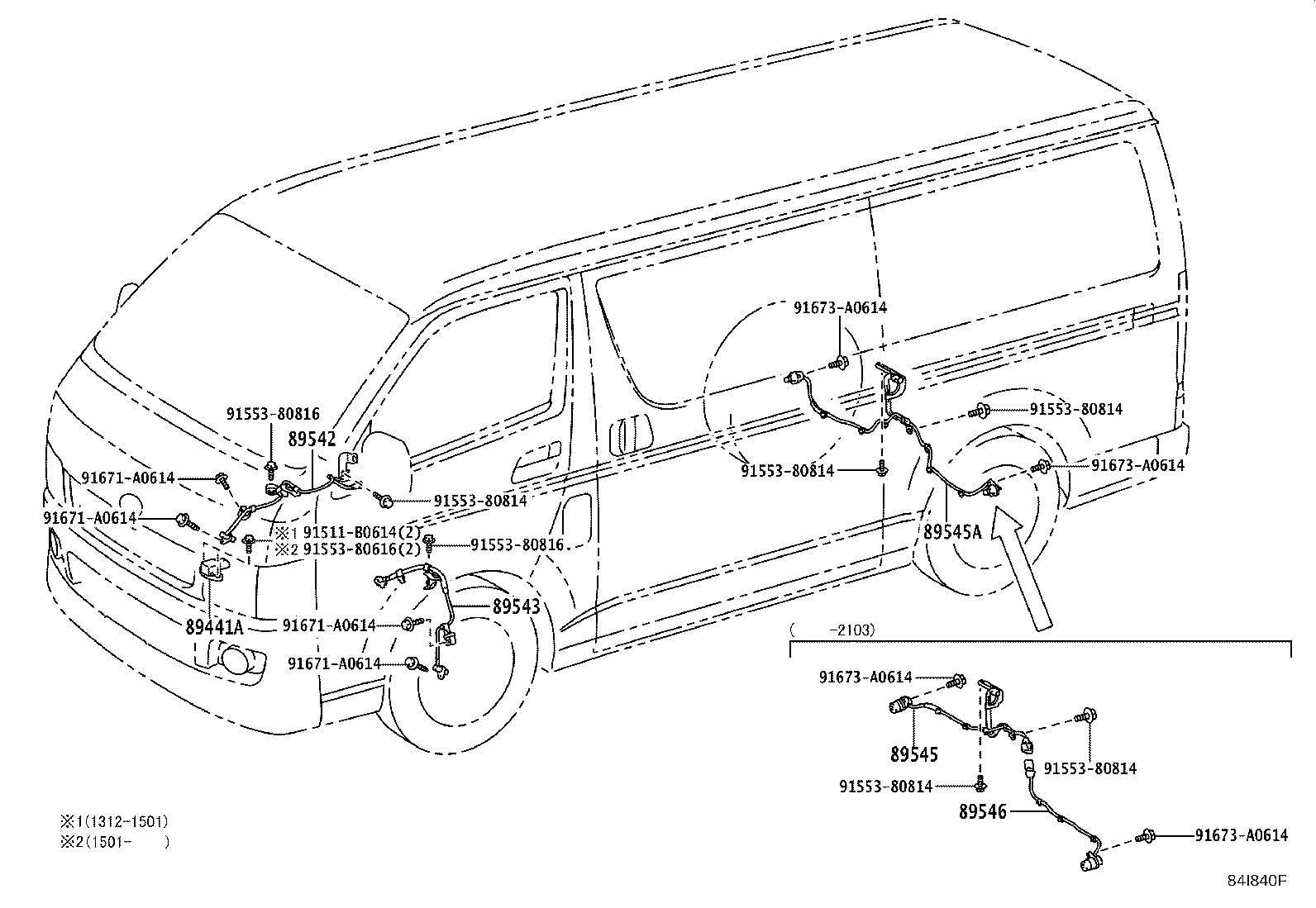

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89441A - SENSOR, DECELERATION | ||||
| 89441-60030 |
TRH216,219,226,228,229 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-26140 |
KDH201,211,22#,TRH200,211,214,221,223,224 |
1 | ||
| 89542-26150 |
KDH206,TRH216,219,226,228,229 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-26160 |
KDH206,TRH216,219,226,228,229 |
1 | ||
| 89543-26150 |
KDH201,211,22#,TRH200,211,214,221,223,224 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-26120 |
KDH211,22#,TRH21#,22# |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-26130 |
KDH211,22#,TRH21#,22# |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
| 91553-80814 | ||||
| 91553-80816 | ||||
| 91671-A0614 | ||||
| 91673-A0614 | ||||
(1312- )GDH226..IV6 ; (1312- )GDH201,211,221,223,KDH201,211,22#,TRH200,211,21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-26140 |
KDH201,211,22#,TRH200,211,214,221,223,224 |
1 | ||
| 89542-26150 |
KDH206,TRH216,219,226,228,229 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-26160 |
KDH206,TRH216,219,226,228,229 |
1 | ||
| 89543-26150 |
KDH201,211,22#,TRH200,211,214,221,223,224 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-26120 |
KDH211,22#,TRH21#,22# |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-26130 |
KDH211,22#,TRH21#,22# |
1 | ||
| Common parts | ||||
| 91551-80812 | ||||
| 91553-80814 | ||||
| 91671-A0614 | ||||
| 91673-A0614 | ||||
