TRH226K-LRPDK (2005)
Toyota Hiace/Regiusace
(0408-1008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53245B - BRACKET, HEADLAMP, RH | ||||
| 53245-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53246B - BRACKET, HEADLAMP, LH | ||||
| 53246-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81110-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81110-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KDH20#,211,22#,TRH200,21#,22# 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13046 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81130-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81130-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81145-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81130-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81150-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81150-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81150-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81150-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81170-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81170-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81185-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81170-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81192 - SEAL, HEADLAMP | ||||
| 81192-26010 |
KDH201,206,211,221,223,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 81192-26010 |
KDH20#,22# 寒冷地仕様 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KDH20#,211,22#,TRH200,21#,22# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
KDH20#,211,22#,TRH200,21#,22# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KDH20#,211,22#,TRH200,21#,22# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 90075-60046 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85661-12020 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| Common parts | ||||
| 90075-10011 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
(1008- )
ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53245B - BRACKET, HEADLAMP, RH | ||||
| 53245-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53246B - BRACKET, HEADLAMP, LH | ||||
| 53246-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81110-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81110-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KDH20#,211,22#,TRH200,21#,22# 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13046 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81130-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81130-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81145-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81130-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81136F - COVER, HEADLAMP, NO.2 RH | ||||
| 81136-26650 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65002 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81150-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81150-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81150-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81150-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81170-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81170-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81185-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81170-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81176B - COVER, HEADLAMP, NO.2 LH | ||||
| 81176-26650 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KDH20#,211,22#,TRH200,21#,22# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
KDH20#,211,22#,TRH200,21#,22# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KDH20#,211,22#,TRH200,21#,22# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 90075-60046 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85661-12020 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| Common parts | ||||
| 90075-02057 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
(1008- )CBU
ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53245B - BRACKET, HEADLAMP, RH | ||||
| 53245-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53246B - BRACKET, HEADLAMP, LH | ||||
| 53246-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-12A81 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-12A81 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81110-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81110-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81110-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
KDH20#,211,22#,TRH200,21#,22# 12V 60/55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13046 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 12V65W(SAE),60W(ECE),ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20029 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 43V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-26650 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81130-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81130-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81145-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81130-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81136F - COVER, HEADLAMP, NO.2 RH | ||||
| 81136-26650 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-26650 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81145C - COVER, HEADLAMP SOCKET, NO.2 | ||||
| 90075-65006 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81150-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81150-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81150-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81150-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-26650 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-26540 |
KDH211,22#,TRH21#,22# 寒冷地仕様 |
1 | ||
| 81170-26480 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81170-26430 |
KDH22#,TRH21#,22# |
1 | ||
| 81185-26660 |
KDH22#,TRH214,219,221,223,226,228..(06S,10S,15S)..DX ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 81170-26560 |
KDH211,22#,TRH21#,22# |
1 | ||
| 81176B - COVER, HEADLAMP, NO.2 LH | ||||
| 81176-26650 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
KDH20#,211,22#,TRH200,21#,22# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
KDH20#,211,22#,TRH200,21#,22# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
KDH20#,211,22#,TRH200,21#,22# 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12020 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85661-12010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 85661-12020 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90075-02057 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
(1312-1405)KDH201,TRH200..V1..SP ; (1312-1405)KDH201,TRH200..SG..CBU ; (1312-1405)K

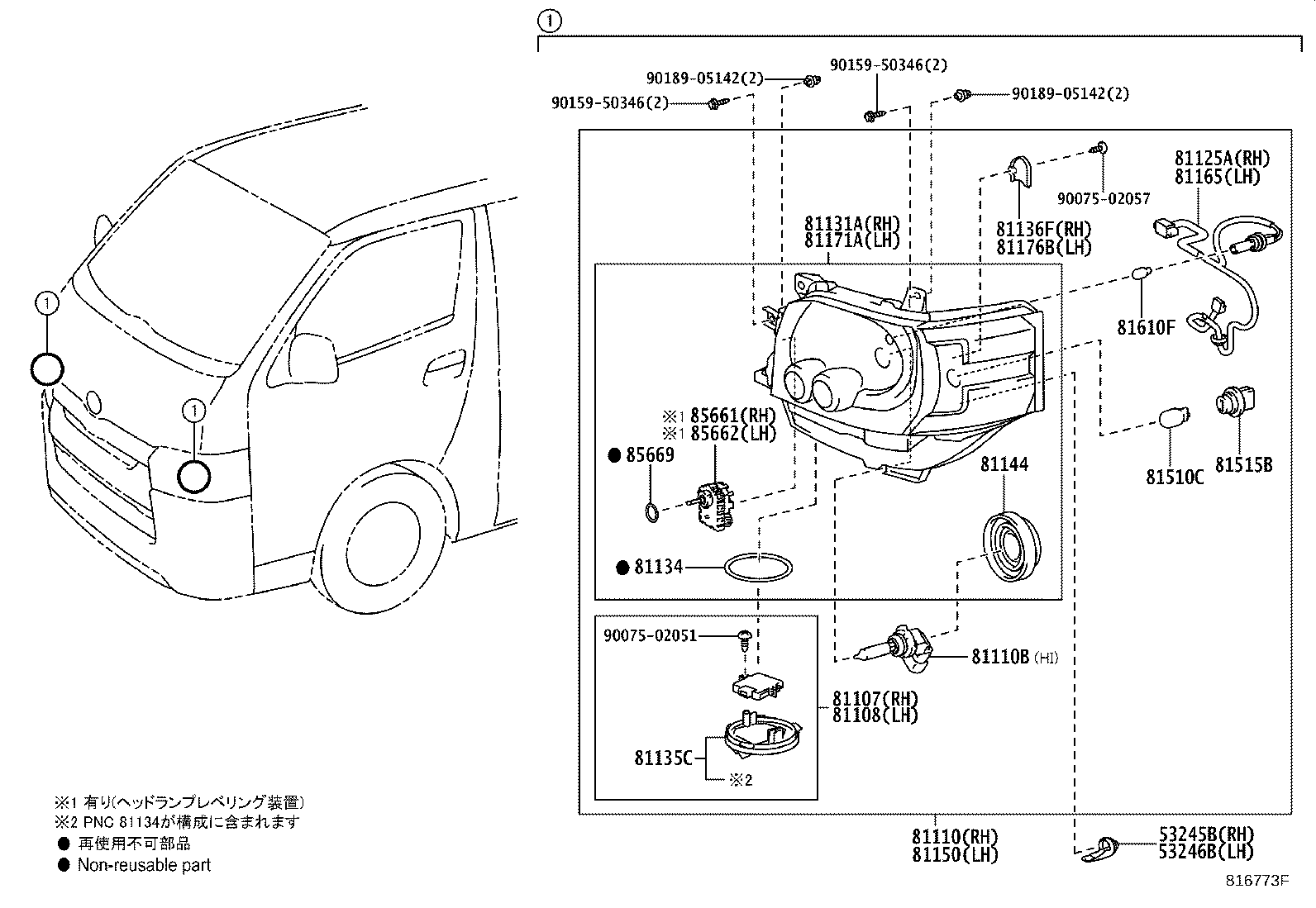

LEDﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02057 | ||||
| 90159-50346 | ||||
| 90189-05142 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
