TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )TRH200,21#,22#..6FC

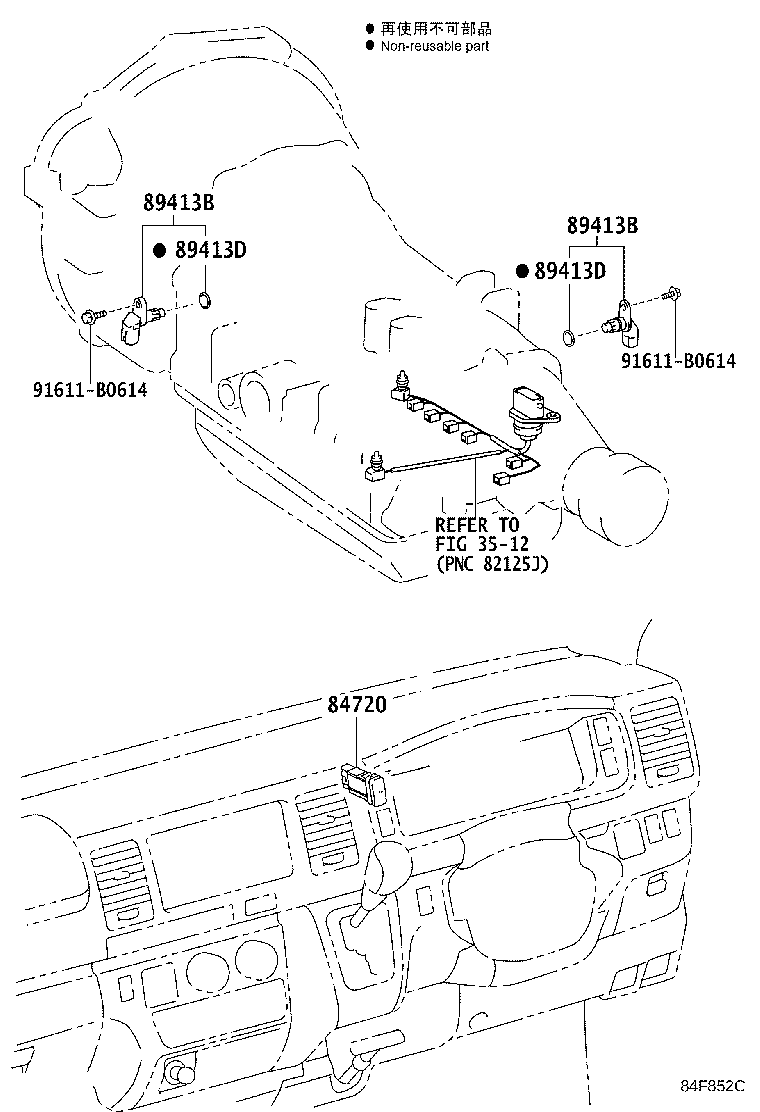

Click highlighted areas on diagram

diagram 3512 84720 89413B 89413B 89413D 89413D 91611B0614 91611B0614
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-12020

TRH200,21#,22#..6FC

 2
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-12020

TRH200,21#,22#..6FC

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 2
Common parts
91611-B0614
Linked diagrams
3512
