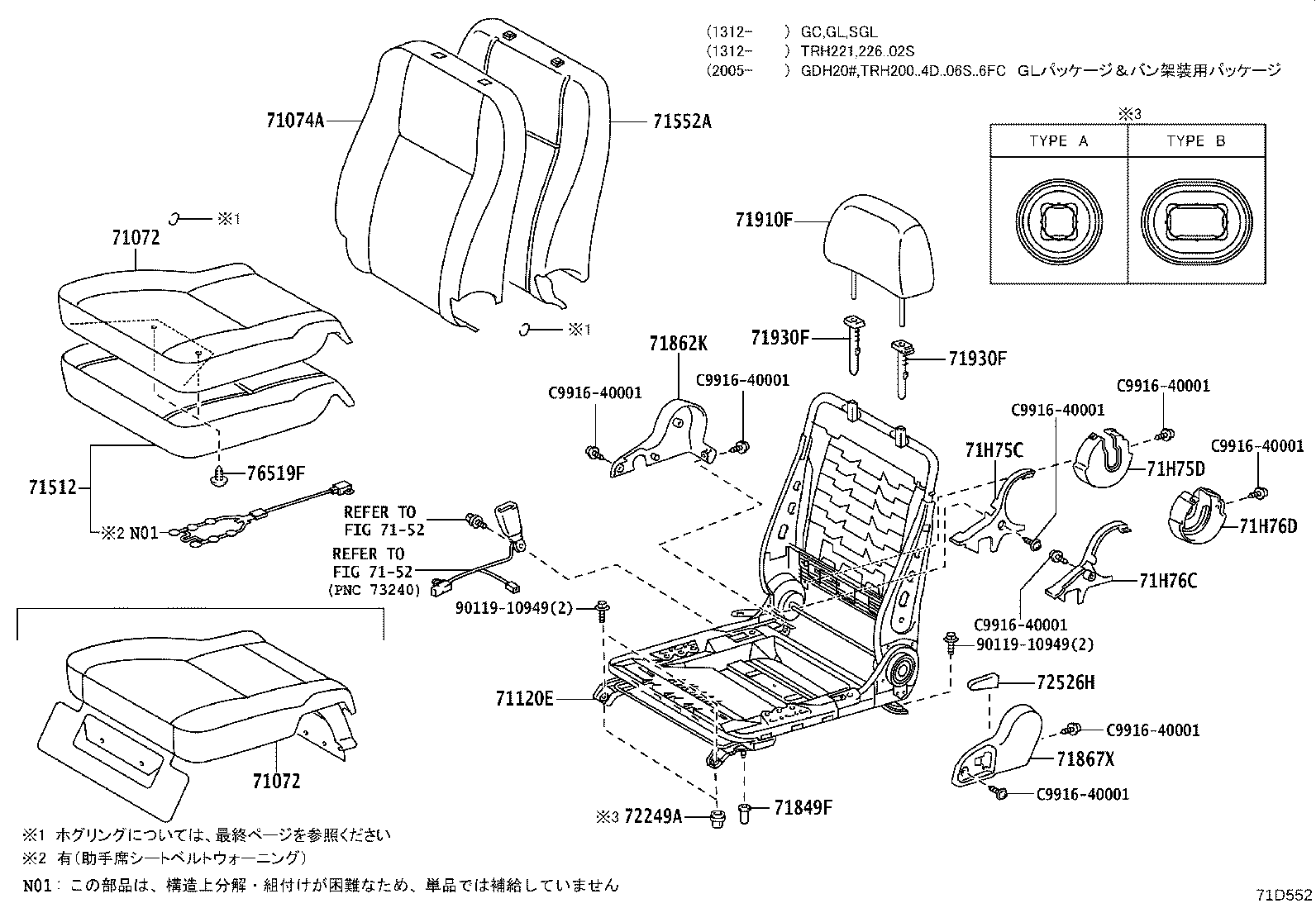

TRH224W-LDTNK5 (2015)
Toyota Hiace/Regiusace
(1312- )GC,GL,SGL ; (1312- )GDH221,226,TRH221,226..02S ; (1401-1712)SRF..4D..
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71071-26C40B0 |
TRH224..IV5;GDH223..GL..CBU LT.GRAY,TRIM1# |
1 | ||
| 71071-26C40B0 |
TRH224..IV5;GDH223..GL..CBU LT.GRAY,TRIM1# |
1 | ||
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71071-26C40B0 |
TRH224..IV5;GDH223..GL..CBU LT.GRAY,TRIM1# |
1 | ||
| 71071-26C40B0 |
TRH224..IV5;GDH223..GL..CBU LT.GRAY,TRIM1# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71073-26B80B0 |
GDH223..GL..CBU;KDH223,TRH223,224,228..(02S,14S)..(GC,GL) LT.GRAY,TRIM1# |
1 | ||
| 71073-26B80B0 |
GDH223..GL..CBU;KDH223,TRH223,224,228..(02S,14S)..(GC,GL) LT.GRAY,TRIM1# |
1 | ||
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-26091 |
GDH223..GL..CBU;KDH223,TRH214,219,223,224,228,229..4D..(GC,GL) |
1 | ||
| 71120-26091 |
GDH223..GL..CBU;KDH223,TRH214,219,223,224,228,229..4D..(GC,GL) |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71052-26050 |
GDH221,226,TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 71052-26050 |
GDH221,226,TRH214,219,221,224,226,229..02S,10S |
1 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71551-26280 |
GDH221,226..IV6;GDH223,TRH214,219..4D..GL..CBU;GDH211,TRH221,224,226,229..02S,05S,10S |
1 | ||
| 71551-26280 |
GDH221,226..IV6;GDH223,TRH214,219..4D..GL..CBU;GDH211,TRH221,224,226,229..02S,05S,10S |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-26010 |
KDH223,TRH224;TRH223,228..4FC..DX;TRH214,219,223,228..4D..GL;GDH211,22#,TRH221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 71848-26010 |
KDH223,TRH224;TRH223,228..4FC..DX;TRH214,219,223,228..4D..GL;GDH211,22#,TRH221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) |
1 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71862-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71867X - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-26010B1 |
KDH223,TRH223,224,228;GDH211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71868-26010B1 |
KDH223,TRH223,224,228;GDH211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-52030B0 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71930-52030B0 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
1 | ||
| 71930-52030B0 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
1 | ||
| 71931-42020B4 |
TRH221,226..02S;GDH20#,211,223,KDH20#,211,223,TRH200,21#,223,224,228,229..GC,GL,SGL ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM1# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-26020B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71875-26020B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71H75D - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK F | ||||
| 71875-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71875-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-26030B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71876-26030B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 71876-26010B1 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 72249A - GUIDE, SEAT TRACK LOCKING | ||||
| 72249-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 72249-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 72249-26020 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 72249-26020 |
KDH223,TRH223,224,228;GDH20#,211,22#,KDH20#,211,TRH200,21#,221,226,229..(02S,05S,10S,14S)..(CBU,IV6,IV7) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-26020B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 72526-26020B1 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1# |
1 | ||
| 76519F - CLIP, FRONT SEAT CUSHION COVER | ||||
| 90467-08186C0 |
KDH20#,211,223,TRH200,21#,22#..02S,05S,10S,14S BLACK |
4 | ||
| 90467-08186C0 |
KDH20#,211,223,TRH200,21#,22#..02S,05S,10S,14S BLACK |
4 | ||
| Common parts | ||||
| 90119-10949 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
