TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )IV5

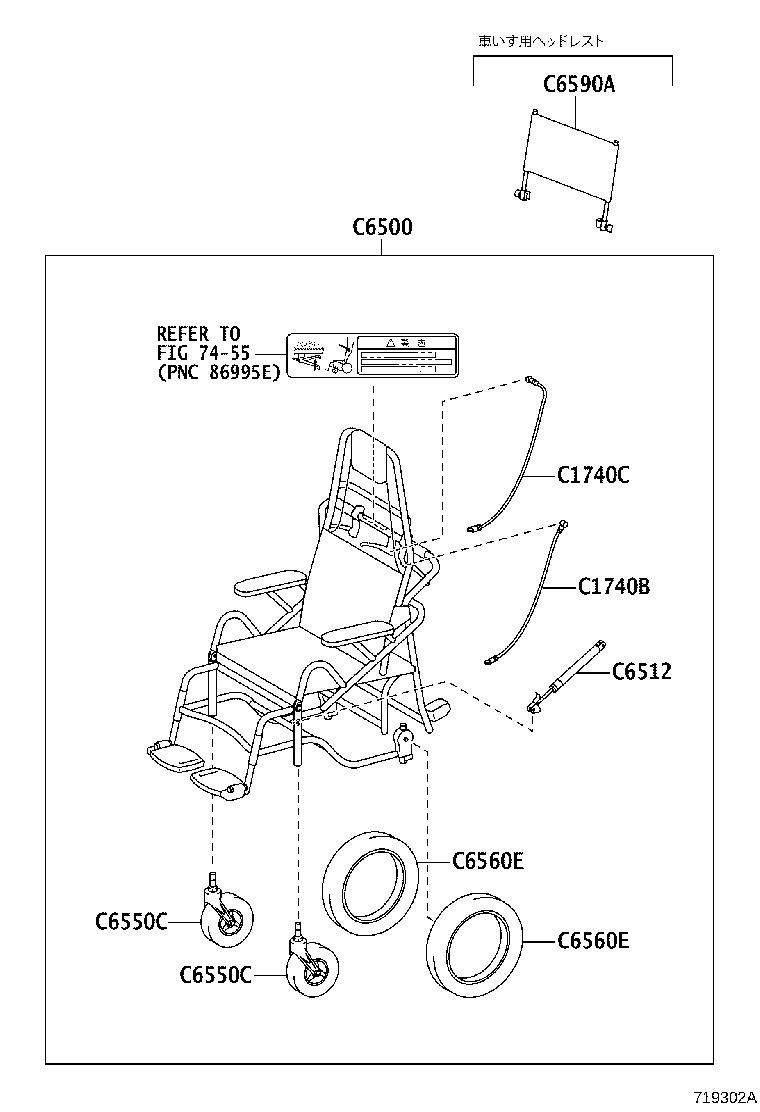

Click highlighted areas on diagram

ｱﾘ(ｸﾙﾏｲｽ:ﾁﾙﾄﾀﾞｳﾝ ﾀｲﾌﾟ)

diagram 7455 C1740B C1740C C6500 C6512 C6550C C6550C C6560E C6560E C6590A
Part # Description Qty Price
C1740B - CABLE ASSY, BRAKE CONTROL, NO.1
C1740-28010

GDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 2
C1740C - CABLE ASSY, BRAKE CONTROL, NO.2
C1740-28020

GDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 1
C6500 - WHEEL CHAIR ASSY
C6500-D1240

GDH206,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす)

 1
C6500-28030

GDH20#,223,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 1
C6512 - STAY, WHEEL CHAIR HOLDER,REAR
C6512-28010

GDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 1
C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT
C6550-26010

GDH206,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす)

 2
C6550-28040

GDH20#,223,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 2
C6550C - WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT
C6550-26010

GDH206,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす)

 2
C6550-28040

GDH20#,223,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 2
C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR
C6560-28040

GDH206,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす)

 2
C6560-28030

GDH20#,223,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 2
C6560E - WHEEL ASSY, WELCAB WHEEL CHAIR, REAR
C6560-28040

GDH206,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす)

 2
C6560-28030

GDH20#,223,KDH20#,223,TRH200,223,224,228..IV5

有り(車いす,ﾁﾙﾄﾀﾞｳﾝﾀｲﾌﾟ)

 2
Linked diagrams
7455
