TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1605)TRH224..IV5

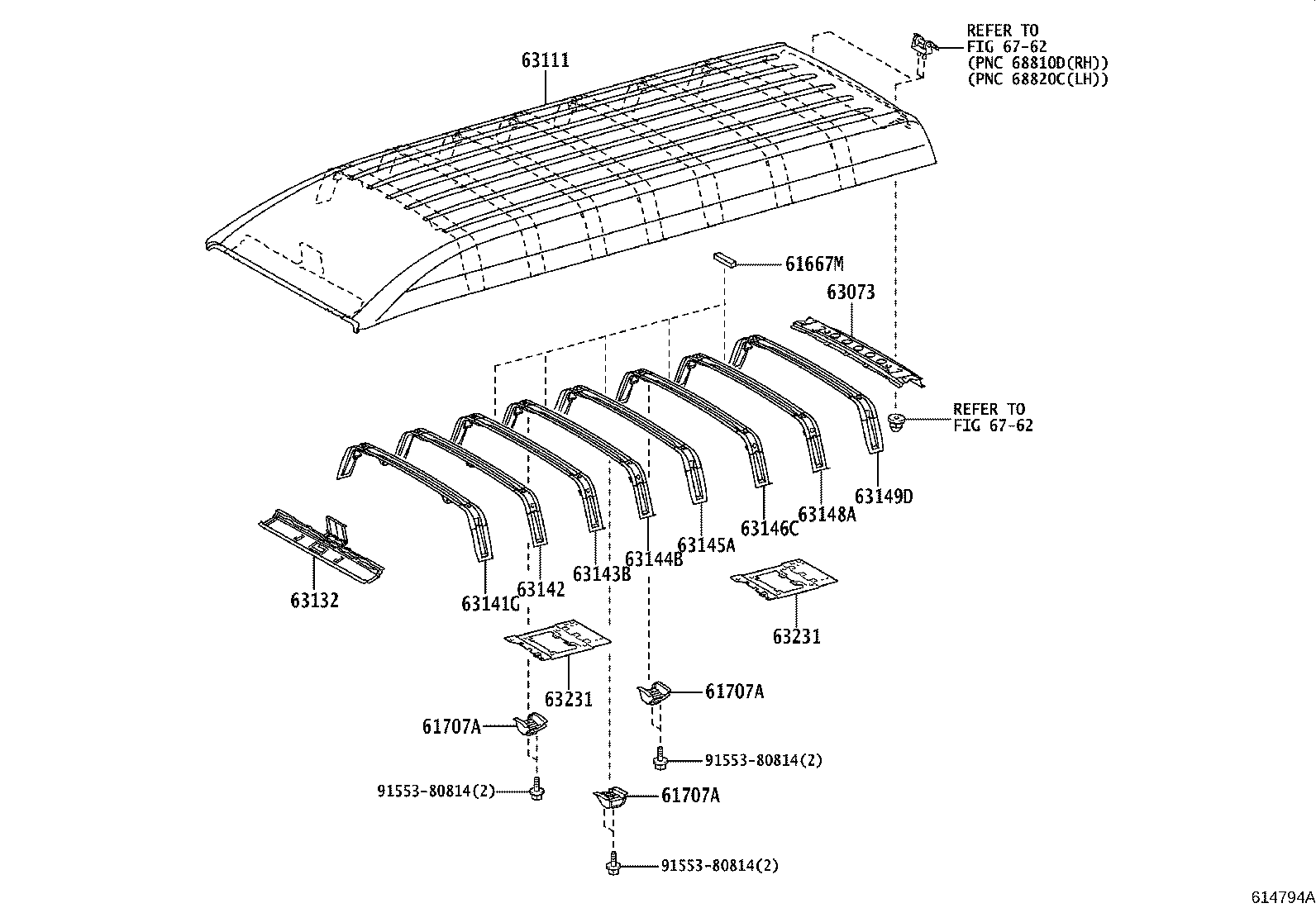

Click highlighted areas on diagram

ｳｪﾙｷｬﾌﾞ(ﾌｸｼﾀｸｼｰ)

diagram 61667M 61707A 61707A 61707A 63073 63111 63132 63141G 63142 63143B 63144B 63145A 63146C 63148A 63149D 63231 63231 6762 6762 9155380814 9155380814 9155380814
Part # Description Qty Price
61667M - SEAL, ROOF PANEL
61667-26320

KDH223,TRH223,224,228;GDH22#,KDH221,TRH221,226,229..CBU,IV6

 50
61707A - BRACKET SUB-ASSY, ROOF SIDE RAIL
61707-26040

TRH224..6FC..IV5

 3
61707A - BRACKET SUB-ASSY, ROOF SIDE RAIL
61707-26040

TRH224..6FC..IV5

 3
61707A - BRACKET SUB-ASSY, ROOF SIDE RAIL
61707-26040

TRH224..6FC..IV5

 3
63073 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER
63073-26130

GDH223,TRH229..CBU;KDH223,TRH223,224,228

 1
63111 - PANEL, ROOF
63111-26500

KDH223,TRH223,224,228;GDH22#,KDH221,TRH221,226,229..CBU,IV6

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-26160

KDH223,TRH223,224,228;GDH22#,KDH221,TRH221,226,229..CBU,IV6

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-26320

KDH223,TRH223,224,228;GDH22#,TRH221,226,229..(02S,10S,14S)..(CBU,IV6)

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63104-26220

KDH223,TRH223,224,228;GDH22#,TRH221,226,229..(02S,10S,14S)..(CBU,IV6)

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-26170

GDH223,TRH229..CBU;KDH223,TRH223,224,228

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63106-26130

TRH224..IV5

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63107-26130

GDH223,TRH229..CBU;KDH223,TRH223,224,228

 1
63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63106-26130

TRH224..IV5

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63105-26211

KDH223,TRH223,224,228..IV5

 1
63149D - REINFORCEMENT, ROOF PANEL, NO.8
63108-26070

GDH223..GL..CBU;KDH223,TRH223,224,228,229..GC,GL

 1
63231 - BRACKET, ROOM LAMP
63231-26240

GDH223..GL..CBU;KDH223,TRH223,224,228,229..GC,GL

 2
63231 - BRACKET, ROOM LAMP
63231-26240

GDH223..GL..CBU;KDH223,TRH223,224,228,229..GC,GL

 2
Common parts
91553-80814
Linked diagrams
6762
