TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )

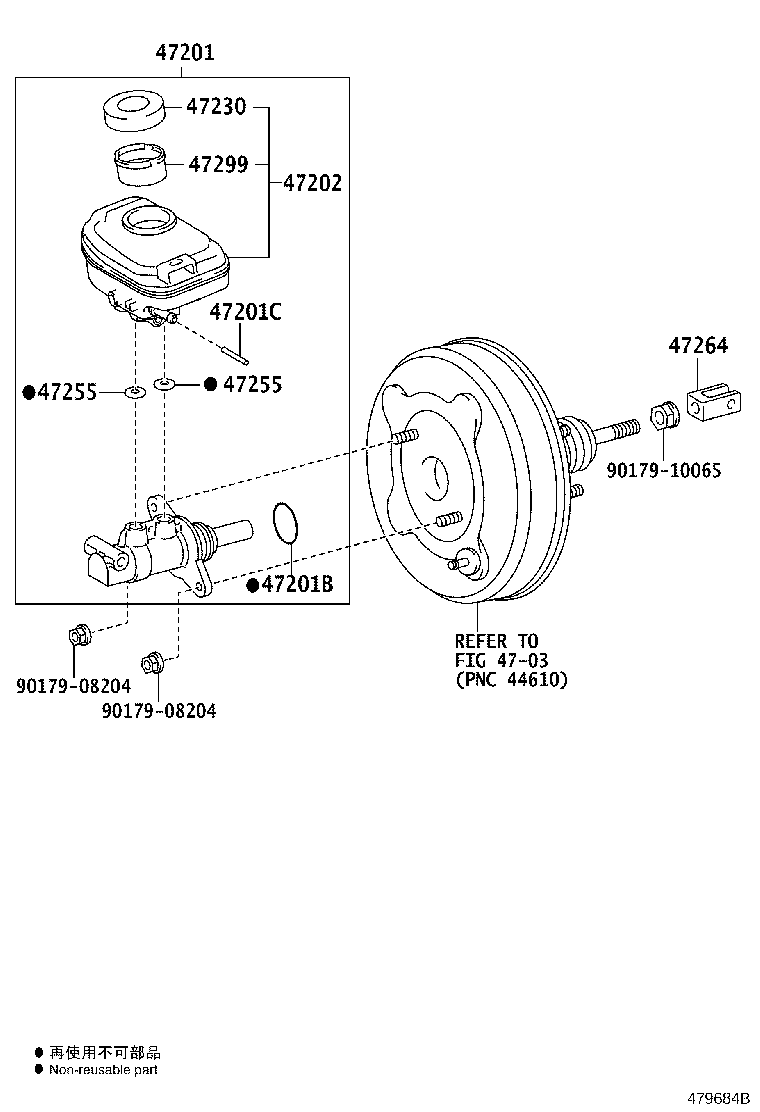

Click highlighted areas on diagram

diagram 4703 47201 47201B 47201C 47202 47230 47255 47255 47264 47299 9017908204 9017908204 9017910065
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-26820

KDH20#,211,22#,TRH200,21#,22#..4FC,6FC

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90015-AE401

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-26310

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-58021

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-60020

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-52110

TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
90179-08204
90179-10065
Linked diagrams
4703
