TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )TRH200,21#,22#..6FC

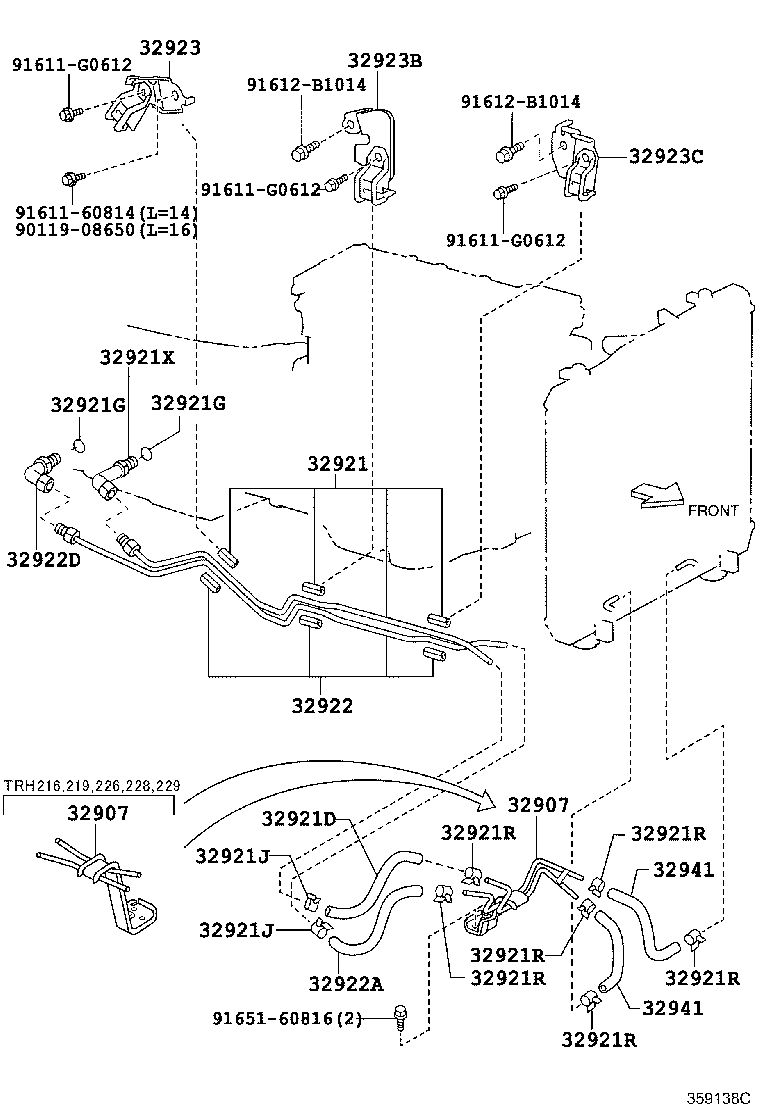

Click highlighted areas on diagram

AC60E,AC60F

diagram 32907 32907 32921 32921D 32921G 32921G 32921J 32921J 32921R 32921R 32921R 32921R 32921R 32921R 32921X 32922 32922A 32922D 32923 32923B 32923C 32941 32941 9011908650 9161160814 91611G0612 91611G0612 91611G0612 91612B1014 91612B1014 9165160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26361

TRH200,21#,22#..6FC

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-26240

TRH200,21#,22#..6FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 6
32921R - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 6
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-16009

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26351

TRH200,21#,22#..6FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32941-26250

TRH200,21#,22#..6FC

 1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-16009

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32909-25081

TRH200,21#,22#..6FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32909-26180

TRH200,21#,22#..4FC,6FC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-34040

TRH200,21#,22#..4FC,6FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-26181

KDH201,223,TRH200,223,224..4FC,6FC;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-26181

KDH201,223,TRH200,223,224..4FC,6FC;GDH201,211,221,223,KDH211,221,TRH211,214,221..CBU,IV6,IV7

 2
Common parts
90119-08650
91611-60814
91611-G0612
91612-B1014
91651-60816
