TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )6FC

Click highlighted areas on diagram

AC60E,AC60F

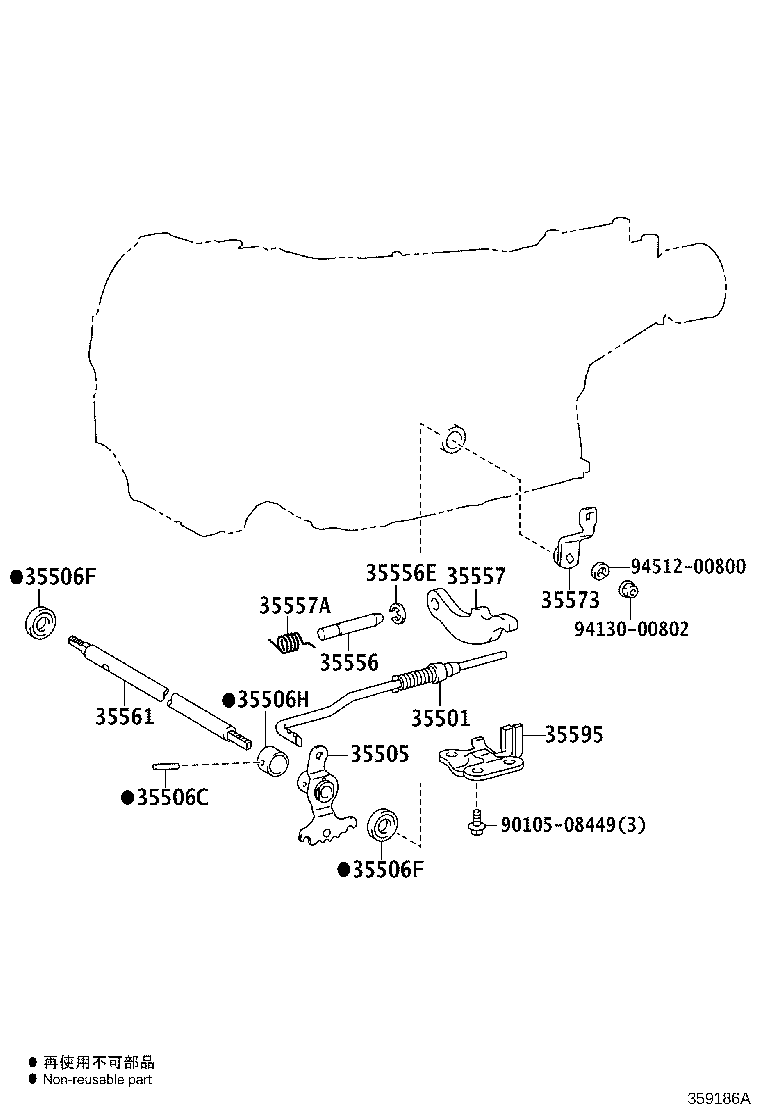

diagram 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35573 35595 9010508449 9413000802 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-71020

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-26010

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

TRH200..6FC;GDH206,KDH20#,223,TRH223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20025

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-60020

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
35557 - PAWL, PARKING LOCK
35557-71020

TRH200,21#,22#..6FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90949-03123

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60030

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-26110

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-71010

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
90105-08449
94130-00802
94512-00800
