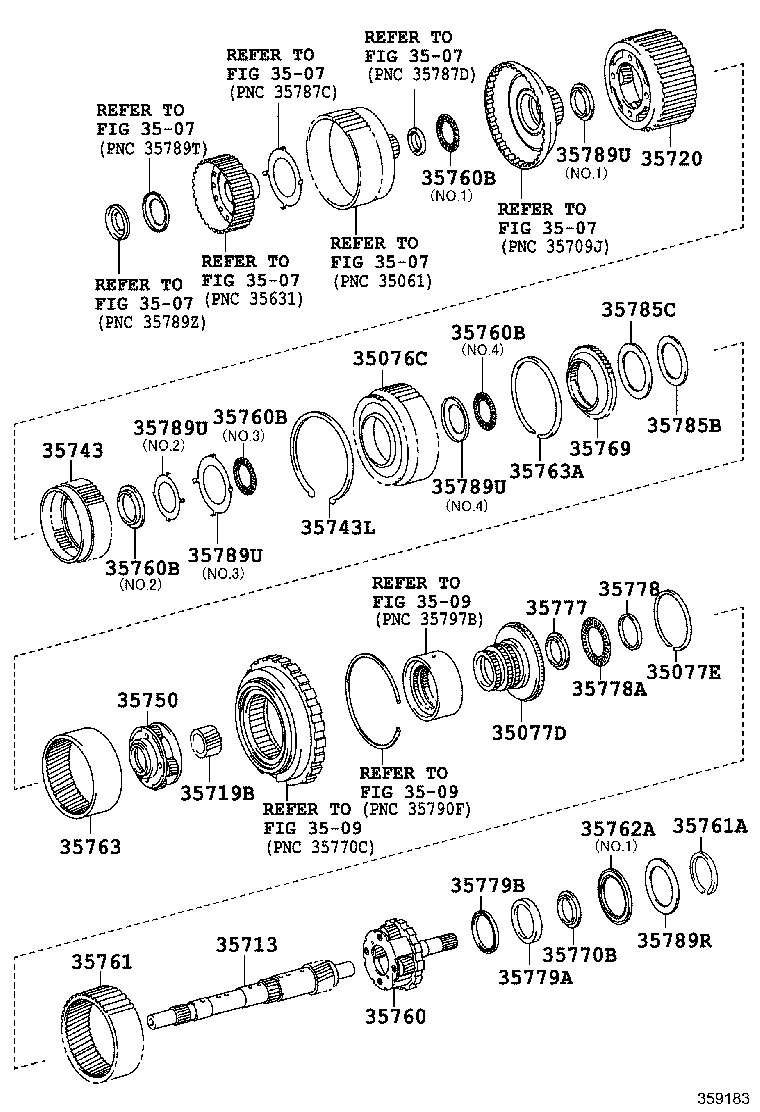

TRH224W-LDTNK5 (2015)
Toyota Hiace/Regiusace
(1501- )TRH219..5D ; (1501- )TRH200,211,214,221,223,224..6FC ; (1712- )GDH
AC60E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR | ||||
| 35077-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35077E - RING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90520-99073 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35713 - SHAFT, INTERMEDIATE | ||||
| 35713-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35719B - GEAR, PLANETARY SUN | ||||
| 35719-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35743L - RING, SNAP (FOR PLANETARY RING GEAR) | ||||
| 90520-99160 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35750 - GEAR ASSY, CENTER PLANETARY | ||||
| 35750-71020 |
TRH200,21#,22#..6FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-71070 |
TRH200,211,214,221,223,224..6FC |
1 | ||
| 35760B - BEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GE | ||||
| 90374-63002 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| 90374-37009 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 90374-39008 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35760B - BEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GE | ||||
| 90374-63002 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| 90374-37009 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 90374-39008 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35760B - BEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GE | ||||
| 90374-63002 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| 90374-37009 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 90374-39008 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35760B - BEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GE | ||||
| 90374-63002 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| 90374-37009 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 90374-39008 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90520-34012 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-36001 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 NO.1 |
1 | ||
| 35763 - GEAR, CENTER PLANETARY RING | ||||
| 35763-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35763A - RING, SNAP(FOR CENTER PLANETARY RING GEAR) | ||||
| 90520-99161 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35769 - FLANGE, PLANETARY RING GEAR, CTR | ||||
| 35769-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22190 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 35777 - RACE, THRUST BEARING, NO.7 | ||||
| 35777-60010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35778 - RACE, THRUST BEARING, NO.8 | ||||
| 35778-60010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35778A - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-32010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35779A - RACE, THRUST BEARING, NO.9 | ||||
| 35779-60011 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35779B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-43007 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35785B - RACE, THRUST BEARING, NO.4 | ||||
| 35785-60010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35785C - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-55004 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35789R - RACE, THRUST BEARING (FOR REAR OUTPUT SHAFT) | ||||
| 35789-35090 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.10 |
1 | ||
| 35789-35080 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.00 |
1 | ||
| 35789-50070 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=3.85 |
1 | ||
| 35789-50080 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=3.95 |
1 | ||
| 35789-50110 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.25 |
1 | ||
| 35789-35060 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=3.80 |
1 | ||
| 35789-35070 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=3.90 |
1 | ||
| 35789-35100 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.20 |
1 | ||
| 35789-50090 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.05 |
1 | ||
| 35789-50130 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.35 |
1 | ||
| 35789-50100 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.15 |
1 | ||
| 35789-50120 |
TRH200,223,224..6FC;GDH201,211,221,223,TRH211,214,221..CBU,IV6,IV7 厚さ=4.30 |
1 | ||
| 35789U - RACE, THRUST BEARING | ||||
| 35789-71020 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35789-71030 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 35789-71040 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| 35789-71050 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.4 |
1 | ||
| 35789U - RACE, THRUST BEARING | ||||
| 35789-71020 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35789-71030 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 35789-71040 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| 35789-71050 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.4 |
1 | ||
| 35789U - RACE, THRUST BEARING | ||||
| 35789-71020 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35789-71030 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 35789-71040 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| 35789-71050 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.4 |
1 | ||
| 35789U - RACE, THRUST BEARING | ||||
| 35789-71050 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.4 |
1 | ||
| 35789-71020 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.1 |
1 | ||
| 35789-71030 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.2 |
1 | ||
| 35789-71040 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 NO.3 |
1 | ||
| Linked diagrams | ||||
| 3507 | ||||
| 3509 | ||||
