TRH224W-LDTNK5 (2015)
Toyota Hiace/Regiusace
(1501- )TRH200,21#,22#..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

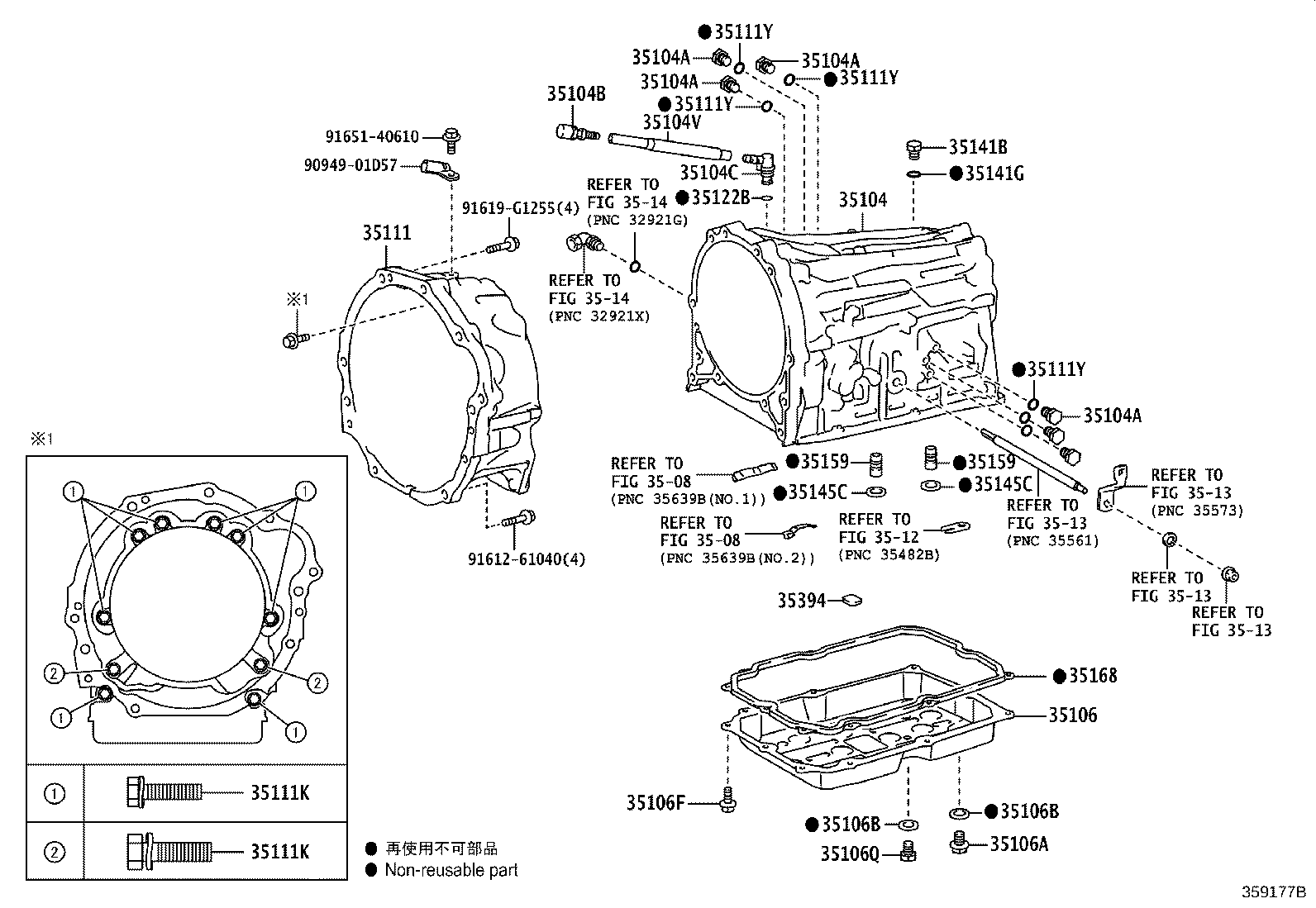

| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-71020 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03211 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03220 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11082 |
TRH200,21#,22#..6FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35107-26010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10011 |
GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06A02 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
10 | ||
| 35106Q - PLUG (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-71040 |
TRH200,21#,22#..6FC |
1 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-10232 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 *10−1.5PX35−30,NO.1:ｲﾗｽﾄ参照 |
8 | ||
| 90119-10947 |
TRH200,21#,22#..6FC *10−1.50PX35−29.3 |
2 | ||
| 90119-12378 |
GDH206,TRH200,223,224..6FC;GDH201,211,22#,TRH211,214,221..CBU,IV6,IV7 *12−1.75PX38―30,NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 35111K - BOLT (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-10232 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 *10−1.5PX35−30,NO.1:ｲﾗｽﾄ参照 |
8 | ||
| 90119-10947 |
TRH200,21#,22#..6FC *10−1.50PX35−29.3 |
2 | ||
| 90119-12378 |
GDH206,TRH200,223,224..6FC;GDH201,211,22#,TRH211,214,221..CBU,IV6,IV7 *12−1.75PX38―30,NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
6 | ||
| 35122B - RING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION) | ||||
| 90301-08015 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-60020 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-71010 |
GDH206,TRH223,224;GDH201,211,22#,TRH211,214,221..CBU,IV6,IV7 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
4 | ||
| Common parts | ||||
| 90949-01D57 | ||||
| 91612-61040 | ||||
| 91619-G1255 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 3508 | ||||
| 3512 | ||||
| 3513 | ||||
| 3514 | ||||
