TRH224W-LDTNK5 (2015)
Toyota Hiace/Regiusace
(1501- )TRH200,21#,22#..6FC
AC60E,AC60F

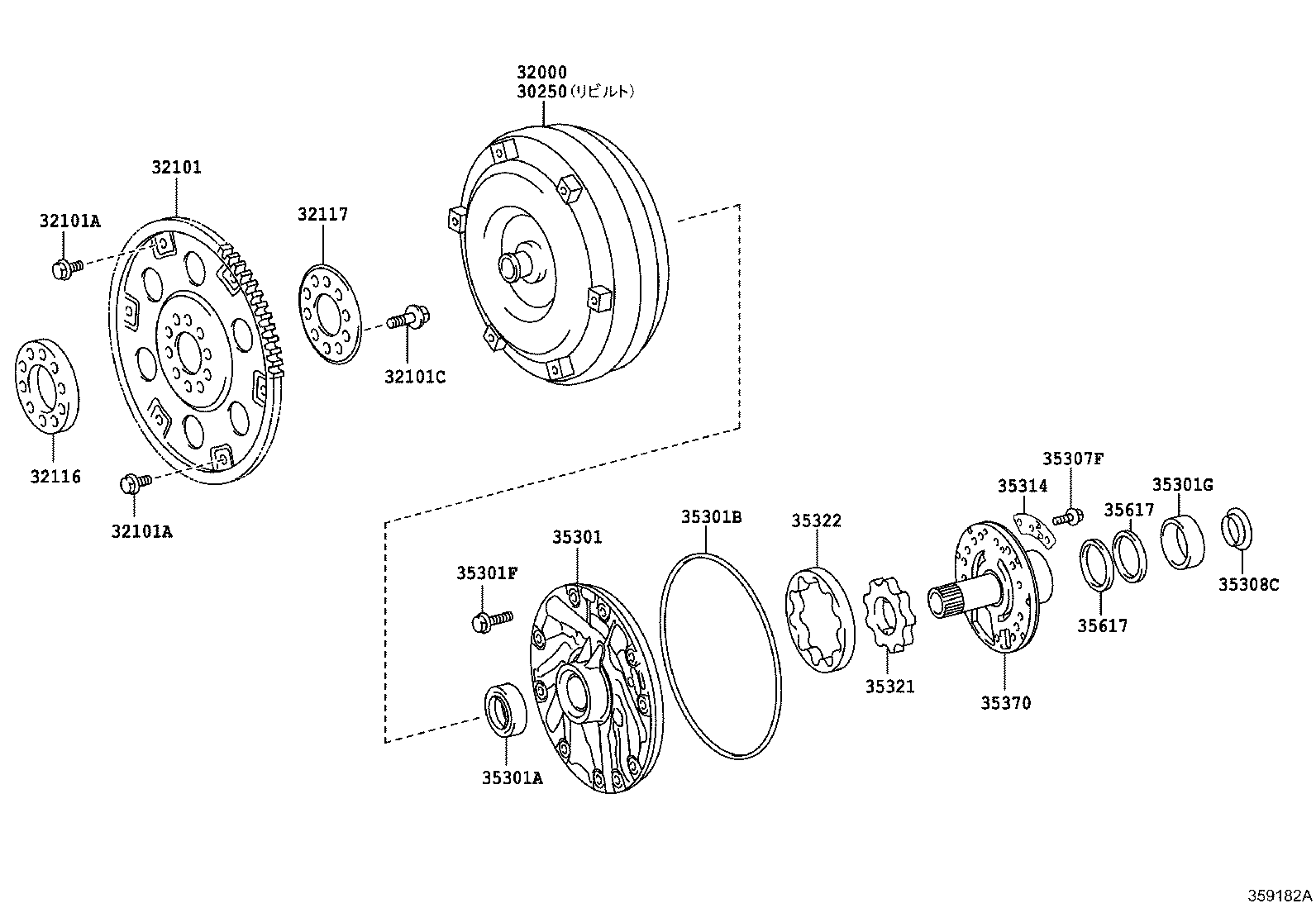

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-71050 |
TRH21#,22# |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-71050 |
TRH21#,22# |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-26010 |
TRH224..IV5;TRH224..4FC..CBU;TRH200,21#,221,223,226,228,229..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-10413 |
GDH20#,211,22#,KDH20#,211,22#..4FC,6FC *10−1.5PX11−8,(J),ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09010 |
TRH200,21#,22#..4FC,6FC *9−1.25PX12.8−9 |
1 | ||
| 90119-09009 |
TRH200,21#,22#..4FC,6FC *9−1.25PX12.8−8.8 |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-10413 |
GDH20#,211,22#,KDH20#,211,22#..4FC,6FC *10−1.5PX11−8,(J),ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 90119-09010 |
TRH200,21#,22#..4FC,6FC *9−1.25PX12.8−9 |
1 | ||
| 90119-09009 |
TRH200,21#,22#..4FC,6FC *9−1.25PX12.8−8.8 |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-T0113 |
GDH20#,211,22#,KDH20#,211,22#..4FC,6FC *13−1.5PX43.5−23.5,(L) |
8 | ||
| 90105-10276 |
TRH224..IV5;TRH224..4FC..CBU;TRH200,21#,221,223,226,228,229..4FC *10−1.25PX30−17.5 |
10 | ||
| 90105-13010 |
GDH20#,211,22#,KDH20#,211,22#..4FC,6FC *13−1.5PX43.5−23.5,(J) |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-26010 |
TRH224..IV5;TRH224..4FC..CBU;TRH200,21#,221,223,226,228,229..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-26010 |
TRH224..IV5;TRH224..4FC..CBU;TRH200,21#,221,223,226,228,229..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38101 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 35697-60010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 *8−1.25PX35−35 |
10 | ||
| 35301G - BEARING,NEEDLE ROLLER | ||||
| 90374-71002 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60079 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
10 | ||
| 35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER) | ||||
| 35789-71070 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=9.977−9.983 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 厚さ=9.977−9.983 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-71010 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7 |
2 | ||
