TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )6FC

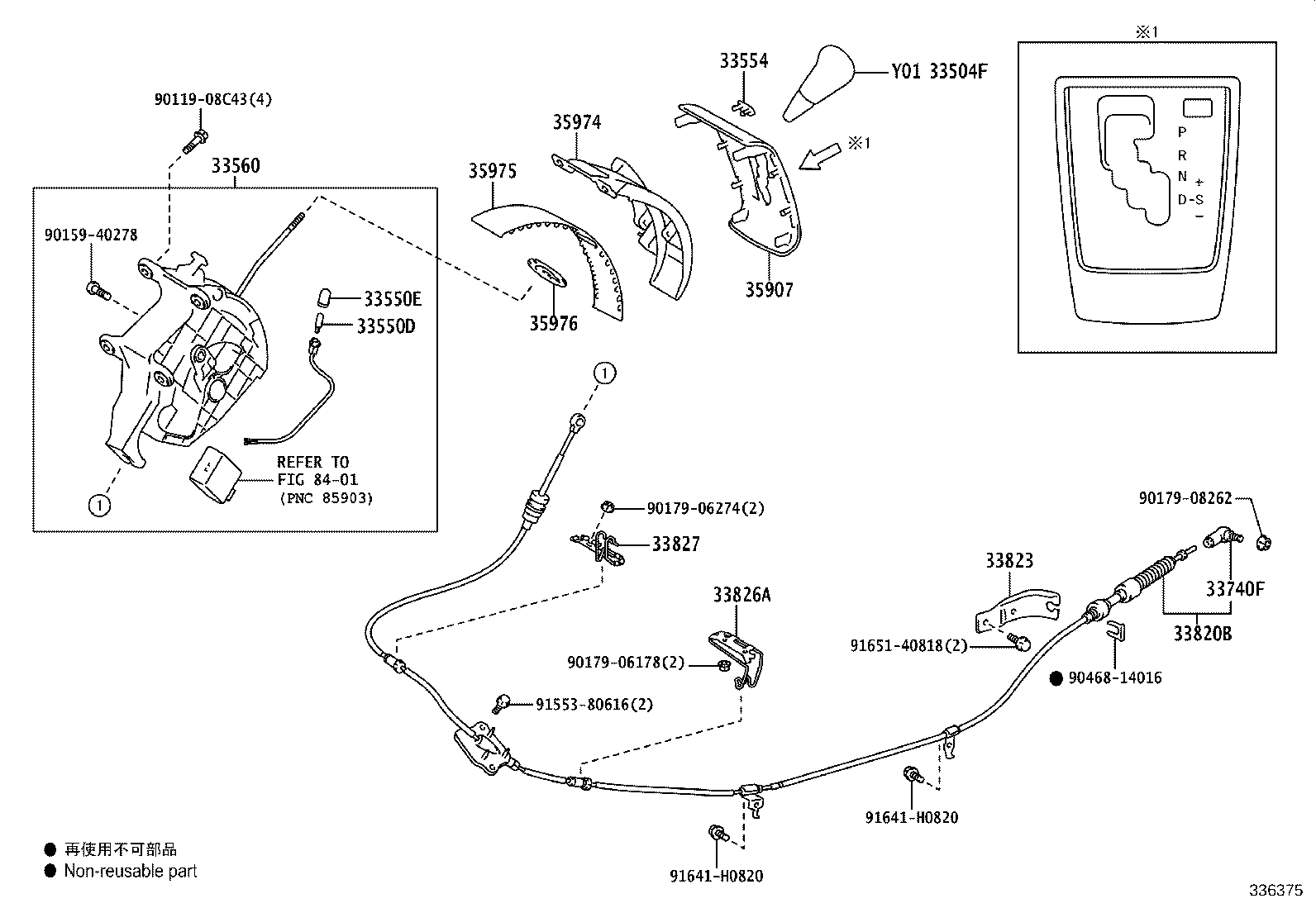

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554 33560 33740F 33820B 33823 33826A 33827 35907 35974 35975 35976 8401 9011908C43 9015940278 9017906178 9017906274 9017908262 9046814016 9155380616 91641H0820 91641H0820 9165140818
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-26020C0

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

BLACK,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

12V 1.2W ｿｹｯﾄ無し

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-58010

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
33554 - CAP, SHIFT LEVER
33554-26010

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-26060

GDH201..DX..CBU;TRH223,224,228..IV5;GDH206,22#,TRH200,214,219,221,223,226,228..6FC..DX

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-26040

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-26250

KDH211,22#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-26130

TRH200,21#,22#..6FC

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-26010

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-26010

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-26160

GDH206,TRH200,223,224,228..6FC;GDH201,211,22#,TRH21#,221,226,229..CBU,IV6,IV7

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-26040

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-26060

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-12150

GDH206,KDH20#,223,TRH200,223,224,228..4FC,6FC;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7

 1
Common parts
90119-08C43
90159-40278
90179-06178
90179-06274
90179-08262
90468-14016
91553-80616
91641-H0820
91651-40818
Linked diagrams
8401
