TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2TRFE..TRH211,216,22# ; (1501- )2TRFE..TRH214,219..4D ; (1712- )2T

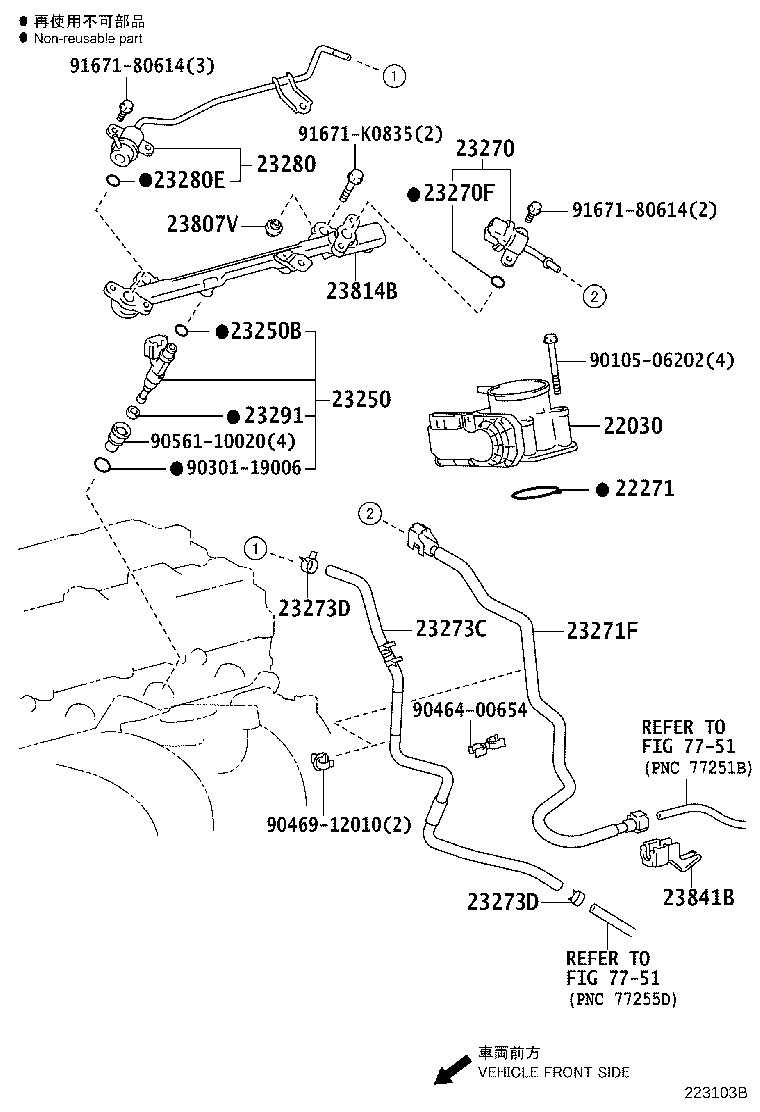

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23270 23270F 23271F 23273C 23273D 23273D 23280 23280E 23291 23807V 23814B 23841B 7751 7751 9010506202 9030119006 9046400654 9046912010 9056110020 9167180614 9167180614 91671K0835
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-75040

2TRFE..TRH21#,22#

 1
22271 - GASKET, THROTTLE BODY
22271-75070

2TRFE..TRH21#,22#

 1
23250 - INJECTOR ASSY, FUEL
23209-79215

2TRFE..TRH21#,22#

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2TRFE..TRH21#,22#

 4
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
23271F - HOSE, FUEL
23271-75201

2TRFE..TRH21#,22#

 1
23271-75200

2TRFE..TRH21#,22#

 1
23273C - HOSE, FUEL, NO.2
23273-75370

2TRFE..TRH21#,22#

 1
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
23273D - CLIP(FOR FUEL HOSE NO.2)
96135-51100

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75100

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07037

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010

2TRFE..TRH21#,22#;1TRFE..TRH200..6FC

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-75020

1TRFE,2TRFE..TRH200,21#,22#..6FC

 2
23814B - PIPE, FUEL DELIVERY
23814-75110

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21050

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
Common parts
90105-06202
90301-19006
90464-00654
90469-12010
90561-10020
91671-80614
91671-K0835
Linked diagrams
7751
