TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2TRFE..TRH214,219..4D ; (1501- )1TRFE,2TRFE..TRH200,211,216,22# ; (17

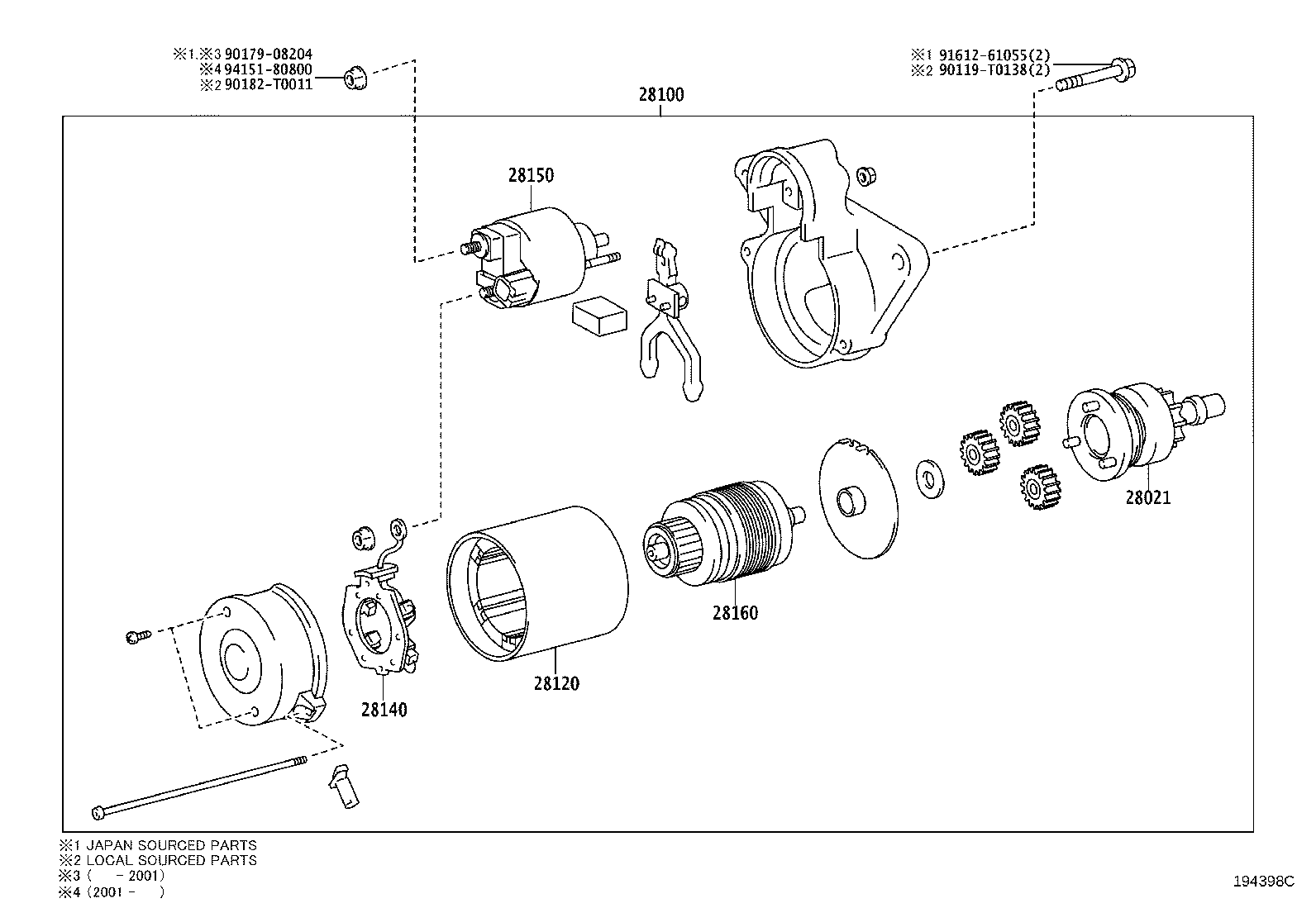

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28120 28140 28150 28160 90119T0138 9017908204 90182T0011 9161261055 9415180800
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-75210

2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)

 1
28100 - STARTER ASSY
28100-75210

2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)

12V 1.6KW

 1
28120 - YOKE ASSY, STARTER
28120-75210

2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-37050

2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-40130

2TRFE..TRH221,226;1TRFE,2TRFE..TRH200,21#,223,224,228,229..(HRF,SMRF)..(02S,03S,05S,10S,14S)

 1
Common parts
90119-T0138
90179-08204
90182-T0011
91612-61055
94151-80800
