TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2TRFE..TRH211,216,22# ; (1501- )2TRFE..TRH214,219..4D ; (1712- )2T

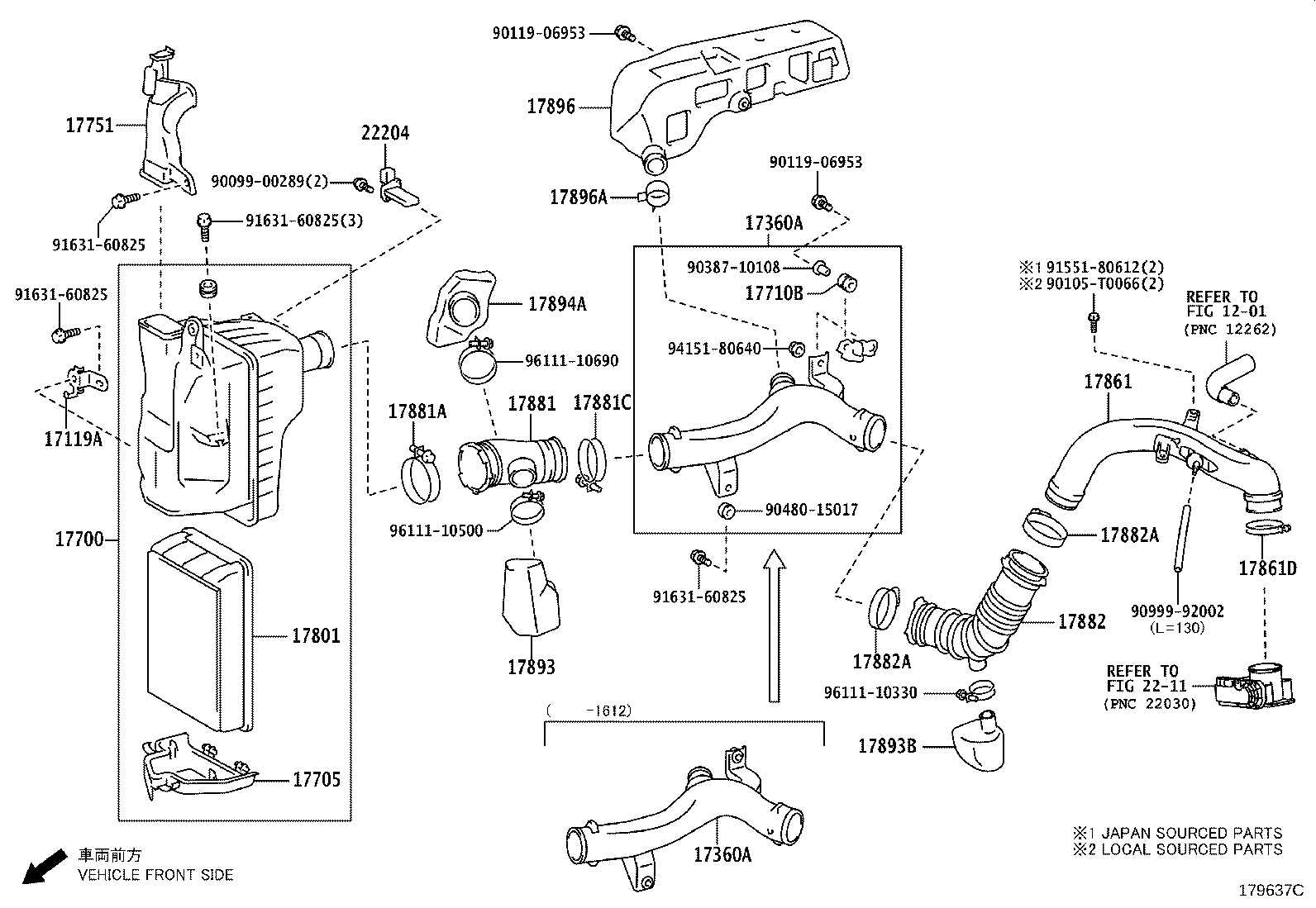

Click highlighted areas on diagram

diagram 1201 17119A 17360A 17360A 17700 17705 17710B 17751 17801 17861 17861D 17881 17881A 17881C 17882 17882A 17882A 17893 17893B 17894A 17896 17896A 2211 22204 9009900289 90105T0066 9011906953 9011906953 9038710108 9048015017 9099992002 9155180612 9163160825 9163160825 9163160825 9163160825 9415180640 9611110330 9611110500 9611110690
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-30020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
17751 - INLET, AIR CLEANER, NO.1
17750-30060

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-30070

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
17861 - CONNECTOR, INTAKE AIR
17861-75111

2TRFE..TRH21#,22#

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
96111-10800

2TRFE..TRH21#,22#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-30150

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-75160

2TRFE..TRH21#,22#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
17893 - RESONATOR, INTAKE AIR
17893-30060

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
17893B - RESONATOR, INTAKE AIR, NO.2
17893-75100

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-30020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-75011

2TRFE..TRH21#,22#;1TRFE..TRH200..6FC

 1
17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
90467-37005

2TRFE..TRH21#,22#;1TRFE..TRH200..6FC

 1
96136-44301

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
Common parts
90099-00289
90105-T0066
90119-06953
90387-10108
90480-15017
90999-92002
91551-80612
91631-60825
94151-80640
96111-10330
96111-10500
96111-10690
Linked diagrams
1201
2211
