TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2TRFE

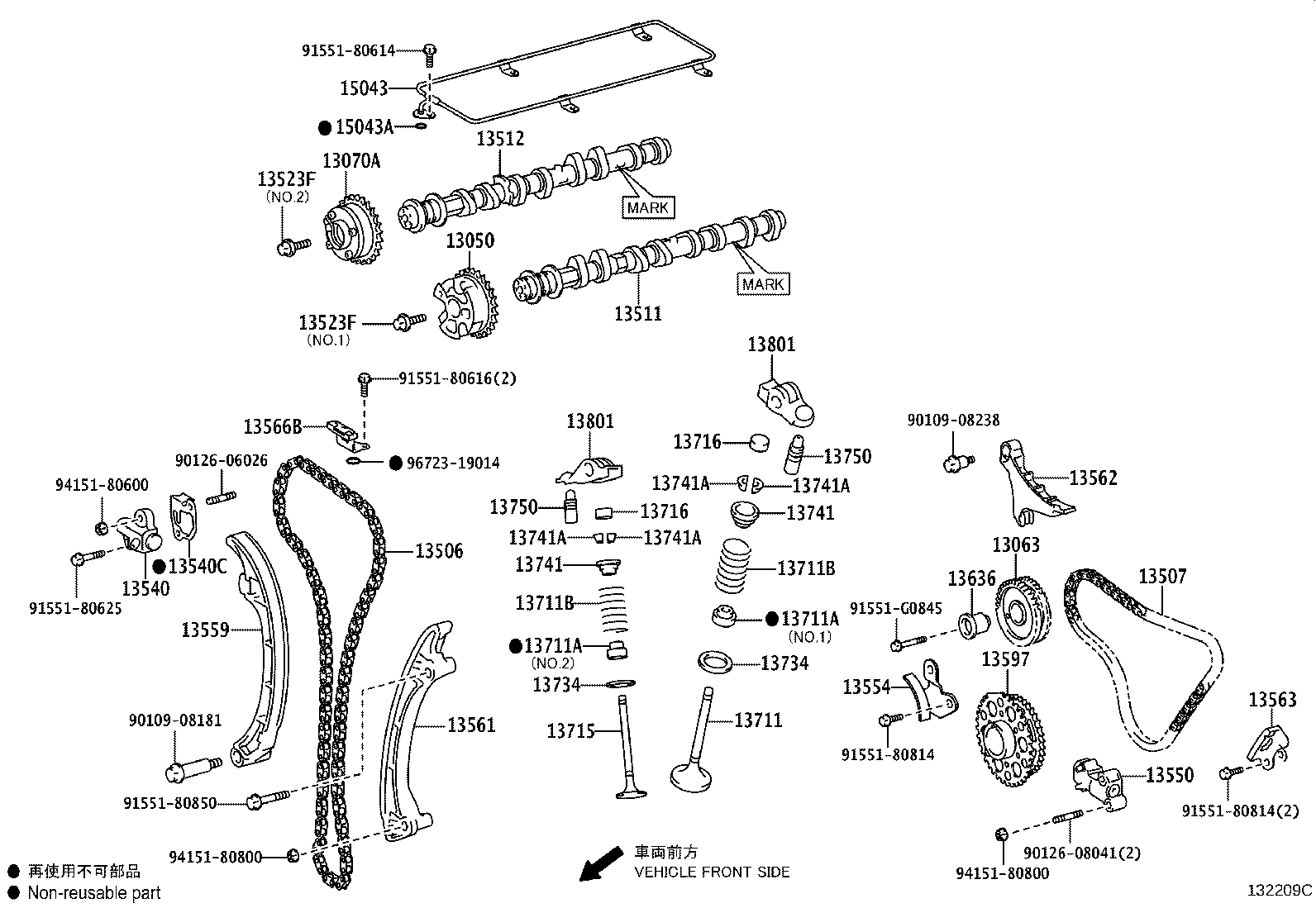

Click highlighted areas on diagram

diagram 13050 13063 13070A 13506 13507 13511 13512 13523F 13523F 13540 13540C 13550 13554 13559 13561 13562 13563 13566B 13597 13636 13711 13711A 13711A 13711B 13711B 13715 13716 13716 13734 13734 13741 13741 13741A 13741A 13741A 13741A 13750 13750 13801 13801 15043 15043A 9010908181 9010908238 9012606026 9012608041 9155180614 9155180616 9155180625 9155180814 9155180814 9155180850 91551G0845 9415180600 9415180800 9415180800 9672319014
Part # Description Qty Price
13050 - GEAR ASSY, CAMSHAFT TIMING
13050-75040

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
13063 - GEAR SUB-ASSY, BALANCESHAFT DRIVE
13063-75011

2TRFE..TRH21#,22#

 1
13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST
13070-75010

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
13507 - CHAIN SUB-ASSY, NO.2
13507-75030

2TRFE..TRH21#,22#

 1
13512 - CAMSHAFT, NO.2
13502-75080

2TRFE..TRH21#,22#

(J),ﾏｰｸ有り

 1
13523F - BOLT(FOR CAMSHAFT TIMING GEAR)
90119-12370

1TRFE,2TRFE..TRH200,21#,22#..6FC

NO.1 & NO.2

 2
13523F - BOLT(FOR CAMSHAFT TIMING GEAR)
90119-12370

1TRFE,2TRFE..TRH200,21#,22#..6FC

NO.1 & NO.2

 2
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-75041

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
13550 - TENSIONER ASSY, CHAIN, NO.2
13550-75010

2TRFE..TRH21#,22#

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-75010

2TRFE..TRH21#,22#

 1
13597 - SPROCKET, CRANKSHAFT TIMING, NO.2
13597-75020

2TRFE..TRH21#,22#

 1
13636 - SHAFT, BALANCESHAFT DRIVE GEAR
13636-75010

2TRFE..TRH21#,22#

 1
13711 - VALVE, INTAKE
13711-75110

2TRFE..TRH21#,22#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02112

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.2

 8
90913-02101

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.1

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02112

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.2

 8
90913-02101

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.1

 8
13715 - VALVE, EXHAUST
13715-75140

2TRFE..TRH21#,22#

 8
13716 - CAP, VALVE STEM
13716-75020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 16
13716 - CAP, VALVE STEM
13716-75020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 16
13734 - SEAT, VALVE SPRING
13734-62020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 16
13734 - SEAT, VALVE SPRING
13734-62020

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 32
13741A - LOCK, VALVE SPRING RETAINER
90913-03028

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 32
Common parts
90109-08181
90109-08238
90126-06026
90126-08041
91551-80614
91551-80616
91551-80625
91551-80814
91551-80850
91551-G0845
94151-80600
94151-80800
96723-19014
