TRH224W-LDTNK5 (2015)

Toyota Hiace/Regiusace

Production Jan 2015 - May 2016
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1501- )2TRFE..TRH214,219..4D ; (1501- )1TRFE,2TRFE..TRH200,211,216,22# ; (17

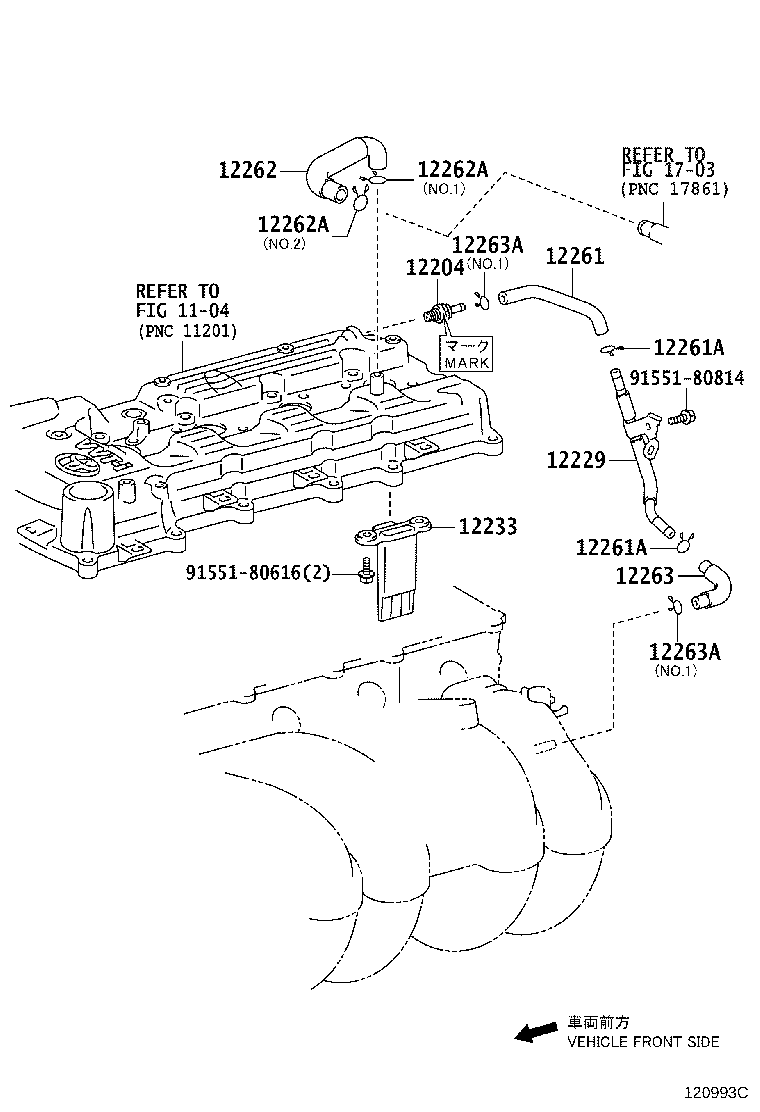

Click highlighted areas on diagram

diagram 1104 12204 12229 12233 12261 12261A 12261A 12262 12262A 12262A 12263 12263A 12263A 1703 9155180616 9155180814
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-0C030

1TRFE,2TRFE..TRH200,21#,22#..6FC

ﾏｰｸ 12204−0C030

 1
12229 - PIPE, VENTILATION
12229-75030

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
12233 - CONNECTOR, VENTILATION NO.1
12233-75010

1TRFE,2TRFE..TRH200,21#,22#..6FC

 1
12261 - HOSE, VENTILATION
12261-75150

1TRFE,2TRFE..TRH200,21#,22#..6FC

PNC12204=12204−0C030

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 2
12262 - HOSE, VENTILATION, NO.2
12262-75210

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.1

 1
90467-24038

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.1

 1
90467-24038

1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC

NO.2

 1
12263 - HOSE, VENTILATION, NO.3
12263-75060

1TRFE,2TRFE..TRH200,21#,22#

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-15120

1TRFE,2TRFE..TRH200,21#,22#..6FC

NO.1

 2
12263A - CLIP(FOR VENTILATION HOSE)
90467-15120

1TRFE,2TRFE..TRH200,21#,22#..6FC

NO.1

 2
Common parts
91551-80616
91551-80814
Linked diagrams
1104
1703
