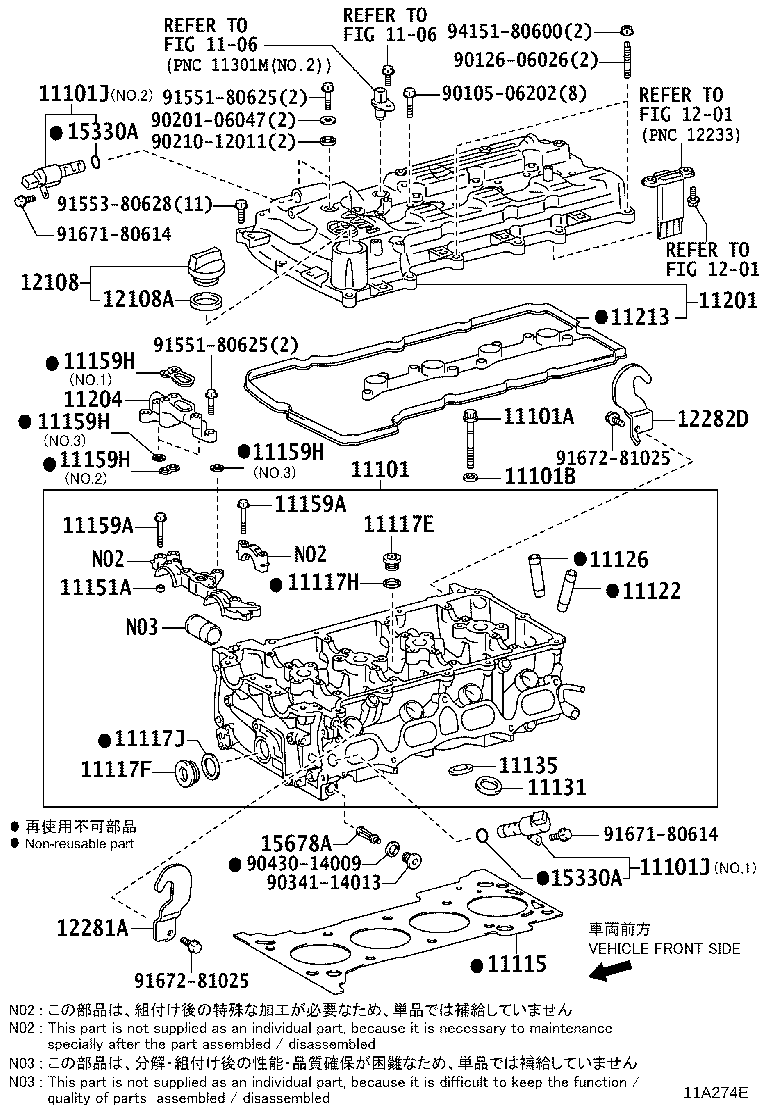

TRH224W-LDTNK5 (2015)
Toyota Hiace/Regiusace
(1501- )1TRFE,2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02187 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-75040 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 15330-75030 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-75040 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 15330-75030 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-75090 |
2TRFE..TRH21#,22# |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20002 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
3 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-32002 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
3 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-32004 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-75020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC STD |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-75020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC STD |
8 | ||
| 11123-75020 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-75130 |
2TRFE..TRH21#,22# O/S 0.03 |
8 | ||
| 11131-75130 |
2TRFE..TRH21#,22# STD |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-75100 |
2TRFE..TRH21#,22# STD |
8 | ||
| 11136-75100 |
2TRFE..TRH21#,22# O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC 長さ=7,外径=10 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07013 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
20 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07013 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
20 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.3 |
3 | ||
| 11159-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.1 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.2 |
1 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.3 |
3 | ||
| 11159-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.1 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.2 |
1 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.3 |
3 | ||
| 11159-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.1 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.2 |
1 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 1115B-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.3 |
3 | ||
| 11159-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.1 |
1 | ||
| 1115A-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC NO.2 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-75080 |
1TRFE,2TRFE..TRH200,21#,22#..6FC |
1 | ||
| 11204 - CONNECTOR SUB-ASSY, CYLINDER HEAD COVER | ||||
| 11204-75010 |
1TRFE,2TRFE..TRH200,21#,22#..6FC |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-75050 |
1TRFE,2TRFE..TRH200,21#,22#..6FC |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-75050 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12281-75050 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1TRFE,2TRFE..TRH200,21#,22#..6FC |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1TRFE,2TRFE..TRH200,21#,22#..6FC |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-21010 |
1TRFE,2TRFE..TRH200,21#,22#..4FC,6FC |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90126-06026 | ||||
| 90201-06047 | ||||
| 90210-12011 | ||||
| 90341-14013 | ||||
| 90430-14009 | ||||
| 91551-80625 | ||||
| 91553-80628 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1201 | ||||
