TRH224W-LDPNK5 (2005)
Toyota Hiace/Regiusace
(0501-0611)KDH222,227,TRH223,224,228,229
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63227A - BRACKET, ROOF HEADLINING, FRONT RH | ||||
| 63227-26130 |
KDH222,227,TRH22#..02S,10S,15S |
1 | ||
| 63228B - BRACKET, ROOF HEADLINING, FRONT LH | ||||
| 63228-26060 |
KDH222,227,TRH22#..02S,10S,15S |
1 | ||
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26B70B1 |
TRH224,229;KDH222,227,TRH223,228..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63310-26B71B1 |
TRH224,229;KDH222,227,TRH223,228..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63310-26D41B0 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LT.GRAY,TRIM1# |
1 | ||
| 63310-26D42B0 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26E50B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 63310-26B72B1 |
TRH224..IV5 LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26E50B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63301-26180B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
3 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
3 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26250B1 |
KDH222,227,TRH223,224,228,229..IV5 LIGHT GRAY,TRIM1# |
1 | ||
| 63320-26251B1 |
KDH222,227,TRH224,229..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63320-26500B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 63320-26500B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
2 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26200 |
KDH222,223,227,TRH223,224,228,229 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26140 |
TRH224..IV5 |
1 | ||
| 63342-26150 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 63342-26150 |
TRH224..IV5 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26120 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 63343-26120 |
TRH224..IV5 |
1 | ||
| 63343-26110 |
TRH224..IV5 |
1 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH20#,22#,TRH200,22#..HRF LT.GRAY,TRIM1# |
2 | ||
| 63415B - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-26080B0 |
KDH222,223,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
2 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH222,227,TRH22#..02S,10S,15S LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH222,223,227,TRH22#..HRF..(02S,10S,15S) LT.GRAY,TRIM1#,右側 |
1 | ||
| 63655-26040B0 |
KDH222,223,227,TRH22#..HRF..(02S,10S,15S) LT.GRAY,TRIM1#,左側 |
1 | ||
| Common parts | ||||
| 90183-05046 | ||||
| 90189-06172 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

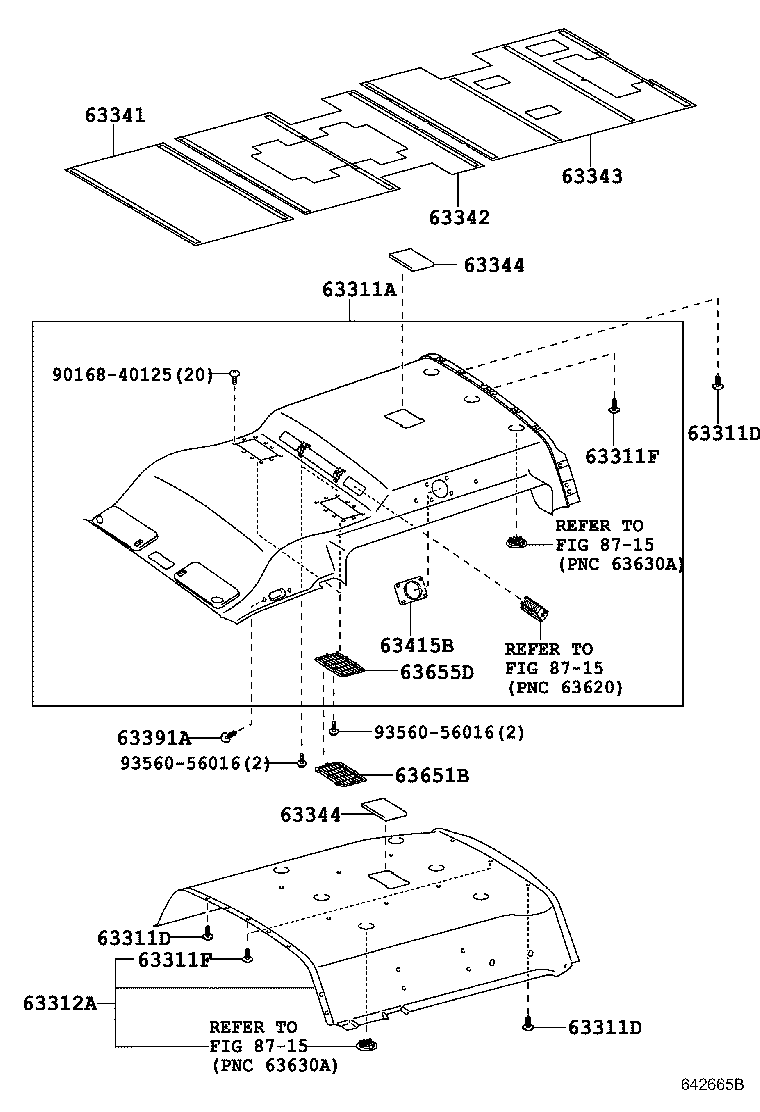

(0611- )GC,GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26B70B1 |
TRH224,229;KDH222,227,TRH223,228..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63310-26B71B1 |
TRH224,229;KDH222,227,TRH223,228..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63310-26D41B0 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LT.GRAY,TRIM1# |
1 | ||
| 63310-26D42B0 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26E50B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 63310-26B72B1 |
TRH224..IV5 LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26E50B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63301-26180B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
3 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
3 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26250B1 |
KDH222,227,TRH223,224,228,229..IV5 LIGHT GRAY,TRIM1# |
1 | ||
| 63320-26251B1 |
KDH222,227,TRH224,229..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63320-26500B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 63320-26500B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
2 | ||
| 63312F - CLIP, ROOF HEADLINING, NO.2 | ||||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
2 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26200 |
KDH222,223,227,TRH223,224,228,229 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26140 |
TRH224..IV5 |
1 | ||
| 63342-26150 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 63342-26150 |
TRH224..IV5 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26120 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 63343-26120 |
TRH224..IV5 |
1 | ||
| 63343-26110 |
TRH224..IV5 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-26050 |
KDH223,TRH223,224,228,229..GC,GL |
2 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-26050 |
KDH223,TRH223,224,228,229..GC,GL |
2 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH20#,22#,TRH200,22#..HRF LT.GRAY,TRIM1# |
2 | ||
| 63415B - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-26080B0 |
KDH222,223,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
2 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63650-26010B0 |
TRH214,219..GL;KDH201,206,211,222,223,227,TRH211,216,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S) LT.GRAY,TRIM1# |
2 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH222,227,TRH22#..02S,10S,15S LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH222,223,227,TRH22#..HRF..(02S,10S,15S) LT.GRAY,TRIM1#,右側 |
1 | ||
| 63655-26040B0 |
KDH222,223,227,TRH22#..HRF..(02S,10S,15S) LT.GRAY,TRIM1#,左側 |
1 | ||
| Common parts | ||||
| 90168-40125 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||

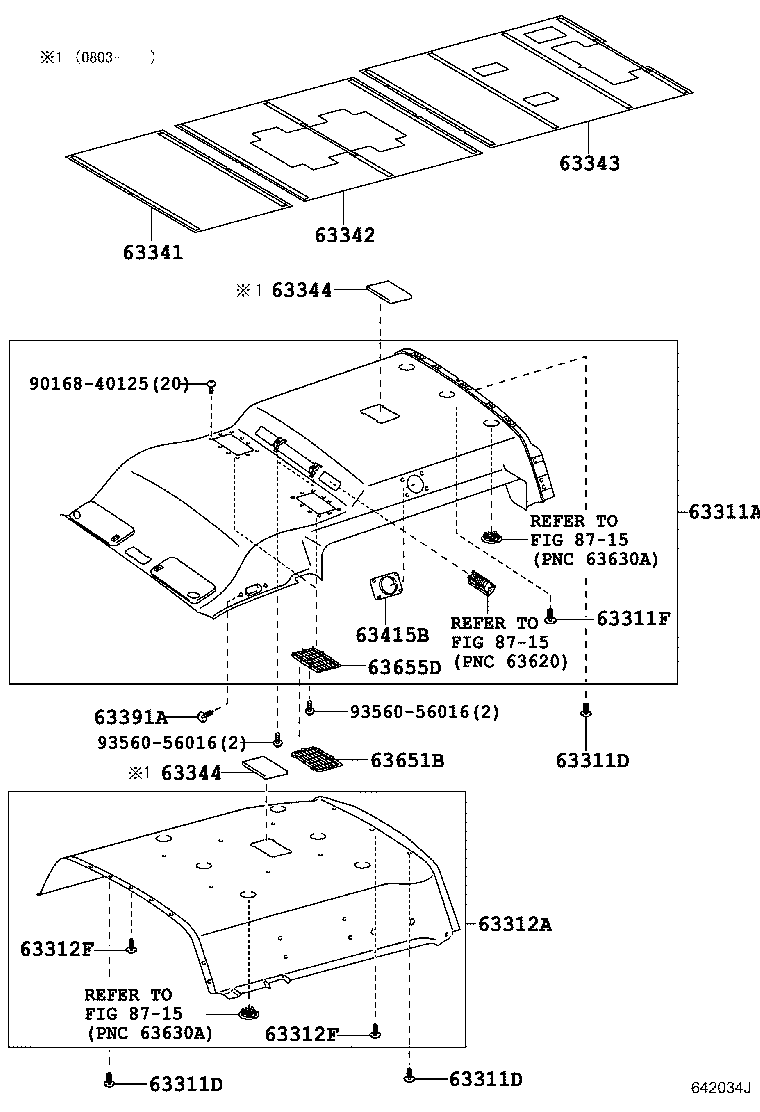

(1008- )TRH224..IV5
ｺｳｷｮｳ ﾉﾘｱｲ ﾀｸｼｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63311A - HEADLINING, ROOF NO.1 | ||||
| 63310-26B70B1 |
TRH224,229;KDH222,227,TRH223,228..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63310-26B71B1 |
TRH224,229;KDH222,227,TRH223,228..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63310-26D41B0 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LT.GRAY,TRIM1# |
1 | ||
| 63310-26D42B0 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26E50B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 63310-26B72B1 |
TRH224..IV5 LIGHT GRAY,TRIM1# |
1 | ||
| 63310-26E50B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63301-26180B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LIGHT GRAY,TRIM1# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050B0 |
KDH222,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
36 | ||
| 63399-26050B0 |
KDH223,TRH223,228..GL..CBU;KDH222,227,TRH224,229..GC,GL LT.GRAY,TRIM1# |
32 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
3 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
3 | ||
| 63311F - CLIP, ROOF HEADLINING, NO.1 | ||||
| 63399-26050B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
3 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 ﾊﾞｯｸﾓﾆﾀ−有り,LT.GRAY,TRIM1# |
1 | ||
| 63399-26050B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
3 | ||
| 63312A - HEADLINING, ROOF, NO.2 | ||||
| 63320-26250B1 |
KDH222,227,TRH223,224,228,229..IV5 LIGHT GRAY,TRIM1# |
1 | ||
| 63320-26251B1 |
KDH222,227,TRH224,229..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63320-26500B0 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ),LT.GRAY,TRIM1# |
1 | ||
| 63320-26500B0 |
TRH224..IV5 LT.GRAY,TRIM1# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-26200 |
KDH222,223,227,TRH223,224,228,229 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-26140 |
TRH224..IV5 |
1 | ||
| 63342-26150 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 63342-26150 |
TRH224..IV5 |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-26120 |
TRH224..IV5 ｳｪﾙｷｬﾌﾞ(福祉ﾀｸｼｰ)&ﾊﾞｯｸｶﾞﾗｽ−UVｶｯﾄ(ｸﾞﾘｰﾝ)&*POSD&*ECS(*SD&ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 63343-26120 |
TRH224..IV5 |
1 | ||
| 63343-26110 |
TRH224..IV5 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-26050 |
KDH223,TRH223,224,228,229..GC,GL |
2 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-26050 |
KDH223,TRH223,224,228,229..GC,GL |
2 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-06177B5 |
KDH20#,22#,TRH200,22#..HRF LT.GRAY,TRIM1# |
2 | ||
| 63415B - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-26080B0 |
KDH222,223,227,TRH223,224,228,229..GC,GL LT.GRAY,TRIM1# |
2 | ||
| 63651B - NET, AIR INTAKE | ||||
| 63650-26010B0 |
TRH214,219..GL;KDH201,206,211,222,223,227,TRH211,216,22#..(HRF,SMRF,SRF)..(02S,05S,10S,15S) LT.GRAY,TRIM1# |
2 | ||
| 63655D - COVER, AIR INTAKE | ||||
| 63655-26020B0 |
KDH222,227,TRH22#..02S,10S,15S LT.GRAY,TRIM1# |
2 | ||
| 63655-26030B0 |
KDH222,223,227,TRH22#..HRF..(02S,10S,15S) LT.GRAY,TRIM1#,右側 |
1 | ||
| 63655-26040B0 |
KDH222,223,227,TRH22#..HRF..(02S,10S,15S) LT.GRAY,TRIM1#,左側 |
1 | ||
| Common parts | ||||
| 90168-40125 | ||||
| 93560-56016 | ||||
| Linked diagrams | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
