TRH224W-LDPNK (2005)
Toyota Hiace/Regiusace
(0408-0512)TRH229..CBU ; (0510-1008)TRH224,229 ;(0512-1008)GC,GL,SGL

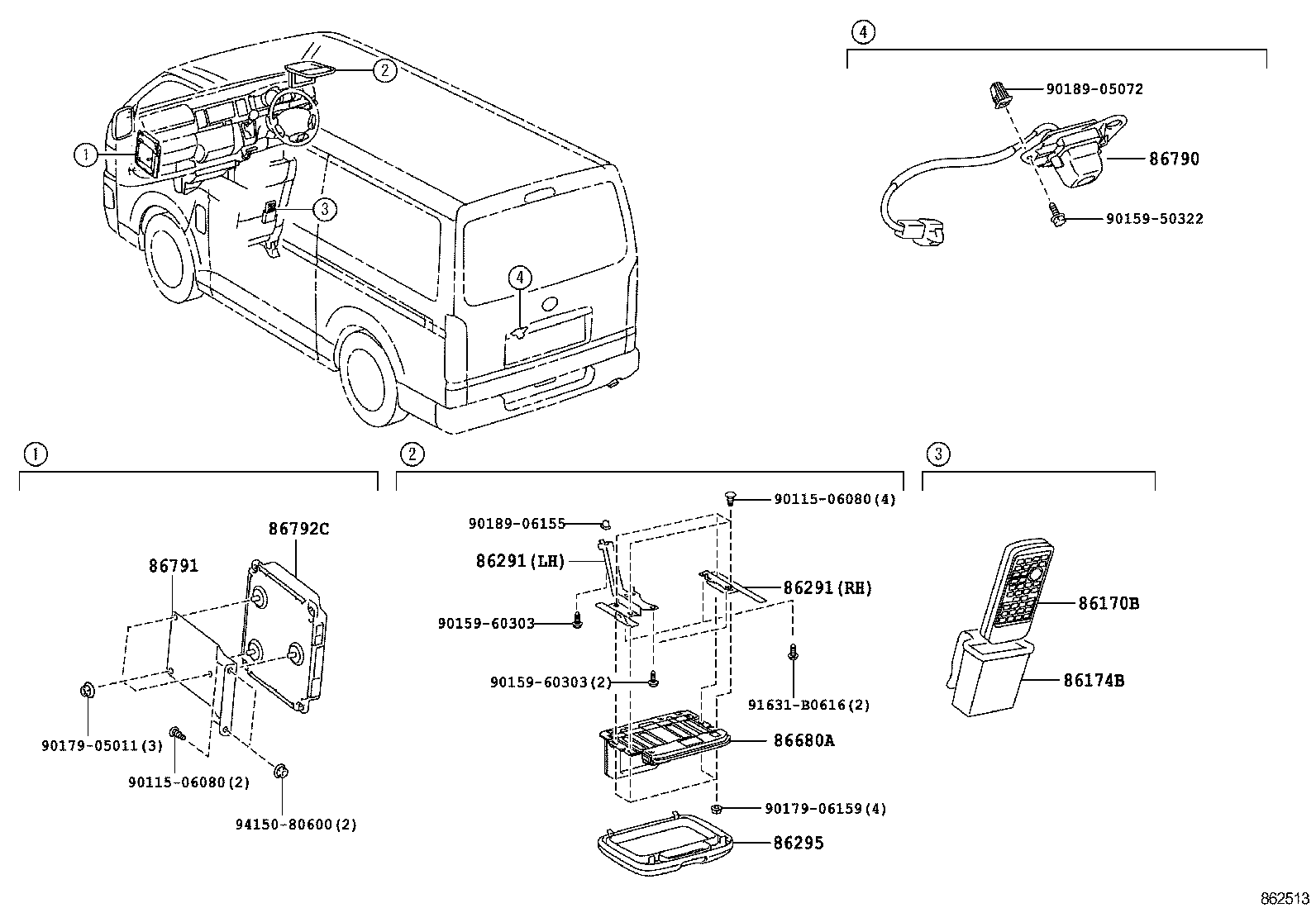

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-58030 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ |
1 | ||
| 86174B - CASE, SWITCH & VOLUME | ||||
| 86174-58010 |
TRH224,229 ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ) |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86117-26100 |
TRH224,229 ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),左側 |
1 | ||
| 86117-26090 |
TRH224,229 ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),右側 |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86117-26100 |
TRH224,229 ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),左側 |
1 | ||
| 86117-26090 |
TRH224,229 ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ),右側 |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-58020B0 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ,LT.GRAY,TRIM1# |
1 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-58030B0 |
TRH224,229 MATSUSHITA,ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽsｰｶ,LT.GRAY,TRIM1# |
1 | ||
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-26050 |
KDH222,227,TRH223,224,228,229..GC,GL ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ) |
1 | ||
| 86790-26060 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228..HRF,SMRF,SRF ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 86790-26050 |
KDH222,227,TRH223,224,228,229..GC,GL EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86791 - BRACKET, TELEVISION CAMERA | ||||
| 86791-26030 |
TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-26060 |
TRH224,229 ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| Common parts | ||||
| 90115-06080 | ||||
| 90159-50322 | ||||
| 90159-60303 | ||||
| 90179-05011 | ||||
| 90179-06159 | ||||
| 90189-05072 | ||||
| 90189-06155 | ||||
| 91631-B0616 | ||||
| 94150-80600 | ||||
(1205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-26050 |
KDH222,227,TRH223,224,228,229..GC,GL ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ) |
1 | ||
| 86790-26060 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228..HRF,SMRF,SRF ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 86790-26050 |
KDH222,227,TRH223,224,228,229..GC,GL EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05072 | ||||
(1312-2005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05072 | ||||
