Toyota Hiace/regiusace TRH224 WIRING & CLAMP

TRH224W-LDPNK (2005)

Toyota Hiace/Regiusace

Production Jan 2005 - Dec 2013

Engine 2TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

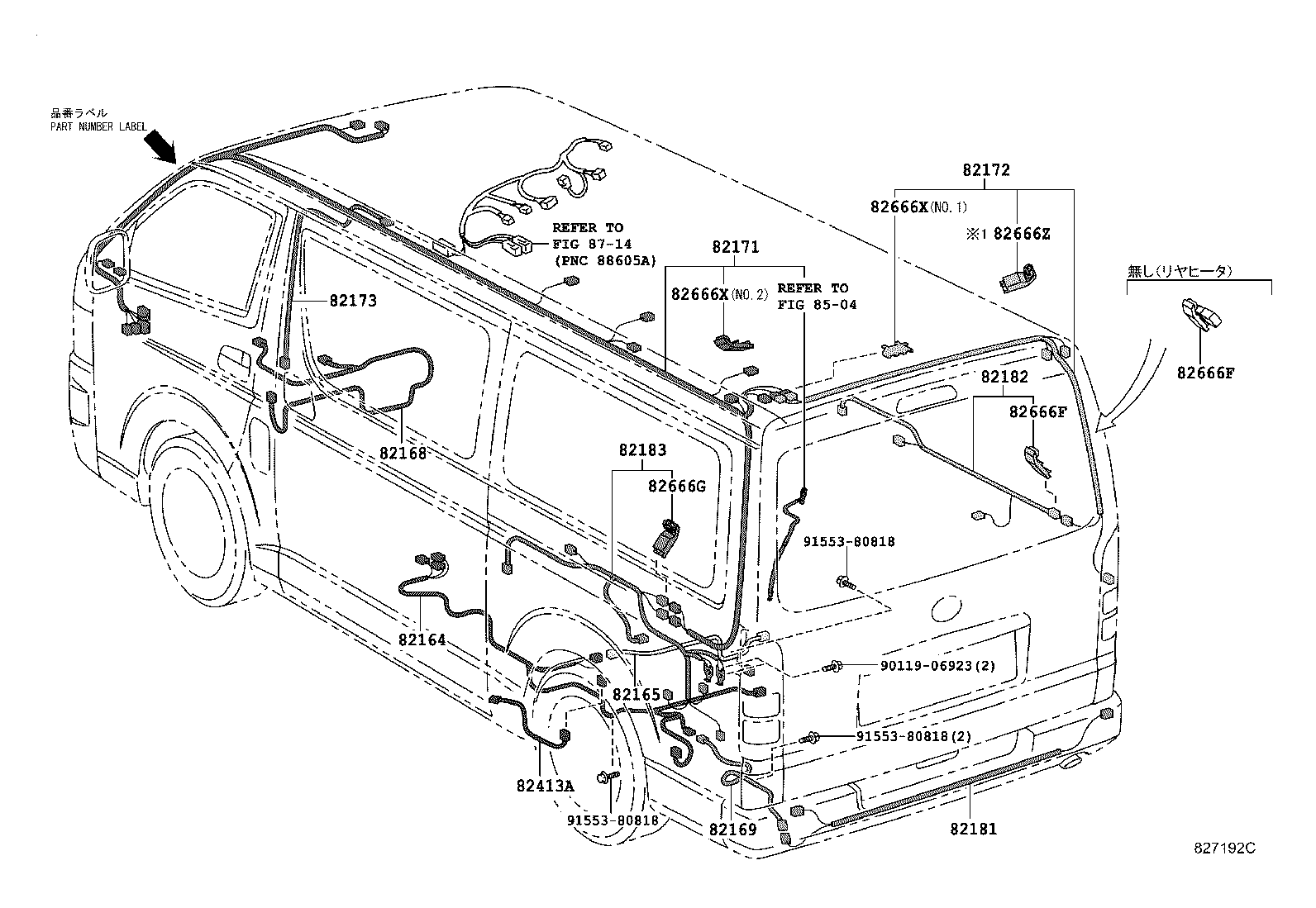

ILLUST NO. 6 OF10(0501-1008)TRH229..IV5 ; (0501-1008)KDH220,222,225,227 ; (0501- )TRH229..CBU ; (

Click highlighted areas on diagram

ﾌﾛｱ,ﾙｰﾌ,ﾄﾗﾝｸﾊﾟﾈﾙ & ｼｰﾄ

Part #	Description	Period	Qty
82164 - WIRE, FRAME
82164-26750	KDH222,223,227,TRH223,224,228,229..CBU	01/2005 - 08/2010	1
82164-26790	TRH224,229..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)	09/2007 - 08/2010	1
82164-26791	TRH224,229..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)	08/2010 - 05/2013	1
82164-26751	KDH223,TRH223,224,228,229..CBU	08/2010 - 12/2013	1
82164-26793	TRH224,229..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)	05/2013 - 12/2013	1
82165 - WIRE, FRAME, NO.2
82165-26470	TRH229..CBU;KDH222,223,227,TRH223,224,228	01/2005 - 12/2999	1
82168 - WIRE, SEAT, NO.2
82168-26040	TRH229..CBU;TRH214,219,221,224,226..02S,10S	08/2004 - 12/2999	1
82169 - WIRE FRAME, NO.3
82169-26210	KDH222,223,227,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	08/2004 - 04/2012	1
82169-26211	KDH223,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	05/2012 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-26B40	KDH222,223,227,TRH223,224,228,229..GC,GL	01/2005 - 05/2012	1
82171-26B41	KDH223,TRH223,224,228,229..GC,GL	05/2012 - 12/2013	1
82171-26B40	KDH222,223,227,TRH223,224,228,229..GC,GL 品番ﾗﾍﾞﾙ=82171−26B40	01/2005 - 05/2012	1
82171-26B41	KDH223,TRH223,224,228,229..GC,GL 品番ﾗﾍﾞﾙ=82171−26B41	05/2012 - 12/2013	1
82172 - WIRE, ROOF, NO.2
82172-26231	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	11/2007 - 08/2010	1
82172-26230	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 11/2007	1
82172-26231	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	11/2007 - 08/2010	1
82172-26230	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 11/2007	1
82172-26230	KDH222,227,TRH223,224,228,229..(GC,GL)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ)	01/2005 - 12/2005	1
82172-26210	KDH222,223,227,TRH223,224,228,229..(GC,GL)..CBU	01/2005 - 05/2012	1
82172-26211	KDH223,TRH223,224,228,229..(GC,GL)..CBU	05/2012 - 12/2999	1
82173 - WIRE, ROOF, NO.3
82173-26220	KDH222,223,227,TRH22#..HRF..(02S,10S,15S)	01/2005 - 12/2013	1
82174 - WIRE, ROOF, NO.4
82174-26070	KDH222,227,TRH223,224,228,229..GC,GL ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ)	01/2005 - 12/2005	1
82174-26072	TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	09/2007 - 08/2010	1
82174-26060	TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 09/2007	1
82174-26071	TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 09/2007	1
82174-26061	TRH224,229 ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&ﾃﾚﾋﾞ&一体型VTR−有り(ﾌﾛﾝﾄ&ﾘﾔ)&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	09/2007 - 08/2010	1
82174-26190	KDH22#,TRH22#..HRF ﾊﾞｯｸﾓﾆﾀ−有り	05/2012 - 12/2013	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-26131	KDH223,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	08/2010 - 05/2012	1
82181-26130	KDH222,223,227,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	08/2004 - 08/2010	1
82181-26132	KDH223,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	05/2012 - 12/2999	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-26060	TRH229..CBU;KDH222,223,227,TRH223,224,228..GC,GL	01/2005 - 12/2999	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-26140	TRH221,226..02S;KDH221,223,TRH224,229..CBU	01/2005 - 05/2012	1
82183-26160	TRH221,226..02S;KDH221,223,TRH224,229..CBU ｲﾝﾊﾞｰﾀ−有り(100V)	01/2005 - 05/2012	1
82183-26161	KDH22#,TRH22#..CBU ｲﾝﾊﾞｰﾀ−有り(100V)	05/2012 - 12/2999	1
82183-26141	KDH22#,TRH22#..CBU	05/2012 - 12/2999	1
82413A - WIRE, FUEL TANK
82413-26011	KDH20#,211,22#	05/2012 - 12/2013	1
82413-26020	TRH200,21#,22#	08/2004 - 04/2012	1
82413-26010	KDH20#,211,22#	08/2004 - 04/2012	1
82413-26021	TRH200,21#,22#	05/2012 - 12/2013	1
82666F - HOLDER, CONNECTOR NO.7
82666-26410	TRH229..CBU;KDH20#,211,TRH200,211,216..5D;KDH222,223,227,TRH214,219,223,224,228..GC,GL	08/2004 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-26410	TRH229..CBU;KDH20#,211,TRH200,211,216..5D;KDH222,223,227,TRH214,219,223,224,228..GC,GL	08/2004 - 12/2999	1
82666G - HOLDER, CONNECTOR NO.8
82666-26390	TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228	08/2004 - 12/2999	1
82666X - HOLDER, CONNECTOR NO.17
82666-26370	TRH229..CBU;KDH22#,TRH221,223,224,226,228 NO.1	01/2005 - 12/2999	1
82666Z - HOLDER, CONNECTOR NO.19
82666-58050	KDH222,227,TRH223,224,228,229..(GC,GL)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ)	01/2005 - 12/2005	1
82666-58050	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 08/2010	1
82666-58050	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 08/2010	1
Common parts
90119-06390
90119-06923
91553-80818
Linked diagrams
8504
8714

ILLUST NO. 6 OF10(1008- )KDH211,22#,TRH21#,22#

Click highlighted areas on diagram

ﾌﾛｱ,ﾙｰﾌ,ﾄﾗﾝｸﾊﾟﾈﾙ & ｼｰﾄ

Part #	Description	Period	Qty
82164 - WIRE, FRAME
82164-26750	KDH222,223,227,TRH223,224,228,229..CBU	01/2005 - 08/2010	1
82164-26790	TRH224,229..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)	09/2007 - 08/2010	1
82164-26791	TRH224,229..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)	08/2010 - 05/2013	1
82164-26751	KDH223,TRH223,224,228,229..CBU	08/2010 - 12/2013	1
82164-26793	TRH224,229..CBU ｳｪﾙｷｬﾌﾞ(ｻｲﾄﾞｽﾃｯﾌﾟ車)	05/2013 - 12/2013	1
82165 - WIRE, FRAME, NO.2
82165-26470	TRH229..CBU;KDH222,223,227,TRH223,224,228	01/2005 - 12/2999	1
82168 - WIRE, SEAT, NO.2
82168-26040	TRH229..CBU;TRH214,219,221,224,226..02S,10S	08/2004 - 12/2999	1
82169 - WIRE FRAME, NO.3
82169-26210	KDH222,223,227,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	08/2004 - 04/2012	1
82169-26211	KDH223,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	05/2012 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-26B40	KDH222,223,227,TRH223,224,228,229..GC,GL	01/2005 - 05/2012	1
82171-26B41	KDH223,TRH223,224,228,229..GC,GL	05/2012 - 12/2013	1
82171-26B40	KDH222,223,227,TRH223,224,228,229..GC,GL 品番ﾗﾍﾞﾙ=82171−26B40	01/2005 - 05/2012	1
82171-26B41	KDH223,TRH223,224,228,229..GC,GL 品番ﾗﾍﾞﾙ=82171−26B41	05/2012 - 12/2013	1
82172 - WIRE, ROOF, NO.2
82172-26231	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	11/2007 - 08/2010	1
82172-26230	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 11/2007	1
82172-26231	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	11/2007 - 08/2010	1
82172-26230	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 11/2007	1
82172-26230	KDH222,227,TRH223,224,228,229..(GC,GL)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ)	01/2005 - 12/2005	1
82172-26210	KDH222,223,227,TRH223,224,228,229..(GC,GL)..CBU	01/2005 - 05/2012	1
82172-26211	KDH223,TRH223,224,228,229..(GC,GL)..CBU	05/2012 - 12/2999	1
82173 - WIRE, ROOF, NO.3
82173-26220	KDH222,223,227,TRH22#..HRF..(02S,10S,15S)	01/2005 - 12/2013	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-26131	KDH223,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	08/2010 - 05/2012	1
82181-26130	KDH222,223,227,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	08/2004 - 08/2010	1
82181-26132	KDH223,TRH214,219,22#..(02S,10S,15S)..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(6ｾﾝｻ)	05/2012 - 12/2999	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-26060	TRH229..CBU;KDH222,223,227,TRH223,224,228..GC,GL	01/2005 - 12/2999	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-26140	TRH221,226..02S;KDH221,223,TRH224,229..CBU	01/2005 - 05/2012	1
82183-26160	TRH221,226..02S;KDH221,223,TRH224,229..CBU ｲﾝﾊﾞｰﾀ−有り(100V)	01/2005 - 05/2012	1
82183-26161	KDH22#,TRH22#..CBU ｲﾝﾊﾞｰﾀ−有り(100V)	05/2012 - 12/2999	1
82183-26141	KDH22#,TRH22#..CBU	05/2012 - 12/2999	1
82413A - WIRE, FUEL TANK
82413-26011	KDH20#,211,22#	05/2012 - 12/2013	1
82413-26020	TRH200,21#,22#	08/2004 - 04/2012	1
82413-26010	KDH20#,211,22#	08/2004 - 04/2012	1
82413-26021	TRH200,21#,22#	05/2012 - 12/2013	1
82666F - HOLDER, CONNECTOR NO.7
82666-26410	TRH229..CBU;KDH20#,211,TRH200,211,216..5D;KDH222,223,227,TRH214,219,223,224,228..GC,GL	08/2004 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-26410	TRH229..CBU;KDH20#,211,TRH200,211,216..5D;KDH222,223,227,TRH214,219,223,224,228..GC,GL	08/2004 - 12/2999	1
82666G - HOLDER, CONNECTOR NO.8
82666-26390	TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228	08/2004 - 12/2999	1
82666X - HOLDER, CONNECTOR NO.17
82666-26370	TRH229..CBU;KDH22#,TRH221,223,224,226,228 NO.1	01/2005 - 12/2999	1
82666X - HOLDER, CONNECTOR NO.17
82666-26370	TRH229..CBU;KDH22#,TRH221,223,224,226,228 NO.1	01/2005 - 12/2999	1
82666Z - HOLDER, CONNECTOR NO.19
82666-58050	KDH222,227,TRH223,224,228,229..(GC,GL)..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 6ｽﾋﾟｰｶ&ﾊﾞｯｸﾓﾆﾀ−有り(ｶﾞｲﾄﾞ)	01/2005 - 12/2005	1
82666-58050	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 08/2010	1
82666-58050	TRH224,229..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(HDD) *RSE 6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り	12/2005 - 08/2010	1
Common parts
90119-06923
91553-80818
Linked diagrams
8504
8714

ILLUST NO. 1 OF 9(1312-1712)TRH200,21#,22#

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ 1/2

Part #	Description	Period	Qty	Price
Common parts
90119-06923
90179-06274
91551-80608
91552-81018
Linked diagrams
5551
8401

ILLUST NO. 5 OF 9(1312-2005)TRH219..4D ; (1312-2005)KDH20#,211,22#,TRH200,211,214,216,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82711-26370
90119-06923
90179-06274
91511-B0614
91553-80616

ILLUST NO. 5 OF 9(1312-2005)TRH21#,22#

Click highlighted areas on diagram

ﾌﾛﾝﾄﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ

Part #	Description	Period	Qty	Price
Common parts
82711-26370
90119-06923
90179-06274
91511-B0614
91553-80616
